2012 Nissan Juke Belt Diagram and Maintenance Guide

To ensure your 2012 Nissan Juke runs smoothly, understanding the belt configuration is key. A clear diagram of the engine belt system helps in locating the drive belts, identifying issues, and performing maintenance tasks. This will save you time and effort when working on your vehicle.

The engine belts on your 2012 Nissan Juke include the serpentine belt, which powers vital components such as the alternator, power steering pump, and air conditioning compressor. Knowing how the belts are routed will help you when replacing or inspecting them for wear and tear.

For easy reference, always use a diagram that clearly marks the path and connections of each belt. Make sure to follow the manufacturer’s recommendations when replacing or adjusting the belts. Regularly inspecting the belts for cracks, fraying, or tension issues will help prevent unexpected breakdowns.

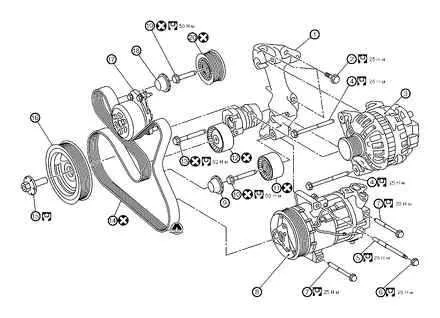

2012 Nissan Juke Belt Diagram

The 2012 Nissan Juke uses a serpentine belt to drive essential engine components like the alternator, power steering pump, air conditioning compressor, and water pump. To ensure optimal performance, it’s crucial to follow the exact routing shown in the vehicle’s belt diagram.

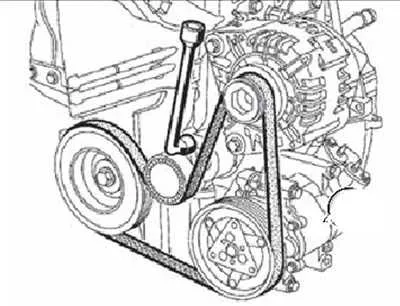

Refer to the diagram for proper belt routing. The belt should pass over the crankshaft pulley, then route around the alternator, power steering pulley, and air conditioning compressor. It will then loop around the idler pulley before reaching the water pump. This ensures that all driven components receive the correct amount of power.

When replacing or inspecting the serpentine belt, always check for signs of wear like cracks or fraying. If any damage is detected, replace the belt immediately to avoid further engine complications. Ensure that the tensioner pulley is functioning properly and maintains the correct belt tension.

If the belt is loose or showing signs of wear, replace it as soon as possible to avoid the risk of belt failure. Following the diagram will help prevent misrouting, which can lead to inefficient engine performance or premature component failure.

Understanding the Timing Belt Configuration for the 2012 Nissan Juke

The 2012 Nissan Juke uses a timing chain system rather than a traditional timing belt. The timing chain connects the crankshaft to the camshaft, ensuring the valves open and close at the correct times during engine cycles. Unlike timing belts, timing chains tend to last longer and require less frequent maintenance.

It’s important to monitor the timing chain’s condition over time, though it generally requires attention only at higher mileages. Regular oil changes and proper engine maintenance are key to extending the life of the timing chain. Unlike belts, timing chains are lubricated by the engine oil, so any issues with oil quality or levels can affect the timing chain’s performance.

If you notice any unusual sounds from the engine, such as rattling, it might indicate that the timing chain or its tensioners are worn. Early detection can prevent more expensive repairs down the line. The timing chain should be replaced if it shows signs of stretching or if the tensioner becomes faulty.

Common Issues with the 2012 Nissan Juke Belt System and How to Identify Them

If you notice squealing noises from the engine, check the serpentine belt for wear or misalignment. A damaged belt can slip, causing noise and preventing other components from functioning properly.

• Cracked or Frayed Belt: Inspect the belt for visible cracks or fraying. These are signs of aging or wear and may lead to belt failure. Replace the belt immediately to prevent engine overheating or power steering loss.
• Belt Tension: Incorrect tension can cause the belt to slip or snap. If the belt feels loose or too tight, adjust it. A slipping belt may also trigger dashboard warning lights.
• Misalignment: Check the alignment of the pulleys. Misalignment can cause uneven wear on the belt and lead to premature damage. Use a straightedge to ensure the pulleys are aligned correctly.
• Worn Pulley Bearings: Pulley bearings can wear out, causing noise or erratic belt movement. Spin the pulleys by hand to check for roughness or wobbling. Replace any faulty pulleys before they cause further damage to the belt.

Regular inspection of the belt and related components can prevent costly repairs. If you notice any of these issues, act quickly to avoid more significant engine damage.

Step-by-Step Guide to Replacing the Belts on a 2012 Nissan Juke

1. First, disconnect the negative battery terminal to prevent any electrical issues while working on the engine.

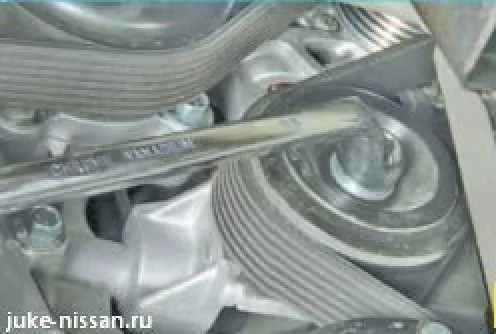

2. Locate the serpentine belt on the front of the engine. You’ll find the belt running over multiple pulleys. Use a ratchet wrench with the correct socket size to release the tension from the tensioner pulley, which allows you to remove the belt.

3. Take note of the belt routing before removing it. You can use a diagram or take a picture for reference. This will help when installing the new belt.

4. Inspect the new belt and compare it with the old one. Ensure that the new belt matches the required specifications for the 2012 Nissan Juke model.

5. Carefully install the new serpentine belt following the exact routing pattern. Make sure it sits properly on all pulleys and is tensioned correctly.

6. Re-tighten the tensioner pulley with the ratchet wrench to secure the new belt in place. Double-check the belt’s positioning on each pulley to avoid slipping or misalignment.

7. Reconnect the negative battery terminal. Start the engine and check the new belt for any abnormal noises or issues during operation. If the belt seems to slip or squeal, recheck the tension and routing.

8. If everything runs smoothly, the replacement is complete, and you’re good to go!
