2010 Nissan Sentra Serpentine Belt Diagram and Maintenance Guide

The serpentine belt on your 2010 Nissan Sentra plays a key role in powering multiple engine components. Regular inspection and maintenance are necessary to avoid unnecessary damage or failure of crucial systems. If you’re experiencing issues with engine performance or hear unusual noises, it might be time to check the condition of the serpentine belt.

To ensure your vehicle is operating smoothly, refer to the 2010 Nissan Sentra serpentine belt diagram for guidance. This diagram will help you identify the correct routing and placement of the serpentine belt, ensuring that it’s properly aligned and functional.

If you’re replacing the serpentine belt, make sure to match the new belt with the specifications provided in the diagram. Always verify the belt’s tension and alignment after installation to prevent premature wear or damage to the engine components it drives.

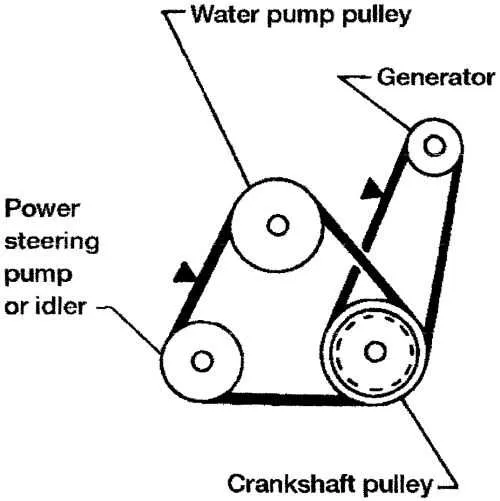

2010 Nissan Sentra Serpentine Belt Diagram

The 2010 Nissan Sentra’s serpentine belt is a critical component that drives multiple accessories such as the alternator, power steering pump, and air conditioning compressor. To replace or inspect the belt, it’s vital to understand its routing and tension. The serpentine belt wraps around a series of pulleys and is tensioned by the automatic belt tensioner, which keeps it tight during operation. The correct path ensures proper function of all driven accessories.

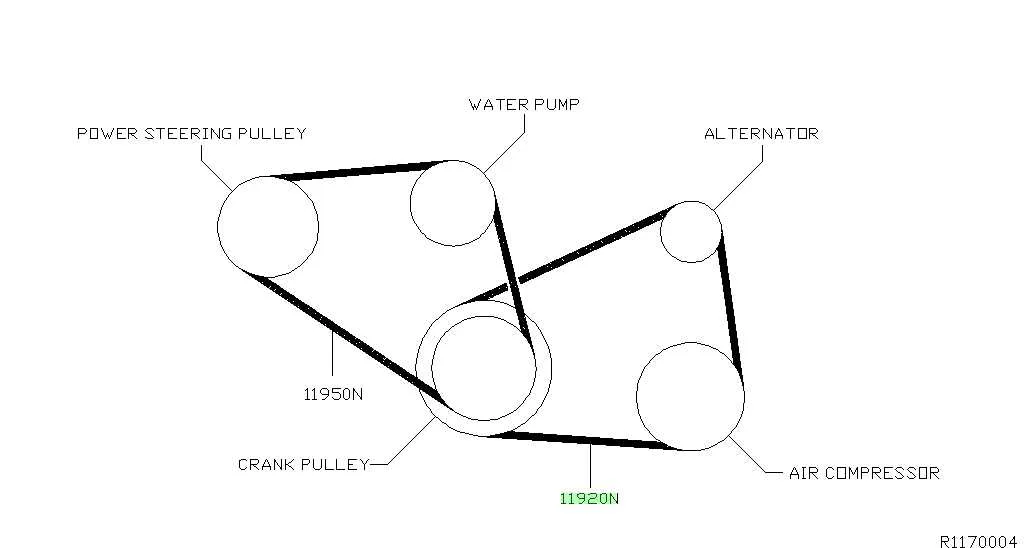

Refer to the diagram to identify the correct routing of the serpentine belt. It typically starts from the crankshaft pulley, moves across the tensioner, and loops around the alternator, water pump, and other accessories. Double-check the belt’s routing against the diagram before installation to prevent any misalignment that could lead to malfunction.

When replacing the serpentine belt, always use a replacement that matches the manufacturer’s specifications for length, width, and material type. Proper tension is important; too tight can damage components, and too loose can lead to slippage. If you’re unsure about the installation, consulting the repair manual for your specific Sentra model will provide the exact details needed for a smooth and functional belt replacement.

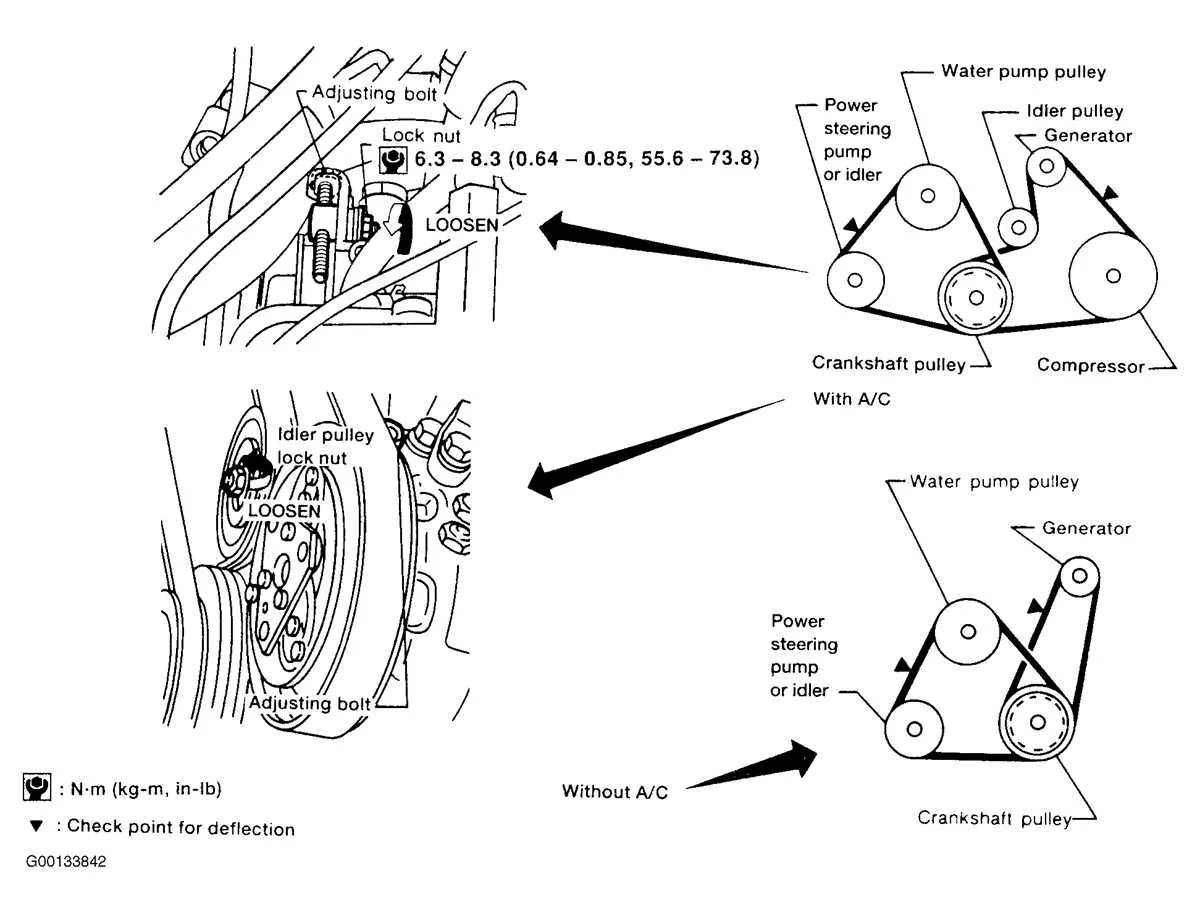

How to Read the 2010 Nissan Sentra Serpentine Belt Diagram

To read the 2010 Nissan Sentra serpentine belt diagram, focus on identifying the components shown and their connections. The diagram clearly indicates the path of the serpentine belt around pulleys, idler arms, and the tensioner. Start by locating the tensioner pulley–this is often the key point for removing or installing the belt. It’s usually marked on the diagram with a distinct label or symbol.

Next, identify the alternator, power steering pump, and air conditioning compressor, as these components are typically connected to the serpentine belt. Follow the lines that indicate the belt’s route around each of these pulleys. The diagram will show the direction of the belt and any twists or turns that may occur between pulleys.

Pay attention to any arrows indicating the direction the belt should rotate. This is crucial for ensuring proper installation. In some cases, the diagram will also display a tensioning procedure, which may require a special tool to release or adjust the tension on the belt.

If the diagram includes a numbered list or labels, refer to those for a clearer understanding of each part and its corresponding pulley. This will help you avoid confusion and ensure the correct sequence when installing or replacing the serpentine belt.

Finally, confirm the belt’s length and dimensions by cross-referencing the diagram with your car’s manual or part specifications. This ensures the belt will fit properly and function effectively when installed.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2010 Nissan Sentra

Start by ensuring the engine is off and cool. Disconnect the negative terminal of the battery to avoid electrical issues.

Locate the serpentine belt. You can find it at the front of the engine, usually visible around the pulleys. Take a close look at the routing diagram, often located on the radiator support or engine bay, to see the exact path the belt follows.

Using a wrench or socket, relieve tension on the serpentine belt by rotating the tensioner pulley clockwise. This will allow you to slide the belt off the pulleys. Keep in mind the belt’s path as you remove it; you can refer to the diagram for clarity.

Once the belt is removed, check the condition of the tensioner and other pulleys. If they show signs of wear, replace them to prevent future issues. Install the new serpentine belt by following the same routing, making sure it sits properly on each pulley.

After placing the new belt, use the wrench to rotate the tensioner pulley again and slide the belt into its proper position. Make sure the belt is aligned on all pulleys without slipping off.

Double-check the tension of the belt. It should feel tight, but not excessively so. You can check by pressing down on the belt with your fingers; it should not move more than half an inch when you apply moderate pressure.

Reinstall any components that were removed during the process. Reconnect the negative terminal of the battery and start the engine to ensure the belt is functioning properly.

If the belt is running smoothly without any squeaks or unusual noises, you’ve successfully replaced the serpentine belt on your 2010 Nissan Sentra!

Common Issues with the Serpentine Belt System on a 2010 Nissan Sentra

One common issue with the serpentine belt system on a 2010 Nissan Sentra is belt wear and tear. Over time, the belt can crack, fray, or become brittle, leading to decreased performance or complete failure. Regular inspection of the belt for visible signs of damage can prevent unexpected breakdowns.

The tensioner pulley may also be a source of trouble. If the pulley becomes worn or fails to maintain proper tension, it can cause the serpentine belt to slip or squeal. Replacing a faulty tensioner pulley early can prevent further damage to the belt and other components in the system.

Another issue involves misalignment of the belt. This can occur when pulleys or components such as the alternator or power steering pump become loose or misaligned. Misalignment causes the belt to wear unevenly, leading to poor performance and a higher risk of damage. Regular checks of pulley alignment can help identify this issue before it worsens.

In some cases, the idler pulley can wear out, causing the serpentine belt to jump off or fail to track properly. If you notice unusual noises or the belt slipping off, inspect the idler pulley for wear and replace it as necessary.

Finally, contaminated belts are another problem. Oil, coolant, or other fluids leaking onto the serpentine belt can degrade the rubber material, causing it to weaken or slip. Keeping engine fluids in check and fixing any leaks can help extend the life of the serpentine belt and maintain system performance.
