2010 Nissan Sentra Serpentine Belt Diagram and Routing Guide
Understanding the belt diagram of the 2010 Nissan Sentra is key when it comes to troubleshooting or performing maintenance on the engine’s drive components. The belt system plays a critical role in powering multiple engine accessories like the alternator, power steering pump, and air conditioning compressor. A clear belt diagram simplifies tasks such as belt replacements and alignment checks.
Refer to the official diagram for your Sentra model to ensure the correct routing of the serpentine belt. This will prevent any misalignment that could lead to excessive wear, noise, or damage to your engine components. The diagram is typically located in the engine bay or available in the vehicle’s manual.
For optimal performance, inspect the belt regularly for signs of wear such as cracking, fraying, or glazing. A worn-out belt can compromise engine function and lead to failure of vital systems. Replacing the belt as per the specifications will ensure your vehicle remains in top condition, minimizing the risk of unexpected breakdowns.

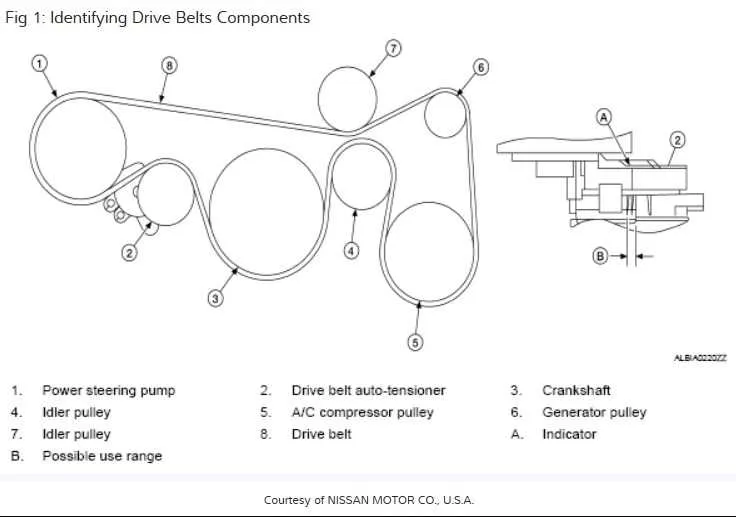

2010 Nissan Sentra Belt Diagram
To replace or inspect the belts on a 2010 Nissan Sentra, it’s important to understand the routing and components involved. The engine uses a serpentine belt system, which drives multiple accessories including the alternator, power steering pump, air conditioning compressor, and water pump.
The serpentine belt follows a specific path, running from the crankshaft pulley, passing over the idler pulleys and tensioner, and connecting to the driven components. A proper belt diagram is crucial for installation. It ensures the belt is aligned correctly and operates efficiently, avoiding unnecessary wear or damage to engine components.
Inspect the belt for any visible cracks, fraying, or signs of wear. If any issues are found, replacing the belt is a straightforward process. Start by loosening the tensioner pulley to relieve tension from the belt, then remove the old belt and install the new one by following the routing shown in the diagram. Make sure the belt sits properly on all pulleys before tightening the tensioner again.
If you’re unsure about the belt condition or replacement procedure, always consult the service manual or a professional technician. A worn belt can lead to poor performance and potential engine damage, so timely inspection and replacement are key to maintaining the vehicle’s reliability.

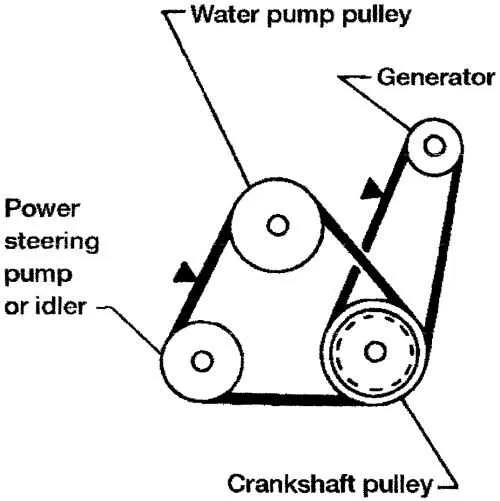

How to Read the 2010 Nissan Sentra Belt Diagram

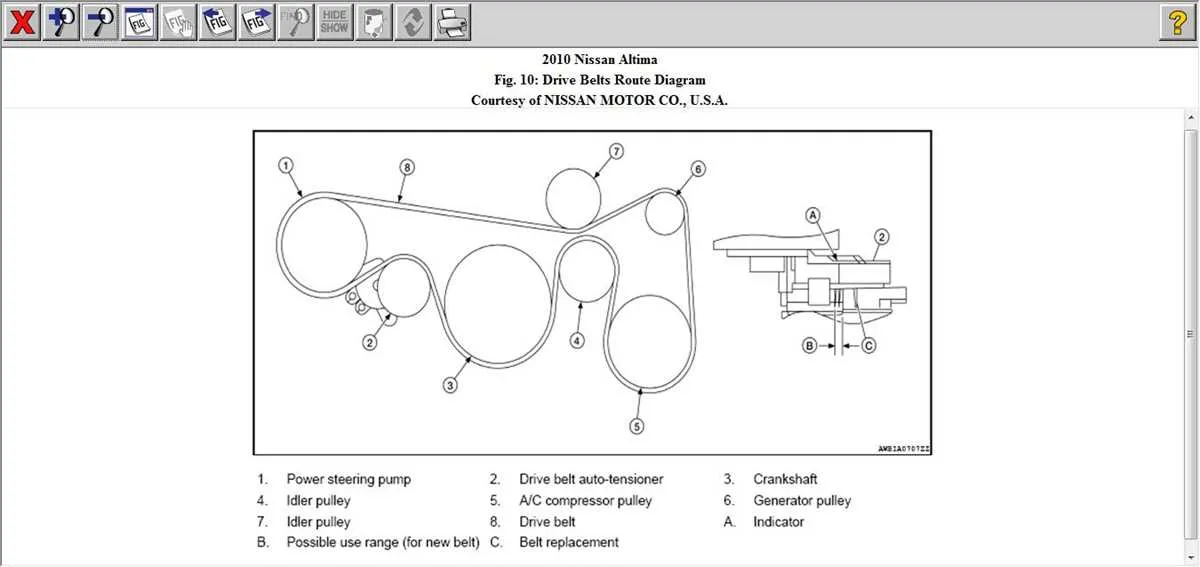

To read the 2010 Nissan Sentra belt diagram, start by identifying the components connected by the belt. The diagram will show pulleys, tensioners, and the belt’s path. Look for the crankshaft pulley, which is the starting point of the belt’s route. From there, the belt will loop around various pulleys, including the alternator, power steering pump, and air conditioning compressor, depending on the specific setup of your vehicle.
Examine the direction of rotation indicated on the diagram. Arrows typically show the movement of the belt as it travels across each pulley. Pay close attention to the tensioner and idler pulleys, as these are critical for maintaining proper tension on the belt. In most cases, the tensioner pulley will be spring-loaded, automatically adjusting the belt tension during operation.
Check for any specific notes on the diagram that refer to belt routing, such as the location of the routing guide or any special instructions. These may include specific details for routing the belt around certain pulleys or additional steps to follow during installation or maintenance.
Finally, verify the number of ribs on the belt and the required belt length, which may be indicated on the diagram. A mismatch can lead to improper fitting, causing the belt to slip or wear out prematurely.
Common Belt Issues and Solutions for 2010 Nissan Sentra
One of the most common issues with the 2010 Nissan Sentra’s drive belts is belt wear due to prolonged use. Over time, the belt may start to crack or show signs of fraying. To prevent this, replace the belt every 60,000 to 100,000 miles or when you notice visible damage. If the belt is slipping or squealing, check the tension. A loose belt can cause poor engine performance and damage to other components.
Another issue is the belt misalignment, often caused by a faulty pulley or a worn-out tensioner. This misalignment leads to uneven wear, which can result in the belt breaking. Inspect the pulleys and tensioner regularly, and replace them if necessary to avoid this problem.
Overheating can also affect the belt, as the rubber may degrade under high temperatures. In this case, ensure the cooling system is functioning properly to prevent excessive heat from damaging the belt. If the belt becomes brittle or starts to crack, replace it immediately to avoid further damage to the engine’s components.
Finally, if you experience unusual noises or vibrations while driving, it might be a sign of a failing belt. In this case, check the belt for signs of wear and replace it if needed. Also, inspect the pulleys and tensioner for proper operation.
Steps for Replacing the Drive Belt in 2010 Nissan Sentra
To replace the drive belt in your 2010 Nissan Sentra, follow these steps:
- Ensure the engine is off and cool before starting the replacement process.
- Locate the drive belt routing diagram, usually found on the engine bay or in the service manual.
- Loosen the tensioner pulley. Use a wrench or socket to relieve the tension on the belt, allowing it to be removed.
- Remove the old drive belt by sliding it off the pulleys. Take note of the belt’s routing before removal for proper reinstallation.
- Check the condition of the pulleys and other components. Replace any worn or damaged parts before installing the new belt.
- Install the new drive belt, following the correct routing path shown in the diagram.
- Reapply tension to the belt by tightening the tensioner pulley until the belt is secure and there is no slack.
- Double-check the belt alignment on all pulleys to ensure it’s properly seated.
- Start the engine and verify that the belt is running smoothly without squeaks or vibrations.
- Test the vehicle on the road to ensure everything is functioning correctly.
