2010 Nissan Rogue Belt Diagram and Component Overview

To maintain optimal performance of your 2010 Nissan Rogue, understanding the belt system is crucial. The drive belt, serpentine belt, and other components ensure smooth engine operation by transferring power from the engine to various accessories. If you’re experiencing issues like squealing noises or malfunctioning accessories, it may indicate belt wear or misalignment.

First, locate the serpentine belt diagram. It’s typically found on the radiator support or near the engine bay. This diagram shows how the serpentine belt is routed around the pulleys, which is key when replacing or adjusting it. Identifying the specific path of the belt will help in diagnosing issues related to tension, alignment, or wear.

To replace the drive belt on the 2010 Nissan Rogue: Loosen the tensioner pulley, remove the old belt, and install the new one, ensuring it follows the exact routing as depicted in the diagram. Check the belt for any signs of cracks or wear before installation to avoid future problems.

Maintaining your belts properly is vital for the longevity of your engine and accessories. Ensure the tension is correct, and inspect the belts regularly for any damage. If the belt appears worn or cracked, replace it immediately to avoid damage to other engine components.

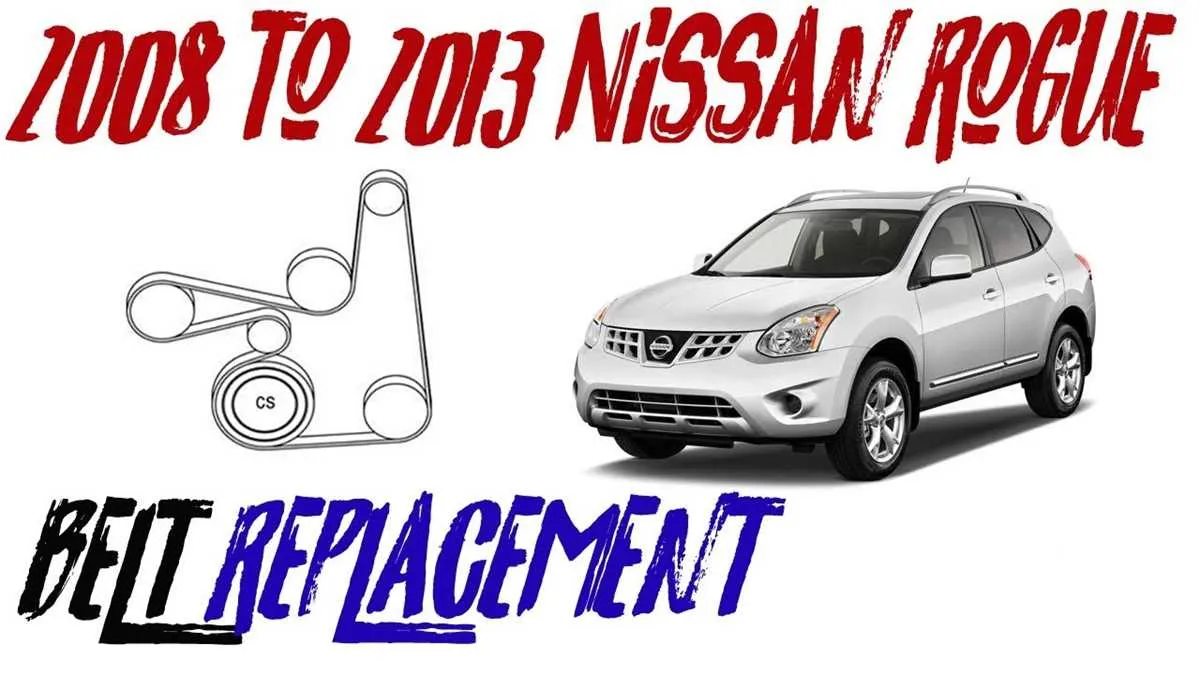

2010 Nissan Rogue Belt Diagram

The 2010 Nissan Rogue uses a serpentine belt system to drive multiple components of the engine, such as the alternator, power steering pump, and air conditioning compressor. Refer to the diagram to ensure proper routing and installation for optimal belt performance.

To properly install or replace the serpentine belt, start by locating the tensioner pulley. Use a wrench or socket to relieve tension and remove the old belt. Ensure that the new belt is routed according to the diagram, matching the path shown for each pulley, including the alternator, power steering, and other accessories. The diagram also indicates the correct orientation for the belt, ensuring it functions smoothly across all components.

If you notice any unusual wear patterns or damage on the belt or pulleys, replace the faulty parts before reinstalling the new belt. Check the condition of the tensioner pulley as well; a worn tensioner can cause the belt to slip or misalign. It’s important to adjust the tension to manufacturer specifications to avoid premature wear.

After installation, check the alignment of the belt to confirm that it tracks correctly across each pulley. Start the engine and listen for any signs of unusual noise, such as squeaking or chirping, which may indicate misalignment or incorrect tension. Regular maintenance of the serpentine belt system will prevent issues related to engine accessories and ensure reliable operation.

How to Identify the Correct Belt Components on the 2010 Nissan Rogue

Check the belt diagram for the 2010 Nissan Rogue before proceeding with any maintenance. It provides a clear map of the components involved in the drive belt system. First, locate the serpentine belt, which drives various engine accessories like the alternator and air conditioning compressor. This belt is typically the longest and most prominent in the diagram.

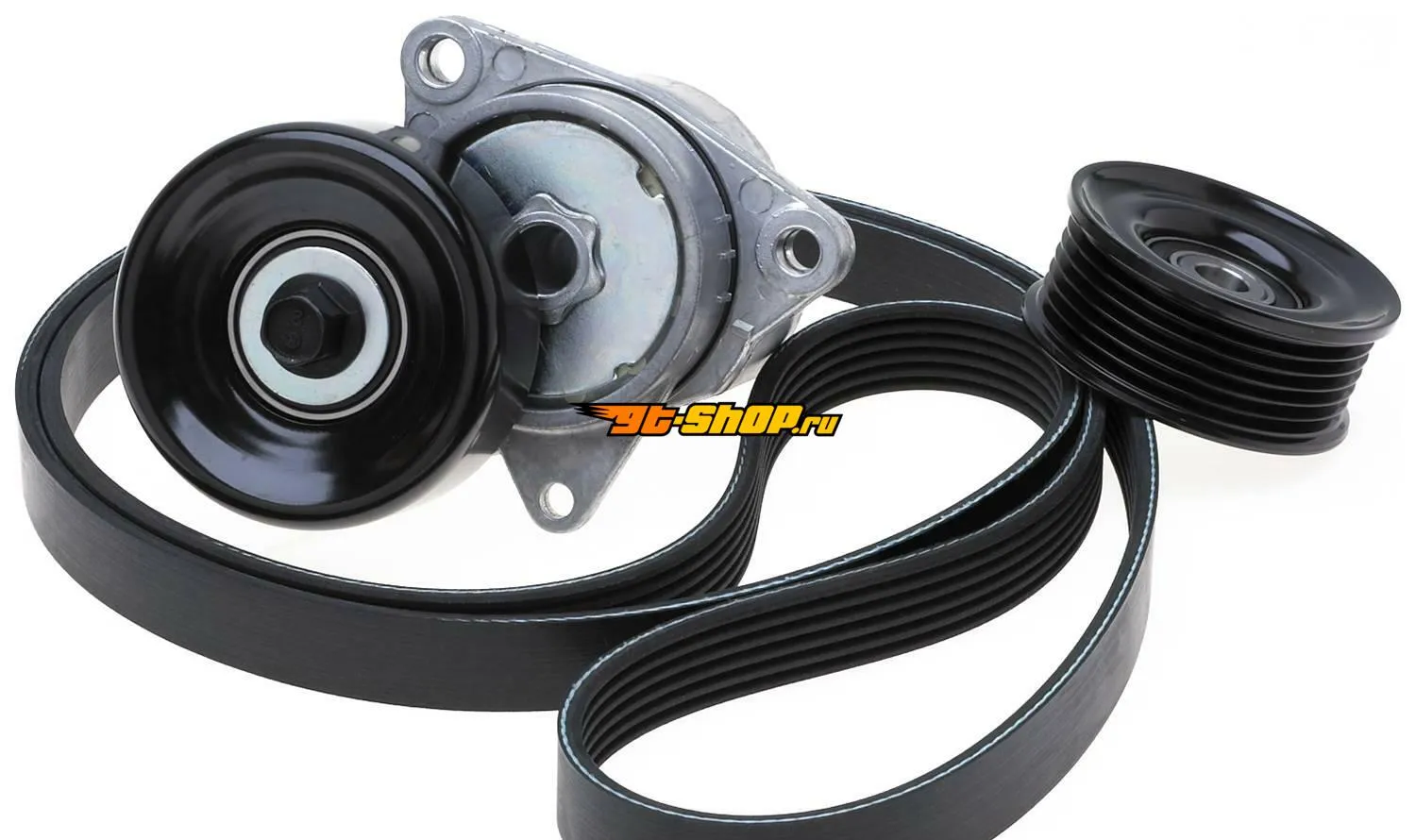

Next, identify the tensioner pulley. It keeps the belt under proper tension, ensuring it doesn’t slip. The tensioner will often have an adjustment mechanism visible in the diagram. Look for a spring-loaded component that presses against the belt.

Find the idler pulley, which guides the belt along its path without engaging any accessories. This pulley is stationary and typically located along the belt route. The diagram will show its position relative to the other components to help you pinpoint it easily.

Ensure you recognize the alternator and power steering pump pulleys, as these components are often involved in the belt system. The alternator pulley is usually situated near the front of the engine, while the power steering pump pulley is typically located on the side.

Double-check each pulley’s alignment by comparing it with the diagram. Incorrectly aligned pulleys can lead to premature wear on the belt and other components. Keep a close eye on the belt routing to ensure it matches the layout on the diagram.

Steps to Replace the Drive Belt on a 2010 Nissan Rogue

1. Begin by securing the vehicle on a flat surface and engaging the parking brake. Lift the front of the car using a jack and secure it with jack stands.

2. Disconnect the negative battery terminal to avoid any electrical hazards while working on the vehicle.

3. Locate the drive belt by removing the plastic engine covers, if necessary, for better visibility. The drive belt is usually located at the front of the engine, near the alternator and the power steering pump.

4. Use a wrench to rotate the tensioner pulley counterclockwise, relieving tension on the belt. Carefully remove the old drive belt from the pulleys.

5. Inspect the pulleys and tensioner for any damage or wear. Replace any components showing signs of damage before installing the new belt.

6. Install the new drive belt, ensuring it follows the correct routing path as indicated in the vehicle’s belt diagram. Double-check that the belt is seated properly on all pulleys.

7. Rotate the tensioner pulley again to apply tension to the new belt. Make sure the belt is tight enough but not overly stretched.

8. Reinstall any covers or components removed earlier. Reconnect the negative battery terminal.

9. Start the engine and observe the drive belt’s operation. Listen for any unusual sounds, and check for proper alignment and tension.

10. Lower the vehicle from the jack stands and test drive the car to ensure everything functions correctly.

Troubleshooting Common Issues with the Belt System on the 2010 Nissan Rogue

If the belt on your 2010 Nissan Rogue is making noise or not functioning properly, inspect the following common issues:

1. Worn-out Belt – A worn-out belt can cause slippage, squealing noises, or even complete failure. Check the belt for visible cracks, fraying, or glazing. If the belt is damaged, replace it with the recommended part for the vehicle.

2. Misaligned Pulleys – Misalignment can lead to belt wear, irregular noise, or loss of functionality. Ensure the pulleys are properly aligned and not bent. If misalignment is found, check for loose mounting bolts or worn components and tighten or replace as necessary.

3. Tension Issues – A loose or overly tight belt can affect performance. Check the belt tension using a tension gauge or by feeling the slack in the belt. Adjust the tensioner to maintain the correct tension. If the tensioner is faulty, replace it.

4. Pulley Damage – A damaged or seized pulley can cause excessive wear on the belt, affecting its ability to run smoothly. Inspect each pulley for smooth operation. If any pulley is sticking or shows signs of wear, replace it immediately.

5. Contamination – Oil, coolant, or other fluids on the belt can cause slippage and accelerate wear. Ensure there are no fluid leaks near the belt. If contamination occurs, clean the affected area and replace the belt if necessary.

Perform these checks regularly to prevent major issues and ensure your belt system functions optimally. If you are unsure of the repair steps, consult a professional mechanic.
