2009 Nissan Murano Serpentine Belt Routing Diagram and Replacement Guide

To replace or inspect the serpentine belt on a 2009 Nissan Murano, refer to the diagram to ensure proper installation. This belt drives several important engine components, such as the alternator, power steering pump, and air conditioning compressor. A visual guide helps prevent misalignment or improper tension.

Key Components: The serpentine belt routes around various pulleys, including the crankshaft pulley, tensioner, and idler pulleys. Knowing the correct path for the belt ensures everything works smoothly. Always check the condition of the belt and pulleys before installation.

Tip: If the belt shows signs of wear, such as cracks or fraying, replace it immediately to avoid unexpected breakdowns. Keep the tensioner properly adjusted, as a loose belt can cause poor performance or damage to engine components.

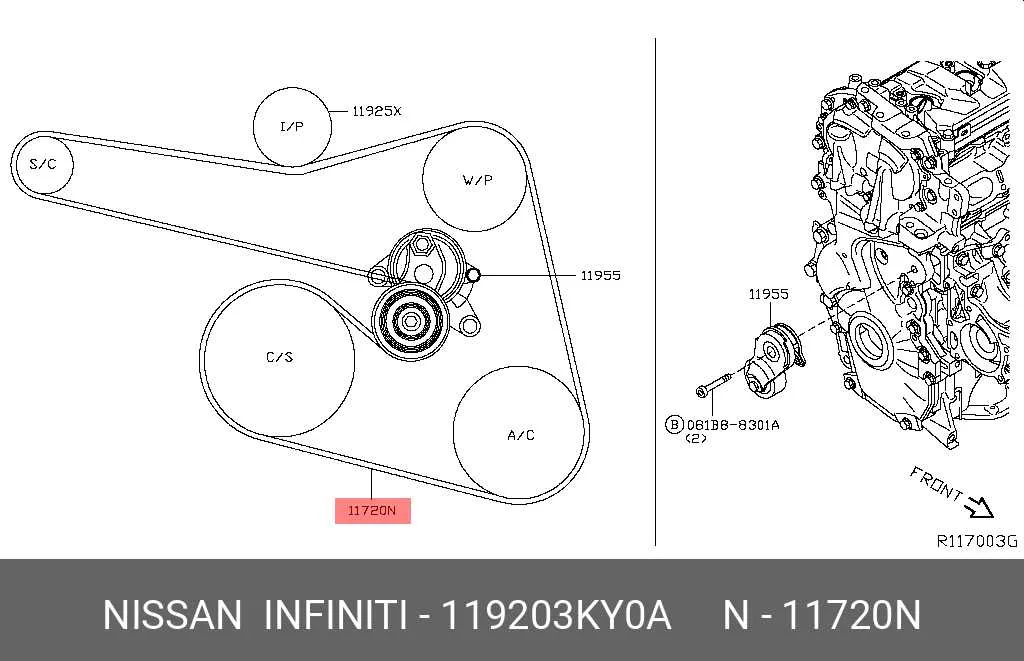

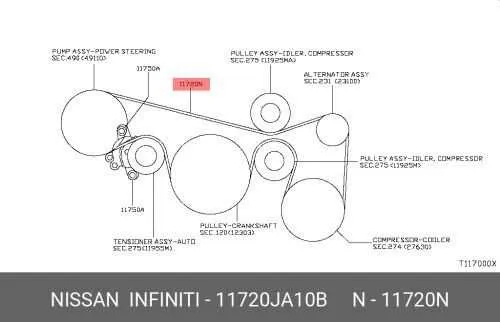

2009 Nissan Murano Serpentine Belt Diagram

The 2009 Nissan Murano serpentine belt follows a specific path around the engine’s components. Make sure to refer to the diagram to understand the correct routing of the belt. The serpentine belt drives essential accessories like the alternator, power steering pump, and air conditioning compressor.

Start by identifying the tensioner pulley, which adjusts the belt’s tension. The belt loops around the crankshaft pulley, then goes to the alternator pulley, before reaching the power steering pump and the AC compressor. The water pump and idler pulleys are also part of the routing, helping guide the belt through its path and maintain proper tension.

Inspect the belt for wear and replace it if you notice any cracks, fraying, or damage. A worn-out belt can lead to poor performance and damage to the engine accessories. Always make sure the belt is routed correctly before starting the engine, as an improper routing could lead to overheating or other mechanical failures.

If you’re replacing the serpentine belt, check the belt tensioner for proper functionality. If the tensioner is worn or damaged, it may need to be replaced as well to ensure the belt stays properly tensioned. Follow the diagram closely to ensure each component is correctly aligned.

Understanding the Serpentine Belt Routing for 2009 Nissan Murano

The serpentine belt routing diagram for the 2009 Nissan Murano is crucial for proper engine performance. First, ensure that the belt is routed correctly to avoid any strain on the engine components.

The belt follows a specific path, starting from the crankshaft pulley, moving around the tensioner, and wrapping around the alternator and power steering pump. Be sure to check that the belt travels around the water pump and air conditioning compressor, as these components also rely on the serpentine belt for power.

Incorrect routing can lead to excessive wear, slipping, or even a complete failure of the belt, which may cause significant engine damage. Always double-check the routing before securing the belt. If you have any doubts, refer to the service manual or the diagram located on the engine bay for visual guidance.

Replacing the serpentine belt on your 2009 Murano is straightforward once you follow the routing diagram. Make sure the tensioner is adjusted properly to maintain the correct belt tension. A belt that is too loose or too tight can cause performance issues or premature failure.

Common Issues with Serpentine Belt and How to Spot Them

If your serpentine belt starts showing signs of wear, it can affect the performance of multiple engine components. Pay attention to these common problems:

• Cracks and Fraying: Regularly inspect the belt for visible cracks or fraying along its edges. These can appear from heat, friction, and age. Replace the belt if the damage is noticeable.
• Unusual Noise: A squealing or squeaking sound can be a sign that the belt is slipping or misaligned. This may indicate the belt needs tightening or replacing.
• Slipping: If the belt feels loose or you notice the engine accessories, such as the alternator or power steering, aren’t working properly, the belt might not be making proper contact with the pulleys.
• Shiny or Glossy Surface: A shiny or glazed surface on the belt indicates that it has been slipping or overheating. This can cause the belt to lose traction and should be addressed immediately.
• Visible Wear: Over time, the belt will wear down. If you notice uneven wear patterns or the rubber becoming thin, it’s time for a replacement.

Inspect your serpentine belt regularly to avoid costly repairs. Early detection of these issues can help maintain engine efficiency and prevent unexpected breakdowns.

Steps to Replace the Serpentine Belt on 2009 Nissan Murano

To replace the serpentine belt on a 2009 Nissan Murano, follow these steps:

1. Prepare the Vehicle: Park the Murano on a flat surface and engage the parking brake. Disconnect the negative terminal of the battery to avoid electrical hazards.

2. Locate the Serpentine Belt: Open the hood and locate the serpentine belt. It runs around several pulleys, including the alternator, power steering pump, and air conditioning compressor.

3. Release Tension from the Belt: Use a socket wrench to rotate the tensioner pulley in the direction specified in the owner’s manual. This will relieve tension on the serpentine belt, allowing you to remove it easily.

4. Remove the Old Belt: Slide the serpentine belt off the pulleys carefully. Make sure to remember the routing of the belt for installation. If necessary, refer to the serpentine belt diagram in the service manual.

5. Install the New Belt: Position the new serpentine belt over the pulleys according to the routing diagram. Ensure the belt is properly seated on each pulley, without any twists or slack.

6. Apply Tension to the New Belt: Use the socket wrench to rotate the tensioner pulley again, applying the correct tension to the new belt. Double-check that the belt is properly aligned and tight.

7. Reconnect the Battery: Reconnect the negative terminal of the battery and ensure it is secure.

8. Test the New Belt: Start the engine and observe the belt’s operation. Listen for any unusual noises and ensure the belt is running smoothly without slipping or misalignment.

By following these steps, you can successfully replace the serpentine belt on your 2009 Nissan Murano, ensuring the smooth operation of the engine’s components.
