2009 Nissan Murano Serpentine Belt Routing and Diagram Guide
To properly replace or inspect the serpentine belt in a 2009 Nissan Murano, understanding the belt routing and components is key. The serpentine belt system drives essential components like the alternator, power steering pump, and air conditioning compressor. Ensure the belt is routed correctly to avoid damage to these parts and maintain optimal vehicle performance.

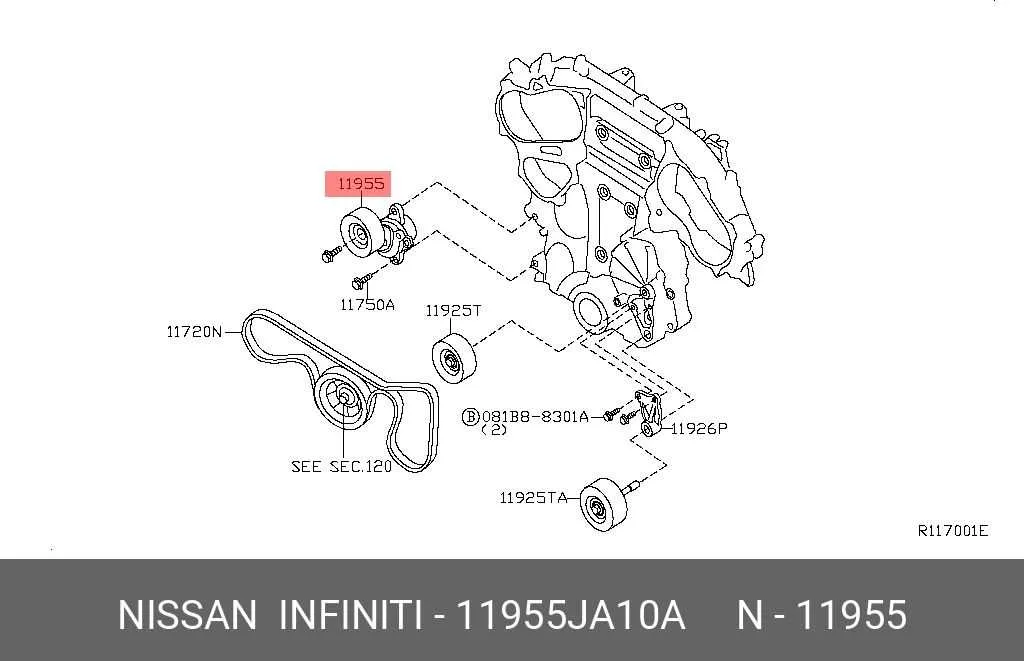

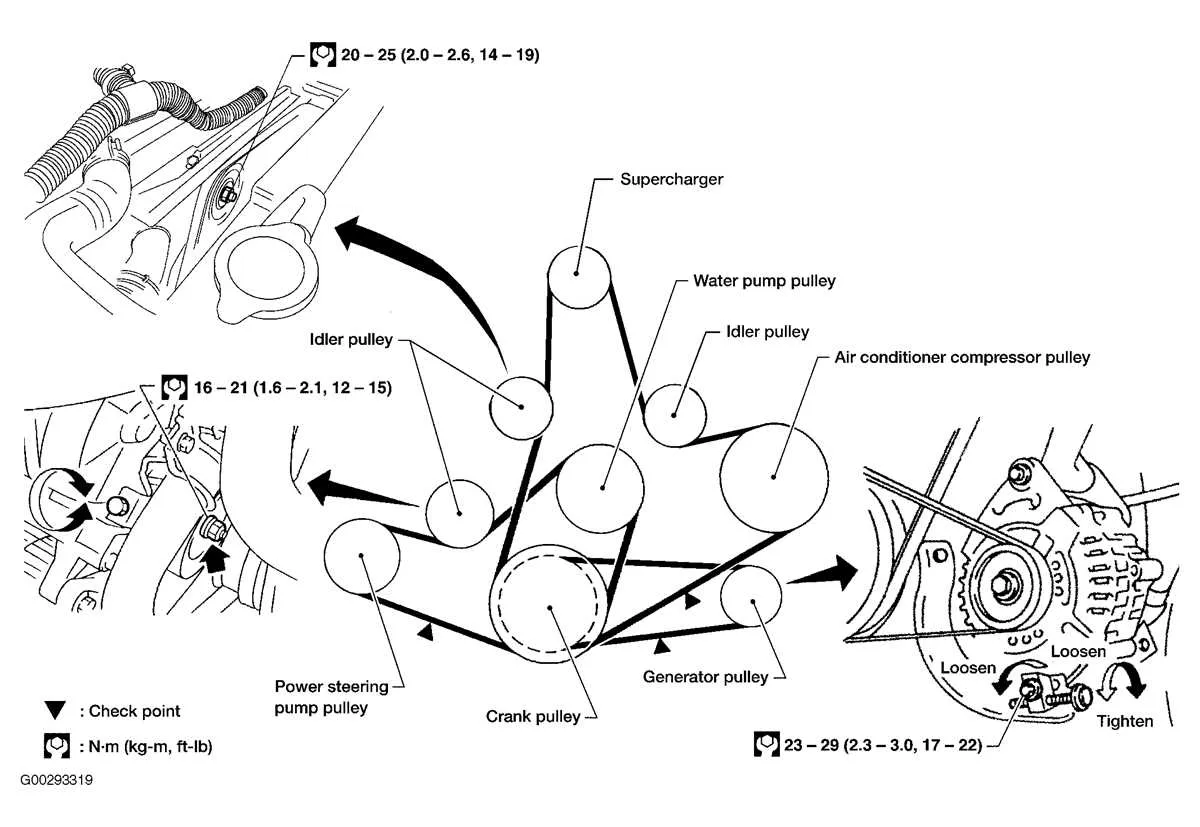

The belt diagram for the 2009 Nissan Murano is simple but requires attention to detail. Refer to the engine’s belt routing diagram located under the hood, which provides a clear visual guide for proper installation. Verify that the belt runs through all pulleys in the correct order and tension. If the belt shows signs of wear or cracking, replacing it promptly will prevent further engine issues.
It’s also important to check the condition of the pulleys and tensioner. Over time, they can wear out and cause improper tension, leading to belt slippage or failure. When replacing the serpentine belt, consider replacing these components as well to avoid future repairs.
2009 Nissan Murano Belt Diagram
The 2009 Nissan Murano uses a serpentine belt system to drive multiple engine components, such as the alternator, power steering pump, air conditioning compressor, and water pump. To ensure proper operation, it’s important to follow the correct routing for the serpentine belt.
To check the belt’s routing, refer to the diagram located near the engine compartment or in the vehicle’s service manual. The belt runs in a specific sequence over various pulleys, and any misalignment can cause premature wear or failure.
If you’re replacing the serpentine belt, start by relieving the tension using the tensioner pulley. Once the belt is free, compare the old and new belts to ensure the correct size. Install the new belt following the exact routing as shown in the diagram. Double-check that the belt fits snugly on all pulleys and is properly tensioned.
Regular inspection of the serpentine belt for signs of wear, cracks, or fraying can help prevent unexpected breakdowns. Replace the belt every 60,000 to 100,000 miles, depending on the condition of the belt and the vehicle’s usage.
Understanding the Serpentine Belt Routing in 2009 Nissan Murano
The serpentine belt in the 2009 Nissan Murano plays a key role in driving multiple engine accessories. The routing of the belt needs to follow a precise pattern to ensure proper operation of components like the alternator, power steering pump, and air conditioning compressor. Identifying the correct belt path is crucial for optimal engine performance and preventing damage.
Start by locating the tensioner pulley, which keeps the belt tight. The belt should loop around the crankshaft pulley first, then over the alternator and power steering pump pulleys. The air conditioning compressor pulley is next in line, followed by the idler pulley. Finally, the belt should loop back to the tensioner pulley, which is responsible for maintaining proper tension and preventing slippage.
Ensure the belt is aligned correctly on all pulleys, with no slack or twists. If the routing is incorrect, it can lead to inefficient performance or, in the worst case, belt failure. When replacing or reinstalling the serpentine belt, refer to a service manual or diagram for the exact routing order specific to the 2009 Nissan Murano to avoid mistakes.
How to Identify the Correct Belt Tension for 2009 Nissan Murano
Check the belt tension by pressing down on the serpentine belt midway between two pulleys. Apply moderate pressure with your thumb. The belt should deflect slightly but not excessively. If the deflection is more than half an inch, the tension may be too loose.
If the belt feels tight and you can’t press it down easily, it might be over-tightened. Over-tightening can cause premature wear on the bearings of the components it drives, such as the alternator and power steering pump.
Use a belt tension gauge to ensure precise measurement. This tool allows you to check the force needed to deflect the belt by a specific distance. Refer to the manufacturer’s specifications for the correct tension reading.
Additionally, check for any signs of wear or fraying on the belt. A worn-out belt can also indicate improper tension. If the belt shows damage or excessive wear, replace it as soon as possible.
Finally, keep the belt aligned properly. Misalignment can also affect tension and cause premature failure. If the belt isn’t sitting squarely on the pulleys, inspect the pulleys and idler arms for any issues.
Steps to Replace the Serpentine Belt on a 2009 Nissan Murano
1. Lift the vehicle and secure it on jack stands. Make sure the engine is off and has cooled down.
2. Locate the serpentine belt routing diagram. This is usually found on a label near the engine bay or in the owner’s manual. This will help you understand the proper path of the belt.
3. Use a socket wrench to loosen the tensioner pulley. This will relieve tension on the belt, making it easier to remove.
4. Remove the old serpentine belt by carefully sliding it off the pulleys. Make sure to note how the belt is routed for proper reinstallation.
5. Compare the new serpentine belt with the old one to ensure they are of the same size and specifications.
6. Install the new serpentine belt by following the routing diagram. Ensure the belt sits securely on all pulleys.
7. Tighten the tensioner pulley to apply the correct tension to the belt. Check that the belt is properly aligned and does not slip off any pulleys.
8. Start the engine and observe the belt in operation. Listen for any unusual noises and verify that the belt runs smoothly without any misalignment.
