2009 Nissan Altima Serpentine Belt Routing Diagram and Installation Guide

Understanding the serpentine belt system in your 2009 Nissan Altima is key to keeping your vehicle running smoothly. The serpentine belt drives multiple components like the alternator, power steering pump, and air conditioning compressor. A properly installed and maintained belt ensures that these components function correctly, avoiding breakdowns and costly repairs.

The diagram for the 2009 Altima’s serpentine belt routing is straightforward. First, locate the belt tensioner on the engine block; it will help you adjust the belt’s tension. The belt then loops around the alternator, power steering pump, and the A/C compressor, and is routed through the water pump. It’s crucial to ensure the belt aligns correctly with the pulleys to prevent slippage or damage. Pay attention to the direction of the belt’s grooves and ensure they fit snugly within the pulleys’ ribs.

If you’re replacing the serpentine belt, double-check the part number to ensure you’re using the correct size for your Altima’s engine. A belt that’s too tight or too loose can cause significant engine problems. Also, before installing the new belt, inspect the pulleys and tensioner for wear. If any of them are damaged, they should be replaced to avoid stressing the new belt.

Refer to the diagram frequently while performing the replacement to ensure the correct routing, and you’ll avoid unnecessary issues. Keep in mind that regular maintenance and timely belt replacements are key to prolonging the lifespan of your Altima’s engine components.

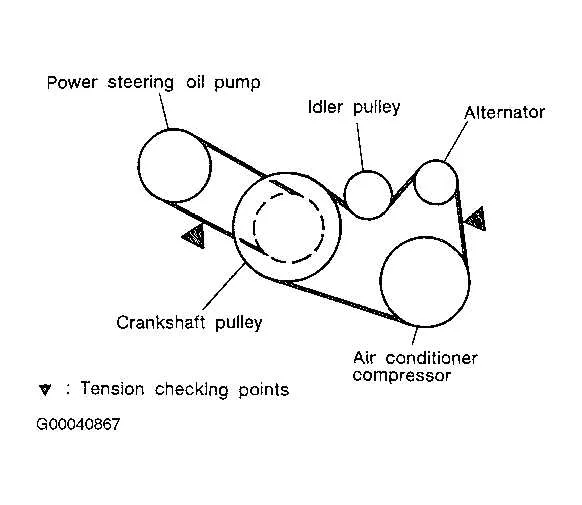

2009 Nissan Altima Serpentine Belt Diagram

To replace or inspect the serpentine belt in a 2009 Nissan Altima, refer to the diagram below for the correct routing. The belt drives essential components such as the alternator, power steering pump, air conditioning compressor, and water pump. Proper installation ensures all components work smoothly and efficiently.

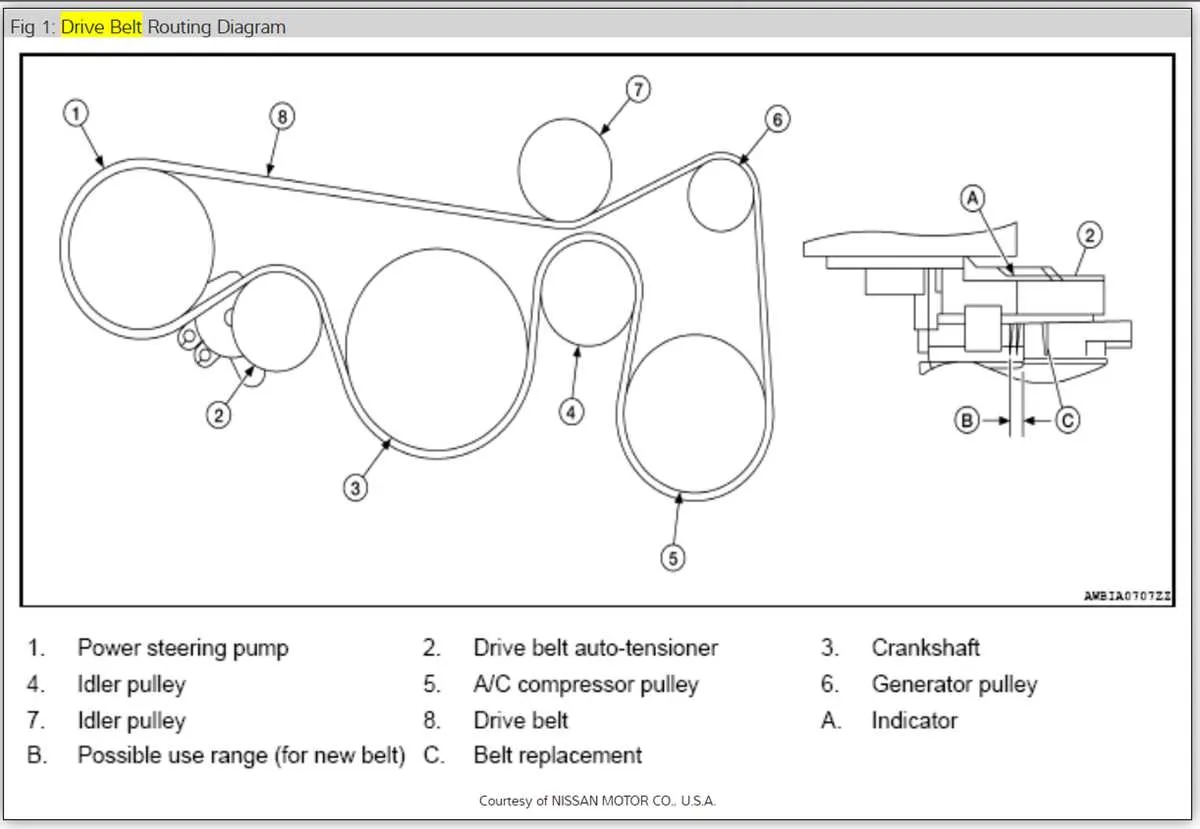

Here’s the layout of the serpentine belt on the 2009 Nissan Altima with the 2.5L engine:

• The serpentine belt starts from the crankshaft pulley at the bottom, loops around the tensioner pulley, and moves up to the alternator.
• The belt then loops around the power steering pump pulley and passes the air conditioning compressor pulley.
• Next, it moves over the idler pulley before reaching the water pump pulley, completing the circuit back to the crankshaft pulley.

Key Points:

• Ensure the belt is routed as shown in the diagram to avoid slippage or improper operation.
• Check the tensioner for proper belt tension before reassembly.
• Inspect the belt for wear or damage. A cracked or frayed belt should be replaced immediately to prevent engine damage.

Use this diagram as a guide when installing a new serpentine belt or checking the alignment during routine maintenance.

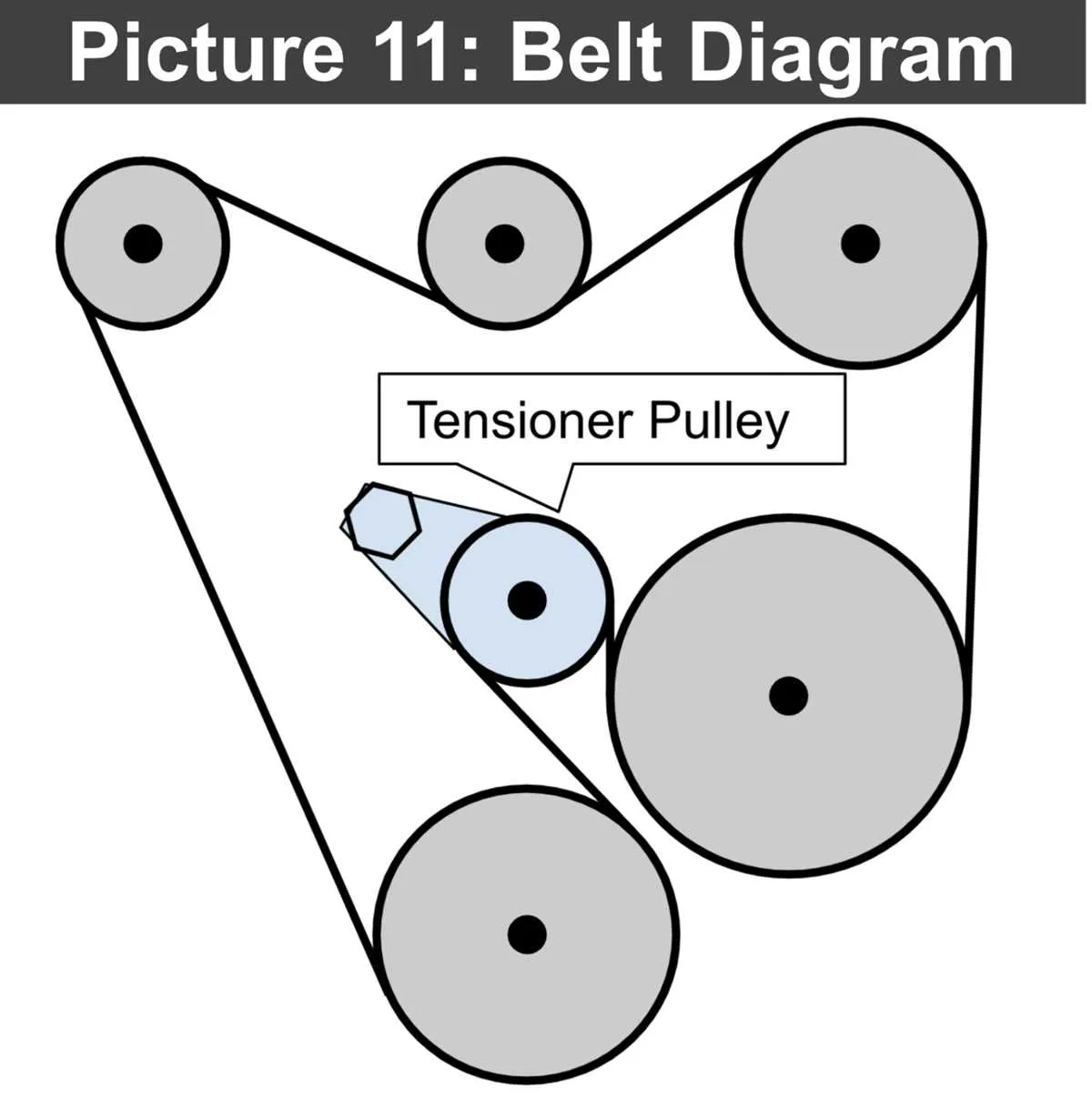

Identifying the Serpentine Belt Routing for 2009 Nissan Altima

To correctly route the serpentine belt on a 2009 Nissan Altima, follow the path from the crankshaft pulley to the alternator, power steering pump, air conditioning compressor, and the tensioner pulley. The belt runs clockwise from the crankshaft pulley, looping around the power steering pump, then under the air conditioning compressor, and finally over the alternator. Ensure the tensioner pulley keeps the correct amount of tension on the belt to prevent slipping or damage.

Check the tensioner spring for wear, and replace it if necessary. When re-routing or replacing the serpentine belt, align it according to the grooves and markings on each pulley. This ensures a secure fit and prevents premature wear on both the belt and pulleys.

If you’re working without a diagram, inspect the current routing of the belt before removal. Always compare the new belt’s length and fit before installation to ensure it matches the original specifications for proper tensioning and alignment.

How to Locate and Inspect the Serpentine Belt Tensioner

The serpentine belt tensioner on a 2009 Nissan Altima is typically located near the front of the engine, usually on the driver’s side. It’s a pulley system designed to maintain proper tension on the serpentine belt, ensuring that it operates smoothly without slipping or excessive wear.

To find it, first locate the serpentine belt itself. The tensioner pulley is usually positioned in line with the belt and often has a clearly visible arm or spring mechanism. If you look for the component with a noticeable spring-loaded arm that adjusts as the engine runs, you’ve found the tensioner.

Once you’ve located the tensioner, it’s time to inspect it. Start by checking for any signs of wear or damage. Look for cracks or chips in the pulley, and check the spring for any visible rust or deformation. If the pulley wobbles when spun by hand or seems loose, the tensioner might be failing and could need replacement.

Next, ensure the belt has the right tension. If the tensioner is working properly, it should keep the belt tight without allowing any slack. Press gently on the belt near the tensioner. If you can deflect the belt more than half an inch, the tensioner may be too weak to maintain proper tension.

If you hear squealing or notice an increase in engine noise, it’s worth rechecking the tensioner’s performance. These sounds often indicate belt slippage or misalignment, which can be a sign of a failing tensioner.

Common Issues with the Serpentine Belt System in 2009 Nissan Altima

The serpentine belt system in the 2009 Nissan Altima can face a few common problems that affect its performance. Here are the key issues to watch out for:

• Worn Out Serpentine Belt: Over time, the serpentine belt can show signs of wear like cracks or fraying. This can lead to reduced efficiency in driving essential components like the alternator, water pump, and power steering. Replace the belt if you notice visible damage.
• Misalignment: If the belt isn’t aligned properly with the pulleys, it can slip, causing squealing noises and further wear. Misalignment can occur due to a worn pulley or improper installation. Inspect the system regularly for alignment issues.
• Damaged Pulleys: The pulleys that guide the serpentine belt may become damaged or worn out over time. This can cause excessive wear on the belt or lead to noisy operation. Inspect the pulleys for signs of rust, cracks, or uneven wear.
• Faulty Tensioner: The tensioner maintains proper tension on the serpentine belt. A failing tensioner can result in a loose or overly tight belt, leading to poor performance. If the tensioner is not functioning correctly, the belt will not be able to do its job efficiently.
• Incorrect Belt Routing: If the serpentine belt is routed incorrectly, it can cause premature wear or cause the engine components to malfunction. Double-check the routing diagram to ensure the belt is correctly positioned.

To avoid these problems, regularly inspect the serpentine belt and related components, especially if you hear any unusual sounds from the engine. Replacing a worn belt and addressing pulley or tensioner issues early can save on more expensive repairs down the line.
