2008 Nissan Sentra Serpentine Belt Routing Diagram and Installation Guide
To replace or inspect the serpentine belt on a 2008 Nissan Sentra, follow the diagram below. This belt plays a key role in driving multiple engine components, including the alternator, power steering pump, and air conditioning compressor. Make sure to refer to the diagram to ensure correct routing of the belt.
The serpentine belt routing on the 2008 Nissan Sentra follows a clear path, wrapping around pulleys in a specific sequence. First, identify the tensioner pulley, which should be relieved of tension to remove the belt. Pay attention to the direction of each pulley and the placement of the belt across components for proper installation. The belt should fit snugly without slack or excessive tension.
It’s always a good idea to visually inspect the condition of the serpentine belt during regular maintenance. A worn-out or damaged belt can cause several issues, including overheating and loss of power to critical systems. A replacement is straightforward if you follow the diagram and ensure the belt is seated correctly in each groove.
2008 Nissan Sentra Serpentine Belt Diagram
The 2008 Nissan Sentra uses a serpentine belt system to drive various components like the alternator, power steering pump, and air conditioning compressor. When replacing or inspecting the serpentine belt, it’s important to know the correct routing and tension to avoid damage to other parts.

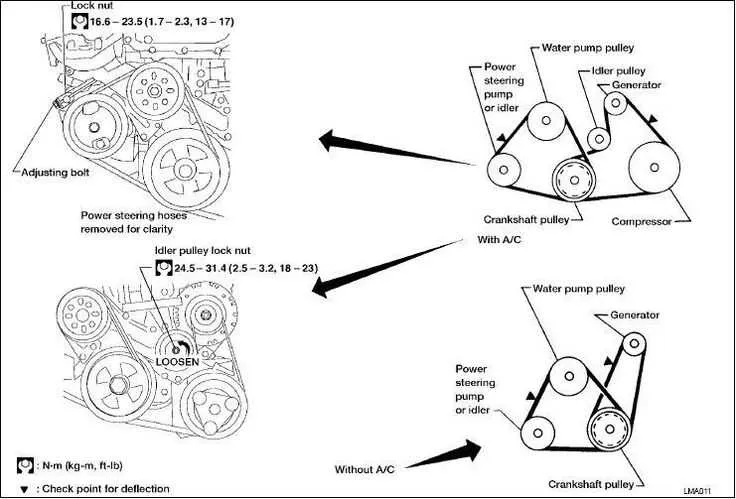

Refer to the diagram below for the exact routing of the serpentine belt on the 2008 Sentra. The belt should be routed through the various pulleys, starting from the crankshaft pulley, wrapping around the alternator, power steering pump, and air conditioning compressor. Pay attention to the correct direction of the belt, as incorrect installation can lead to premature wear or failure.
Key Points:
- The serpentine belt tensioner keeps the belt tight. If the belt is loose, inspect the tensioner for damage or wear.
- If you are unsure of the installation process, using a diagram can simplify the task. It’s also helpful to compare the old belt’s path before removal.
- Ensure the belt is properly aligned and seated in the grooves of all pulleys. Misalignment can lead to slipping and further damage.
Replacing the serpentine belt requires a 15mm socket or wrench to loosen the tensioner. Once the tension is released, the belt can be removed and the new one installed by following the same routing order. After installation, check the tension again to ensure it’s properly set.
For accuracy, always refer to the official service manual for the 2008 Nissan Sentra when performing maintenance tasks like replacing the serpentine belt.
How to Identify the Components in the 2008 Nissan Sentra Serpentine Belt System
The serpentine belt system in the 2008 Nissan Sentra includes a few key components that keep your vehicle’s engine running smoothly. These parts are vital for powering various engine accessories, such as the alternator, power steering pump, and air conditioning compressor. Here’s how to identify and understand the key elements:
| Component | Function |
|---|---|
| Serpentine Belt | Transfers power from the engine’s crankshaft to various accessories like the alternator and power steering pump. |
| Crankshaft Pulley | Drives the serpentine belt by rotating as the engine operates. It’s located at the front of the engine. |
| Alternator Pulley | Works in conjunction with the serpentine belt to charge the vehicle’s battery. |
| Power Steering Pump Pulley | Driven by the serpentine belt to provide hydraulic pressure for steering. |

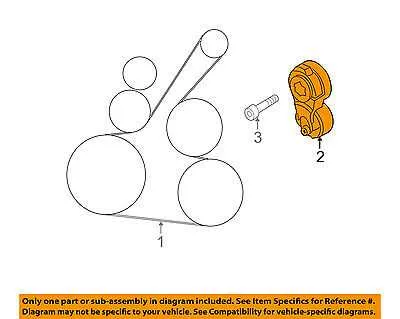

| Idler Pulley | Helps maintain tension on the serpentine belt and guides it around other pulleys. |
| Tensioner Pulley | Maintains the correct tension on the serpentine belt to ensure it operates smoothly and prevents slipping. |
| Air Conditioning Compressor Pulley | Operates the air conditioning compressor by transferring power through the serpentine belt. |
Each component plays a specific role in keeping the engine accessories functioning efficiently. Identifying these parts helps with maintenance and troubleshooting if there are issues with the belt system. Ensure the serpentine belt is in good condition and that all pulleys are properly aligned for optimal performance.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Nissan Sentra
To replace the serpentine belt on your 2008 Nissan Sentra, follow these steps carefully. You’ll need a new serpentine belt, a wrench, and a socket set. Make sure to check the belt’s condition before starting the replacement process.
- Locate the Serpentine Belt: Open the hood and locate the serpentine belt. It should be visible at the front of the engine, wrapping around several pulleys.
- Release the Tension: Find the tensioner pulley. Use a wrench to rotate the tensioner in the direction specified on the pulley, releasing the pressure from the belt. This will allow you to remove the old belt.
- Remove the Old Belt: Once the tension is released, carefully slide the serpentine belt off the pulleys. Take note of the belt’s routing, as you’ll need to replicate this when installing the new one.
- Inspect the Components: Before installing the new belt, check all pulleys for damage or wear. Ensure that the tensioner is functioning properly. If any components are damaged, replace them before continuing.
- Install the New Belt: Place the new serpentine belt onto the pulleys, following the routing diagram. Make sure the belt is seated properly on each pulley.
- Reapply Tension: Rotate the tensioner pulley again to apply tension to the new belt. The belt should be snug but not overly tight.
- Check Belt Alignment: Double-check that the belt is correctly aligned on all pulleys. A misaligned belt can cause premature wear.
- Start the Engine: Start the engine and listen for any unusual noises. If the belt is correctly installed, it should operate smoothly without squealing or slipping.
After completing these steps, your serpentine belt should be properly replaced. Keep an eye on the belt’s condition, and remember to replace it periodically to ensure the longevity of your engine components.
Troubleshooting Common Issues with the Serpentine Belt in 2008 Nissan Sentra
If you notice a squealing sound or difficulty with engine performance, the serpentine belt might be slipping or worn. This can happen if the belt is misaligned or too loose, causing it to fail at maintaining consistent tension on engine components. Check the belt’s tension using a belt tension gauge. If the belt is too loose, adjust the tension or replace the belt if it shows signs of cracking or fraying.
Worn pulleys are another common issue. Over time, pulleys can become damaged or clogged with debris, which can cause the serpentine belt to wear prematurely. Inspect each pulley for smooth rotation and visible wear. Replace any pulleys that show signs of rust, pitting, or grinding noises when rotated.
If the serpentine belt starts slipping, inspect the tensioner. A faulty tensioner may not maintain proper pressure on the belt, leading to slipping and eventual failure. It’s also worth checking for fluid leaks from the power steering pump or air conditioning compressor, which can degrade the belt and cause it to lose traction.
In some cases, the serpentine belt may be misaligned due to a mispositioned accessory or a damaged engine bracket. This can cause uneven wear and may make the belt jump off the pulleys. Re-align any components that are not properly positioned or have shifted over time.
If the engine belt warning light appears on the dashboard, it’s time to inspect the serpentine belt immediately. Failure to replace a worn belt can lead to further damage to the engine’s vital systems. Always replace the serpentine belt as part of regular maintenance to avoid these issues.
