2006 Nissan Pathfinder Belt Diagram for Proper Installation and Maintenance

If you’re looking to replace or inspect the belts on your 2006 Nissan Pathfinder, understanding the belt layout is the first step. The correct diagram helps you identify the path each belt takes and ensures proper installation. Use the diagram below to verify the arrangement and avoid mistakes during the replacement process.

For the 2006 Pathfinder, the belt system includes the serpentine belt and the timing belt. The serpentine belt powers multiple components like the alternator, power steering pump, and air conditioning compressor. Make sure the belt is correctly routed around pulleys to maintain the function of these essential systems. The timing belt is responsible for synchronizing the crankshaft and camshaft, a critical role in engine performance. Regular inspections and timely replacements can prevent serious engine damage.

Refer to the detailed belt diagram to check the pulley configuration and belt tension. Incorrect installation can lead to belt slippage or even cause the engine to overheat. Be sure to follow manufacturer recommendations for belt replacement intervals and keep an eye on wear signs like cracking or fraying.

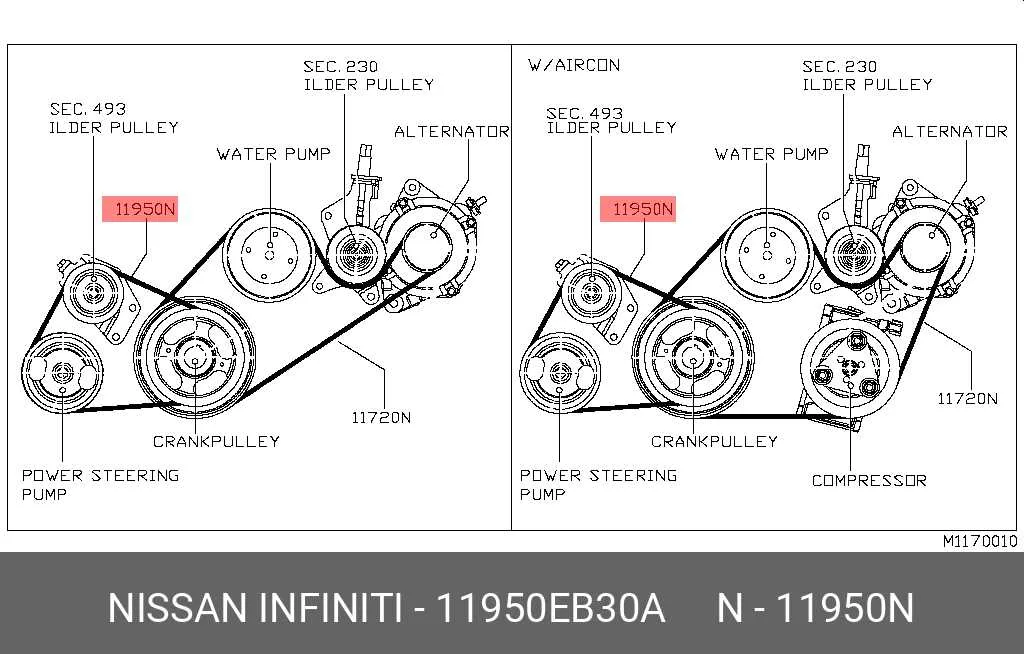

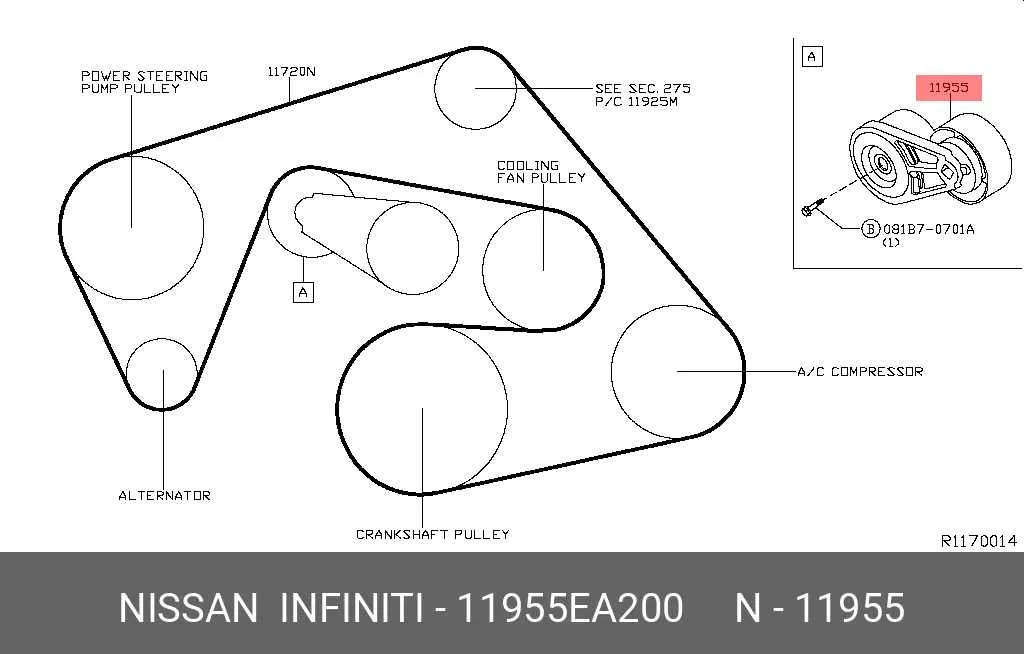

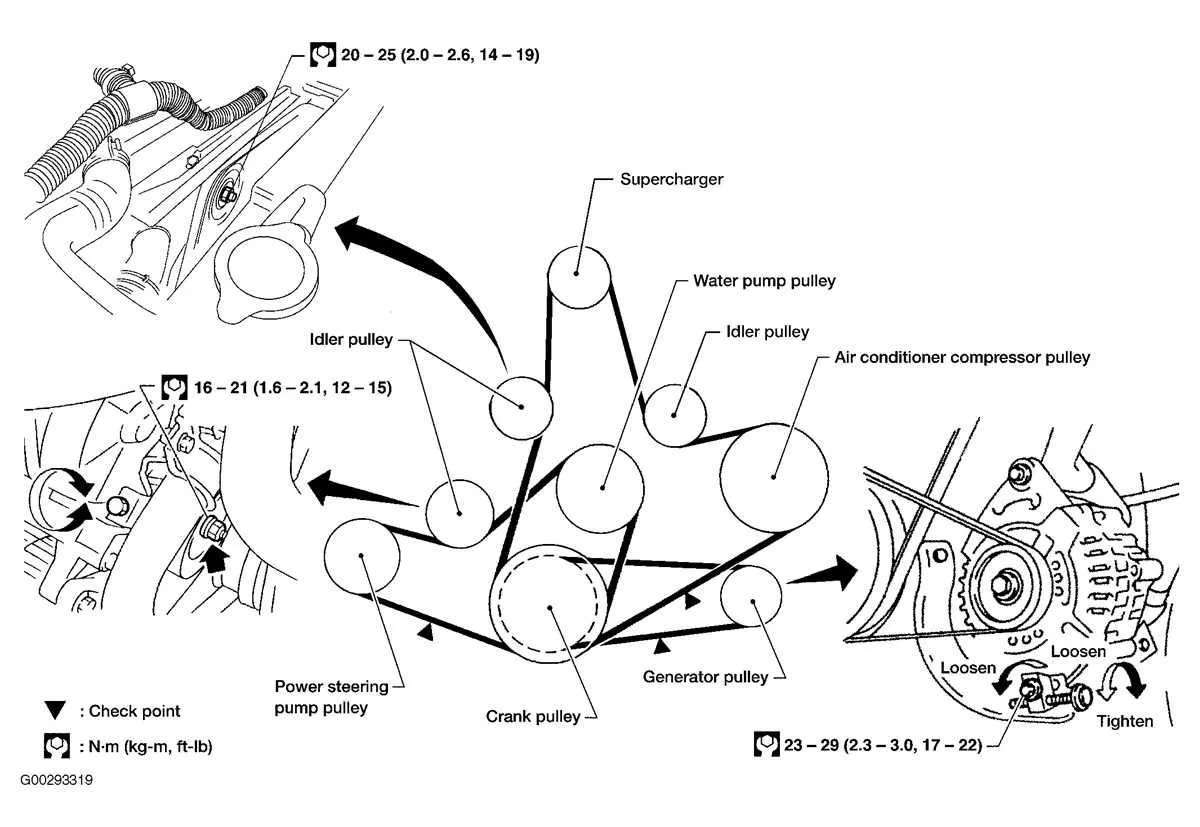

2006 Nissan Pathfinder Belt Diagram

To ensure proper functioning of the 2006 Nissan Pathfinder, the serpentine belt must be routed correctly. This belt is responsible for driving critical components such as the alternator, power steering pump, and air conditioning compressor.

Check the following steps for an accurate belt installation:

• The serpentine belt should loop around the crankshaft pulley, the power steering pulley, and the alternator pulley.
• Ensure the tensioner pulley maintains the correct tension on the belt to avoid slippage.
• Verify the alignment of all pulleys. The belt must run straight, without twists or misalignments.
• Refer to the engine’s diagram to ensure the belt is routed over the correct pulleys in the proper sequence.

When replacing the belt, always use a new one, as old belts may be stretched or worn, leading to potential failure. Regular inspection and maintenance of the belt can prevent costly repairs down the road.

If you need to replace the belt, use the correct size and type for the 2006 Nissan Pathfinder. A diagram of the belt routing can be found in the vehicle’s service manual or online resources specific to the model.

How to Locate the Serpentine Belt on a 2006 Nissan Pathfinder

To locate the serpentine belt on a 2006 Nissan Pathfinder, first, open the hood and secure it. The belt is positioned at the front of the engine, usually on the right-hand side, near the engine’s accessory components. It runs around several pulleys, including the alternator, power steering pump, and air conditioning compressor.

Inspect the engine compartment and look for a long rubber belt that loops around these pulleys. The serpentine belt is easily identifiable by its continuous path and the absence of joints or seams. It may have a smooth side and a ribbed side, with the ribs typically facing the pulleys.

If you’re having trouble locating it, follow the path of the belt from the alternator to other components. The tensioner pulley keeps the belt taut, so you may need to check this area to ensure the belt is properly aligned. A diagram of the belt routing is usually printed on a label in the engine bay for reference.

Step-by-Step Guide to Replacing the Drive Belt on a 2006 Nissan Pathfinder

To replace the drive belt on a 2006 Nissan Pathfinder, follow these steps carefully:

1. Prepare the Vehicle: Park the vehicle on a level surface. Engage the parking brake and disconnect the negative terminal of the battery to avoid any electrical issues.
2. Lift the Front End: Use a jack to raise the front of the vehicle. Secure it with jack stands to ensure safety while working underneath.
3. Locate the Drive Belt: The drive belt is located at the front of the engine. It is connected to various pulleys, such as the alternator, power steering pump, and air conditioning compressor.
4. Remove the Belt Tensioner: Use a wrench to release the tension from the belt. Rotate the tensioner pulley counterclockwise to relieve pressure on the belt, then remove the belt from the pulleys.
5. Inspect Components: Check all pulleys, the tensioner, and the idler pulley for wear or damage. Replace any worn-out parts before installing the new belt.
6. Install the New Belt: Place the new belt around the pulleys according to the belt diagram. Make sure the belt fits snugly and is correctly aligned with each pulley groove.
7. Apply Tension: Re-engage the tensioner to apply pressure to the new belt. Ensure the belt has the proper tension by checking that it is tight but has slight give when pressed with a finger.
8. Double-Check the Alignment: Ensure that the belt runs straight along each pulley. If it is misaligned, remove it and adjust accordingly.
9. Reconnect the Battery: Once everything is securely in place, reconnect the negative terminal of the battery.
10. Test the Installation: Start the engine and observe the belt’s operation. Listen for any unusual sounds and check that the belt runs smoothly.

By following these steps, you can successfully replace the drive belt on your 2006 Nissan Pathfinder.

Common Issues with the 2006 Nissan Pathfinder Belt System and How to Fix Them

One common issue with the 2006 Nissan Pathfinder belt system is belt slippage. This typically happens when the serpentine belt becomes loose or worn out, causing poor performance of the alternator, air conditioning, and power steering. Inspect the belt for wear and tension. If the belt feels loose or shows visible cracks, replace it immediately to avoid damage to other components.

Another problem is belt squealing, which often occurs when the belt is misaligned or the pulleys are worn. Misalignment can be fixed by adjusting the tensioner or replacing the pulley. Check for any misalignment in the pulleys and correct it. If squealing continues, it may be time to replace the belt or tensioner entirely.

Over time, the tensioner itself can fail, leading to belt noise and slippage. If you notice a wobbling tensioner or hear strange noises from the belt area, inspect the tensioner for damage or wear. Replacing the tensioner should solve the issue and restore proper belt tension.

Lastly, the water pump pulley can wear out and cause the serpentine belt to come off. If you experience overheating or loss of coolant circulation, inspect the water pump pulley for damage. Replacing the pulley or the water pump is necessary to ensure proper functioning of the cooling system.
