2006 Nissan Altima 2.5 Serpentine Belt Routing Diagram and Maintenance Tips
If you’re dealing with a serpentine belt issue on your 2006 Nissan Altima 2.5, the first thing to do is locate the correct routing diagram. The serpentine belt powers key components like the alternator, power steering pump, and air conditioning compressor. A precise diagram is vital for ensuring the belt runs smoothly and that components receive the proper tension.
For this model, the serpentine belt typically runs in a specific pattern across the pulleys. The diagram helps identify the correct path, which is crucial for the belt’s longevity and overall engine performance. Make sure to use a diagram that corresponds to your exact engine type–Nissan Altima 2.5L, as small variations can exist between different trims or engine versions.
Next, double-check the condition of the belt and pulleys. If the belt shows signs of wear such as cracking or fraying, it’s time to replace it. Use the diagram as a guide when installing a new belt, ensuring proper alignment and tension. If you’re unsure about the routing, it’s always best to consult a professional to avoid any damage to the engine or other components.
Having a clear serpentine belt diagram at hand is a simple but effective way to maintain your Nissan Altima. A properly routed belt reduces stress on engine parts, helps prevent breakdowns, and extends the life of your vehicle. For an accurate diagram, check your vehicle’s manual or look for a verified online source.
2006 Nissan Altima 2.5 Serpentine Belt Diagram
The serpentine belt in a 2006 Nissan Altima 2.5 is a critical component that powers several engine accessories, including the alternator, power steering pump, air conditioning compressor, and the water pump. If you are replacing or inspecting the serpentine belt, it is crucial to follow the correct routing to ensure proper operation of the engine’s systems.

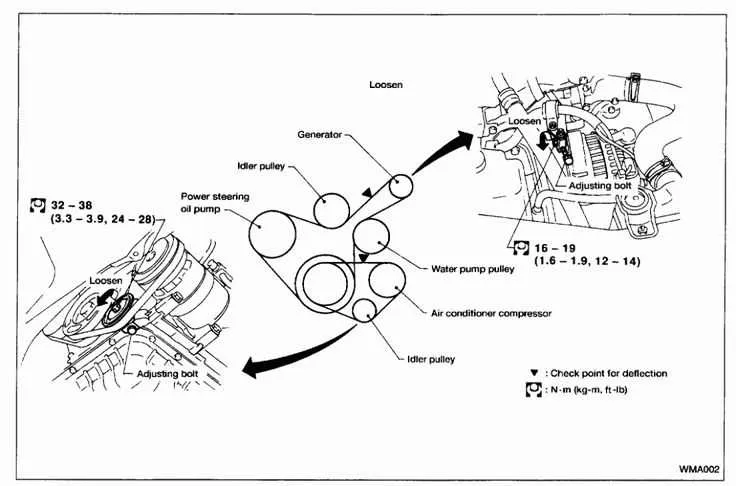

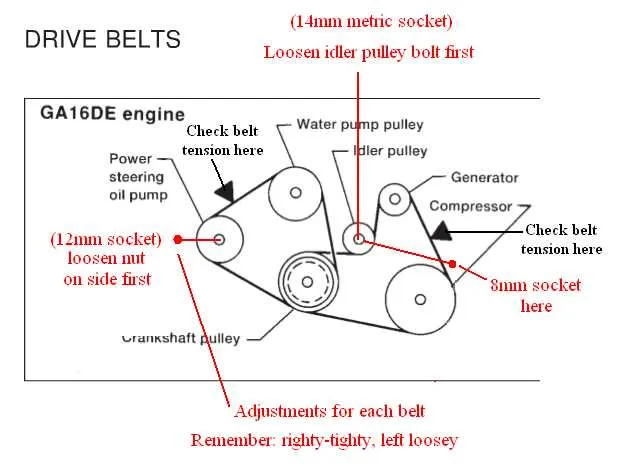

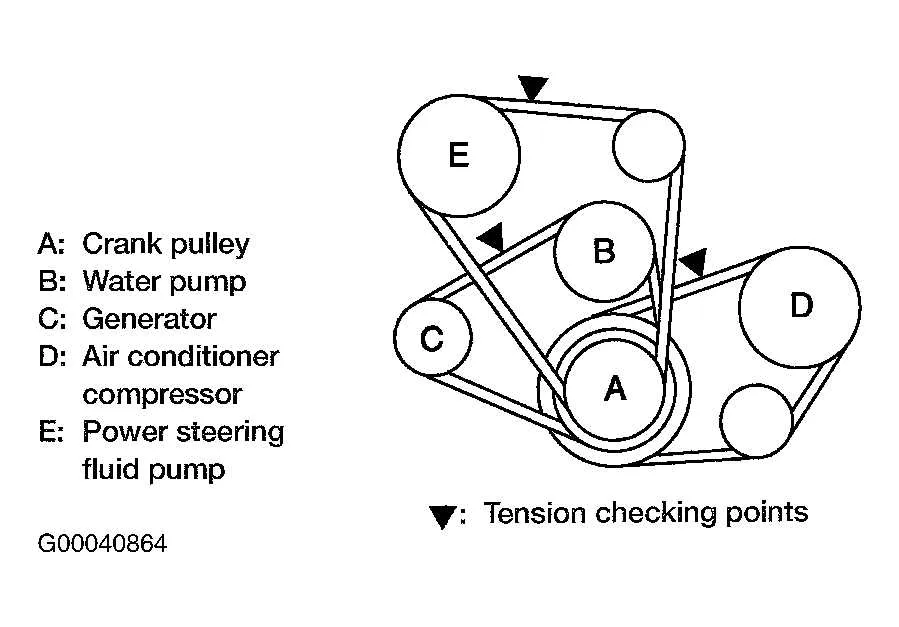

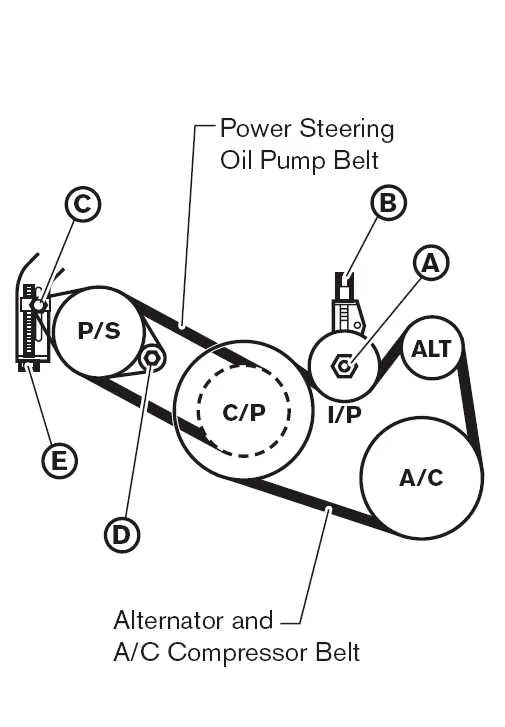

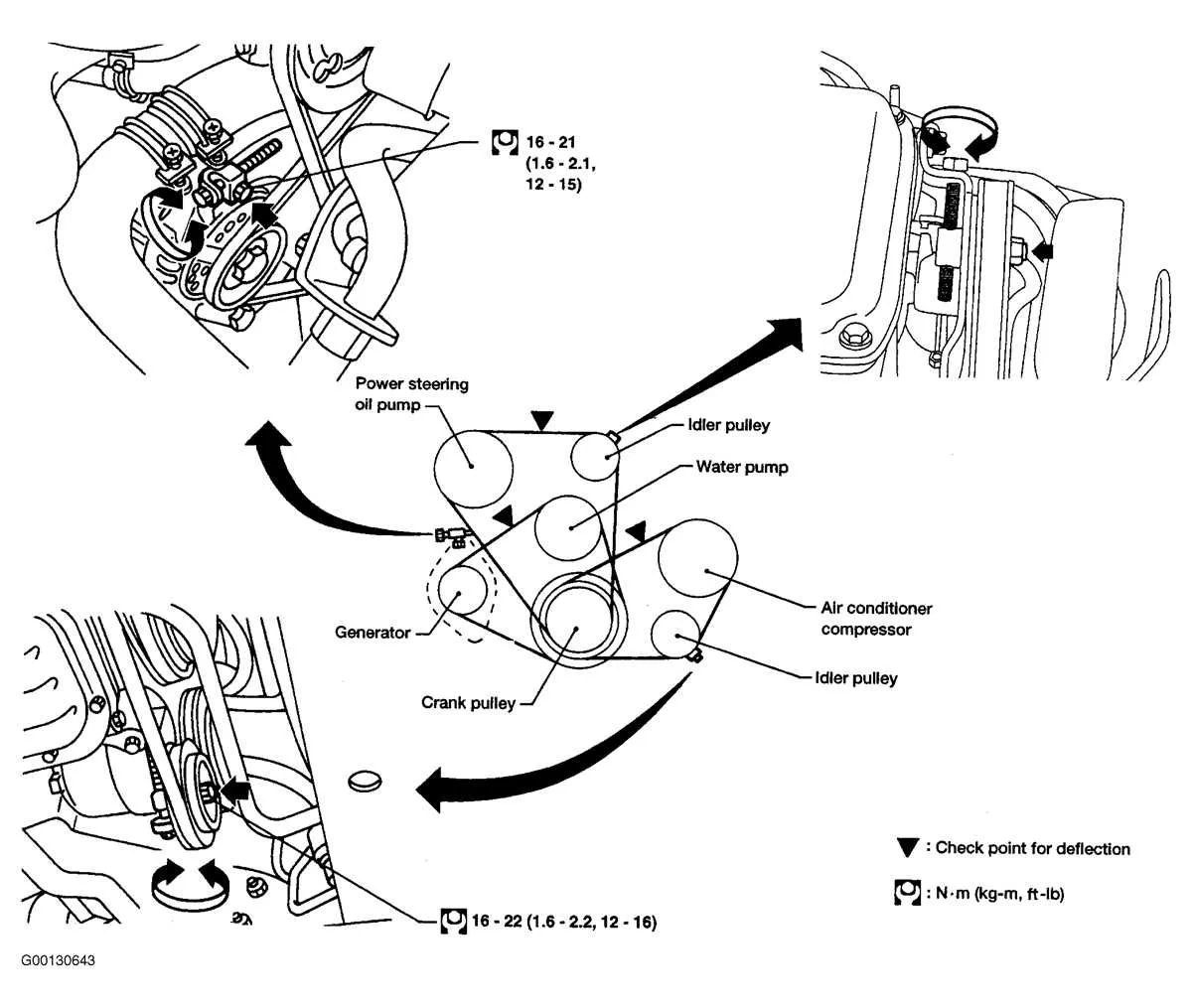

Refer to the diagram below for the correct serpentine belt routing. The belt runs over the crankshaft pulley, through the alternator, tensioner, power steering pump, and air conditioning compressor, before looping around the idler pulley. The tensioner keeps the belt taut to prevent slipping. Make sure to check the tensioner for proper spring action when replacing the belt.
If you are installing the belt, start at the crankshaft pulley and work your way around the pulleys, following the pattern shown. The diagram will typically include a clear sequence of where the belt should be positioned. Be sure to check the belt for wear and tear before installation, as old or cracked belts can cause engine damage if they break during operation.
It’s highly recommended to consult the owner’s manual or service manual for any specific details on the belt size, routing, and maintenance intervals. If you are unsure about the process, seeking professional help is a good idea to avoid mistakes that could lead to costly repairs.
How to Identify the Serpentine Belt Routing for 2006 Nissan Altima 2.5
To properly identify the serpentine belt routing on a 2006 Nissan Altima 2.5, first locate the belt diagram. It is typically found on the engine bay, either on the radiator support or near the front of the engine. The diagram shows the belt’s path around pulleys, including the alternator, power steering pump, and air conditioning compressor.
Follow these steps for a clear understanding of the routing:
- Locate the Tensioner Pulley: The tensioner pulley maintains belt tension and adjusts its position. This is usually one of the most accessible pulleys.
- Identify the Crankshaft Pulley: This is located at the bottom of the engine and powers the belt. The belt routes around it first.
- Alternator Pulley: The belt should route over the alternator pulley, located at the top of the engine. Make sure the belt wraps around it correctly to ensure proper charging.
- Power Steering Pump: The belt also loops around the power steering pulley to assist with steering force. Ensure the belt passes over the pulley smoothly.
- Air Conditioning Compressor: If your Altima is equipped with A/C, the belt will route through the A/C compressor pulley. Double-check its placement for proper cooling function.
- Double-Check Routing: Ensure the belt follows the path shown in the diagram, paying attention to any specific twists or directions. The belt should be smooth and taut across all pulleys.
If the diagram is missing or unclear, use a service manual or consult an online resource for a reference image. Checking the belt’s condition is also recommended–if the belt is cracked, worn, or damaged, replace it immediately to avoid further engine issues.
Common Issues with the Serpentine Belt in 2006 Nissan Altima 2.5
The serpentine belt in the 2006 Nissan Altima 2.5 is prone to several issues that can affect the vehicle’s performance. A common problem is belt wear, which manifests through cracking, fraying, or glazing. This typically occurs due to constant exposure to heat and friction, leading to a loss of flexibility and grip.
Another issue is belt misalignment. This happens when pulleys or tensioners are out of position, causing the belt to rub unevenly. Misalignment can result in a squealing noise and, in severe cases, cause the belt to wear out prematurely.
Worn-out tensioners are also frequent contributors to serpentine belt issues. If the tensioner fails to keep the belt at the correct tension, it can slip or stretch, affecting the vehicle’s systems like the alternator, air conditioning, and power steering.
Contamination is another concern. If oil or coolant leaks onto the belt, it can reduce its lifespan, causing slippage or causing it to break entirely. Inspecting for leaks and keeping the engine clean helps prevent this problem.
Lastly, extreme temperature fluctuations, especially in hot climates, can lead to the belt becoming brittle. Regularly inspecting the belt and replacing it at the recommended intervals can help avoid sudden failures and costly repairs.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2006 Nissan Altima 2.5
To replace the serpentine belt on your 2006 Nissan Altima 2.5, you need a few basic tools and some preparation. Make sure the engine is cool before you start working on it.
1. Lift the Front of the Car: Use a jack to lift the car and secure it with jack stands. This gives you better access to the engine’s underside.
2. Locate the Serpentine Belt: Open the hood and find the serpentine belt. It wraps around several components like the alternator, power steering pump, and A/C compressor.
3. Release Tension from the Belt: Use a 3/8-inch drive ratchet to release the tension on the tensioner pulley. This allows you to remove the belt. Rotate the tensioner clockwise to relieve the pressure.
4. Remove the Belt: Slide the belt off the pulleys. Pay attention to how it’s routed, as you’ll need to install the new one in the same configuration. You can refer to the diagram under the hood if needed.
5. Inspect the Pulleys: While the belt is off, check all the pulleys for wear or damage. If any pulleys feel loose or rough when rotated by hand, replace them before installing the new belt.
6. Install the New Serpentine Belt: Start routing the new belt around the pulleys in the same order as the old one. Make sure the belt is aligned correctly and sits in the grooves of each pulley.
7. Tension the Belt: Once the belt is in place, rotate the tensioner pulley again to allow the belt to tighten. Make sure the belt is snug but not overly tight.
8. Double-Check: Before lowering the car, manually rotate the engine pulley (using a wrench on the crankshaft bolt) to ensure the belt runs smoothly without slipping or misalignment.
9. Lower the Car: Once you’ve confirmed everything is working correctly, remove the jack stands and lower the car to the ground.
10. Test the New Belt: Start the engine and let it run for a few minutes. Listen for any abnormal noises and check the belt to ensure it’s operating properly.
