Complete belt routing diagram and layout for 2008 Nissan Altima engines
Locate the serpentine belt routing for your 2008 Nissan Altima by referencing the factory belt diagram. The belt wraps around the alternator, power steering pump, air conditioning compressor, and crankshaft pulley in a specific sequence that ensures proper tension and operation. A clear diagram helps prevent misalignment and premature wear.
Inspect the tensioner before installation. The automatic tensioner maintains correct belt pressure. If it shows signs of wear or spring fatigue, replace it to avoid slipping or squealing noises. Aligning the belt precisely on each pulley reduces stress on the engine accessories and extends belt life.
Follow the exact routing shown in the diagram during replacement. Start at the crankshaft pulley and work around the alternator, power steering, and A/C compressor pulleys. Double-check that the belt sits properly in each groove to maintain smooth operation. Misrouting can lead to accessory failure or engine overheating.
Keep a printed or digital copy of the diagram in your glove compartment. Quick access saves time during maintenance or troubleshooting. Many auto parts stores provide diagrams for free, and OEM service manuals include detailed routing for all engine configurations of the 2008 Altima.
Regularly inspect the belt for cracks, fraying, or glazing. Even a properly routed belt can fail if its surface is compromised. Replace the belt every 60,000–100,000 miles depending on driving conditions, and always verify alignment with the diagram to ensure consistent engine performance.
08 Nissan Altima Belt Diagram

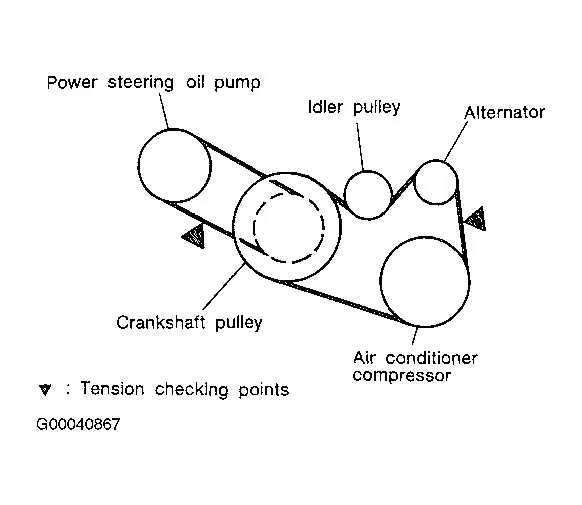

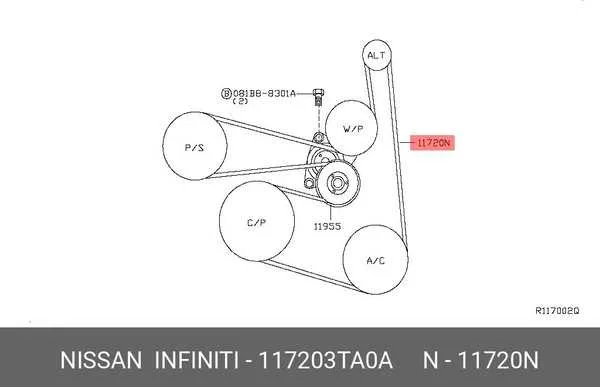

Locate the serpentine belt routing on the 2008 Nissan Altima by consulting the engine’s belt diagram, usually printed on a decal near the radiator or under the hood. This layout guides the belt around the alternator, power steering pump, water pump, and air conditioning compressor.
Follow the belt path carefully to avoid misalignment. Begin by looping the belt around the crankshaft pulley, then route it over the tensioner pulley and idler pulleys as shown in the diagram. Ensure the belt sits properly in each pulley groove to prevent slipping or premature wear.
If replacing the belt, verify the part number for the 2.5L or 3.5L engine, as routing may differ slightly. Use a wrench to relieve tension from the automatic tensioner, slide the old belt off, and fit the new one along the illustrated path. Rotate the crankshaft manually to confirm smooth movement before starting the engine.
Check for any worn or cracked pulleys while the belt is off. Inspect the tensioner for proper spring function. Maintaining correct alignment and tension prolongs belt life and supports consistent engine performance.

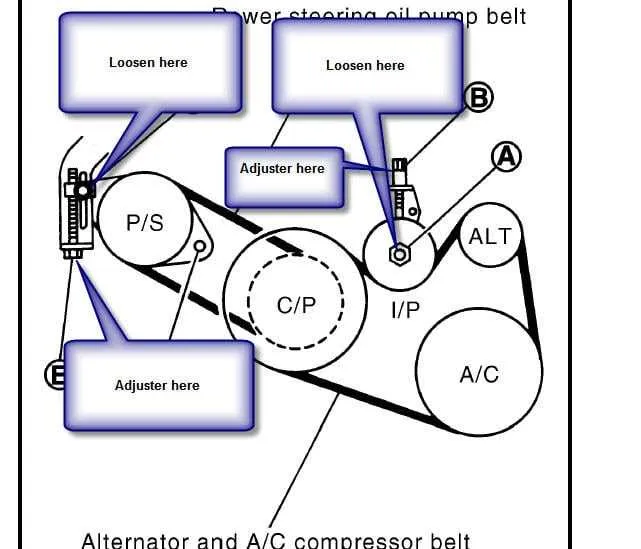

Locating the Serpentine Belt Routing for 2008 Altima
Check the engine’s front side near the radiator for the serpentine belt diagram sticker. On most 2008 Nissan Altima models, this label sits on the radiator support or the underside of the hood. The diagram clearly shows the belt path around the alternator, power steering pump, water pump, and air conditioning compressor.
If the sticker is missing or faded, trace the belt manually. Start from the crankshaft pulley at the bottom center of the engine. Route the belt clockwise over the alternator on the upper left, then down around the power steering pump pulley. Continue under the A/C compressor, then loop over the tensioner pulley, and return to the crankshaft. Each pulley has a specific groove pattern, helping to ensure correct alignment.
For easier access, remove the engine cover if present. Use a wrench to rotate the tensioner counterclockwise to slip the belt off or onto the pulleys. Compare your routing with an online diagram for the exact 2.5L or 3.5L engine variant to prevent misalignment or premature wear.
Keep a small flashlight handy to verify the belt sits fully in each pulley groove. Double-check tension by pressing the belt midspan; it should have about half an inch of deflection. Proper routing and tension avoid slipping, noise, or accessory failure, keeping your 2008 Altima running smoothly.
Step-by-Step Guide to Removing and Replacing the Belt
Loosen the tensioner immediately using a 14mm or 15mm socket. Turn it clockwise to release the serpentine belt tension.
- Locate the serpentine belt routing diagram under the hood or in the owner’s manual to ensure proper installation.
- Slide the belt off the alternator pulley first, then carefully remove it from the remaining pulleys, keeping track of the routing path.
- Inspect all pulleys for wear, debris, or misalignment. Replace any damaged idler or tensioner pulleys before installing the new belt.
- Compare the new belt with the old one to confirm correct length and rib pattern. Mismatched belts can cause slipping or noise.
- Route the new belt around all pulleys except the tensioner. Ensure the ribs fit snugly into the grooves of each pulley.
- Rotate the tensioner again and slide the belt onto it. Slowly release the tensioner, allowing it to apply pressure to the belt evenly.
- Double-check alignment across all pulleys. Misaligned belts can wear quickly and reduce alternator or AC performance.
- Start the engine and observe the belt in motion for several seconds. Listen for squeaks or vibrations indicating improper installation.
Maintain proper tension by checking the belt after the first few miles of driving. Adjust or re-seat if any slipping or noise occurs.
Troubleshooting Common Belt Issues in 08 Altima
Inspect the serpentine belt for visible cracks, fraying, or glazing along the ribs. Replace the belt immediately if deep cracks exceed 1/8 inch or if rib edges appear worn unevenly. Loose belts often cause squealing; check tension using a gauge or by pressing midway between pulleys–deflection should be approximately 1/2 inch under moderate pressure.
Listen for rhythmic squeaks during engine start or acceleration. Squealing that disappears after warming suggests belt slippage due to worn tensioner or pulley misalignment. Examine the tensioner pulley for smooth rotation and minimal wobble; replace if bearing noise is present or if the pulley wobbles more than 1/16 inch laterally.
Check alignment of all accessory pulleys. Misaligned pulleys accelerate belt wear and may lead to sudden failure. Use a straightedge across the pulley faces; the belt should sit flush without deviation. Adjust or replace idler pulleys if alignment is off by more than 1/8 inch.
Inspect for oil or coolant contamination. Belts exposed to fluids lose grip and can slip under load. Clean the pulleys thoroughly and replace the belt immediately if contamination occurs. Prevent future exposure by sealing leaks around valve covers, water pump, or alternator.
Monitor vibration or shudder during acceleration, which often indicates a stretched or deteriorated belt. Measure belt length and compare it to factory specifications; replace if it exceeds recommended tolerance. After installation, run the engine at idle and full throttle to confirm smooth operation without noise or vibration.
