05 Nissan Altima Serpentine Belt Diagram and Routing Guide

If you’re replacing the serpentine belt on your 2005 Nissan Altima, having a clear diagram can save time and prevent mistakes. The serpentine belt powers essential components like the alternator, power steering pump, and air conditioning compressor. Start by locating the belt routing diagram, usually found on the radiator support or under the hood. This diagram outlines the exact path the belt should follow to ensure all systems function correctly.

The 2005 Nissan Altima uses a single serpentine belt that wraps around several pulleys, including the crankshaft pulley, alternator, and tensioner. The correct tension on the belt is vital; too loose, and it can slip; too tight, and it can cause premature wear. Pay close attention to the routing in the diagram to avoid mistakes during installation.

Once you have the diagram, check the condition of the other components, such as pulleys and the tensioner. If they show signs of wear, it’s a good idea to replace them while you have the belt off. This step can help extend the life of your new serpentine belt and prevent future issues.

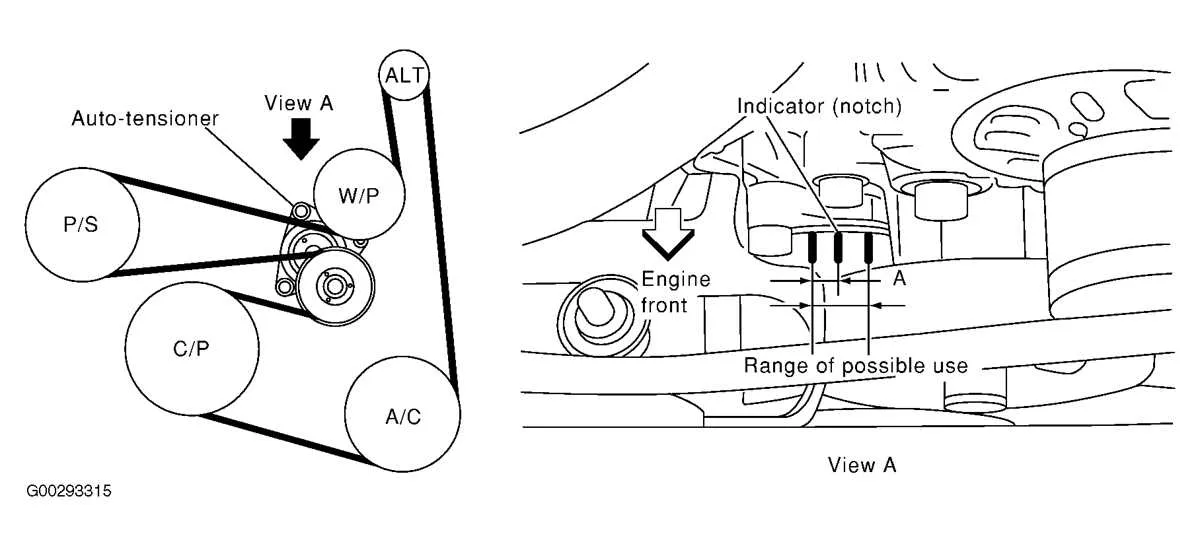

05 Nissan Altima Serpentine Belt Diagram

Check the serpentine belt diagram for the 2005 Nissan Altima to ensure proper installation and avoid unnecessary wear. Follow the steps below to confirm the correct routing of the serpentine belt:

• Locate the belt tensioner, which controls the tightness of the belt. Use a ratchet or a breaker bar to relieve tension before removal or installation.
• The belt should loop around the crankshaft pulley, alternator, power steering pump, and air conditioning compressor. Ensure the belt follows the exact path shown in the diagram.
• Verify that the belt is aligned with the pulleys. Misalignment can cause excessive wear and lead to failure over time.
• Double-check the belt’s condition. If it appears cracked, frayed, or glazed, consider replacing it to prevent any operational issues.
• Ensure the tensioner is functioning correctly. If it is weak or worn out, replace it to maintain proper belt tension.

Always refer to the factory manual for the most accurate diagram and installation instructions for your specific model. A properly installed serpentine belt is crucial for the reliable operation of your vehicle’s engine components.

Understanding the Serpentine Belt Routing for 2005 Nissan Altima

The serpentine belt on the 2005 Nissan Altima runs multiple components, including the alternator, power steering pump, air conditioning compressor, and water pump. Correct routing is key to ensuring proper functionality and avoiding premature wear.

Start by locating the tensioner pulley, which is essential for maintaining the belt’s correct tightness. The belt should loop around the crankshaft pulley, then move up to the alternator pulley. From there, it goes to the power steering pump, followed by the A/C compressor. The belt then loops around the water pump and returns to the tensioner pulley.

For proper routing, make sure the belt follows the direction indicated in the vehicle’s manual or on the engine compartment diagram. Any misalignment or incorrect routing can cause the belt to slip, leading to performance issues like battery charging problems or overheating.

If the serpentine belt appears worn or cracked, it’s time for a replacement. Check for signs of damage, such as fraying or glazing, which can affect belt performance. Regular inspection will help prevent costly repairs and keep your Altima running smoothly.

Ensure the tensioner is functioning properly. If the tensioner is weak or damaged, it can result in slack in the belt, affecting the operation of key engine components.

Common Issues with the Serpentine Belt on the 2005 Nissan Altima

The serpentine belt on a 2005 Nissan Altima can face several issues over time. One common problem is wear and tear. As the belt ages, it can crack, fray, or even break, causing it to slip off or lose tension. If this happens, components like the alternator, power steering pump, and air conditioning system may stop working properly.

Another issue is misalignment. If the pulleys are not aligned correctly, the belt may start to wear unevenly or make noise. This can also lead to premature belt failure. A squealing noise when starting the car or during acceleration could be a sign of misalignment or a loose belt.

Temperature extremes can also take a toll on the serpentine belt. If the car is frequently exposed to high heat or cold, the belt may become brittle or too soft, reducing its effectiveness. In these cases, regular checks are crucial to ensure the belt maintains its flexibility and integrity.

Lastly, oil or coolant leaks can cause the serpentine belt to slip or wear out faster. If any of the engine fluids come in contact with the belt, they can degrade its material, leading to cracks or breaks. Checking for leaks around the engine can prevent this issue from affecting the belt.

How to Replace the Serpentine Belt on a 2005 Nissan Altima

First, locate the serpentine belt tensioner. You’ll need a ratchet and socket to relieve the tension on the belt. Turn the tensioner counterclockwise to loosen the belt, and remove it from the pulleys.

Check the routing diagram for the correct path of the new serpentine belt. The diagram is usually located near the radiator or on the underside of the hood. Make sure to compare the old belt with the new one to confirm the size and shape match.

Position the new belt on the pulleys, starting with the crankshaft pulley. Follow the routing diagram carefully, making sure each pulley is aligned. Pay attention to any grooves on the belt that should match up with the pulleys.

Once the belt is in place, use the ratchet to release the tensioner and allow the belt to tighten. Check the belt’s alignment, ensuring it sits evenly on all pulleys.

Start the engine to test the new belt. Listen for any unusual noises or vibrations. If everything runs smoothly, you’ve successfully replaced the serpentine belt.
