MTD Riding Mower Variable Speed Pulley Drive Belt Diagram and Setup Guide
Check the drive belt routing before replacing or adjusting your MTD riding mower. Identifying the correct path ensures proper engagement with the variable speed pulley system, preventing slippage and uneven movement.

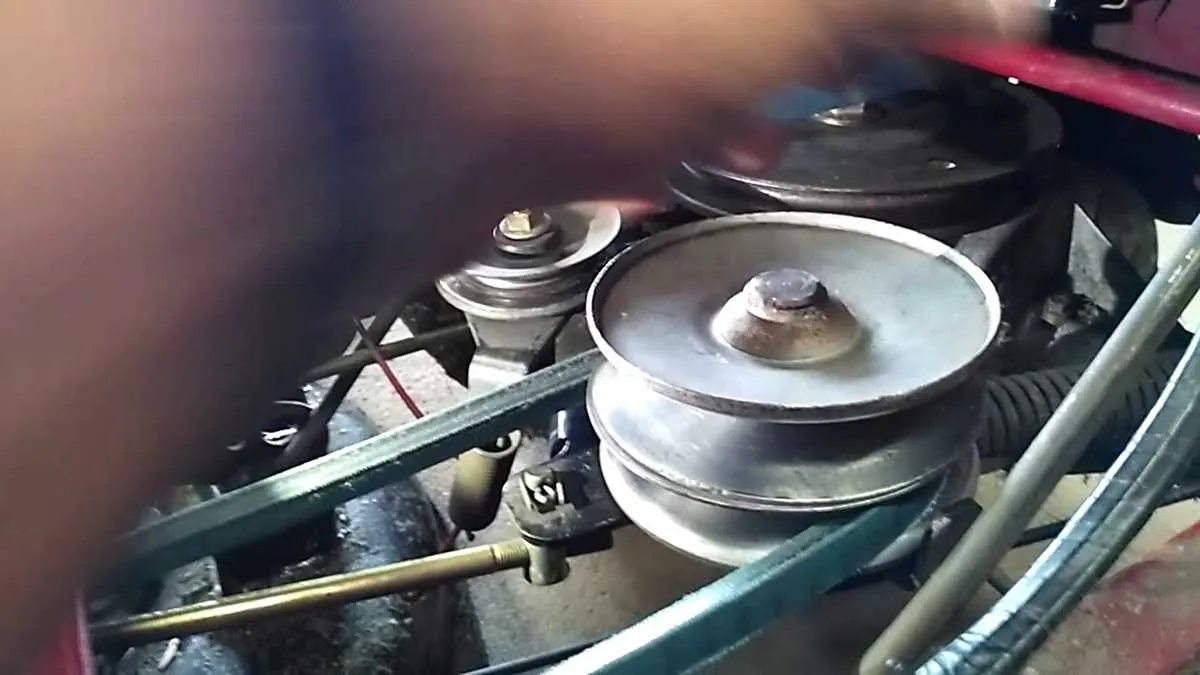

Locate the main pulleys: the engine pulley, transaxle pulley, and idler pulleys control belt tension and speed modulation. Verify that each pulley spins freely and aligns with the belt grooves to maintain smooth operation.
Inspect belt condition: a worn, cracked, or stretched belt affects cutting performance and can damage the pulley system. Replace belts with the exact OEM size specified for your mower model to preserve variable speed functionality.

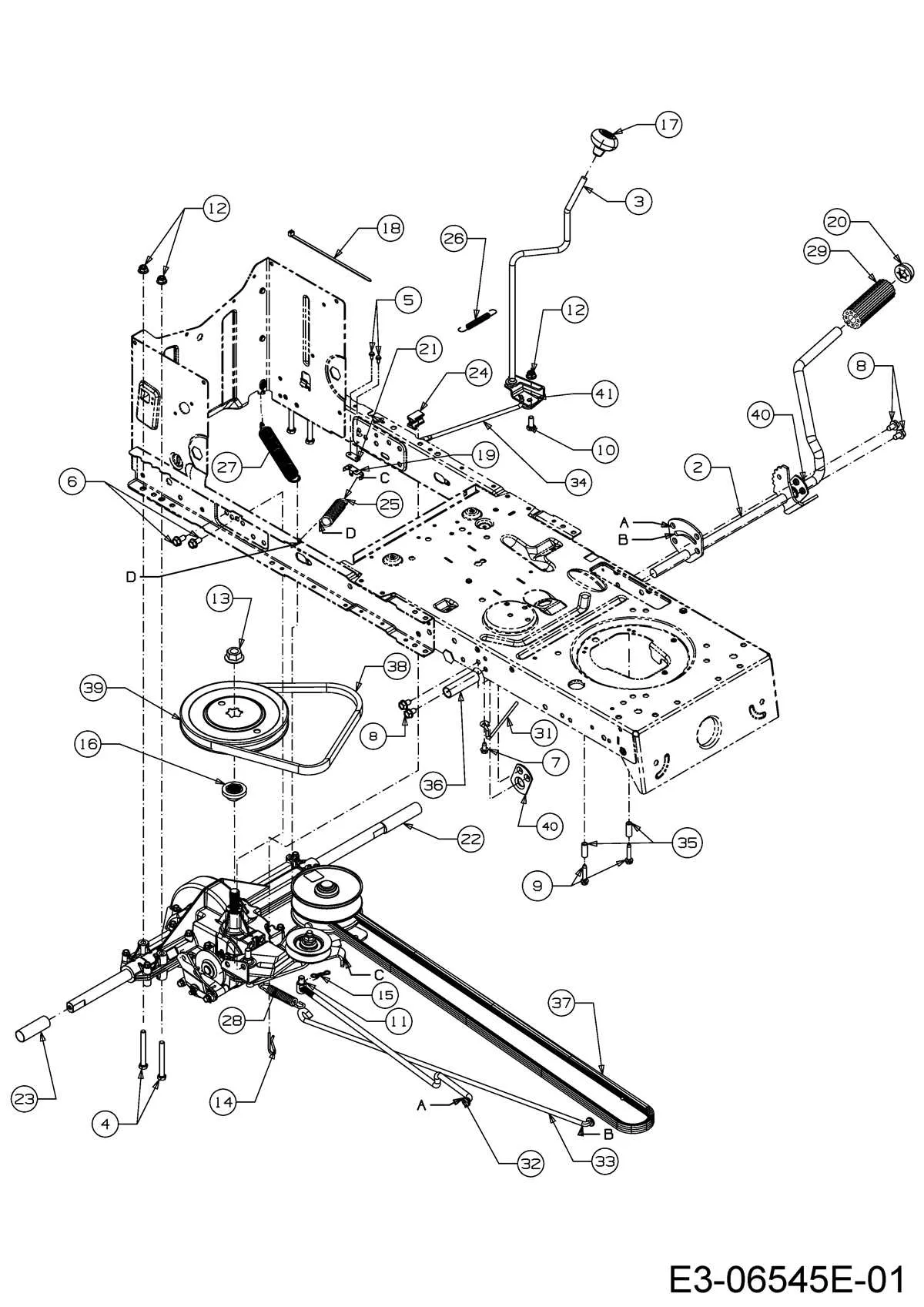

Follow the diagram carefully during installation. Route the belt around the idlers in the correct sequence, ensuring it rests properly in each pulley groove. Adjust tension by moving the tensioner arm according to manufacturer instructions to achieve optimal drive response.
Pulley Variable Speed MTD Riding Mower Drive Belt Diagram Practical Guide
Align the drive belt carefully to prevent slippage and maintain smooth operation. Inspect the pulleys for wear before installation, focusing on the groove edges and shaft bearings.
Follow these steps for proper belt routing and tension adjustment:
- Locate the engine pulley and the transaxle pulley. Ensure both are clean and free from debris.
- Position the belt around the engine pulley first, then route it along the idler pulleys according to the diagram.
- Check the variable speed pulley alignment. Misalignment can cause uneven wear and reduce mower performance.
- Adjust the belt tension using the spring-loaded idler. The belt should deflect approximately 1/2 inch when pressed with moderate force.
- Verify that all pulleys rotate freely without obstruction before operating the mower.
Regular maintenance improves belt life and mower performance:
- Inspect the belt monthly for cracks, fraying, or glazing.
- Lubricate pivot points of idler pulleys to reduce friction.
- Replace worn or damaged pulleys to maintain proper belt alignment.
- Store the mower in a dry environment to prevent belt deterioration.
Reference the specific MTD riding mower drive belt diagram for your model year to ensure correct routing, as variations exist between models. Accurate placement reduces engine strain and extends the service life of the drive components.
Identify All Pulleys and Belt Routing for Variable Speed Models

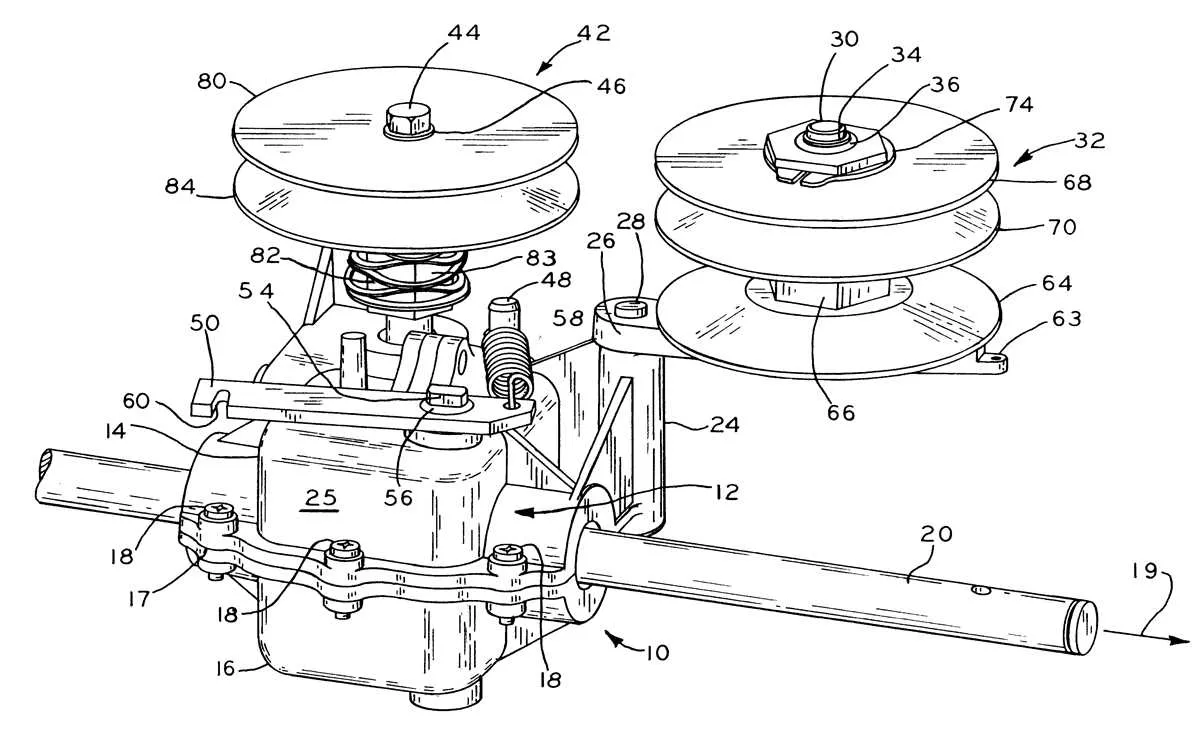

Locate the engine pulley first; it typically drives the main belt connecting to the transmission. Check the idler pulley next, positioned near the engine to maintain proper belt tension. Identify the transmission pulley, which adjusts speed based on the variable drive system. The mower deck pulley connects directly to the blades and must align precisely with the main belt path. Some models include an additional tensioner pulley between the engine and deck to stabilize the belt under load.

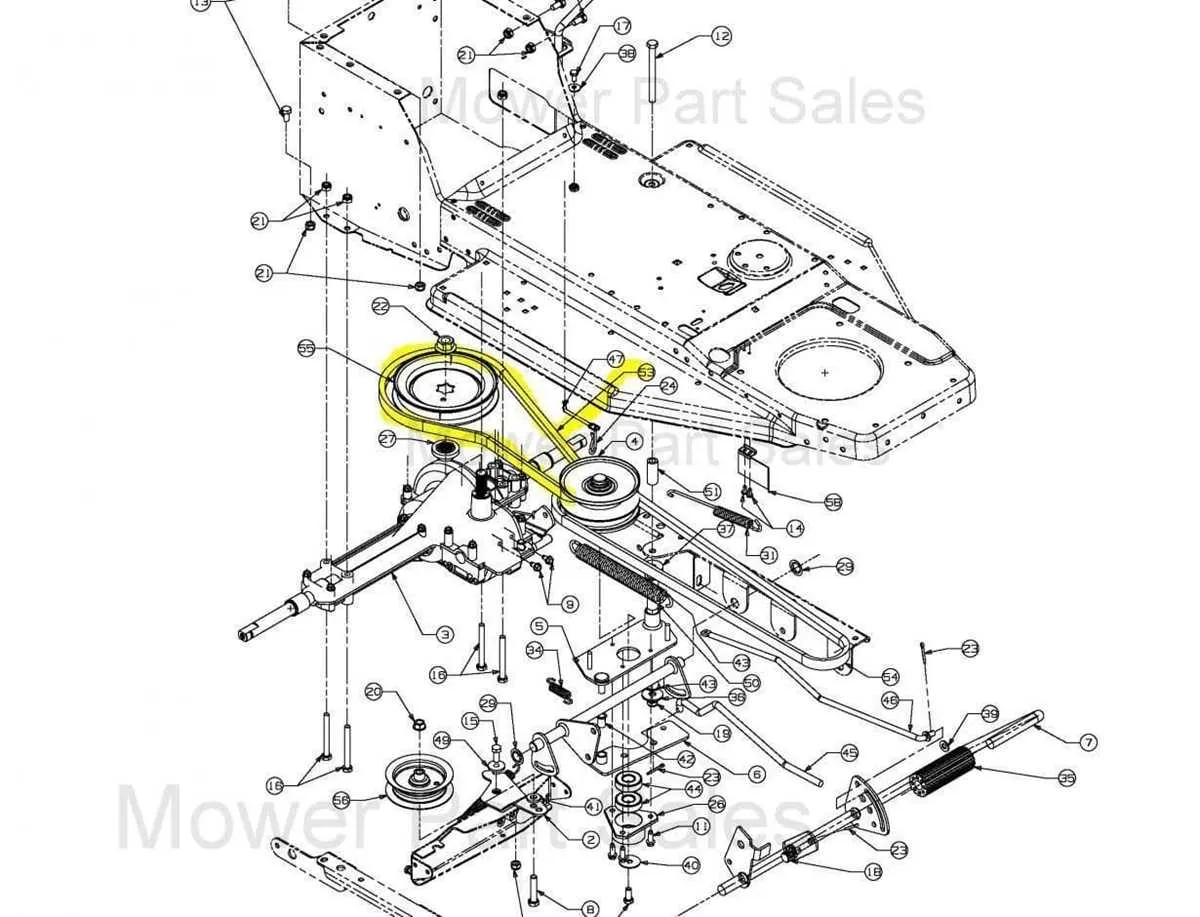

Follow the belt routing from the engine pulley to the transmission, ensuring it wraps around each intermediate pulley correctly. Confirm the belt sits fully in the grooves without twisting. Route the belt around the deck pulley and any tensioners, maintaining consistent alignment. Cross-check against the diagram in the mower manual, noting pulley sizes and orientation. Proper routing prevents slippage and uneven blade rotation.
Inspect each pulley for wear or damage before reassembly. Rotate pulleys manually to verify smooth movement. Adjust the tensioner pulley to achieve recommended belt tension without over-tightening, which could strain bearings. Recheck the complete routing after tension adjustment to confirm the belt remains fully seated across all pulleys.
Step-by-Step Belt Installation and Tension Adjustment
Place the mower on a flat surface and engage the parking brake. Remove the deck if needed to access the pulleys clearly. Identify the drive belt routing using the diagram specific to your variable speed model.
Loop the belt around the engine pulley first, ensuring it sits securely in the pulley groove. Continue guiding the belt around the transmission pulley and the idler pulleys according to the diagram. Maintain even tension as you position the belt to prevent twisting or misalignment.
Check each pulley visually to confirm the belt rests fully in the grooves without overlapping edges. Pull the belt gently at its midpoint to verify it moves smoothly over all pulleys without binding.
Adjust tension using the idler pulley adjustment bolt. Tighten or loosen the bolt gradually, keeping the belt snug but not overly tight. For most MTD variable speed models, the proper deflection is about ½ inch at the longest span between pulleys. Use a ruler or your thumb to measure tension consistently.
Rotate the pulleys by hand after adjustment to ensure the belt tracks correctly and the tension is uniform. Recheck all fasteners and the belt path before starting the engine.
Run the mower at low speed briefly and observe the belt under load. Stop and retighten the idler if slipping or excessive noise occurs. Once stable, reinstall the deck and test the mower across its full speed range to confirm smooth operation.
Troubleshoot Common Drive Belt Misalignment and Slippage Issues
Check the belt tension immediately if you notice slipping or unusual noises. Use a tension gauge or follow manufacturer specs for correct deflection, typically ½ inch for most MTD variable speed models.
Inspect all pulleys for wear, rust, or debris. Misaligned or damaged pulleys often cause the belt to track incorrectly. Adjust pulley positions using the mounting bolts and ensure alignment with a straightedge across pulley faces.
Examine the belt surface for glazing, cracks, or fraying. Replace any belt showing visible wear, as a worn belt loses grip and accelerates slippage. Confirm the replacement matches the exact part number for your model.
Clean pulleys and belt grooves with a soft brush to remove grass clippings, dirt, or grease. Contaminants reduce friction and can cause both misalignment and slippage.
Verify the idler arm and tension spring function correctly. Weak or broken springs fail to maintain proper tension, allowing the belt to skip or slip under load. Replace faulty springs immediately.
Rotate the mower blades by hand to observe belt movement. Watch for lateral movement or skipping on the pulleys. Adjust belt routing or tension incrementally, testing after each adjustment until smooth operation is achieved.
Ensure the drive system operates under normal load without resistance from seized components. Check for stuck bearings or binding shafts that can pull the belt off alignment. Lubricate or replace faulty parts to restore smooth motion.
