MTD 46 Inch Deck Drive Belt Diagram and Installation Guide
To successfully replace or maintain the drive belt on an MTD 46-inch deck, it’s essential to understand the correct routing and components involved. The drive belt connects the engine to the mower deck, allowing the blades to spin. Misalignment or incorrect installation can lead to operational issues or belt damage.
Start by identifying the various parts of the deck, including the pulleys and tensioners. The MTD 46-inch deck typically features a primary drive pulley, idler pulleys, and a tensioner. The belt must run through these parts in a specific sequence to ensure smooth operation and proper tension.

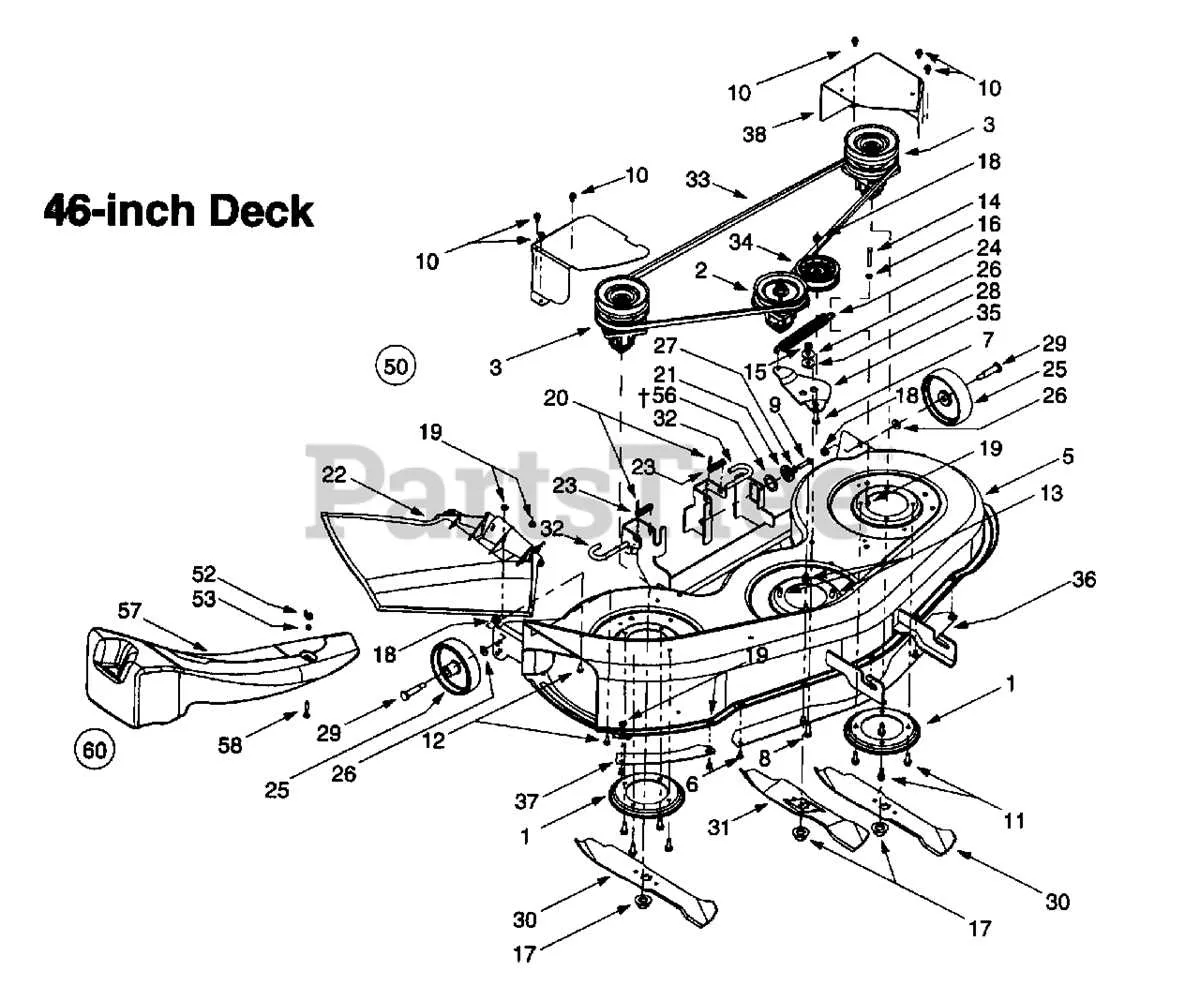

Check the diagram for the exact path of the belt, noting where it loops around the pulleys. Pay attention to the routing for both the deck engagement lever and the tensioner arm. Incorrect installation may cause the belt to slip or wear prematurely, so ensure everything is aligned and the tension is set correctly.
Once the belt is correctly installed, manually rotate the blades or crank the engine to check for any resistance or unusual noise. If the mower operates smoothly, the job is complete. If not, double-check the belt’s positioning and tension. Regularly inspect the belt for wear or damage to prevent future issues.
Drive Belt MTD 46 Inch Deck Belt Diagram
The MTD 46-inch deck belt diagram provides a clear guide for installing and maintaining the drive belt on your MTD lawnmower. Understanding the path and proper configuration of the belt ensures smooth operation and prevents premature wear.
Here’s how to follow the diagram for optimal belt installation:
- First, disconnect the spark plug to avoid accidental starts during maintenance.
- Remove the mower deck by loosening the necessary bolts and lifting it off the tractor. This will give you direct access to the belt system.
- Locate the drive belt on the diagram, noting how it loops around the pulleys and other components. Ensure you identify the routing path clearly.
- Start by placing the belt over the main drive pulley and ensure the grooves align with the pulley teeth.
- Next, route the belt over the deck pulleys, checking for any twists or misalignments along the way. Follow the diagram’s path step by step.
- Ensure that the tensioner pulley is engaged correctly. Adjust the tensioner to maintain the proper tension on the belt without being too tight.
- Once the belt is routed properly, manually rotate the pulleys to check for any obstruction or slack in the belt. The belt should move freely without slipping or rubbing against any parts.
Regularly inspect the belt for wear and replace it if there are visible signs of cracking, fraying, or stretching. A well-maintained belt ensures your mower operates efficiently, providing a clean and even cut.
If you’re unsure about the belt condition or the installation process, refer back to the MTD 46-inch deck belt diagram for step-by-step clarity. Following the proper belt routing will help you avoid mechanical issues and enhance the life of your lawnmower.
How to Replace the MTD 46 Inch Deck Drive Belt
First, lift the deck of your MTD lawn mower to gain access to the belt. Secure the mower in a stable position to avoid any movement during the replacement process.
Next, locate the old drive belt. It runs along the pulleys, connecting the engine to the deck. Take a moment to inspect its condition, noting the route the belt takes to ensure correct installation of the new one.
Loosen and remove any components that may obstruct the belt, such as the belt guard or other covers. Carefully detach the belt from the pulleys, noting how it’s routed for easy reinstallation.
Now, install the new belt by following the same path as the old one. Ensure it is positioned correctly over each pulley, checking that it sits snugly and securely.
After installation, rotate the pulleys by hand to ensure the belt moves smoothly without any resistance or slipping. Reassemble any parts you removed earlier and lower the deck back into place.
Finally, test the mower by running it briefly to ensure the new belt is functioning correctly and there are no unusual sounds or issues. Adjust the tension if necessary.
Common Issues with the MTD 46 Inch Deck Drive Belt
Wear and Tear: Over time, the MTD 46 inch deck drive belt will naturally wear down due to constant use. This causes the belt to lose its tension and effectiveness, leading to reduced performance or slippage. Regular inspection of the belt for signs of fraying or cracking is essential to prevent further damage.
Incorrect Installation: Improper installation of the drive belt can lead to slipping or even breakage. Ensure the belt is correctly routed according to the manufacturer’s diagram, with proper tension on the pulleys to avoid unnecessary strain and premature failure.
Debris Build-Up: Grass clippings, dirt, and other debris can accumulate on the drive belt, causing friction and premature wear. Clean the belt and surrounding pulleys regularly to prevent build-up that can impair function and shorten the lifespan of the belt.
Improper Tension: An incorrectly tensioned belt can lead to slippage or over-tightening, both of which impact its performance. If the belt is too loose, it will slip and wear out faster; if it’s too tight, it may break prematurely. Adjust the tension according to the specifications in the user manual.
Pulley Misalignment: If the pulleys are misaligned, they can cause the belt to wear unevenly, leading to quick damage. Check the pulleys for alignment and ensure that they are not worn or damaged, as this can impact the belt’s functionality.
Overheating: Overheating due to friction can cause the belt to deteriorate faster. Check for any issues with the mower’s cooling system and ensure the belt is properly lubricated to avoid excessive heat buildup.
Step-by-Step Guide to Proper Installation of the MTD 46 Inch Deck Drive Belt
To begin installing the MTD 46 Inch Deck Drive Belt, ensure the mower is turned off, and the engine is cool. Disconnect the spark plug to prevent accidental starting.
Lift the mower deck using the appropriate lever or mechanism to gain better access to the drive belt system. Remove any existing broken or worn-out belt from the pulleys and tensioner, noting the belt routing for reference during installation.
Position the new drive belt so it aligns with the pulleys and tensioner, following the exact path outlined in the diagram. Make sure the belt is properly seated in the grooves of the pulleys.
Apply the correct tension by adjusting the tensioner. This will ensure the belt is neither too tight nor too loose, allowing it to operate smoothly. Test the tension by rotating the belt manually to ensure it moves freely without slack.
Check the alignment of the belt across all pulleys to prevent any misalignment or fraying during operation. Once confirmed, reconnect the spark plug.
Finally, lower the mower deck and perform a test run to ensure the belt functions correctly. Monitor the movement of the belt during operation for any signs of slippage or abnormal wear.
