Detailed 46 Inch MTD Mower Deck Belt Diagram for Maintenance and Repair

When replacing the mower deck belt on your 46-inch MTD lawn mower, a clear and accurate diagram is crucial for a smooth installation. Follow the steps carefully to ensure proper belt alignment and functionality. Understanding the belt path and its connections to various pulleys will prevent unnecessary wear and improve the longevity of your mower.

Start by inspecting the current belt setup to see how it runs through the pulleys and idlers. A clear diagram will show you where each pulley fits and which direction the belt needs to travel. This prevents the confusion that can occur from relying on memory or outdated instructions. Referencing an updated diagram gives you the exact routing path, so you don’t have to guess or worry about possible mistakes.

Take time to check for any worn or damaged pulleys before installing the new belt. This ensures you aren’t replacing the belt only to encounter issues due to faulty components. Following the diagram step-by-step allows for a quicker, safer installation process, reducing downtime on your mower and getting you back to your lawn care routine with minimal hassle.

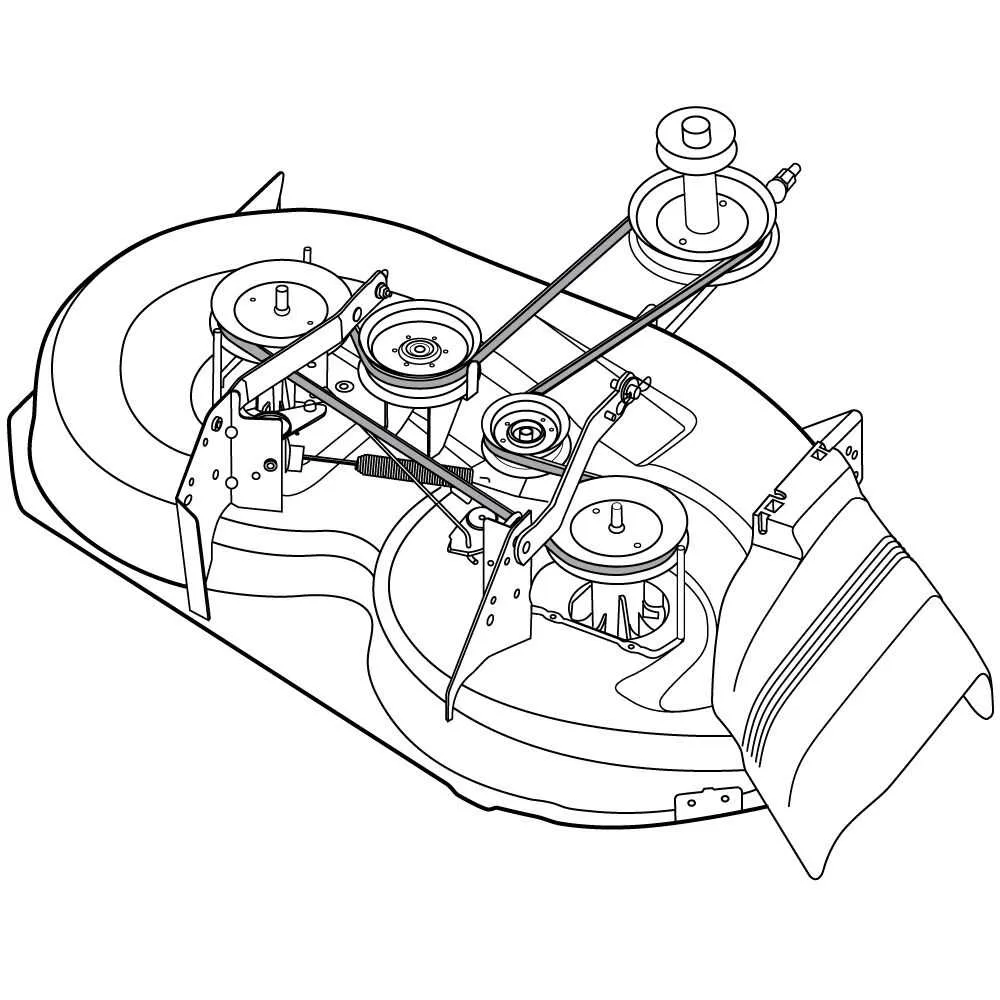

46 Inch MTD Mower Deck Belt Diagram

To properly replace the mower deck belt on a 46-inch MTD mower, follow this step-by-step guide based on the belt diagram.

• Start with the pulley system: Identify the main deck pulley and the smaller idler pulleys. The belt should be routed around the pulleys in a way that ensures the mower blades engage properly when the deck is lowered.
• Locate the tension spring: The tension spring will keep the belt tight enough to prevent slippage. Ensure that it is properly connected to the deck and idler arm.
• Position the belt correctly: Begin by placing the belt around the engine pulley first, then route it around the deck pulleys. Ensure the belt fits snugly into the grooves of each pulley, especially on the deck and idler pulleys.
• Secure the belt: Double-check that the belt is routed correctly and that there is enough tension. The idler pulley will ensure that the belt stays tight and engages properly with the blades.
• Reassemble the mower deck: Once the belt is secured, reassemble the mower deck, making sure that all fasteners are tightened and the deck is in its original position.

Always refer to the specific MTD model for any minor adjustments to the diagram and belt routing. Maintaining the proper belt tension will ensure smooth operation of your mower.

How to Read the MTD Mower Deck Belt Diagram for 46 Inch Models

Begin by locating the mower deck belt diagram, typically found in the user manual or on the deck itself. This diagram is a key reference for installing and adjusting the belt correctly.

Identify the belt’s starting point. On the 46-inch models, the belt usually starts from the engine pulley. The diagram will show a clear path from here, indicating the sequence of pulleys and their placement. Follow the route of the belt step by step, making sure each pulley aligns as shown. This ensures smooth operation and avoids any misalignment.

Pay close attention to the direction in which the belt is routed. The diagram will often show arrows or numbers to help with this. Some pulleys are static, while others rotate with the belt. Notice any specific instructions about tensioning the belt–incorrect tension can cause slipping or premature wear.

Examine any adjustments or special instructions listed in the diagram. For example, certain models may require specific settings for the idler pulley or tension springs. Be sure to adjust these components to match the diagram’s suggestions to maintain proper tension and prevent damage.

After following the belt route and adjustments, check that the belt is correctly seated in all pulleys. The diagram is a helpful guide to ensure no parts are skipped or misaligned during installation.

Step-by-Step Guide to Replacing the MTD Mower Deck Belt on 46 Inch Decks

Disconnect the spark plug wire to avoid accidental starts during the replacement process. This is a simple but necessary step for safety.

Lift the mower deck to access the belt. Use a jack or lifting device to raise the deck, ensuring it stays stable and secure throughout the task.

Locate the belt tensioner. It is typically on the right side of the deck. Loosen the tensioner by rotating it counterclockwise, which will release the tension on the belt.

Remove the old belt from the pulleys. Start with the idler pulley and work your way to the other pulleys. Carefully slide the belt off each pulley, noting the routing path for reinstallation.

Inspect the new belt before installation. Compare it with the old belt to ensure it is the correct size and matches the original. Place the new belt over the pulleys, following the same routing as the old one.

Ensure the belt sits properly in all pulley grooves and that the tensioner is aligned with the belt. Once in position, tighten the tensioner to maintain appropriate belt tension.

Reattach the spark plug wire. Double-check the belt’s routing and tension before lowering the deck back into position.

Test the mower by starting it and engaging the deck to make sure everything operates smoothly and the new belt is functioning properly.

Troubleshooting Common Belt Issues on MTD 46 Inch Mower Decks

If the belt on your MTD 46-inch mower deck isn’t functioning properly, it’s crucial to check for wear and misalignment right away. A common issue is a belt that slips off, often caused by improper installation or damage to the pulleys.

Start by inspecting the belt for any visible signs of fraying, cracks, or stretching. If the belt appears damaged, replace it with a new one that matches the manufacturer’s specifications. Make sure the belt is properly routed through all the pulleys according to the mower’s manual diagram.

Another issue might be the tension of the belt. If it’s too loose, it can slip and cause a loss of power to the blades. Check the tension spring and adjust it as needed to ensure the belt is taut but not overly tight.

Misaligned pulleys can also cause the belt to wear unevenly or slip. Visually inspect the pulleys and ensure they are straight and free of debris. If any pulleys are damaged or misaligned, replace or adjust them to correct the issue.

Lastly, check the mower deck’s idler pulley. A malfunctioning idler pulley can cause the belt to derail or fail to maintain proper tension. Replace the idler pulley if it’s worn out or damaged.
