Kia Optima Serpentine Belt Diagram and Installation Guide
If you’re looking to replace or inspect the serpentine belt on your Kia Optima, having the right diagram is key. The serpentine belt plays a vital role in powering several components in your engine, such as the alternator, power steering pump, and air conditioning compressor. Identifying the correct routing is crucial to avoid unnecessary wear and prevent engine damage.
For accurate installation, refer to the vehicle’s specific diagram for the serpentine belt routing. This will provide you with a clear view of how the belt should be threaded through various pulleys and tensioners. A misaligned or incorrectly installed belt can cause components to malfunction or lead to premature wear.
The diagram for your Optima can typically be found in the engine compartment, near the front of the engine block or on the underside of the hood. Make sure to check the condition of the belt as well during your inspection. A cracked or worn belt may need replacing, even if it hasn’t yet failed completely.
Ensure you use the proper tension and follow the diagram closely for smooth operation and to extend the life of your vehicle’s components. If in doubt, consult a professional mechanic for assistance with the installation.

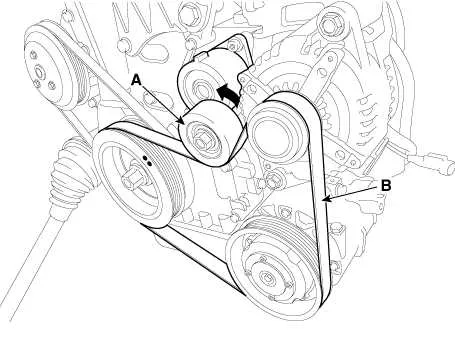

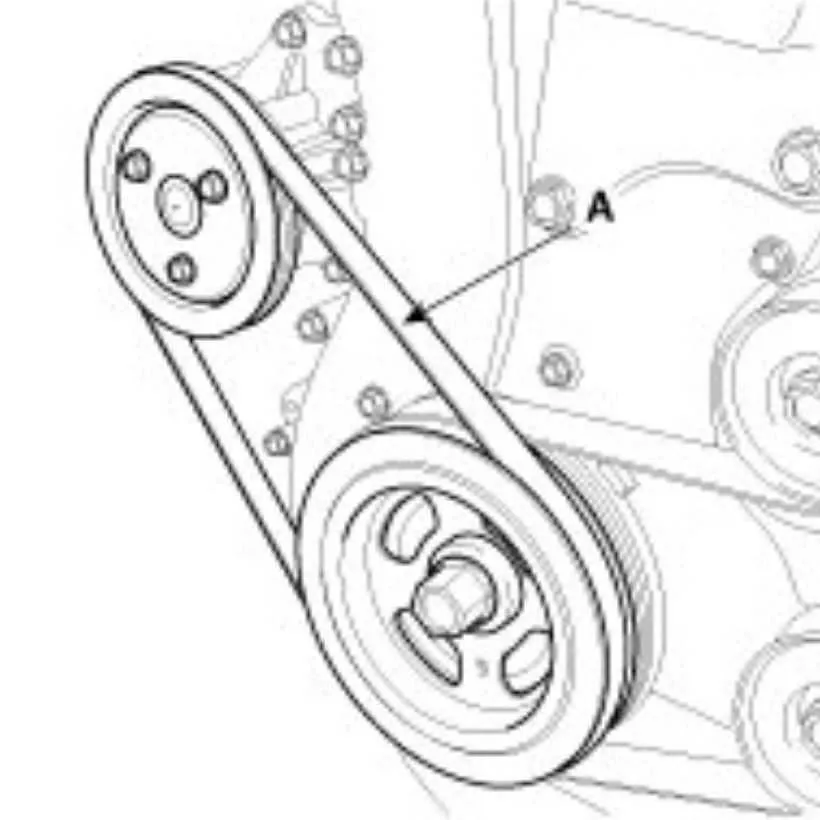

Kia Optima Serpentine Belt Diagram
For optimal performance, it’s important to follow the correct routing pattern when replacing the serpentine belt on your Kia Optima. Refer to the vehicle’s specific diagram for the most accurate instructions, as it ensures all components, such as the alternator, air conditioning compressor, and power steering pump, function smoothly.
Check the belt’s tension regularly. A properly tensioned serpentine belt reduces the risk of slippage and premature wear. Make sure the diagram you are using matches the engine model year, as variations in the routing may occur across different years and engine configurations.
Look for any signs of cracks, fraying, or glazing on the belt surface. These could indicate a need for replacement. It’s recommended to inspect the belt during regular maintenance intervals, especially when performing other engine checks.
Use only manufacturer-approved belts for replacement to avoid issues with fit and performance. After installation, manually rotate the components driven by the serpentine belt to ensure proper alignment and function.
Identifying the Correct Serpentine Belt Layout for Kia Optima
To install the serpentine belt correctly on a Kia Optima, first confirm the model year and engine type, as layouts may vary. For the most accurate diagram, refer to the vehicle’s owner manual or consult the under-hood belt routing decal. This decal provides a quick reference for belt routing specific to your Optima’s configuration.
Follow these steps to identify the correct belt layout:
- Locate the belt routing diagram on the engine bay. It is typically found on the radiator support or near the engine cover.
- If the decal is missing or unreadable, consult the vehicle’s service manual for the correct layout. Most manuals feature detailed serpentine belt routing diagrams based on the engine variant.
- For an accurate diagram online, use the car’s VIN (Vehicle Identification Number) to find engine-specific belt routing guides.
- Ensure the serpentine belt is routed around all the pulleys in the correct order, aligning with the belt tensioner to maintain the proper tension.
Double-check the belt alignment by manually rotating the crankshaft pulley and confirming the belt’s smooth motion over all pulleys. This prevents slippage or damage during operation.

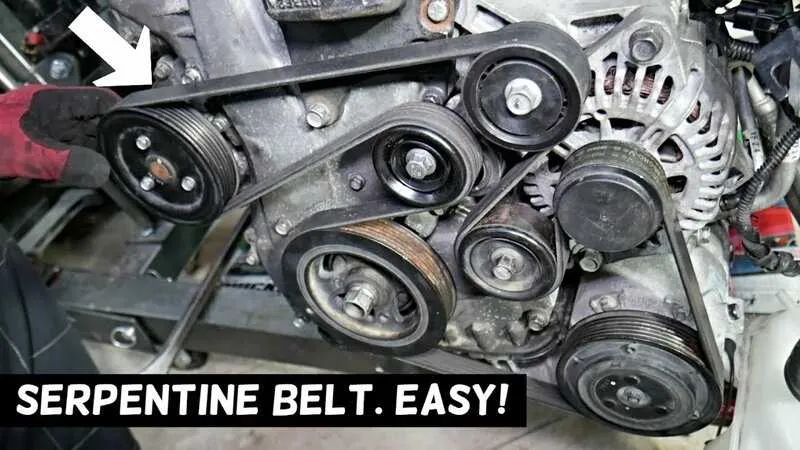

How to Replace the Serpentine Belt on Kia Optima

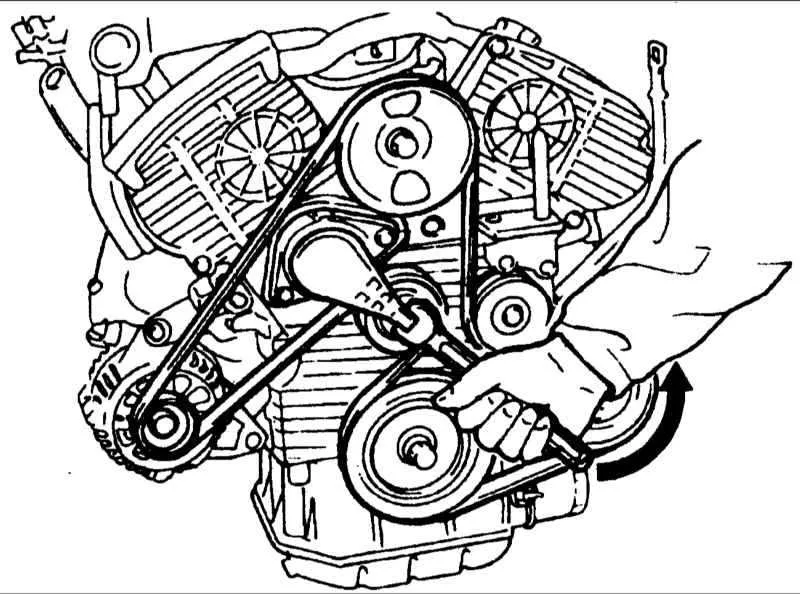

Start by lifting the front of the car and securing it on jack stands for safety. Use a wrench or ratchet to release the tension from the serpentine belt by rotating the tensioner pulley. Remove the belt from all pulleys, noting the routing path for reinstallation.
Next, inspect the new belt for any damage or defects before installing it. Begin by placing it over the pulleys, following the correct routing based on the diagram. Make sure the belt is aligned with each pulley groove to avoid slipping or misalignment.
Once the belt is in position, rotate the tensioner pulley again to provide tension on the new belt. Double-check that the belt is properly seated on all pulleys and that there are no twists or slack. Lower the car and test the engine to ensure the belt is functioning correctly.
Common Issues and Troubleshooting for Kia Optima Serpentine Belt
If you notice strange noises, like squealing or chirping, coming from the engine, it might be time to inspect the serpentine belt. These sounds often indicate that the belt is either worn or improperly tensioned. Start by checking the belt for any visible cracks, fraying, or glazing. Any of these signs suggest it needs replacing.
A loose or damaged belt can also lead to the loss of power steering, air conditioning, and alternator functions. If these systems stop working, it could mean the serpentine belt is slipping or misaligned. Ensure the belt is properly tensioned; the tensioner pulley might need adjustment or replacement if it’s not maintaining proper pressure.
If the belt has broken entirely, the engine’s accessories will no longer function. This could lead to overheating or battery failure. Always carry out a visual inspection at regular intervals, especially if your Kia Optima is older. If you detect any wear, replace the belt promptly to avoid costly repairs or breakdowns.
In some cases, a worn-out tensioner or pulley can cause premature wear on the serpentine belt. Check these components for signs of damage, such as rust or cracks. If they seem faulty, replacing them along with the serpentine belt will prevent further issues.
Finally, when replacing the serpentine belt, always ensure it’s routed correctly according to the manufacturer’s diagram. A misrouted belt can cause excessive wear or even breakage. Double-check the routing before closing the engine bay.
