2018 Kia Soul Serpentine Belt Diagram and Maintenance Guide

Understanding the belt system in your 2018 Kia Soul is crucial for maintaining optimal engine performance. The serpentine belt is responsible for powering several components such as the alternator, air conditioning, and power steering. Regular inspection of the belt can prevent costly repairs and ensure smooth operation.

Check the belt regularly for signs of wear, cracks, or fraying. If the belt appears damaged or loose, it should be replaced immediately to avoid failure during driving. Refer to the diagram to understand the routing and the specific components powered by the belt.

Refer to the official 2018 Kia Soul belt diagram for precise details on the positioning and installation. This guide will help you identify where each part connects, ensuring that the replacement belt fits correctly and functions properly. Familiarity with the diagram simplifies the process, saving both time and effort.

2018 Kia Soul Belt Diagram

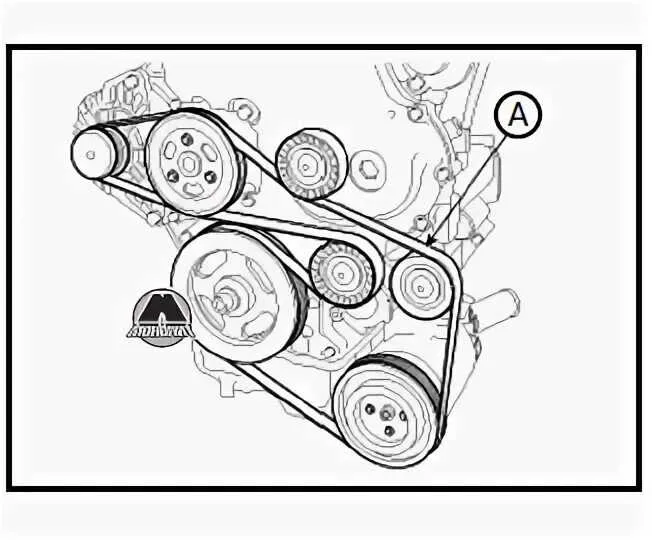

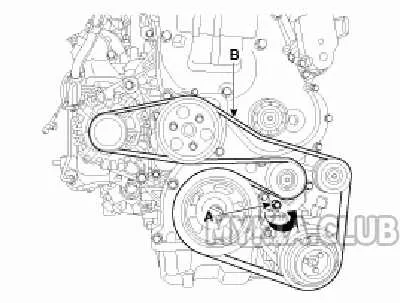

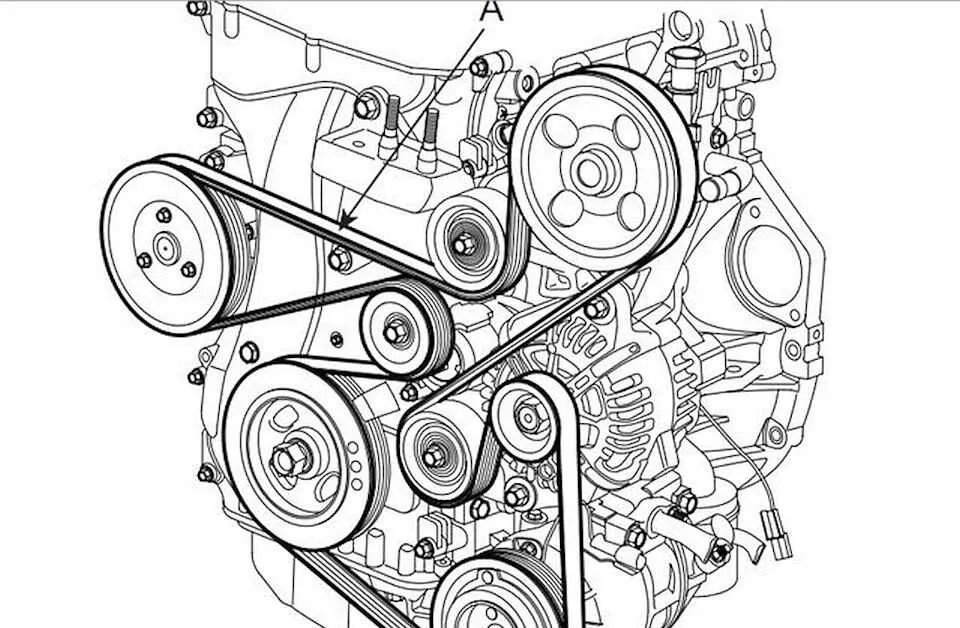

The 2018 Kia Soul belt diagram shows the correct routing of the serpentine belt, ensuring that all engine components receive the necessary power. Follow the diagram closely for correct installation and avoid damaging the components.

Start by identifying the pulleys on your engine, such as the alternator, power steering pump, and air conditioning compressor. These components rely on the belt to function. The diagram typically shows the exact path the belt should take over these pulleys. Make sure to follow it step by step.

Before replacing or adjusting the belt, ensure the engine is off and cool. Using a belt tensioner tool, you can release tension to remove the old belt. It is important to check the condition of the pulleys as well, ensuring none are worn or damaged before installing the new belt.

If you’re unsure about the belt’s correct orientation or routing, refer to the diagram, as an incorrect installation can lead to issues like overheating or improper operation of the engine’s accessories.

Regular belt inspections are recommended to detect signs of wear, cracks, or fraying. If you notice any damage, replace the belt immediately to prevent a breakdown.

How to Identify the Correct Belt for 2018 Kia Soul

To find the correct serpentine belt for your 2018 Kia Soul, first, check the engine specifications. The engine model determines the belt size and configuration. For example, the 1.6L engine requires a specific belt length, while the 2.0L engine uses a slightly different one. You can find these details in your vehicle’s owner manual or by searching the engine code on the manufacturer’s website.

Next, inspect the belt routing diagram located under the hood. This diagram shows how the belt should be arranged around the pulleys and accessories. Verify that the diagram matches the pulley system of your engine. Any discrepancies could mean you have the wrong belt installed.

If you are unsure, visit an auto parts store with your vehicle’s VIN (Vehicle Identification Number). This allows the store to match the correct belt to your specific model and year. Additionally, many auto stores can provide online tools where you can input your car details to get the exact part number for the belt.

Finally, when selecting a replacement belt, ensure it meets OEM (Original Equipment Manufacturer) specifications. Aftermarket belts might vary slightly in quality or design, and using one that doesn’t match the specifications could lead to premature wear or even damage to other components.

Step-by-Step Guide to Replacing the Serpentine Belt in 2018 Kia Soul

Begin by disconnecting the negative terminal of the battery. This will prevent any electrical issues while working on the vehicle.

Locate the serpentine belt. For the 2018 Kia Soul, it wraps around several components, including the alternator, power steering pump, and AC compressor. Ensure the engine is cool before proceeding.

Use a ratchet wrench to release the tension on the serpentine belt. The tensioner pulley should have a specific bolt for this purpose. Rotate the tensioner counterclockwise to relieve the pressure on the belt.

Remove the belt from the pulleys. Keep note of the routing path of the belt as you will need to reinstall the new one in the same manner. You can refer to the belt diagram under the hood or in the vehicle manual for reference.

Inspect the condition of the pulleys and tensioner. Look for signs of wear or damage. If any components appear faulty, it’s a good idea to replace them before installing the new belt.

Install the new serpentine belt by following the same routing as the old belt. Start from the crankshaft pulley and work your way around the pulleys, ensuring the belt is properly seated on each one.

Once the new belt is in place, rotate the tensioner again to allow the belt to slip over it. Ensure the belt is taut and aligned properly across all pulleys.

Double-check the installation and confirm the belt is properly routed and tensioned. Reconnect the negative terminal of the battery, start the engine, and check the belt’s operation. Listen for any abnormal noises or signs of misalignment.

If everything looks good, close the hood, and the replacement is complete.

Common Issues with the Belt System in 2018 Kia Soul

Inspect the serpentine belt for signs of wear, such as cracks, fraying, or glazing. These indicate that the belt is nearing the end of its life and may need replacement.

• Signs of wear: Visible cracks, frayed edges, or smooth spots (glazing).
• Action: Replace the belt if any signs of wear are present.

If the belt squeals or makes a chirping sound, it could be a sign of a misaligned or worn-out pulley. Misalignment can also cause the belt to slip, affecting the performance of engine accessories like the alternator and air conditioning system.

• Symptoms: Squealing or chirping noises.
• Action: Check and replace the pulley or adjust its alignment.

Examine the tensioner to ensure it’s maintaining proper tension. A loose or tight belt can cause poor accessory function or even lead to the belt snapping.

• Signs of improper tension: Slipping belt, inconsistent power from accessories.
• Action: Inspect and replace the tensioner if needed.

Heat and oil exposure can damage the belt over time. Ensure that there are no oil leaks and that the belt is not subjected to excessive engine heat. Keep the engine clean to avoid these issues.

• Possible damage: Cracking or deterioration due to oil or heat exposure.
• Action: Address any oil leaks and ensure proper heat shielding.

Lastly, replacing the belt regularly is crucial for long-term engine health. Depending on driving conditions, the belt may need replacement every 60,000 to 100,000 miles.

• Recommended replacement interval: 60,000 to 100,000 miles.
