2017 Kia Soul Belt Diagram Guide for Accurate Installation and Maintenance
Locate the serpentine belt routing first to prevent incorrect installation. The 2017 Kia Soul uses a single serpentine belt that drives the alternator, power steering pump, and air conditioning compressor. Ensuring the belt follows the correct path is critical for engine performance and accessory operation.
Check the belt tensioner carefully before removing the old belt. The tensioner keeps the belt tight, preventing slipping and premature wear. Use a wrench to relieve tension and slide the belt off pulleys in the order shown on the factory diagram.
Match the new belt to the diagram exactly. Align it with all pulleys, following the orientation specified in the 2017 Kia Soul belt diagram. Verify that the ribbed side sits correctly on the grooved pulleys and that the smooth side contacts the flat pulleys.
After installation, inspect for proper alignment. Rotate the engine manually using the crankshaft pulley to ensure the belt moves smoothly without skipping. This step confirms the belt is seated correctly and that all accessories operate without strain or noise.
Maintain periodic checks on belt condition. Look for cracks, fraying, or glazing and compare the belt to the diagram during routine service. Following the diagram ensures replacements maintain the same routing and tension for reliable performance.
Comprehensive Guide to the 2017 Kia Soul Belt Diagram

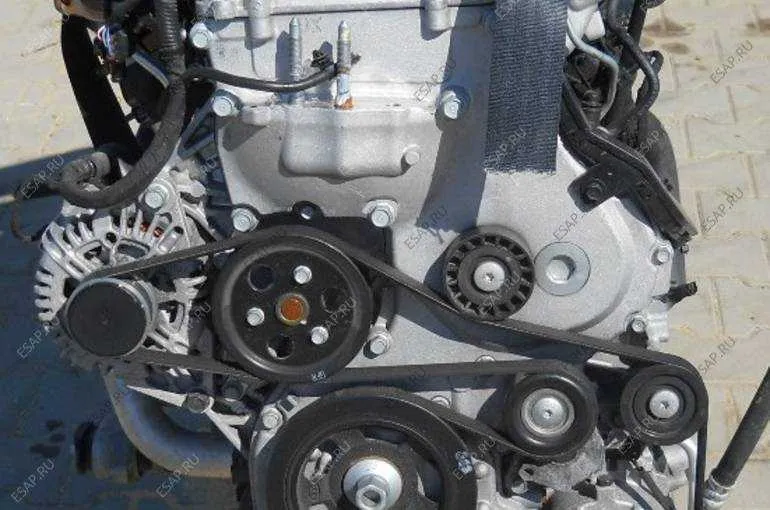

Locate the serpentine belt on the front of the 2017 Kia Soul engine, running across the alternator, power steering pump, air conditioning compressor, and crankshaft pulley. Confirm engine type before referencing the diagram, as routing differs between the 1.6L and 2.0L engines.

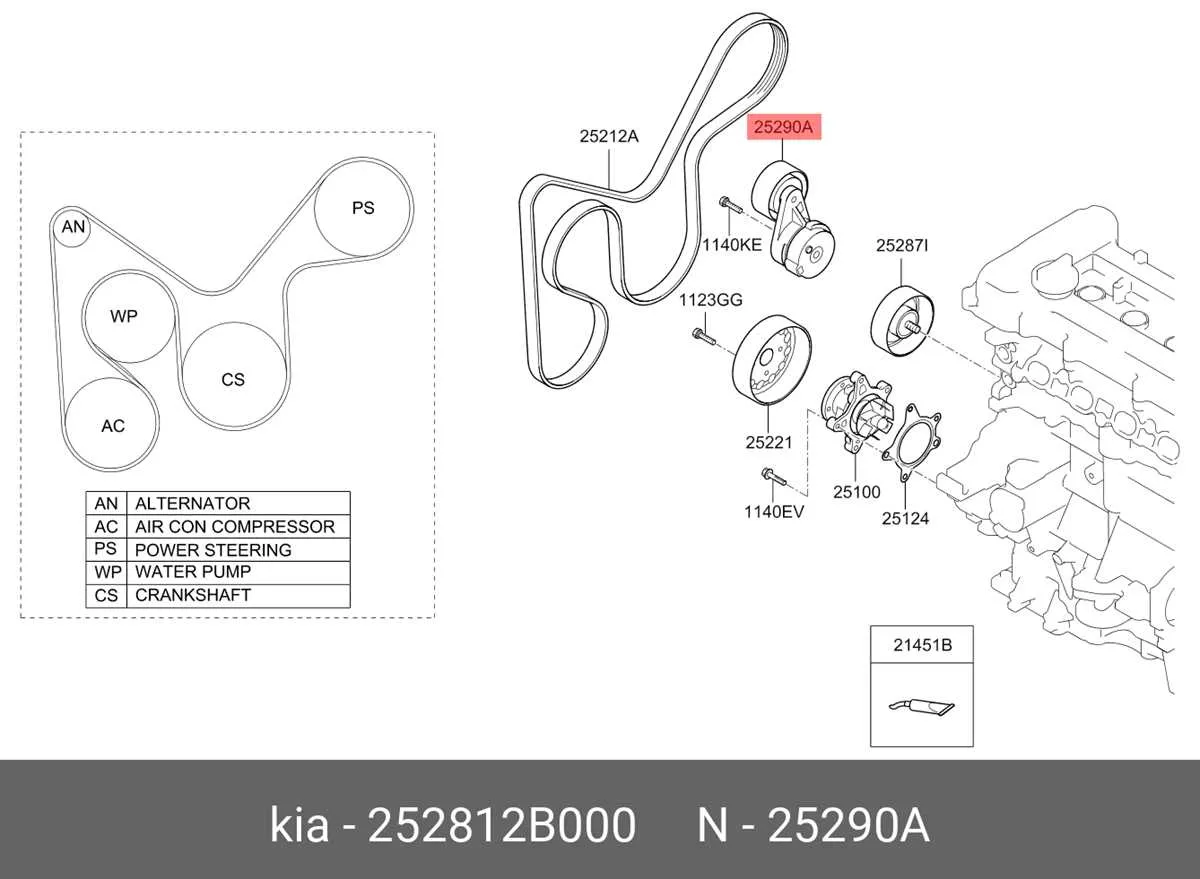

Follow the belt path precisely to prevent misalignment or premature wear. The belt routing diagram is typically found on a sticker under the hood or in the owner’s manual. Keep a copy of the diagram handy when removing or replacing the belt.
- Start at the crankshaft pulley, looping around the water pump for 1.6L engines.
- For the alternator, route the belt over the top pulley, ensuring proper tension.
- Loop around the power steering pulley, maintaining the correct orientation of the ribbed side.
- Pass the belt over the air conditioning pulley, checking alignment against the diagram.
- Finish at the tensioner pulley, using a wrench to release tension during installation.
Inspect the belt for cracks, fraying, or glazing before installation. Replace the tensioner if it shows signs of wear to maintain correct tension. After installation, rotate the engine manually to ensure smooth movement and proper seating of the belt across all pulleys.
Maintain regular checks every 30,000 miles, adjusting or replacing the belt as needed. Correct routing prevents engine overheating, battery charging issues, and accessory malfunctions, keeping the 2017 Kia Soul running reliably.
Locating and Identifying All Belts on a 2017 Kia Soul
Begin by opening the hood and securing it with the prop rod. The 2017 Kia Soul features two primary belts: the serpentine belt and the timing belt. The serpentine belt runs across multiple pulleys including the alternator, power steering pump, and air conditioning compressor. Locate the tensioner pulley near the front of the engine; this pulley maintains proper tension on the serpentine belt.
The timing belt sits behind the timing cover on the side of the engine closest to the firewall. Accessing it requires removing the accessory drive components. Check the belt for smooth, crack-free ribs and alignment with the camshaft and crankshaft pulleys. The timing belt ensures precise engine valve operation, so proper identification and condition inspection is critical.
Use the belt diagram printed on the underside of the hood or in the owner’s manual to verify routing. The serpentine belt typically forms a loop around the largest pulleys, while the timing belt connects only the camshaft and crankshaft. For models with automatic tensioners, note the position of the tensioner arm before releasing tension. Inspect all pulleys for wear, misalignment, or noise to ensure smooth operation of each belt.
Label each belt and its associated pulleys if performing maintenance. The serpentine belt can be removed using a wrench on the tensioner, while the timing belt requires loosening the tensioner and aligning timing marks on the camshaft and crankshaft. Correct identification prevents engine damage and maintains proper vehicle performance.
Step-by-Step Replacement and Routing of Drive Belts

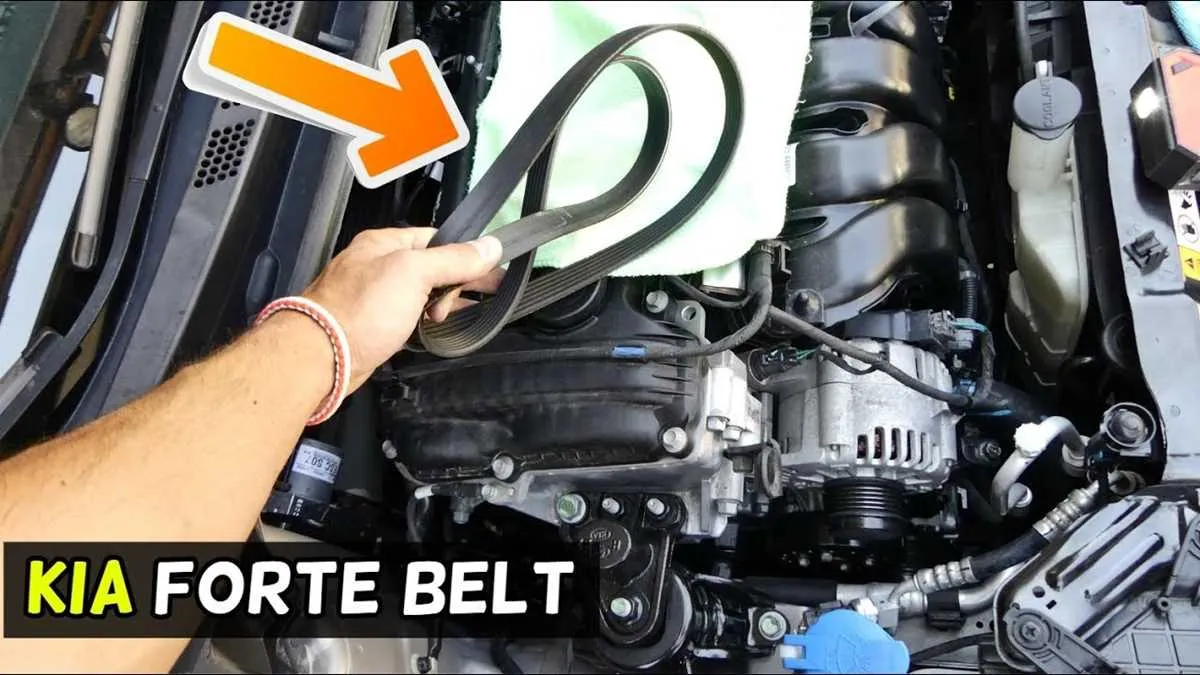

Loosen the tensioner pulley using a 14mm socket to relieve tension on the serpentine belt. Carefully slide the old belt off the pulleys, noting its exact routing for reference. Inspect all pulleys and the tensioner for wear or damage before installing the new belt.
Route the new belt according to the factory diagram, ensuring it sits fully in each pulley groove. Begin by placing the belt around the crankshaft pulley, then move to the alternator, water pump, and power steering pulleys, finishing at the tensioner. Double-check alignment to prevent slipping or misalignment.
Rotate the tensioner slowly to fit the belt over the final pulley. Release the tensioner gradually, confirming the belt maintains proper tension across all pulleys. Spin the crankshaft by hand to verify smooth operation and correct seating of the belt.
After installation, start the engine and observe the belt for 1–2 minutes. Watch for unusual noises, vibrations, or misalignment. Tighten any loose components and recheck tension if necessary. Reinspect after the first 100 miles to ensure continued proper operation.
Troubleshooting Common Belt Wear and Alignment Issues
Inspect the serpentine and accessory belts for visible cracks, fraying, or glazing along the ribbed side. Replace any belt showing cracks wider than 1/16 inch or noticeable fabric separation.
Check belt tension using a tension gauge. A properly tensioned belt should deflect approximately 1/4 inch under 10 pounds of pressure at the midpoint between pulleys. Excessive slack causes slipping, while over-tensioning accelerates bearing wear.
Examine pulley alignment with a straightedge or laser tool. Misaligned pulleys produce uneven wear, noise, and premature failure. Adjust idler or tensioner pulleys until all belts track straight along rib grooves.
Listen for squealing during engine startup or under load. Persistent noise often indicates worn tensioners or pulleys. Rotate each pulley by hand; rough rotation or grinding signals the need for replacement.
Inspect belt routing against the factory diagram. Incorrect routing increases friction and wear on high-stress points. Re-route belts precisely according to the 2017 Kia Soul belt diagram to maintain uniform load distribution.
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| Cracks or fraying on belt ribs | Normal wear or heat damage | Replace belt immediately |
| Belt slipping under load | Insufficient tension or misalignment | Adjust tensioner; realign pulleys |
| Squealing noise from engine | Worn tensioner or pulley bearings | Inspect and replace tensioner/pulleys |
| Uneven belt wear | Misaligned pulleys or incorrect routing | Realign pulleys and verify routing |
| Glazed or shiny belt surface | Excessive heat or prolonged slipping | Replace belt and check tension |
Check belts every 10,000 miles or during routine oil changes. Keep pulleys free of debris, oil, and coolant, which accelerate deterioration. Regular inspection ensures stable engine performance and prolongs component lifespan.
