2016 Kia Soul 2.0 Serpentine Belt Diagram and Routing Guide

The 2016 Kia Soul 2.0 is equipped with a serpentine belt system that powers multiple components of the engine. To ensure smooth operation, understanding the correct routing of the belt is essential. A properly routed belt prevents wear and tear, saving you time and money on repairs.

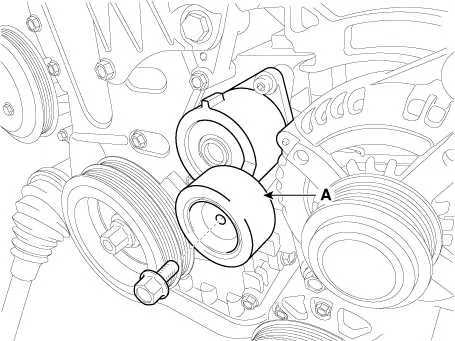

To identify the right belt routing for your 2016 Kia Soul 2.0, start by locating the tensioner pulley, which is responsible for maintaining the belt’s tension. The belt should pass over the crankshaft pulley, the alternator, and the air conditioning compressor. Pay attention to the order and direction of the pulleys to avoid misalignment that could lead to premature wear or belt failure.

In case you need to replace the serpentine belt, refer to the diagram provided in your vehicle’s manual. The diagram clearly shows the route the belt should follow, allowing you to easily match it with the correct pulleys. Always make sure to replace the belt with one of the same size and specifications to avoid any operational issues.

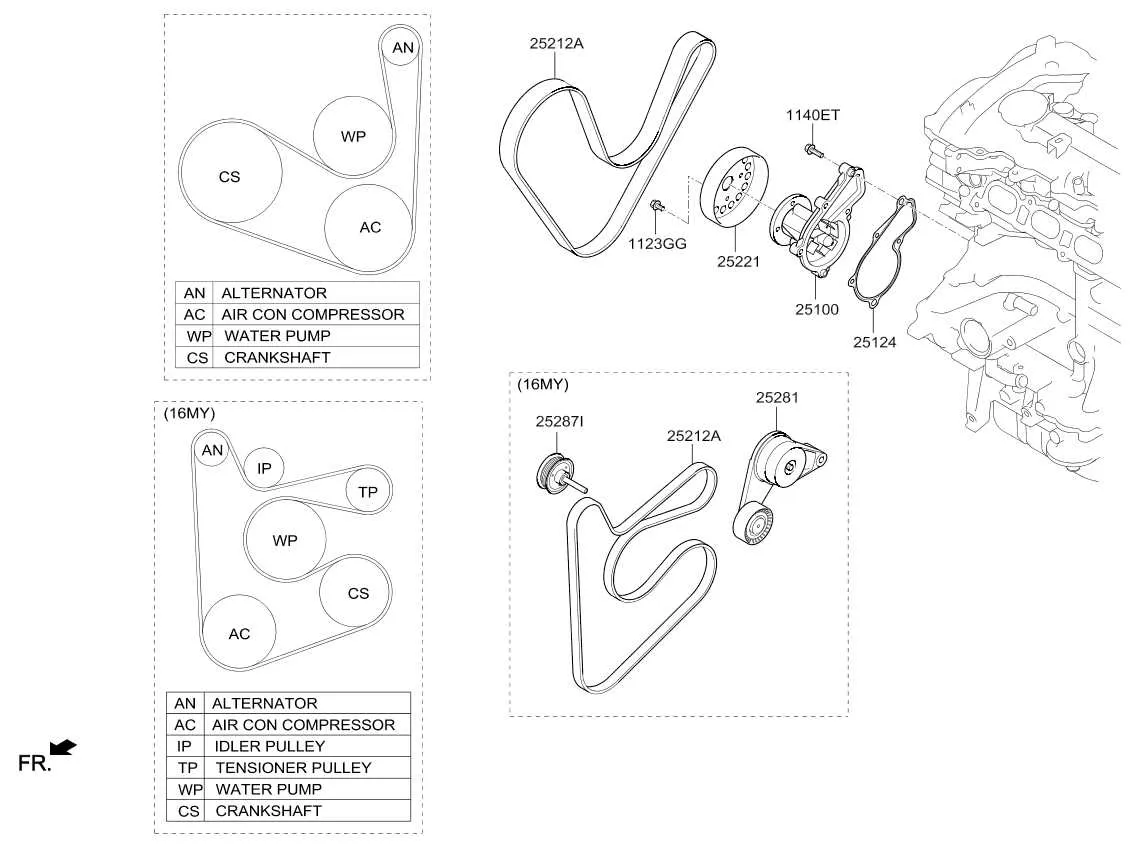

2016 Kia Soul 2.0 Belt Diagram

The 2016 Kia Soul 2.0 uses a serpentine belt to drive essential components such as the alternator, power steering pump, air conditioning compressor, and water pump. Correct belt routing is vital for maintaining optimal engine performance and preventing system failure. Ensure the belt is routed accurately according to the manufacturer’s diagram for smooth operation.

The serpentine belt follows a specific path around the engine pulleys. Begin by locating the belt tensioner, which maintains the correct belt tension. The belt passes over the crankshaft pulley, then moves to the power steering pulley. From there, it routes towards the alternator, followed by the air conditioning compressor, before looping around the water pump pulley. Finally, it returns to the tensioner pulley.

Before replacing or adjusting the belt, inspect it for signs of wear such as cracks, fraying, or glazing. If any of these issues are present, the belt should be replaced immediately. Use a belt tool to relieve tension on the belt when removing it. Always refer to the official diagram for the precise routing and ensure the belt is securely installed in its correct position before reapplying tension.

To replace the serpentine belt on a 2016 Kia Soul 2.0, start by loosening the tensioner with a socket wrench, then remove the old belt. When installing the new belt, carefully follow the routing path outlined in the vehicle’s service manual. Double-check the belt’s position on each pulley to avoid misalignment, which can cause unnecessary wear and damage.

How to Identify the Correct Belt Routing for 2016 Kia Soul 2.0

To ensure the serpentine belt on your 2016 Kia Soul 2.0 is routed correctly, follow these steps:

• Refer to the belt diagram located on the engine bay, typically near the radiator or on the front of the engine cover.
• Confirm the number of pulleys the belt passes over, ensuring each one matches the specific design for the 2.0L engine model.
• Check that the belt runs in the correct direction across the pulleys, ensuring it follows the correct path from the crankshaft pulley, over the idler pulley, and around the alternator, air conditioning compressor, and power steering pump.

If the diagram is missing or damaged, consult your owner’s manual or a repair manual for your specific model. If you’re replacing the belt, ensure the new one matches the size and style indicated in the manual.

When routing the belt, verify the tension is consistent by checking the idler pulley and tensioner to ensure the correct belt tension is applied. A belt that is too loose or tight can cause wear or performance issues.

Finally, manually rotate the crankshaft using a wrench to ensure the belt moves freely without slipping or binding in the pulleys.

Common Belt Issues and Solutions for 2016 Kia Soul 2.0

1. Belt Slipping: Belt slippage is a common issue caused by worn-out or loose belts. This can result in a squealing noise, loss of power to accessories, and poor performance. To resolve this, inspect the belt for signs of wear or damage. If the belt appears cracked or stretched, replace it with a new one. Also, check the tensioner for proper functionality, as it may need adjustment or replacement to ensure the belt remains tight.

2. Cracking or Fraying: Over time, exposure to heat and friction can cause the serpentine belt to crack or fray. If you notice visible signs of damage, such as tears or fraying edges, replace the belt immediately to avoid further damage to engine components. Inspect all pulleys and idlers for wear to ensure the new belt operates smoothly.

3. Noisy Belt: A noisy belt can indicate misalignment or excessive wear. Check the pulleys to ensure they are properly aligned and free of debris. If the belt squeals under acceleration or during startup, it may be too loose or worn. Tightening the tensioner or replacing the belt may resolve the issue.

4. Tensioner Failure: A faulty belt tensioner can lead to a loose or tight belt, causing improper operation of the serpentine belt. If the tensioner does not maintain the correct tension, it could result in belt slippage or rapid wear. Replace the tensioner if it is not functioning properly, as this component is crucial for maintaining proper belt tension.

5. Misalignment of Pulley System: Misaligned pulleys can put stress on the serpentine belt, leading to premature wear. Inspect all pulleys and the belt routing to ensure everything is properly aligned. If necessary, replace any damaged or misaligned pulleys to avoid excessive wear on the belt.

Step-by-Step Guide to Replacing the Serpentine Belt on 2016 Kia Soul 2.0

First, gather the necessary tools: a wrench, socket set, serpentine belt tool (if available), and a new serpentine belt compatible with the 2016 Kia Soul 2.0. Ensure the engine is cool before proceeding.

1. Locate the Serpentine Belt: The serpentine belt is located at the front of the engine. It runs around various components like the alternator, power steering pump, and air conditioning compressor.

2. Release Tension from the Belt: Use the serpentine belt tool or a wrench to relieve tension from the belt tensioner. Turn the tensioner clockwise or counterclockwise (depending on your model) to loosen the belt.

3. Remove the Old Belt: Once the tension is released, slide the belt off the pulleys. Make sure to note the belt’s routing before removal so you can install the new one correctly.

4. Install the New Belt: Begin by routing the new belt around the pulleys, following the path of the old belt. Ensure the belt sits correctly in all grooves and is not twisted.

5. Reapply Tension: Once the belt is properly in place, release the tensioner to apply tension to the new belt. Double-check that the belt is properly aligned on all pulleys.

6. Check Belt Alignment and Tension: Start the engine briefly to ensure the new belt runs smoothly and does not make any unusual noises. If everything is aligned correctly, the replacement is complete.

7. Dispose of the Old Belt: Properly dispose of the old serpentine belt and tools. Clean up the work area.
