2016 Kia Optima Serpentine Belt Routing Diagram and Installation Guide
To replace or inspect the serpentine belt on a 2016 Kia Optima, refer to the diagram below. It clearly shows the routing and positioning of the belt over various components like the alternator, power steering pump, and air conditioning compressor. Ensure the belt is routed correctly to avoid excessive wear or damage.
The diagram helps you identify the correct alignment of the serpentine belt, which is crucial for the proper functioning of the engine’s accessory systems. Double-check the tension of the belt once installed, as too much slack or tightness can affect performance.
If you are unsure about how to access the serpentine belt, it’s located on the front of the engine, near the pulleys. A tensioner pulley controls the belt’s tightness, which can be adjusted with the proper tool. Be sure to inspect all pulleys for signs of wear before installing the new belt.

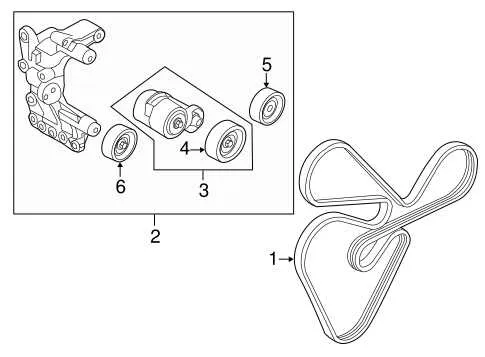

2016 Kia Optima Serpentine Belt Diagram
The serpentine belt routing diagram for the 2016 Kia Optima is crucial for proper installation and maintenance. It outlines the correct path the serpentine belt takes around the engine components. Refer to the diagram before replacing or reinstalling the serpentine belt to ensure everything is aligned correctly.
In the 2016 Kia Optima, the serpentine belt drives multiple accessories, including the alternator, power steering pump, and air conditioning compressor. The belt is routed over pulleys to keep these components functioning. Make sure the belt follows the path indicated in the diagram to avoid damage or malfunction.
To ensure proper installation, verify that the belt tensioner is properly engaged and that the belt is tight enough to avoid slipping but not overly tight. Regularly inspect the belt for wear, cracks, or fraying to prevent unexpected failures.
Refer to your vehicle’s manual for any specific torque settings or additional instructions related to the serpentine belt replacement process. Following the diagram and these recommendations will help you maintain optimal engine performance.
Identifying the Serpentine Belt Components in 2016 Kia Optima
To properly identify the serpentine belt components in a 2016 Kia Optima, start by locating the belt itself. It runs across various engine pulleys, connecting essential components like the alternator, power steering pump, air conditioning compressor, and water pump. The belt is typically long and ribbed, designed to transfer power from the engine’s crankshaft to these components.
The tensioner pulley plays a key role in keeping the belt tight. It adjusts automatically to maintain the correct tension, preventing slippage. Look for the spring-loaded tensioner near the top or side of the engine, attached to a rotating arm. Alongside it, the idler pulley helps guide the belt around the pulleys without transferring power.
The crankshaft pulley is located at the bottom of the engine and serves as the main drive for the serpentine belt. It’s crucial for generating the rotational force required to power the other components. Keep an eye on the belt’s alignment as it should sit snugly in the grooves of the pulleys. Any misalignment could indicate wear or improper tension.
In case of damage or wear, replace the serpentine belt along with any affected pulleys. Regular inspection ensures optimal engine performance and extends the life of the belt and its components.
Step-by-Step Guide to Replacing the Serpentine Belt on 2016 Kia Optima
Start by gathering the necessary tools: a socket wrench, a serpentine belt tool, and a new serpentine belt. Make sure the replacement belt matches the part number for the 2016 Kia Optima.
- Disconnect the Battery
To prevent any electrical issues, disconnect the negative terminal of the battery. - Locate the Serpentine Belt
The serpentine belt on the 2016 Kia Optima is located at the front of the engine. You’ll find it near the alternator, power steering pump, and air conditioning compressor. - Release the Tension from the Belt

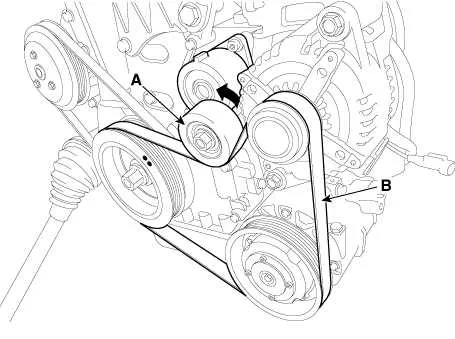

Using a serpentine belt tool or a socket wrench, rotate the tensioner pulley counterclockwise. This will release the tension on the belt, allowing you to remove it. - Remove the Old Serpentine Belt
With the tension released, slide the belt off the pulleys carefully. Take note of the routing pattern to ensure the new belt goes on the same way. - Install the New Serpentine Belt
Place the new belt on the pulleys, following the same routing pattern as the old one. Ensure the belt sits properly in each groove. - Apply Tension to the Belt
Rotate the tensioner pulley clockwise to apply tension to the new belt. Double-check the belt’s position and ensure it is tight and correctly aligned with the pulleys. - Reconnect the Battery
Once the belt is securely in place, reconnect the negative terminal of the battery. - Test the New Belt
Start the engine and observe the belt’s operation. Listen for any unusual noises and ensure the belt is moving smoothly over the pulleys.
If everything is in place and the belt runs smoothly, you have successfully replaced the serpentine belt on your 2016 Kia Optima.
Common Issues with the Serpentine Belt in 2016 Kia Optima and How to Diagnose Them
Inspect the serpentine belt for visible wear, such as cracks, fraying, or glazing. These signs indicate that the belt may need replacement. If the belt slips or squeals when starting the engine, the tensioner or pulley may be malfunctioning. Check for proper belt tension and alignment to ensure smooth operation.
Another issue is a worn-out idler pulley or tensioner. If you hear whining or squealing noises from the engine bay, it’s often a sign that one of these components is not functioning properly. To diagnose, rotate the pulleys by hand and check for resistance or roughness in movement. If they feel uneven or stiff, they likely need replacing.
If the serpentine belt has started to slip, check for proper belt tension. A loose belt can cause the alternator, air conditioning, and other accessories to fail. To check this, press down on the belt with your finger. If there is more than half an inch of deflection, the tensioner might need adjustment or replacement.
Look for the tell-tale signs of overheating caused by a loose or slipping serpentine belt. When the belt doesn’t function properly, components like the alternator or water pump may not be properly powered, which can lead to engine overheating. This issue may be coupled with a battery light appearing on the dashboard.
| Issue | Symptoms | Diagnosis |
|---|---|---|
| Visible Wear | Cracks, fraying, or glazing on the belt | Inspect the belt for physical damage or abnormal wear |
| Slipping or Squealing | Unusual noise or loss of accessory power | Check belt tension and alignment, inspect pulleys for wear |
| Loose Belt | Increased deflection when pressing down on the belt | Check belt tension and adjust or replace the tensioner |
| Overheating | Engine overheating, battery light on dashboard | Check the serpentine belt for proper function and tension |
