2016 Kia Optima 2.4 Serpentine Belt Routing Diagram and Guide

For proper maintenance of your 2016 Kia Optima 2.4, understanding the belt diagram is crucial. The serpentine belt in this model powers several key components including the alternator, air conditioning compressor, and power steering pump. If the belt becomes loose, worn, or damaged, it can lead to serious engine performance issues.

Inspecting the Belt Routing: Ensure the serpentine belt follows the correct path. A visual check of the diagram is the first step to verify its position. Pay special attention to any signs of wear such as fraying or cracking, as these are common indicators that the belt may need replacement.

Replacing the Serpentine Belt: When replacing the belt, refer to the 2016 Kia Optima 2.4 belt diagram for the correct routing sequence. It’s recommended to use the diagram to help guide the installation, ensuring that the belt is fitted snugly and correctly over the pulleys to avoid slippage or misalignment.

Performing regular checks on the belt can prevent more costly repairs down the road. Make sure to refer to the diagram anytime you work on your vehicle’s belt system to maintain optimal engine function.

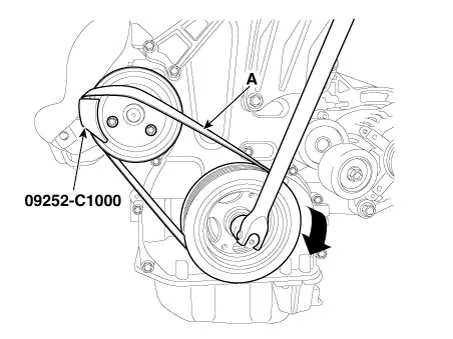

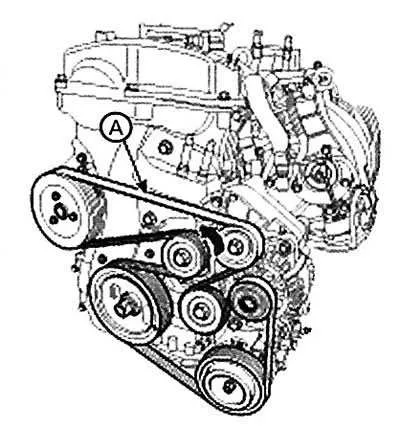

2016 Kia Optima 2.4 Belt Diagram

The 2016 Kia Optima 2.4 uses a specific belt routing system for its engine components. The serpentine belt connects several critical parts, including the alternator, power steering pump, water pump, and air conditioning compressor. Ensure that the belt is routed correctly to avoid damage or malfunction.

The belt’s tensioner maintains the proper tension, preventing slippage. If the belt appears loose or shows signs of wear, it’s crucial to replace it immediately to avoid further engine damage. Check for visible cracks or fraying on the belt, as these are indicators of wear.

Refer to the vehicle’s manual for the precise routing diagram. Ensure the belt is aligned with all pulleys as shown in the diagram to guarantee smooth operation. The belt should be routed over the alternator pulley, around the idler pulleys, and under the tensioner pulley.

For a more accurate and efficient repair, it’s recommended to use a belt removal tool when removing the old belt. This tool will help release the tension from the belt tensioner, making the replacement easier and faster.

When installing the new belt, double-check the alignment and ensure it’s seated correctly in all pulleys. A misaligned belt can cause the engine to overheat or lead to power loss.

How to Properly Route the Drive Belt on a 2016 Kia Optima 2.4

Start by ensuring the engine is turned off and the key is removed from the ignition. Lift the hood and locate the drive belt routing diagram, typically found on the engine bay or the radiator support. This diagram provides a clear illustration of the belt’s path and which pulleys it should engage with.

First, identify the tensioner pulley. This is where you will need to apply pressure to release the tension on the belt. Use a ratchet or wrench to rotate the tensioner counterclockwise, releasing the belt from the pulley system.

Once the belt is loosened, carefully remove it from all pulleys. Pay close attention to how the belt interacts with each component: the crankshaft pulley, alternator, power steering pump, and the air conditioning compressor. These pulleys should be aligned with the grooves on the belt, ensuring smooth operation.

To route the new belt, start by aligning it with the crankshaft pulley. Follow the diagram, routing the belt over the other pulleys in the correct sequence. Make sure the belt is seated properly in the grooves of each pulley, with no twists or misalignment.

Finally, release the tensioner pulley to tighten the belt. Verify the belt is taut and that all pulleys are correctly aligned. Rotate the engine manually to check for smooth operation before closing the hood.

Common Issues with the 2016 Kia Optima 2.4 Belt System

The drive belt in the 2016 Kia Optima 2.4 is prone to wear over time. One common issue is belt cracking, often caused by prolonged exposure to heat or age. Inspect the belt regularly for visible cracks, and replace it if any are found to avoid failure.

Another issue is belt slippage, which can occur if the tensioner loses its grip or if the belt becomes worn. A slipping belt will affect performance, causing alternator, power steering, and air conditioning malfunctions. It’s important to check the belt’s tension periodically and replace the tensioner if needed.

In some cases, belt misalignment may occur. This can happen due to pulley issues or improper installation. A misaligned belt may cause uneven wear and lead to premature failure. Ensure all pulleys are aligned correctly during installation and perform regular checks to maintain alignment.

Oil or coolant leaks near the belt can also cause damage. Fluids may degrade the belt material, leading to cracking or softening. If there are any fluid leaks in the engine bay, fix them promptly to prevent belt damage.

Lastly, squealing or unusual noises from the belt system can indicate a problem, such as a worn pulley or a failing tensioner. These sounds should not be ignored, as they often signal impending belt failure. Inspect the system immediately if noises are present.

Step-by-Step Instructions for Replacing the Drive Belt on a 2016 Kia Optima 2.4

1. Disconnect the battery to ensure safety while working on the engine.

2. Locate the drive belt and check its condition. Identify the path it follows around the pulleys and tensioners.

3. Use a wrench to release the tension from the belt. Turn the tensioner pulley in the direction specified in the vehicle manual to loosen the belt.

4. Carefully remove the old belt from the pulleys. Make sure to keep track of how the belt is routed for proper installation of the new one.

5. Compare the new belt with the old one to confirm the correct size and shape.

6. Begin installing the new belt, following the same route as the old belt. Ensure it fits snugly around all pulleys and tensioners.

7. Reapply tension to the belt by turning the tensioner pulley back to its original position. Ensure the belt is tight and properly aligned with the pulleys.

8. Double-check the routing and tightness of the belt. Manually rotate the pulleys to make sure the belt moves smoothly.

9. Reconnect the battery and start the engine to verify the new belt operates correctly without any abnormal sounds or issues.

10. If necessary, perform a final check after a short drive to confirm everything is functioning as expected.
