2015 Kia Soul Belt Diagram and Routing Guide
For proper maintenance of your 2015 Kia Soul, knowing the exact belt routing is crucial. The serpentine belt plays a vital role in running multiple engine components such as the alternator, power steering pump, and air conditioning compressor. If you are experiencing issues with your vehicle’s performance, the first step is to check the belt for any signs of wear or misalignment.
Start by ensuring the belt is routed correctly according to the factory specifications. Incorrect routing can lead to the belt slipping or breaking, causing severe damage to the engine. Use the diagram to verify the exact placement of the serpentine belt on the pulleys. Check the belt tension as well–too much slack or tightness can affect its operation.
If you find any signs of damage such as cracks or fraying, replace the belt immediately. Delaying replacement may result in further engine complications. A new, properly routed belt ensures smooth operation and extends the life of your vehicle’s engine components.
2015 Kia Soul Belt Diagram
The 2015 Kia Soul uses a serpentine belt system for its engine components. This belt is responsible for driving several essential accessories, such as the alternator, power steering pump, and air conditioning compressor. Knowing the correct routing and tension of the belt is critical for ensuring smooth operation of the vehicle’s systems.

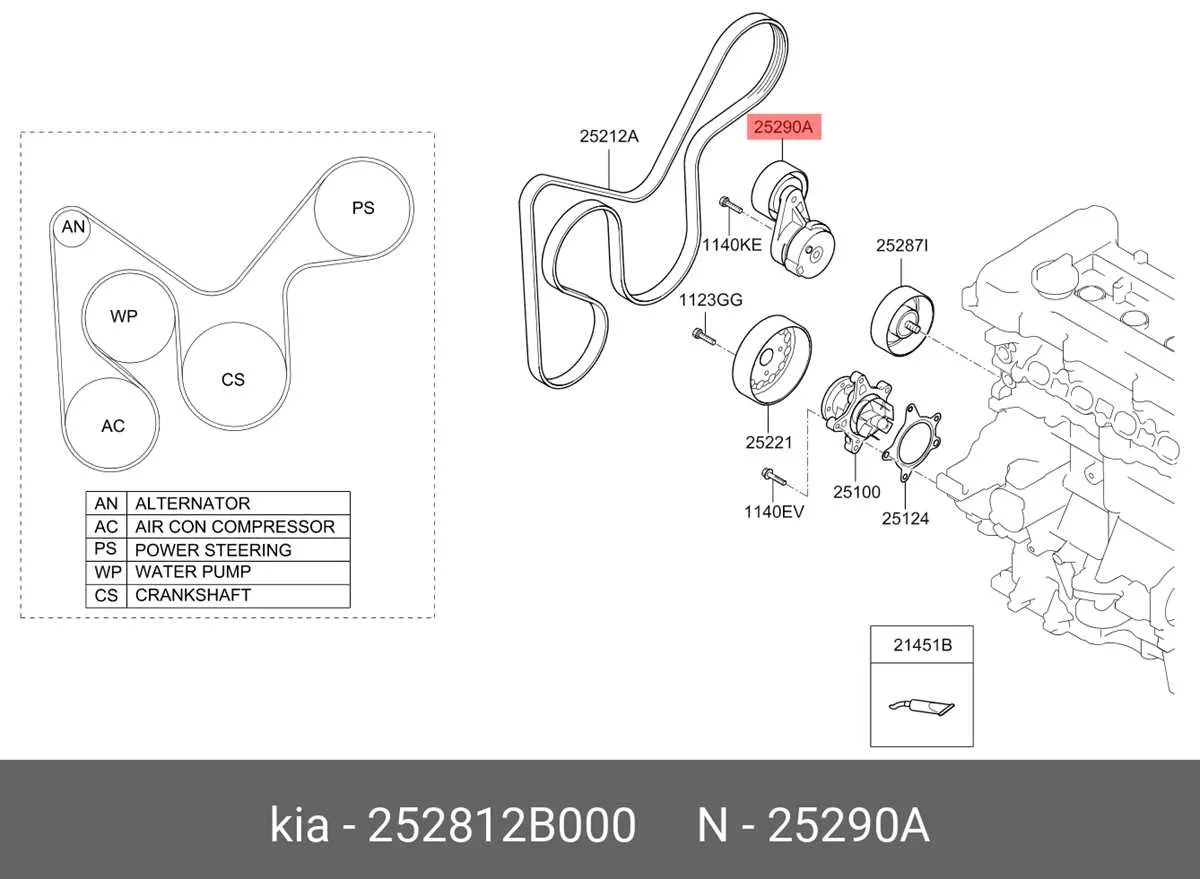

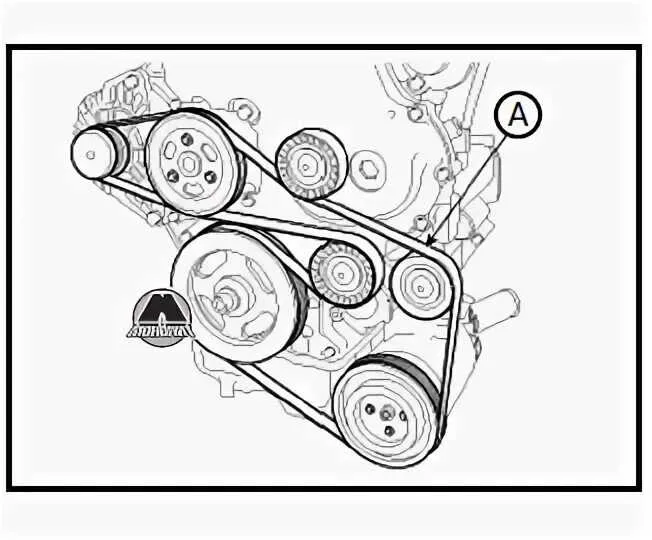

The belt routing for the 2015 Kia Soul follows a straightforward pattern. The serpentine belt loops around the crankshaft pulley, alternator, water pump, and other components in a specific sequence. It is important to ensure the belt is routed exactly as shown in the vehicle’s diagram to avoid malfunction or excessive wear on the belt and components.
If you need to replace the belt, ensure the new belt matches the correct size and tension specifications. Check the pulleys for damage or wear before installing the new belt. Always tighten the belt according to the manufacturer’s recommendations to avoid slippage or overstretching.
For easy reference, always consult the owner’s manual for the correct belt routing diagram and any vehicle-specific instructions. This will help you avoid common mistakes during belt replacement and ensure proper functionality of all engine components.
In case of a squeaky or slipping belt, inspect the belt’s condition regularly for signs of cracking or fraying. If you notice any issues, replace the belt immediately to prevent further damage to the engine and its accessories.
How to Identify the Belt Layout for 2015 Kia Soul
To identify the correct belt layout for your 2015 Kia Soul, start by locating the belt routing diagram, which is typically found on the engine bay, near the radiator or on the underside of the hood. If the diagram is missing or unclear, use the following steps to identify the layout:
1. Identify the main components powered by the belt. The 2015 Kia Soul typically uses a serpentine belt that powers the alternator, power steering pump, air conditioning compressor, and water pump.
2. Ensure the belt runs through the pulleys in the proper sequence. The path should go through the crankshaft pulley, followed by the tensioner pulley, and then the other components.
3. Check the belt’s alignment. Ensure that it sits properly in the grooves of all pulleys and that it’s not worn or damaged. A worn belt can often skip over pulleys, causing improper operation of the engine components.
4. Use a belt routing tool or the manufacturer’s service manual for the 2015 Kia Soul to verify the exact pulley arrangement. If necessary, consult a professional mechanic to ensure the belt is correctly routed and tensioned.
| Component | Function |
|---|---|
| Crankshaft Pulley | Powers the belt system, connects to the engine’s crankshaft |
| Tensioner Pulley | Maintains the correct tension on the belt |
| Alternator | Generates electrical power for the vehicle |
| Power Steering Pump | Assists in steering by pressurizing the steering fluid |
| Air Conditioning Compressor | Circulates refrigerant for the air conditioning system |
| Water Pump | Circulates coolant to regulate engine temperature |
Refer to the manual or diagram for any specific variations, such as additional components or pulley arrangements unique to your vehicle model.
Step-by-Step Guide to Replacing the Serpentine Belt on Kia Soul
To replace the serpentine belt on your 2015 Kia Soul, follow these precise steps:
- Prepare the Tools: Gather a socket wrench set, a serpentine belt tool, and a replacement serpentine belt.
- Locate the Tensioner: The serpentine belt is held in place by a tensioner pulley. Find it by looking at the front of the engine, typically near the alternator.
- Release Tension: Use the serpentine belt tool or a socket wrench to rotate the tensioner pulley counterclockwise, which will release the tension on the belt.
- Remove the Belt: Once the tension is released, carefully slide the belt off the pulleys. Take note of the belt routing for reinstallation.
- Install the New Belt: Position the new serpentine belt according to the routing diagram found in the engine bay. Make sure the belt fits snugly on each pulley.
- Check the Tension: Rotate the tensioner pulley again, ensuring that the new belt is securely in place with the correct tension.
- Test the Installation: Start the engine and observe the belt. Ensure it runs smoothly without any slipping or unusual noise.
Replace the serpentine belt every 60,000 to 100,000 miles to prevent unexpected breakdowns and ensure the longevity of your vehicle.
Troubleshooting Common Belt Issues on 2015 Kia Soul
If you notice strange noises or poor performance, check the serpentine belt for wear or damage. A worn or cracked belt can lead to engine problems. Inspect the belt for any visible signs of fraying, cracking, or glazing. If the belt shows any of these signs, it’s time to replace it.
Another common issue is a slipping belt. This can happen if the tensioner is worn or if the belt has stretched over time. A slipping belt causes the engine to lose power and may trigger dashboard warning lights. Tighten the tensioner or replace it if it no longer holds the belt properly.
Sometimes the belt may become misaligned, leading to uneven wear. This could be caused by a damaged pulley or an incorrect installation. To fix this, realign the belt on the correct path and check the pulleys for any damage or wear. If necessary, replace the pulleys before reattaching the belt.
Lastly, a belt that is too tight can cause premature wear on both the belt and the engine components. Make sure the belt is properly tensioned according to the manufacturer’s specifications. If unsure, consult the owner’s manual or a mechanic to ensure the correct tension.
