2012 Kia Sportage Serpentine Belt Diagram and Routing Information

If you’re tackling a belt replacement or maintenance on a 2012 Kia Sportage, the first thing you need is the correct belt routing diagram. This guide provides a detailed layout to help you accurately install the serpentine belt and other auxiliary belts without confusion.

Start by locating the serpentine belt routing diagram, typically found on the engine bay. It will show the exact path the belt should take around the pulleys, ensuring that all components, like the alternator, power steering pump, and air conditioning compressor, are driven properly. Be sure to follow the routing carefully to avoid misalignments, which can cause belt wear or damage to the engine components.

If you’re replacing the serpentine belt, check for any signs of wear or cracks. Use the diagram to confirm that the belt is installed correctly and operates smoothly across all pulleys. A misaligned belt can lead to excessive noise, poor performance, or even engine damage. The belt tensioner should also be checked for proper operation, ensuring the belt remains tight without slippage.

For those who need to replace additional belts, like the timing or drive belts, it’s crucial to have the specific diagrams for each one. Consult your owner’s manual for belt sizes and part numbers, and always choose quality replacement parts to ensure long-term reliability.

2012 Kia Sportage Belt Diagram

The 2012 Kia Sportage uses a serpentine belt system to drive essential engine components, such as the alternator, air conditioning compressor, power steering pump, and water pump. To avoid engine damage and maintain performance, it’s crucial to replace the belt within the recommended intervals, typically every 60,000 to 100,000 miles, depending on the driving conditions.

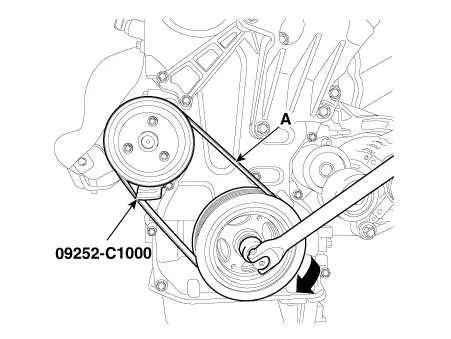

To correctly install the belt, refer to the specific routing diagram for the 2012 Sportage, which can usually be found on a sticker near the engine bay. The diagram outlines the precise path the serpentine belt takes around the pulleys. Make sure the belt is routed correctly before tightening it to the correct tension to avoid slipping or wear.

Common issues with the serpentine belt include visible cracks, fraying, or wear on the edges, which could lead to belt failure. If you notice any signs of damage, it’s best to replace the belt immediately to prevent a breakdown.

If you’re replacing the belt yourself, use a belt tensioner tool to relieve pressure from the belt, then remove it carefully. Once installed, ensure that the belt sits properly on all pulleys and that there is no excess slack.

Always verify that the belt matches the size and specifications outlined for your vehicle model. Using the wrong belt could lead to improper functioning of the engine components and potential damage.

Understanding the Serpentine Belt Routing for 2012 Kia Sportage

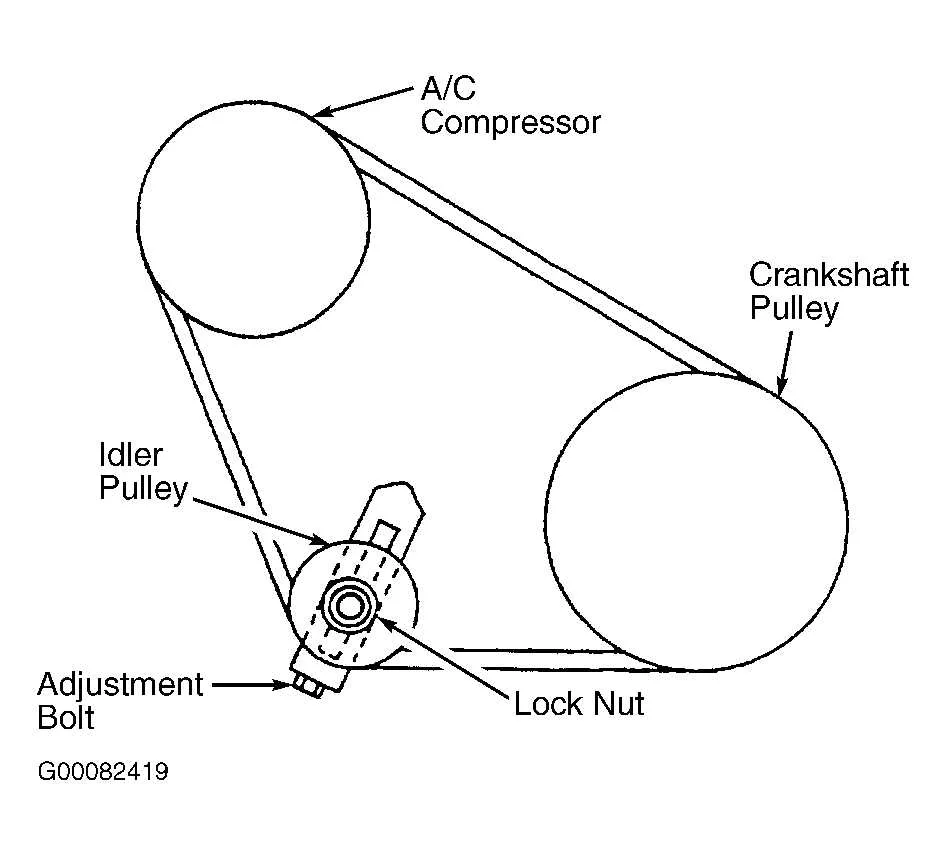

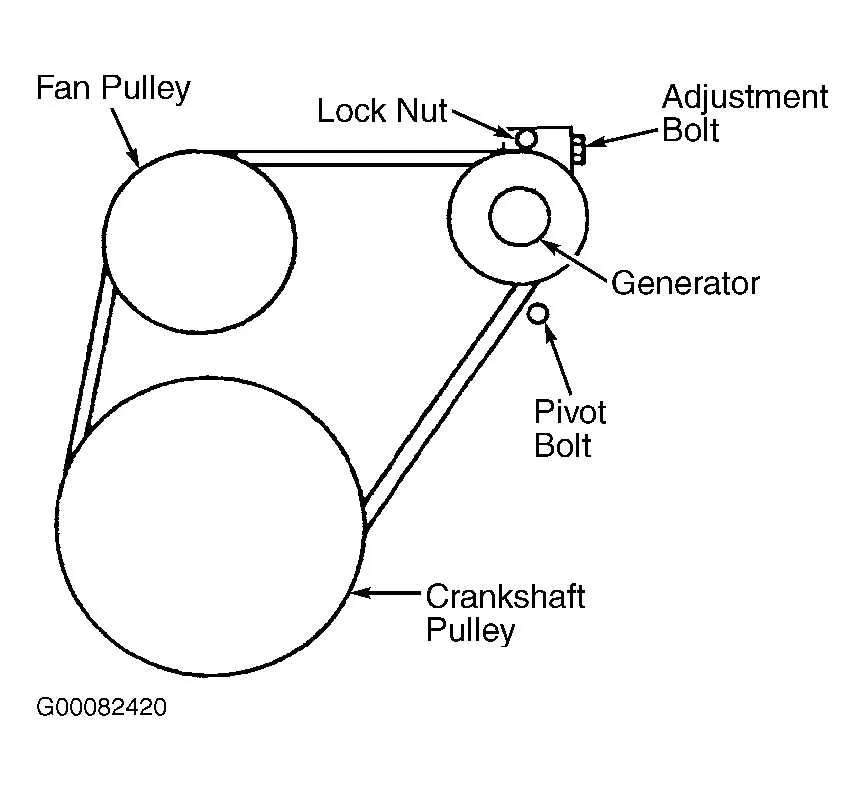

The serpentine belt routing on the 2012 Kia Sportage is straightforward but requires attention to detail for proper installation. Begin by positioning the belt around the crankshaft pulley, ensuring it fits snugly. Next, route the belt around the tensioner pulley and ensure it passes over the water pump and alternator pulleys. Make sure the belt moves in a continuous loop, avoiding any twisting or misalignment.

Double-check that the belt runs along the path shown in the diagram, and ensure that it is positioned properly on all pulleys. Pay attention to the idler pulley, as its placement is crucial for maintaining correct tension. The tensioner should keep the belt tight without overstretching or leaving slack, preventing slippage.

Use the correct tools to adjust the tension if needed. After installation, rotate the engine manually to verify that the belt runs smoothly and does not interfere with other components. Any misalignment could lead to premature wear or failure of the belt, affecting the engine’s performance.

How to Identify and Replace the Timing Belt on 2012 Kia Sportage

Check your vehicle’s service manual for the recommended replacement interval. For the 2012 Kia Sportage, it’s typically around 60,000 to 100,000 miles, depending on your engine type. Ignoring the timing belt replacement can lead to severe engine damage if it snaps.

Step 1: Locate the timing belt

The timing belt is located at the front of the engine, usually covered by a plastic or metal timing cover. To access it, you may need to remove other components like the air intake, serpentine belt, and front engine mount.

Step 2: Align the engine to top dead center (TDC)

Before removing the old timing belt, rotate the crankshaft to position the engine at top dead center (TDC). This ensures the valves and pistons are aligned correctly, preventing internal engine damage.

Step 3: Remove the old timing belt

Loosen the tensioner pulley and carefully remove the timing belt. Pay attention to the alignment marks on the camshaft and crankshaft pulleys. This will help you install the new belt correctly. If your Sportage has a hydraulic tensioner, you’ll need a special tool to relieve pressure before removing it.

Step 4: Inspect components

Before installing the new belt, inspect the pulleys, tensioner, and water pump (if it’s driven by the timing belt). Replace any worn or damaged parts. This is a good time to replace the water pump, as accessing it is easier while the timing belt is off.

Step 5: Install the new timing belt

Place the new timing belt onto the camshaft and crankshaft pulleys, ensuring the alignment marks are properly matched. Install the tensioner pulley and tighten it to the specified torque. Rotate the engine by hand a few times to make sure the belt is correctly aligned and the engine turns smoothly.

Step 6: Reassemble and test

Once everything is properly installed, reassemble the components you removed, such as the air intake and serpentine belt. Start the engine and listen for any unusual noises. If everything sounds good, take the vehicle for a short drive to make sure it’s running smoothly.

Common Belt Issues in 2012 Kia Sportage and How to Address Them

To prevent belt failures in your 2012 Kia Sportage, regularly inspect the drive belt for cracks, fraying, or wear. If you notice any of these signs, replace the belt immediately to avoid more serious damage.

• Worn Out Drive Belt: A common issue is the gradual wear of the drive belt. If you hear squealing noises or if the steering feels stiff, the belt may be slipping. Replacing the belt every 60,000 to 100,000 miles can prevent this.
• Misaligned Belt: Misalignment of the belt leads to excessive wear and tension on the components it drives. If the belt is off-center or squeaks frequently, the tensioner or pulleys may need adjustment. Inspect them for damage or corrosion.
• Damaged Tensioner: The tensioner maintains proper belt tension. If the tensioner fails, the belt can lose its grip and slip. Listen for rattling noises, and if you notice them, check the tensioner for wear or stiffness. Replacing a faulty tensioner is necessary to avoid belt slippage.
• Pulley Issues: Pulley wear can cause irregular belt movement. Check pulleys for any cracks, damage, or wobbling. Replace damaged pulleys immediately to ensure the belt runs smoothly and doesn’t wear prematurely.

Regular maintenance, such as checking for wear, lubrication, and proper tension, can greatly extend the life of the belt and avoid costly repairs down the road.
