2012 Kia Forte 20 serpentine belt diagram with routing details and pulley placement
For anyone looking to replace or inspect the serpentine belt on a 2012 Kia Forte 2.0, knowing the correct routing diagram is key to avoiding mistakes and ensuring optimal engine performance. The belt diagram shows how the serpentine belt should be routed around the pulleys, ensuring proper tension and function of critical components like the alternator, power steering pump, and air conditioning compressor.
The diagram for the 2.0L engine can usually be found on a sticker on the engine bay. If it’s worn or missing, this guide will provide the exact routing information to help you get your vehicle back in action. Follow the specific belt path carefully to prevent damaging the components it drives or causing undue strain on the engine.
When replacing the belt, always double-check the part number and length to match your specific model. The tensioner will need to be adjusted to ensure the correct belt tightness, which can affect the performance and longevity of the belt itself.

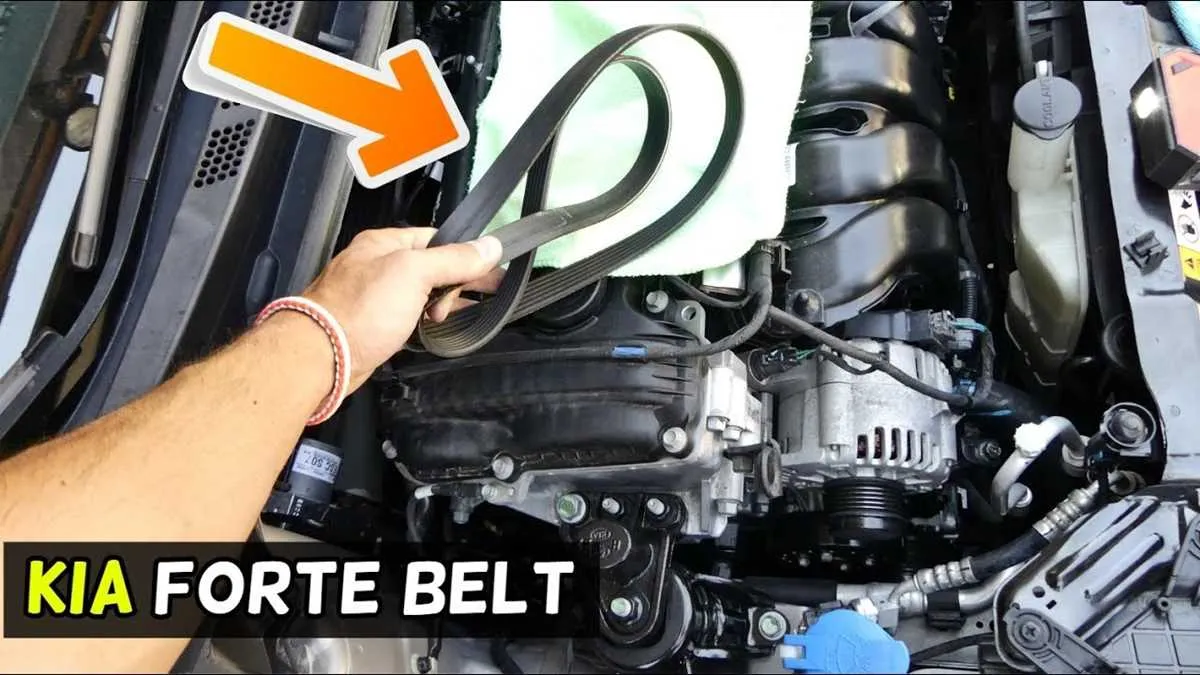

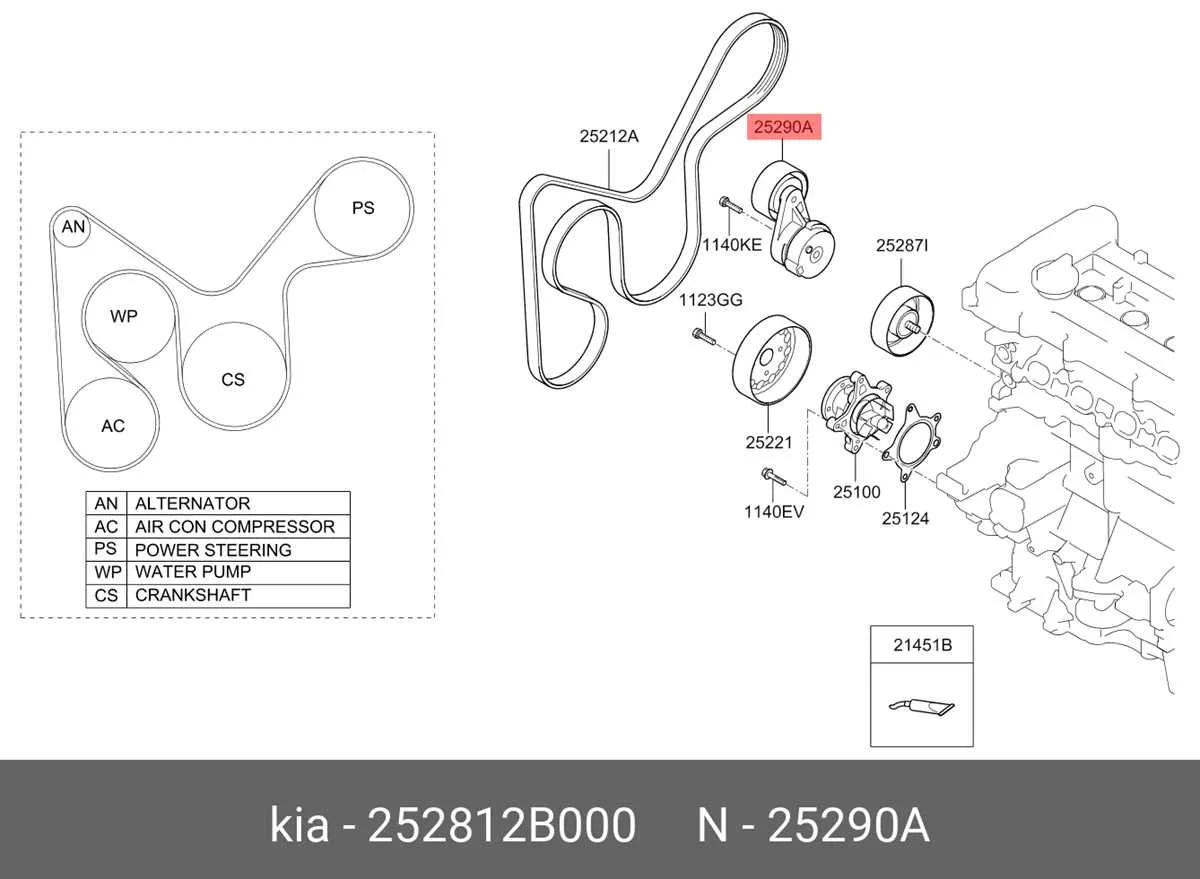

2012 Kia Forte 2.0 Belt Diagram
The 2012 Kia Forte 2.0 uses a serpentine belt system to drive various accessories like the alternator, power steering pump, air conditioning compressor, and water pump. Ensuring the proper routing of the belt is crucial to maintain optimal engine performance. Below is the typical belt routing diagram for this model.
The serpentine belt is routed around several pulleys, each connected to specific engine components. Start by threading the belt over the crankshaft pulley, then loop it around the water pump, alternator, power steering pulley, and air conditioning compressor. Make sure the tensioner pulley is correctly aligned to maintain the required belt tension. If your vehicle has an automatic tensioner, it will adjust tension as needed.
If you’re replacing the belt, double-check the diagram to avoid any misrouting. A misaligned belt can cause components to malfunction or wear out prematurely. Always inspect the belt for signs of cracking or fraying before installation.
For a visual guide, consult the specific diagram located on the engine bay of your vehicle. It may be attached to the underside of the hood or near the engine compartment for quick reference.
Regular belt checks can help you spot potential issues early, such as loose tension or visible wear. A well-maintained belt ensures the smooth operation of your vehicle’s key systems, improving longevity and reliability.
Location of Serpentine Belt and Pulley Components
The serpentine belt on the 2012 Kia Forte 2.0 runs across several key components: the alternator, power steering pump, air conditioning compressor, and the water pump. It starts from the crankshaft pulley and moves in a single continuous loop around these parts.
The crankshaft pulley, located at the front bottom of the engine, is the primary source of power for the belt. It drives all other components that rely on belt motion. The power steering pump pulley sits towards the driver’s side of the engine, while the air conditioning compressor pulley is located near the passenger side. The alternator pulley, located above the power steering pump, keeps the electrical system charged.

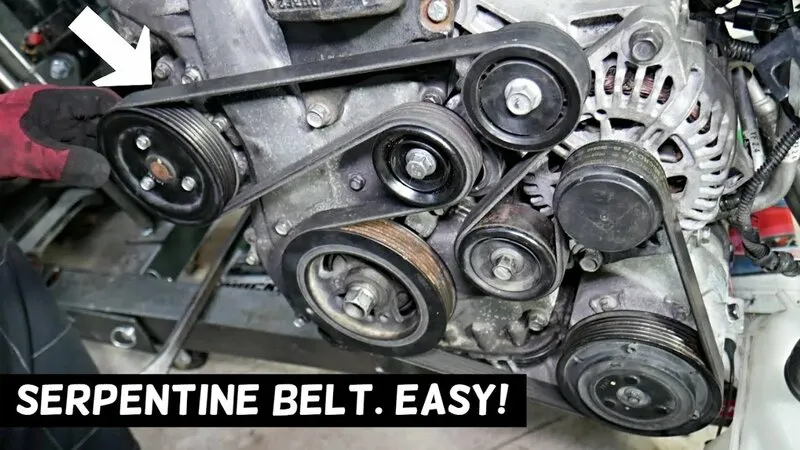

To access the serpentine belt, you must remove the engine cover if present. Once exposed, the tensioner pulley, located near the top-center of the engine, controls the tightness of the belt. This pulley can be adjusted to relieve tension, making belt removal and installation easier.
Step-by-Step Belt Routing for 2.0 Engine
Begin by positioning the serpentine belt on the crankshaft pulley. Ensure it fits snugly in the groove before routing it towards the tensioner pulley. The next step is guiding the belt over the alternator pulley, keeping it tight against the grooves. From there, route the belt to the power steering pump pulley, making sure it’s centered properly.
Next, pass the belt over the water pump pulley. Check that it stays aligned with the grooves as you proceed. Carefully loop it around the idler pulley, keeping a close watch on tension. The final step is securing the belt around the A/C compressor pulley, ensuring it runs smoothly across all components.
Double-check the tensioner and adjust if needed. The belt should sit comfortably in the grooves without excessive slack. Once all pulleys are properly aligned, test the system by rotating the crankshaft manually to ensure smooth movement.
- Crankshaft pulley → Tensioner pulley
- Tensioner pulley → Alternator pulley
- Alternator pulley → Power steering pump pulley
- Power steering pump pulley → Water pump pulley
- Water pump pulley → Idler pulley
- Idler pulley → A/C compressor pulley
Recheck belt alignment and tension before closing up the engine bay.
Common Belt Replacement Issues and Troubleshooting
If the belt on your 2012 Kia Forte 2.0 is slipping or causing noise, start by inspecting the belt tension. An improper tension can lead to poor performance and premature wear. Check for wear marks or fraying, as these are signs that the belt is ready for replacement.
Another common issue is misalignment. The pulleys should align properly, and any misalignment can cause the belt to wear unevenly. Use a straightedge to verify the pulleys are in line. If they’re not, it could be a sign of a faulty pulley or an issue with the installation of the belt.
When replacing the belt, be sure to check the condition of other components in the system, such as the tensioner and idler pulleys. These can wear out over time and cause additional strain on the belt. Replacing them while replacing the belt can prevent future problems.
Examine the pulley bearings for any signs of wear or damage. A worn bearing can cause a noisy belt and uneven wear. Rotate the pulleys by hand to ensure they move smoothly and without resistance. If you feel any roughness or resistance, replace the pulley.
Over-tightened belts can also cause damage to the system. Ensure that the belt tensioner is functioning correctly and that the belt isn’t overly tight. This can lead to stress on the alternator and other components. It’s important to follow the manufacturer’s specifications for proper belt tension.
Lastly, avoid using aftermarket belts of inferior quality. Stick to OEM or high-quality replacement parts to ensure a proper fit and longevity. Poor-quality belts are more prone to stretching, slipping, and failure, leading to more frequent replacements.
