Detailed belt routing diagram for 2011 Kia Optima 24 engine layout and components
Locate the serpentine belt routing by consulting the specific diagram designed for the 2011 Kia Optima with the 2.4-liter engine. This diagram clearly illustrates the correct path around the alternator, power steering pump, air conditioning compressor, and crankshaft pulley, preventing misalignment or premature belt wear.
Follow the belt path carefully during installation or replacement to maintain proper tension and avoid engine accessory failures. The tensioner pulley should be adjusted according to the factory specifications, which the diagram helps identify precisely.
Using the accurate belt routing diagram reduces downtime and ensures reliable engine performance. Keep the diagram handy during maintenance to verify alignment and identify any potential issues before they cause damage.
2011 Kia Optima 2.4 Belt Diagram

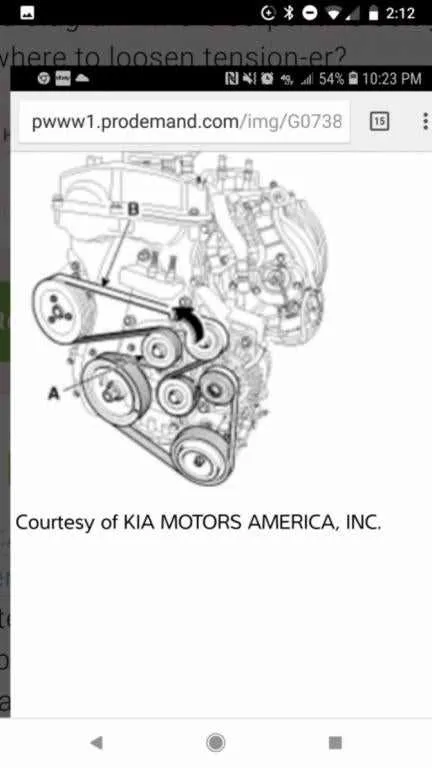

Locate the serpentine belt routing around the 2.4L engine by following the path connecting the crankshaft pulley, alternator, power steering pump, water pump, and air conditioning compressor. The belt wraps clockwise from the crankshaft, passing the water pump, then the power steering pump, followed by the alternator, and finally the A/C compressor before returning to the crankshaft.
Use the tensioner pulley to adjust belt tension correctly. Applying the proper tension prevents slipping and premature wear. If replacing the belt, match the new belt’s length and rib count to the factory specifications–typically a multi-ribbed serpentine belt designed for smooth operation.
Refer to the belt diagram printed on the underside of the hood or the service manual for exact routing details, especially if auxiliary components have been added or modified. Incorrect installation may lead to engine overheating or loss of power steering.
Check for alignment of all pulleys to avoid uneven belt wear. Inspect the tensioner for smooth movement and replace it if it shows signs of sticking or noise. Regularly examining the belt and tensioner extends component life and maintains optimal engine performance.
How to Identify Each Belt and Its Routing on 2011 Kia Optima 2.4 Engine
The 2011 Kia Optima 2.4 uses two main belts: the serpentine belt and the timing belt. The serpentine belt drives accessories like the alternator, power steering pump, and air conditioning compressor. The timing belt controls the camshaft’s rotation, synchronizing engine valves with pistons.
Locate the serpentine belt on the front of the engine. It follows a winding path around multiple pulleys. To trace its routing, identify the tensioner pulley–usually spring-loaded–used to maintain belt tension. Start from the crankshaft pulley at the bottom center and follow the belt as it loops over the alternator pulley at the top left, then the idler pulley, power steering pump, and A/C compressor before returning to the crankshaft pulley.
The timing belt sits behind a protective cover on the engine’s left side. Remove the cover to access it safely. The timing belt wraps around the camshaft pulley at the top and the crankshaft pulley below, maintaining precise timing between valve and piston movement. Avoid rotating the camshaft or crankshaft independently to prevent misalignment.
| Belt Type | Location | Function | Key Components in Routing |
|---|---|---|---|
| Serpentine Belt | Front of engine | Drives alternator, power steering, A/C compressor | Crankshaft pulley, alternator pulley, tensioner pulley, power steering pulley, A/C compressor pulley |
| Timing Belt | Left engine side, behind cover | Synchronizes camshaft and crankshaft | Camshaft pulley, crankshaft pulley, tensioner pulley |
Refer to the belt routing diagram printed under the hood or in the owner’s manual for exact belt paths. When replacing belts, use the diagram to ensure correct installation and tension. Check for any wear marks or cracks during inspection to prevent unexpected failures.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2011 Kia Optima 2.4
Replace the serpentine belt by first locating the belt routing diagram under the hood or consulting the vehicle manual. This diagram ensures correct belt positioning around pulleys.
- Disconnect the negative battery terminal to prevent accidental starts.
- Use a wrench or serpentine belt tool to rotate the tensioner pulley clockwise, releasing tension on the belt.
- Slide the belt off the pulleys carefully, noting the belt’s path if no diagram is available.
- Inspect all pulleys and the tensioner for wear or damage; replace components if necessary.
- Place the new belt following the routing diagram, ensuring it sits properly in each pulley groove.
- Rotate the tensioner pulley again to allow the belt to slip into place, then slowly release the tensioner to apply pressure.
- Double-check the belt alignment on every pulley to avoid slipping or premature wear.
- Reconnect the negative battery terminal and start the engine, observing the belt operation for any irregularities.
Use a high-quality serpentine belt specific to the 2011 Kia Optima 2.4 engine to ensure longevity and proper fit. Avoid forcing the belt onto pulleys, which can cause damage. Perform this replacement in a well-lit, safe workspace with all necessary tools on hand.
Common Belt Problems and Troubleshooting Tips for 2011 Kia Optima 2.4
Check for squealing during startup or acceleration–this usually points to a loose or worn serpentine belt. Inspect belt tension and alignment using a torque wrench; the automatic tensioner should apply around 100–120 ft-lb. If it’s outside this range or shows bounce, replace the tensioner.
Look for visible cracks, fraying, or glazing on the belt surface. A healthy serpentine belt for the 2.4L engine typically lasts about 60,000 to 100,000 miles, but environmental factors like heat and dust can shorten that span. Replace the belt if rubber feels brittle or shiny areas appear.
If the air conditioning or alternator underperforms, test the belt’s grip on pulleys. A slipping belt won’t turn accessories efficiently. Clean pulleys with brake cleaner and inspect for oil leaks from the valve cover gasket, a common source of belt contamination on this engine.
Listen for rhythmic chirping at idle. Misaligned pulleys or a damaged idler bearing often cause this. Use a straight edge to verify pulley alignment and spin each accessory pulley by hand to detect grinding or resistance.
Always route the new belt following the factory diagram under the hood. Incorrect routing may not trigger a warning light but can silently damage engine components. Double-check that the belt sits squarely in every pulley groove before starting the engine.
