2006 Kia Spectra Belt Diagram for Proper Installation and Maintenance

Understanding the belt system of the 2006 Kia Spectra is key to maintaining optimal engine performance. The engine’s belts are crucial for driving essential components like the alternator, water pump, and air conditioning system. An accurate belt diagram ensures you can replace or adjust the belts correctly, preventing damage and reducing the risk of failure.

Follow the correct routing outlined in the belt diagram to avoid misalignment, which can lead to premature wear or even breakage. For a smooth-running engine, pay close attention to belt tension, ensuring each belt is neither too tight nor too loose.

Use the diagram to identify the location of each belt and pulley system. This is especially useful when replacing old belts or troubleshooting potential issues, such as squealing noises or performance loss. The diagram simplifies the process by visually guiding you through the specific arrangement of pulleys and tensioners in the 2006 Kia Spectra.

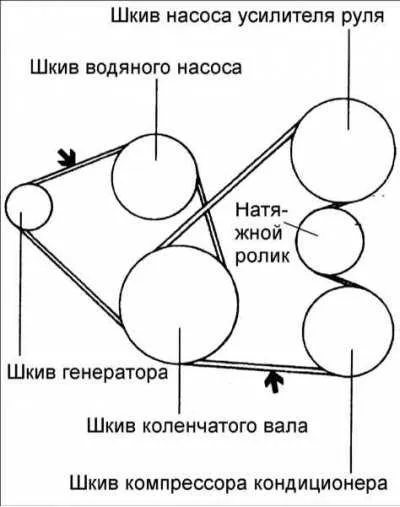

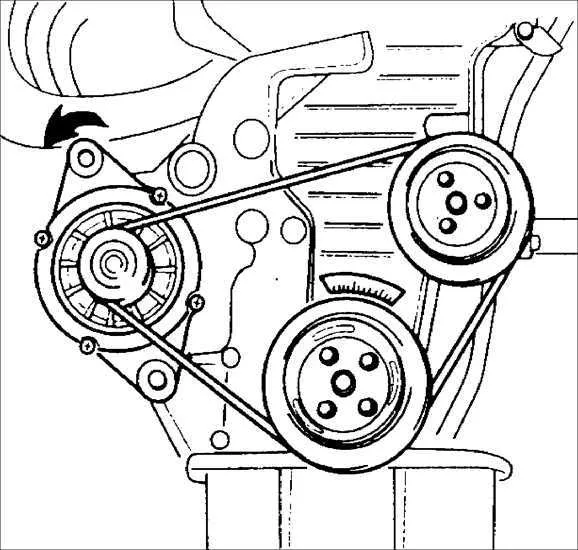

2006 Kia Spectra Belt Diagram

The 2006 Kia Spectra features a straightforward serpentine belt system, responsible for driving several engine components such as the alternator, air conditioning compressor, and power steering pump. Proper belt routing is crucial to ensure all systems function without issues.

To begin, locate the belt tensioner, which adjusts the tension on the serpentine belt. Use a wrench to relieve pressure on the tensioner and remove the belt. When installing the new belt, ensure it follows the correct path, as shown in the factory diagram. This will prevent any misalignment, which could lead to premature wear or damage.

The serpentine belt should be checked for wear regularly. Look for signs of cracking, fraying, or glazing. If any of these issues are present, replace the belt immediately to avoid breakdowns. The belt should also be inspected for proper tension. Too much slack can cause the belt to slip, while too tight of a fit can damage the components it drives.

When routing the new belt, make sure it is seated properly in all the grooves of the pulleys. Double-check the alignment to ensure that the belt doesn’t rub against other components, which could cause further damage. After installation, start the engine and inspect the belt’s operation for any unusual sounds or vibrations.

For reference, the factory belt diagram for the 2006 Kia Spectra can be found on the engine compartment label or in the owner’s manual. Always refer to this diagram for accurate routing to prevent operational issues.

Understanding the Belt Layout of 2006 Kia Spectra

The 2006 Kia Spectra features a serpentine belt system that powers various engine components, including the alternator, power steering pump, air conditioning compressor, and water pump. The layout of these belts is critical for ensuring the smooth operation of the vehicle’s engine and accessories.

Locate the serpentine belt first. It wraps around multiple pulleys in a continuous loop, transferring power from the crankshaft pulley to the other components. It’s important to verify that the belt is correctly aligned with the pulleys to prevent any wear or misalignment that could lead to premature failure.

Inspect the tensioner pulley. It maintains the correct tension on the serpentine belt to avoid slippage or excessive wear. If the tensioner is faulty, it can cause the belt to become loose or over-tightened, leading to potential engine performance issues.

The belt routing on the 2006 Kia Spectra follows a specific path to ensure the correct movement of the belt across various pulleys. If replacing the belt, make sure to follow the factory routing diagram for the correct installation. Failure to route the belt properly can result in poor engine performance and even damage to the components driven by the belt.

Always check the condition of the belt regularly for signs of wear, cracks, or fraying. A worn-out belt can slip off or snap, causing loss of power to key engine components. If you notice any issues, replacing the belt promptly can prevent further damage.

Step-by-Step Instructions for Correct Belt Routing

Begin by identifying all the components the belt will interact with. This includes the crankshaft pulley, alternator, power steering pump, air conditioning compressor, and the idler pulley. It’s important to inspect the condition of these components before starting the belt routing process.

1. Position the belt around the crankshaft pulley. Ensure the grooves are aligned properly with the pulley teeth.

2. Next, route the belt to the alternator. Position it along the groove, ensuring it moves freely along the path.

3. Route the belt towards the power steering pump. Make sure it is seated correctly in the pump’s pulley groove.

4. Continue the belt routing to the air conditioning compressor. Align the belt in the groove and check for any slack in the routing path.

5. Place the belt over the idler pulley. Ensure it is properly tensioned without excess slack or tightness.

6. Double-check the belt routing against the vehicle’s service manual to confirm all components are connected properly.

7. If the vehicle has a tensioner, adjust it to ensure the correct tension is applied to the belt.

8. Rotate the belt by hand to verify it moves smoothly along all pulleys. Ensure there is no friction or misalignment.

9. Recheck the belt tension after rotating it and make any necessary adjustments to maintain optimal tightness.

Once everything is in place, test the system by starting the engine. Listen for any abnormal noises that could indicate incorrect routing or tension.

Troubleshooting Common Belt Issues in the 2006 Kia Spectra

If the serpentine belt in your 2006 Kia Spectra shows signs of wear, inspect it for cracks or fraying. These symptoms often indicate that the belt has lost its flexibility and may need replacement. Pay attention to the condition of the pulleys and tensioner as well, as worn pulleys can cause the belt to misalign or slip.

To check for misalignment, look for any unusual wear patterns on the belt. A misaligned belt may rub against the side of the pulley, leading to uneven wear. Inspect the tensioner for proper tension. If the belt is too loose, it may slip, causing loss of power or overheating. Tighten or replace the tensioner if necessary.

Noisy belts are another common issue. A squealing or chirping sound could suggest that the belt is slipping due to insufficient tension or a contaminated surface. Cleaning the pulleys and ensuring the belt is properly tightened can help reduce noise. If the noise persists, consider replacing the belt or tensioner.

For persistent issues, ensure that the alternator, power steering pump, and other components driven by the serpentine belt are functioning properly. A failure in any of these components can put excess strain on the belt, leading to premature wear or failure.
