08 Kia Sorento Belt Diagram and Installation Guide

To quickly resolve any issues related to the belt system in your 2008 Kia Sorento, it’s essential to know the correct belt routing. The diagram for the 2008 model provides a clear representation of how the serpentine belt and other belts are arranged within the engine compartment. This helps avoid misalignment and ensures smooth operation of critical components such as the alternator, power steering pump, and air conditioning compressor.

The serpentine belt plays a key role in powering several essential engine components. To prevent premature wear or potential failures, follow the belt routing diagram carefully. It’s recommended to check the tension and condition of the belt regularly. If you’re replacing the belt, ensure it’s the correct size and type for the 08 Kia Sorento to avoid any issues during installation or operation.

Knowing the correct belt routing also helps when troubleshooting. A faulty belt can cause multiple problems, from a noisy engine to complete power loss in essential systems. Use the diagram as a reference for both installation and diagnosing any issues with the belt. It’s a simple, yet effective, way to maintain the reliability of your vehicle.

08 Kia Sorento Belt Diagram

For a smooth driving experience with your 2008 Kia Sorento, keeping the serpentine belt system in check is crucial. The serpentine belt drives essential components like the alternator, power steering pump, and air conditioning compressor. The correct routing of the belt ensures all these parts function efficiently.

The 2008 Kia Sorento features a single serpentine belt running across the engine components. It’s important to replace it every 60,000 to 100,000 miles, depending on driving conditions, to avoid unexpected breakdowns. Pay attention to the condition of the belt for cracks or wear, and inspect the pulleys regularly to prevent misalignment.

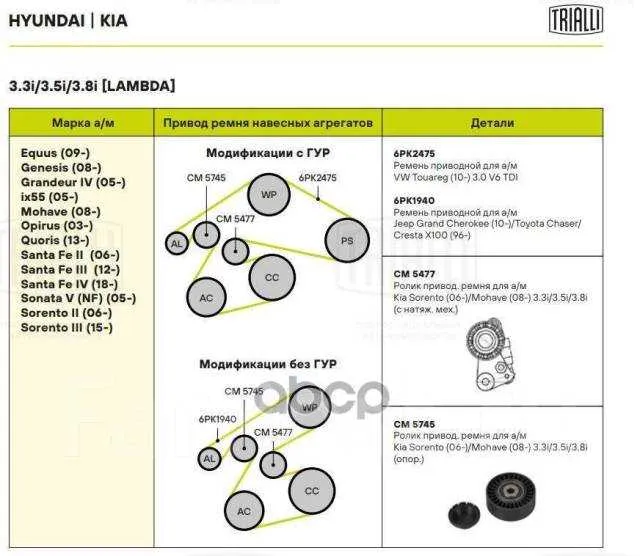

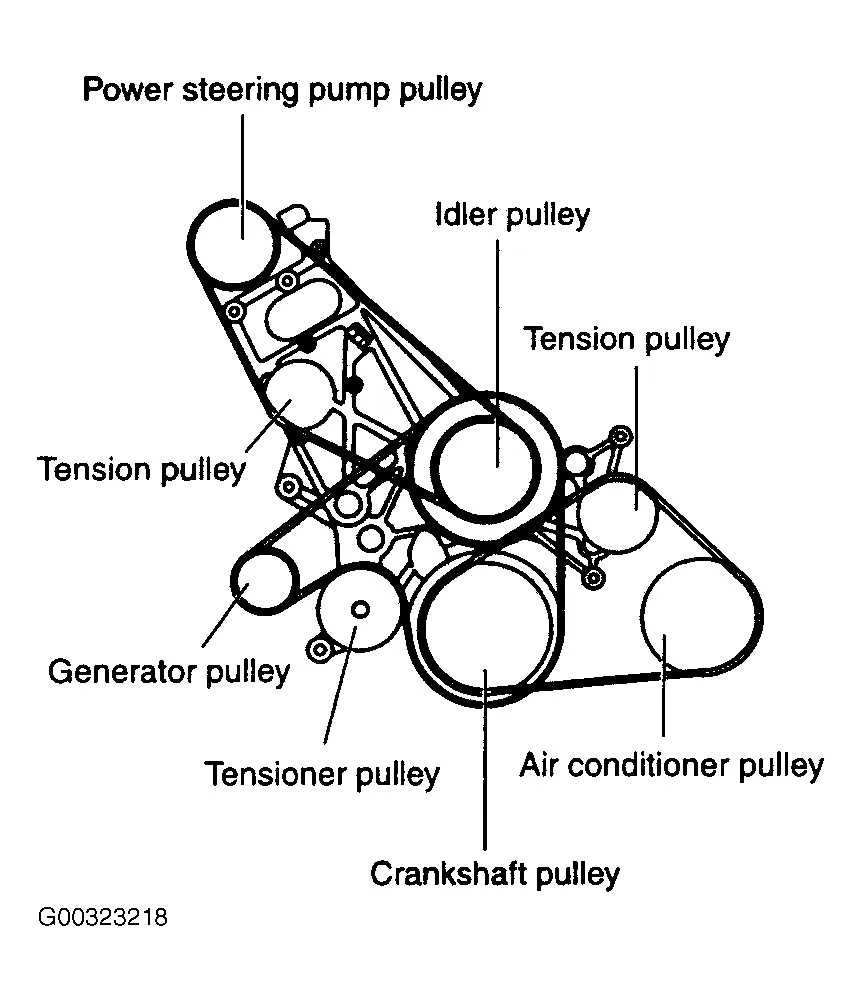

The belt routing diagram for the 2008 Sorento is straightforward. Start at the crankshaft pulley, loop the belt around the AC compressor, alternator, and power steering pump, and then continue to the tensioner pulley. Finally, ensure the belt fits snugly over the idler pulley. Make sure it has the correct tension–too loose, and it may slip; too tight, and it may cause damage to the components.

Consult the owner’s manual for the specific belt part number and any manufacturer recommendations for replacing or adjusting the belt. If you’re unsure about the belt’s condition, have a mechanic inspect it during regular maintenance. This simple check can save time and prevent more costly repairs down the road.

Understanding the 08 Kia Sorento Serpentine Belt Routing

The serpentine belt on the 2008 Kia Sorento plays a crucial role in powering various engine components, including the alternator, air conditioning compressor, and power steering pump. Proper routing is key to ensure that the belt operates smoothly and efficiently, preventing any damage to other engine parts.

For the 2008 Kia Sorento, the serpentine belt follows a specific path around the pulleys. The belt starts at the crankshaft pulley, moving upwards towards the tensioner, and then loops around the water pump pulley. From there, it continues to the alternator and finally the power steering pump, before returning to the crankshaft pulley. This routing ensures all essential components are driven correctly without slipping or coming loose.

Check the belt tension regularly. An improperly tensioned belt can cause slippage, resulting in poor performance or failure of powered components. If the belt shows signs of wear, such as cracks or fraying, it’s time to replace it. Always ensure the new belt follows the exact routing of the original, as any misalignment can lead to severe engine issues.

To avoid unnecessary repairs, inspect the belt periodically, especially if you notice any unusual engine noise or a warning light for the battery or engine. Following the correct serpentine belt routing is a straightforward task, but attention to detail is essential for the longevity of your vehicle’s engine.

How to Identify and Replace the Kia Sorento Timing Belt

Inspect the timing belt on your Kia Sorento around 60,000 to 100,000 miles, depending on the model year and engine type. If the belt is cracked, frayed, or has visible signs of wear, it’s time for a replacement.

To replace the timing belt, begin by disconnecting the battery. This will prevent any electrical issues while working on the engine. Next, remove the engine covers and accessories blocking access to the timing belt, such as the serpentine belt and pulleys.

Align the engine to top dead center (TDC) by rotating the crankshaft. This ensures the timing marks line up correctly for the new belt installation. After that, loosen the tensioner pulley and remove the old belt. Take note of the belt’s direction and routing for proper installation of the new one.

Install the new timing belt, making sure the timing marks are aligned. Reinstall the tensioner and adjust the tension according to the manufacturer’s specifications. Once the new belt is in place, rotate the engine manually to ensure everything moves smoothly without resistance.

Reassemble the engine by putting back the pulleys, belts, and covers. Reconnect the battery, start the engine, and check for any unusual noises or vibrations. If everything sounds normal, the replacement is complete. Don’t forget to inspect the belt every 10,000 to 15,000 miles to catch any early signs of wear.

Troubleshooting Common Belt Issues on the 08 Kia Sorento

If you notice unusual noises or a decrease in performance, check your belts for wear, tension, or misalignment. Common issues with the 08 Kia Sorento’s belt system include squealing, slipping, or visible cracks in the belt itself. Addressing these problems quickly can prevent further damage to your engine components.

Here are some key troubleshooting steps to consider:

• Belt Tension: A loose or improperly tensioned belt can cause squeaking or slipping. Check the tension by pressing down on the belt; it should not deflect more than half an inch. Adjust the tensioner if necessary.
• Visual Inspection: Look for signs of wear such as cracks, fraying, or glazing on the belt surface. If any of these issues are present, replace the belt immediately to avoid it breaking during operation.
• Alignment: Misaligned belts can cause uneven wear and premature failure. Inspect the pulleys to ensure they are all aligned properly. Use a straightedge to check alignment if needed.
• Noise Diagnosis: If you hear a high-pitched squeal, it could be due to a worn-out belt, improper tension, or a misaligned pulley. Tighten or replace the belt as required. If the noise persists, inspect the pulleys and tensioner.
• Cracked or Broken Belts: A broken belt will cause immediate failure in systems such as the alternator, power steering, or air conditioning. Check for cracks and replace any damaged belts right away.

If you’re unsure, a professional mechanic can help assess the condition of your belts and make any necessary adjustments. Regular maintenance and timely replacements will keep your Sorento running smoothly.
