Jeep Wrangler Fan Belt Diagram Guide for Accurate Installation and Maintenance
Inspect the fan belt regularly to maintain engine performance and prevent overheating. Check for cracks, fraying, or glazing on the belt surface, and replace it immediately if any damage appears.

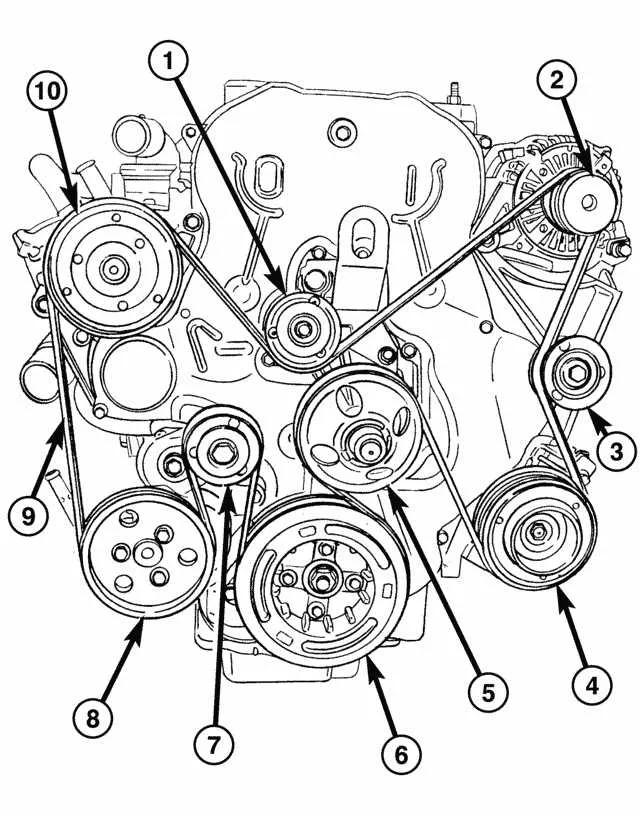

Use the Jeep Wrangler fan belt diagram to identify all pulleys and routing paths. This ensures correct installation and tension, preventing slippage and premature wear. Keep a close eye on the tensioner pulley for smooth operation.
Align the belt properly across the alternator, water pump, and crankshaft pulleys. Misalignment can cause noise, reduce belt life, and affect engine accessories. Apply slight pressure on the belt to test tension and adjust the tensioner if necessary.
Lubricate moving components lightly when reinstalling the belt to reduce friction and wear. Recheck belt alignment after the first few miles of driving to confirm stability and optimal performance.
Jeep Wrangler Fan Belt Diagram Detailed Guide for Maintenance and Replacement
Locate the fan belt routing diagram under the hood near the radiator or on the engine cover. This diagram identifies each pulley and the correct belt path for models from 2012 to 2022.
Inspect the belt for cracks, fraying, or glazing. Replace it if any damage is visible. Use a belt tension gauge to check tension; a properly tensioned belt should deflect about 1/2 inch when pressed at the midpoint between pulleys.
To remove the belt, release the tensioner by rotating it clockwise using a socket or wrench. Slide the belt off the pulleys, noting the routing for reference or photographing the setup before removal.
Install the new belt following the diagram. Ensure it sits properly in each pulley groove. Rotate the tensioner to allow the belt to seat fully, then release it slowly to apply tension evenly across the system.
After installation, start the engine and observe the belt movement. It should run smoothly without slipping, squealing, or misalignment. Recheck tension after a short drive and adjust if necessary.
Regular inspection every 10,000 miles or during oil changes prevents unexpected failure. Keep the routing diagram accessible for reference during maintenance and replacement tasks.

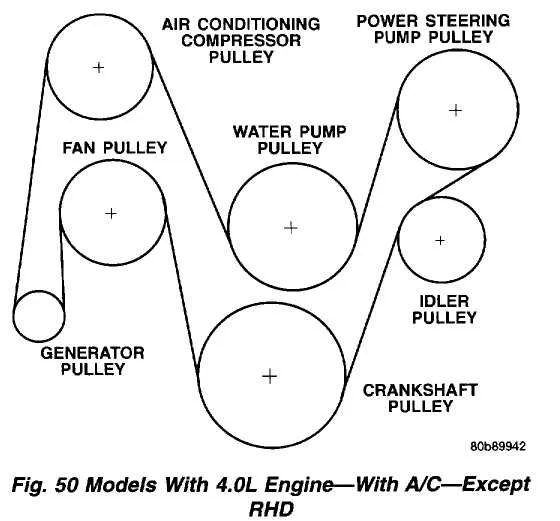

Locate All Pulleys and Fan Belt Routing on Jeep Wrangler
Identify the crankshaft pulley at the engine base as the starting point for routing the fan belt. Move clockwise to locate the water pump pulley, which sits above the crankshaft and drives the cooling system.
Next, trace the belt to the alternator pulley positioned on the upper passenger side. Ensure the belt sits flush against the grooves to prevent slippage. Continue routing to the power steering pump pulley on the driver side, keeping proper tension as you loop around it.
The idler pulley maintains belt alignment between the alternator and crankshaft. Confirm it rotates freely and has no side-to-side play. If equipped with an AC compressor, route the belt around its pulley before returning to the crankshaft.
Double-check that the belt follows a continuous path: crankshaft → water pump → alternator → power steering → idler → AC compressor (if present) → back to crankshaft. Each pulley groove must match the belt profile to avoid wear or noise.
Inspect all pulleys for cracks, rust, or wobble. Adjust tension using the tensioner or an adjustable bracket to maintain 1/2 inch maximum deflection at mid-span. Correct routing prevents overheating, reduces belt wear, and ensures consistent accessory operation.
Step-by-Step Fan Belt Removal and Installation Process

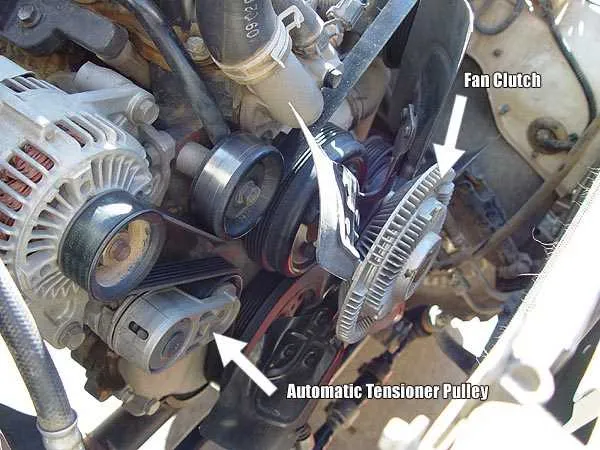

Loosen the tensioner pulley before removing the fan belt to prevent damage to other components. Use a wrench or a serpentine belt tool to release tension.
- Locate the belt routing diagram near the radiator or under the hood to identify all pulleys and belt paths.
- Use the appropriate socket or wrench to rotate the tensioner clockwise, creating slack in the belt.
- Slide the belt off the alternator pulley first, then remove it from the remaining pulleys one by one.
- Inspect each pulley for wear, debris, or damage while the belt is removed. Check the tensioner and idler pulley bearings for smooth rotation.
- Compare the new belt with the old one to ensure correct length and rib alignment.
- Route the new belt according to the diagram, starting from the crankshaft pulley and moving around each accessory in order.
- Hold the belt on all pulleys except the tensioner. Rotate the tensioner again to slip the belt over its pulley.
- Release the tensioner slowly, ensuring the belt seats fully on all pulleys without twisting or misalignment.
- Manually rotate the crankshaft pulley two full turns to verify proper tension and alignment across all pulleys.
- Check that the belt runs smoothly by starting the engine briefly and observing its movement.
Ensure all tools are removed from the engine bay and that no components are obstructing the belt path before final testing.
Troubleshoot Common Fan Belt Issues and Adjust Tension Correctly
Check the fan belt for visible cracks, fraying, or glazing. Replace the belt immediately if any damage is detected, as compromised belts can slip or break under load.
Listen for squealing noises during engine start or acceleration. A high-pitched squeal usually indicates a loose belt or worn pulley. Inspect the tensioner and idler pulleys for smooth rotation and replace if they wobble or grind.
Measure belt deflection by pressing down on the longest span between pulleys. For most Jeep Wrangler models, the correct deflection is around ½ inch (12 mm). Adjust the tensioner to achieve this value without over-tightening, which can stress bearings.
Check alignment of all pulleys. Misaligned pulleys cause uneven wear and premature belt failure. Use a straightedge or laser alignment tool to ensure pulleys are parallel and in the same plane.
Inspect belt routing against the Jeep Wrangler fan belt diagram. Incorrect routing reduces performance and may damage the belt. Follow the exact path around alternator, crankshaft, and water pump pulleys.
After adjustment, run the engine and observe the belt under load. Ensure there is no slipping, noise, or vibration. Recheck deflection after 10–15 minutes of operation, as some belts stretch slightly when first installed.
