Complete Jeep TJ Serpentine Belt Diagram for Accurate Installation and Maintenance

Check the serpentine belt routing before replacing or adjusting any components on your Jeep TJ. The belt runs over the crankshaft, alternator, power steering pump, and AC compressor, following a specific path that ensures all accessories operate smoothly. Misalignment can lead to premature wear or belt slippage.

Use the factory diagram to confirm the belt layout. The Jeep TJ typically uses a single serpentine belt for 4.0L engines, with the tensioner pulley maintaining proper tension automatically. Identify each pulley clearly and note the direction of rotation when planning the installation.

When replacing the belt, inspect all pulleys for wear, cracks, or misalignment. Rotate each pulley manually to feel for resistance or wobble. Replace any faulty components before installing the new belt to prevent damage and maintain consistent performance.

Keep a small tool, like a serpentine belt tensioner wrench, handy to relieve tension safely. Slide the belt into place according to the diagram, ensuring it sits fully in each pulley groove. Verify alignment and tension before starting the engine to avoid slippage and potential engine accessory damage.

Jeep TJ Serpentine Belt Diagram Practical Guide for Accurate Maintenance

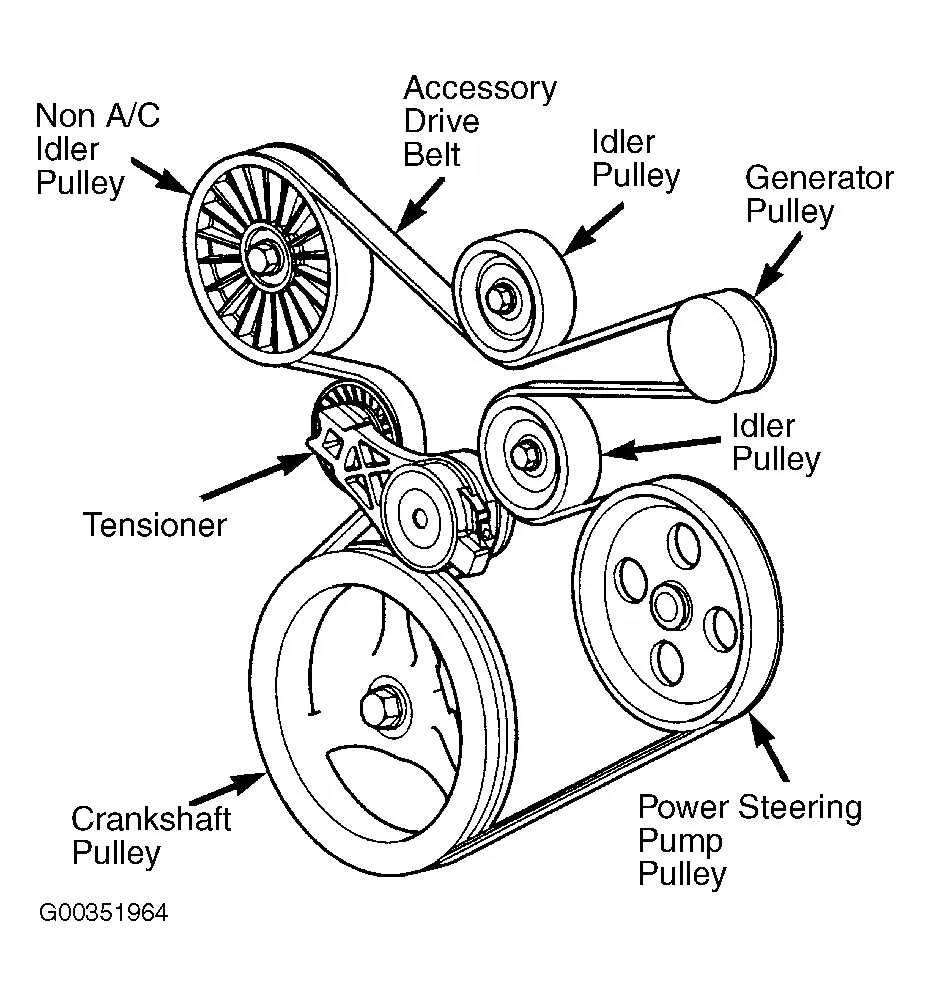

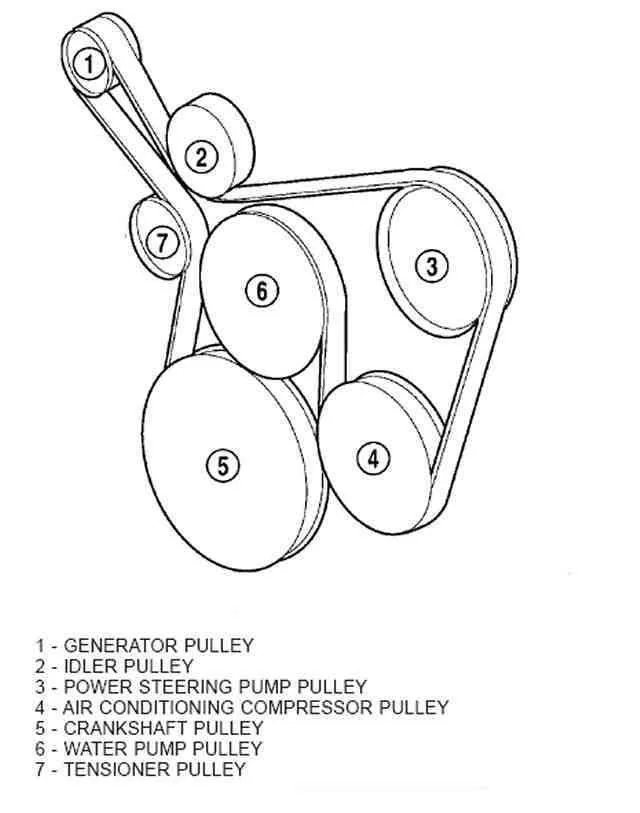

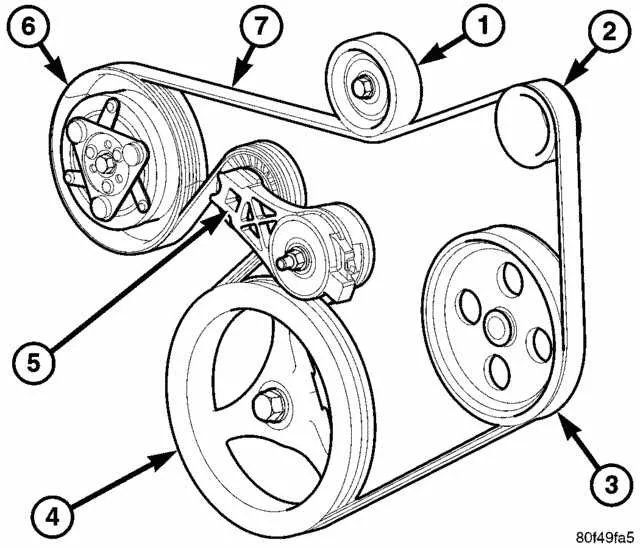

Locate the serpentine belt routing diagram on your Jeep TJ’s radiator shroud or under the hood before starting any maintenance. This diagram shows the exact path the belt follows across the alternator, power steering pump, water pump, and crankshaft pulley.

Inspect the belt for cracks, fraying, or glazing. Replace it immediately if any signs of wear appear. Tension should be checked with a belt tension gauge; a properly tensioned belt deflects roughly half an inch when pressed at the midpoint between pulleys.

Remove the old belt by rotating the tensioner with a wrench to release tension. Carefully slip the belt off the pulleys, following the diagram’s sequence. Avoid twisting or forcing the belt around pulleys to prevent damage.

Install the new belt by routing it according to the diagram, ensuring it sits fully in the pulley grooves. Rotate the tensioner again to allow the belt to fit snugly, then release it slowly. Check all pulleys for alignment to prevent premature wear.

After installation, start the engine and observe the belt in motion. Listen for squealing or irregular movement, which may indicate misalignment or incorrect tension. Adjust as needed by repositioning the belt or rechecking the tensioner.

Regularly inspect the belt every 10,000 miles and replace it every 60,000 miles or sooner under heavy-duty conditions. Keeping a visual record of belt condition helps maintain Jeep TJ’s performance and prevents sudden breakdowns.

Locating and Identifying Each Pulley on a Jeep TJ Engine

Begin with the crankshaft pulley at the bottom center of the engine. It drives the serpentine belt and is typically the largest pulley. Just above and slightly to the left, locate the alternator pulley, which powers the electrical system. Its smooth or slightly grooved surface distinguishes it from the crankshaft.

To the right of the crankshaft, find the power steering pump pulley. It is connected to a fluid reservoir and usually has a slightly smaller diameter than the crankshaft pulley. Directly above, identify the water pump pulley; it features a smooth surface and connects to the upper radiator hose, aiding coolant circulation.

The tensioner pulley is positioned near the center of the belt path, often slightly offset forward. It maintains proper belt tension and can be recognized by its spring-loaded arm. On the passenger side, locate the idler pulley, which guides the belt around tight corners and maintains alignment; it has no drive function.

For Jeep TJ models with air conditioning, the AC compressor pulley sits near the lower passenger side. It is medium-sized and features a clutch mechanism in the center. Confirm each pulley by tracing the belt path from the crankshaft around all components, ensuring correct identification before any maintenance or replacement.

Step-by-Step Routing for Jeep TJ Serpentine Belt Replacement

Begin by locating the belt tensioner on the front of the engine, just above the crankshaft pulley. Use a 3/8-inch ratchet to rotate the tensioner clockwise, relieving tension on the belt.

Remove the old serpentine belt from the pulleys, noting its path around the alternator, water pump, power steering pump, and air conditioning compressor if equipped. Take a photo or use a diagram for reference.

Position the new belt around the crankshaft pulley first, then route it over the alternator pulley. Continue the belt around the water pump pulley, following the exact path of the previous belt.

Wrap the belt around the power steering pump pulley, ensuring it sits in the grooves correctly. If your Jeep TJ has an air conditioning compressor, route the belt around it next.

Check the alignment of the belt on all pulleys, confirming it sits evenly in each groove. Rotate the tensioner again to slip the belt over the final pulley, typically the tensioner itself.

Slowly release the tensioner, allowing it to apply proper tension to the belt. Rotate the crankshaft manually using a socket to verify smooth operation and proper alignment across all pulleys.

Inspect the belt path visually one last time and run the engine for a few minutes, listening for any slipping or misalignment. Adjust the belt on pulleys if necessary to maintain consistent tension and correct routing.

Troubleshooting Slippage and Alignment Issues in the Serpentine System

Inspect the serpentine belt for visible wear, cracks, or glazing. A worn belt often causes slippage under load. Replace any belt showing these signs immediately.

Check belt tension using a tension gauge or by pressing the belt midpoint. Jeep TJ models typically require 1/2 inch of deflection for proper tension. Adjust the tensioner if deflection exceeds this range.

• Inspect the automatic tensioner for smooth operation and proper spring pressure.
• Ensure the tensioner pulley rotates without wobble or noise.

Examine all pulleys for misalignment. Misaligned pulleys create uneven wear patterns and slipping. Use a straight edge across pulley faces to verify alignment.

• Check idler pulleys for excessive play or rough bearing rotation.
• Confirm crankshaft, alternator, power steering, and A/C pulleys are parallel to the engine block.

Look for contamination on the belt or pulleys. Oil, coolant, or debris reduces friction and causes slipping. Clean pulleys with a mild solvent and replace the belt if contamination is severe.

Listen for squealing during engine start or under load. Squealing often indicates slipping due to worn components, incorrect tension, or misalignment. Address the exact source rather than replacing the belt blindly.

After adjustments, run the engine at idle and observe the belt’s tracking. Ensure the belt runs centrally on all pulleys without lateral movement. Minor side-to-side motion can signal a pulley or tensioner problem that requires replacement.
