Jeep Grand Cherokee Belt Diagram and Maintenance Guide
To accurately replace or troubleshoot the serpentine belt in a Jeep Grand Cherokee, first verify the specific engine model. The belt routing can vary between engine types, and using the wrong diagram may cause improper installation or operational issues.
Check the belt’s condition regularly. Look for signs of wear, cracks, or fraying. If the belt shows any of these symptoms, it’s crucial to replace it to avoid breakdowns or damage to the engine components.
The serpentine belt diagram for the Jeep Grand Cherokee is typically located near the radiator or on the engine bay cover. Ensure the belt is routed correctly as per the diagram to maintain proper tension and alignment, which ensures smooth operation of components like the alternator, power steering pump, and air conditioning compressor.
If you’re replacing the belt, use a tensioner tool to relieve the tension. This makes removing the old belt easier and helps ensure the new belt is correctly installed with proper tension.

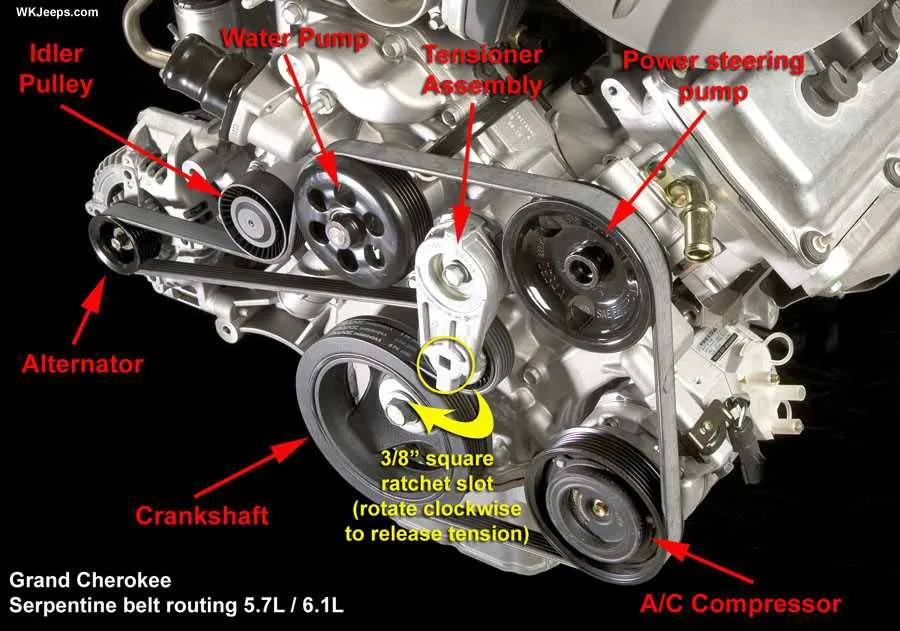

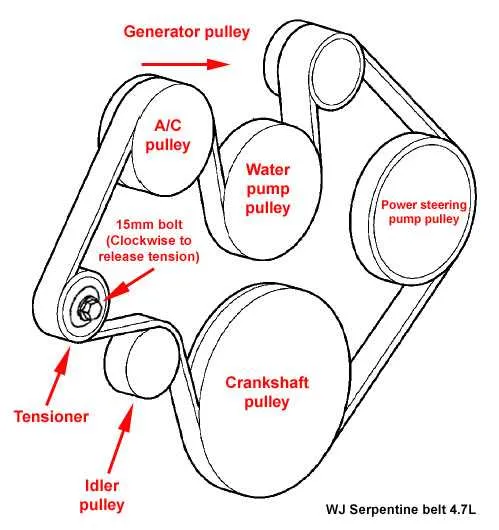

Jeep Grand Cherokee Belt Diagram
The Jeep Grand Cherokee belt diagram provides a clear visual of the serpentine belt system, detailing how the belt connects various engine components like the alternator, power steering pump, and air conditioning compressor. This diagram helps with maintenance and troubleshooting, ensuring all components function smoothly.
To replace the serpentine belt, first identify the belt routing by referring to the diagram. The tensioner pulley should be relieved before removing the old belt. Use a belt tool to loosen the tensioner, then carefully remove the belt from all pulleys. Install the new belt following the exact routing shown in the diagram, ensuring it is properly seated on each pulley.
If you’re facing belt slipping or squeaking noises, the diagram is also helpful for diagnosing issues. Check for correct belt tension and verify that all pulleys are aligned properly. Misalignment could indicate a worn-out pulley or incorrect belt routing, which may need immediate attention.
Regular inspection of the belt’s condition can prevent premature wear. Look for signs of cracks, fraying, or glazing on the belt. If the belt shows signs of damage, replace it to avoid further engine complications.
How to Read the Belt Diagram for Jeep Grand Cherokee
Identify the components in the diagram: the serpentine belt, pulleys, and tensioner. These are the key elements that control engine accessories. The diagram will typically show the path the belt follows, as well as the placement of each component.
Start by locating the tensioner pulley. This pulley keeps the belt under the right amount of tension, ensuring it doesn’t slip. Make sure the belt is routed through the tensioner pulley before going to the next pulley.
Next, trace the belt’s path through the remaining pulleys. Ensure the belt follows the correct order, typically shown by arrows in the diagram. Pay attention to any specific instructions about pulley sizes or special routing, as these may vary between engine models.
Check the belt’s alignment with each pulley. If any pulleys appear misaligned or the belt is not following the correct path, it could lead to belt wear or failure. Always ensure the belt is positioned in the right groove on each pulley.
Finally, refer to the diagram for additional details, such as the belt’s tension settings or specifications. Some diagrams also include instructions for installing or removing the belt.
Common Issues with Jeep Grand Cherokee Belts and How to Fix Them
Broken or worn-out belts are a common issue in Jeep Grand Cherokees. These belts can affect engine performance and cause overheating or power steering failure. If you notice unusual noises, such as squealing or chirping, it’s time to inspect your belts.
To fix a worn-out or damaged belt, start by identifying the issue. Inspect the belt for cracks, fraying, or glazing. If the belt appears worn or loose, it will need to be replaced. The tensioner may also be faulty, leading to slack in the belt. Tighten or replace the tensioner to ensure proper belt tension.
If the belt is slipping, the pulleys might be misaligned or damaged. Check the pulleys for wear and ensure they spin freely. Any debris or oil on the belt or pulleys can cause slippage. Clean the components and replace the belt if necessary.
Regular inspection and maintenance will extend the life of the belts in your Jeep Grand Cherokee. Pay attention to any changes in performance, and replace the belt as soon as wear becomes noticeable. This will prevent further damage and costly repairs.
Step-by-Step Guide to Replacing the Belt on a Jeep Grand Cherokee
Start by lifting the front of the vehicle using a jack and securing it with jack stands. This will give you better access to the belt area.
Locate the serpentine belt and the tensioner pulley. Use a socket wrench to rotate the tensioner clockwise and relieve tension on the belt. Remove the belt from the pulleys.
Inspect all pulleys and components for wear or damage before installing the new belt. If needed, replace any faulty parts such as the idler pulley or alternator.
Place the new belt around the pulleys according to the specific routing diagram for your Jeep Grand Cherokee model. Make sure it is aligned correctly on all pulleys.
With the new belt in place, rotate the tensioner again to add tension to the belt. Ensure the belt is tight and securely positioned on all pulleys.
Double-check that the belt is properly aligned and seated on all pulleys before lowering the vehicle back down.
Start the engine and visually inspect the belt while it is running. Listen for any unusual sounds or signs of slippage. If everything seems normal, the job is complete.
