Jeep 4.0 Belt Diagram and Proper Installation Guide
If you’re working on a Jeep 4.0 engine, knowing the belt configuration is a must. The correct alignment ensures that your engine’s components operate smoothly without causing unnecessary wear. A misaligned or worn belt can lead to performance issues or even engine damage. Here’s a simple way to keep your Jeep’s serpentine belt in top condition.
Check the belt routing diagram under the hood or refer to your vehicle’s manual for the exact configuration. Typically, the Jeep 4.0 uses a serpentine belt to drive several components like the alternator, power steering pump, and air conditioning compressor. This layout may vary slightly depending on your Jeep model year, so confirm your specific belt setup.
Always ensure the belt is in good condition. Look for signs of cracking, fraying, or stretching. A worn belt can slip, which leads to poor performance and potential damage to other engine parts. Replacing the belt regularly according to your manufacturer’s recommendations is key to keeping your engine running smoothly.

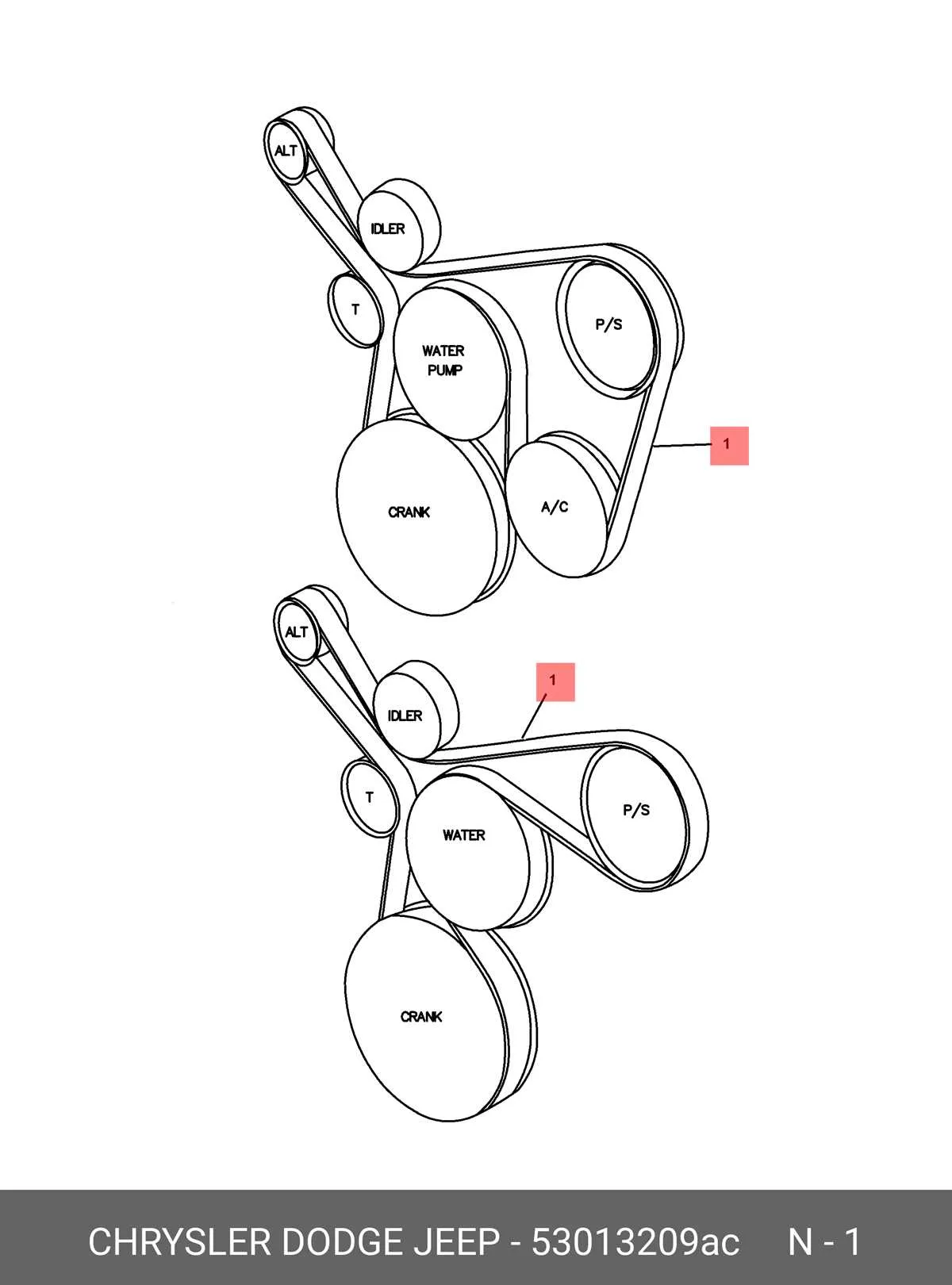

Jeep 4.0 Belt Diagram Guide
For accurate belt installation, refer to the diagram specific to your Jeep 4.0 engine model. Check your vehicle’s manual to ensure the correct configuration for your year and model. The serpentine belt typically drives the alternator, power steering pump, air conditioning compressor, and the water pump. Follow these steps for proper setup.
Start by aligning the belt with the crankshaft pulley. The belt should run through the idler pulley, then loop around the water pump and power steering pulley. Next, route it through the alternator pulley and air conditioning compressor. Ensure the tensioner pulley is engaged correctly to maintain proper belt tension. Tighten the tensioner until the belt is firm but has a small amount of flex when pressed by hand.
If you experience squealing noises or reduced performance, inspect the belt for wear or misalignment. The alignment must be exact for smooth operation, as even slight deviations can cause the belt to wear prematurely or affect engine performance.
For replacements, ensure the new belt matches the original specifications in length and width. After installation, run the engine briefly and check for any signs of improper routing or tension. Adjust the tensioner if necessary.
Understanding the Layout of the Jeep 4.0 Serpentine Belt
The Jeep 4.0 serpentine belt layout follows a straightforward path, ensuring smooth operation of various engine components. To begin, the belt typically runs from the crankshaft pulley, across the idler pulleys, and around the alternator, power steering pump, and air conditioning compressor.
The serpentine belt is designed to be easy to replace, with a single belt running all the accessories. The tensioner pulley keeps the belt tight, preventing it from slipping during engine operation. If the belt is worn or damaged, replace it immediately to avoid engine issues such as power loss or failure to start.
When inspecting the layout, confirm the position of each pulley and ensure there is no misalignment. The correct routing can be found in the vehicle’s manual, or you can refer to the diagram provided on the radiator support or inside the engine bay. Ensure the belt fits properly in the grooves of the pulleys to prevent any slipping or unnecessary wear.
Be mindful of the belt’s condition. A worn or cracked belt should be replaced as soon as possible to maintain vehicle performance. Additionally, always verify the correct tension when installing a new belt, as an overly tight or loose belt can lead to premature wear or malfunction.
Step-by-Step Process for Replacing the Jeep 4.0 Serpentine Belt
To replace the serpentine belt on a Jeep 4.0 engine, follow these steps:
1. Gather Necessary Tools: You’ll need a wrench, socket set, belt tensioner tool (or a long breaker bar), and the replacement serpentine belt.
2. Locate the Belt Tensioner: The belt tensioner is responsible for keeping the serpentine belt tight. Use a wrench to relieve tension from the belt by turning the tensioner counterclockwise.
3. Remove the Old Belt: Once tension is released, slide the belt off the pulleys. Take note of the belt’s routing as it will help you install the new one correctly.
4. Inspect the Pulleys: Before installing the new belt, check all pulleys for wear or damage. Ensure they spin smoothly and show no signs of cracking or grinding.
5. Install the New Belt: Match the new belt to the same routing as the old one. Ensure the belt sits snugly on each pulley and follows the correct path. Refer to the Jeep 4.0 belt diagram for clarity.
6. Apply Tension: Using the tensioner tool, rotate the tensioner clockwise to apply tension to the new belt. Make sure the belt is tight but not overly strained.
7. Double-Check the Installation: Verify the belt’s alignment and ensure it’s properly seated on all pulleys. Turn the engine by hand or briefly start it to check that the belt operates smoothly.
8. Final Inspection: After installation, check for any unusual noises or issues. If everything appears normal, you’ve successfully replaced the serpentine belt.
Troubleshooting Common Issues with the Jeep 4.0 Belt System
If the Jeep 4.0 belt system shows signs of wear, inspect the serpentine belt for cracks, fraying, or missing teeth. A damaged belt may cause slipping or breakage, leading to engine failure. Replace it immediately to prevent further damage.
Noise is a common issue with the belt system. If you hear squealing or chirping sounds, check the tension of the belt. A loose belt can cause poor performance and uneven wear. Use a tension gauge to verify correct tension, or adjust the tensioner if necessary.
If the alternator or power steering fails to work correctly, the problem may lie with the belt routing. Ensure the belt follows the correct path, as specified in the Jeep 4.0 diagram. Misrouting can cause power loss and damage to components.
Keep an eye on the pulleys for any signs of damage or wobbling. Worn-out pulleys can affect the smooth operation of the belt. Inspect them regularly and replace any that show signs of uneven wear or play.
In case of belt slippage, check the condition of the tensioner. A faulty tensioner can cause the belt to lose grip, resulting in poor engine performance. If the tensioner appears worn out or weak, replace it immediately to maintain optimal performance.
If the air conditioning, water pump, or other components are not functioning properly, it may be due to insufficient belt tension. Tighten the belt or replace it if needed to ensure the proper operation of all accessories driven by the belt.
Regularly clean the belt and pulleys to prevent dirt and debris buildup. Accumulation can lead to unnecessary wear and cause premature failure of the belt system.
By keeping an eye on these potential issues, you can extend the life of your Jeep 4.0 belt system and avoid costly repairs.
