Jeep 3.8 Belt Diagram and Maintenance Tips
When working on your Jeep 3.8 engine, understanding the belt diagram is crucial for troubleshooting and maintenance. Start by identifying the key components: the serpentine belt, pulleys, and tensioners. This knowledge ensures proper alignment and tension, preventing premature wear and breakdowns.
The diagram clearly shows how the belt interacts with various engine components. Pay close attention to the routing order, as even a small misalignment can lead to severe damage. It’s recommended to inspect the belt regularly for signs of wear, such as cracks or fraying, to avoid potential issues down the line.
Replacing or adjusting the belt is straightforward once you understand the diagram. If you notice that the belt has loosened or is making a noise, it might be time to tighten the tensioner or replace the belt altogether. Regular checks will keep your engine running smoothly without unexpected failures.

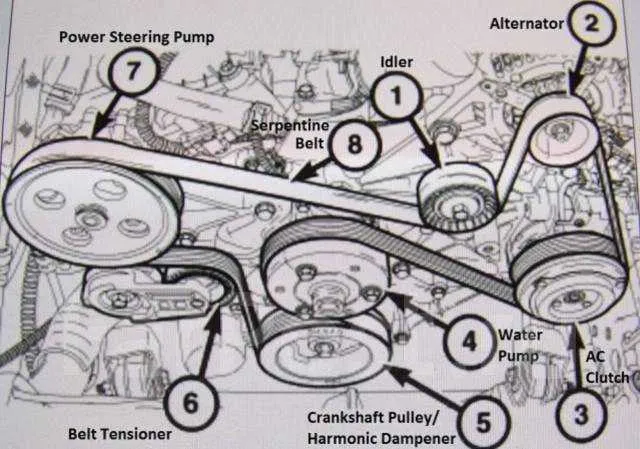

Jeep 3.8 Belt Diagram
The Jeep 3.8 engine uses a specific belt system that is crucial for driving various engine components. This diagram provides clarity on how the serpentine belt routes across the pulleys, including the tensioner, alternator, power steering pump, and air conditioning compressor.
Begin by locating the tensioner pulley. It ensures the belt remains tight enough for proper operation. Identify the direction of the belt’s travel. This step is vital when replacing or inspecting the belt for wear. Use the belt diagram to confirm the correct routing to avoid misalignment that can cause excessive wear or failure of the components it powers.
Key components to check during maintenance:
- Alternator: Provides power to the electrical system and battery.
- Power Steering Pump: Allows ease of steering by pressurizing the steering fluid.
- Air Conditioning Compressor: Operates the air conditioning system.
Inspect the belt for cracks or signs of fraying. A worn or damaged belt can lead to loss of power to the affected components. Replacing the belt with the correct part number is crucial. Always follow the Jeep’s service manual for specifications on belt length and tension settings.
Before installing the new belt, verify that all pulleys are in good condition. Rotate them by hand to ensure they move freely without resistance or grinding noises. Any unusual behavior from the pulleys may indicate an underlying issue that needs to be addressed before installing the belt.
How to Read the Jeep 3.8 Belt Diagram for Maintenance
To properly maintain the Jeep 3.8, start by identifying the components on the belt diagram. Focus on the routing of the serpentine belt, paying attention to how it wraps around pulleys, tensioners, and accessories like the alternator and power steering pump. Verify the belt’s direction and any arrows indicating its path.
Check the tensioner position and ensure that the belt has the correct tension. A loose or overly tight belt can affect engine performance. Look for wear patterns on the belt, such as cracks or fraying, which indicate when it needs replacement.
Note the relationship between the crankshaft pulley and other pulleys, ensuring the belt fits snugly. Any misalignment can cause premature wear. Confirm that the routing matches the diagram, and compare the current belt’s condition with the recommended maintenance intervals.
Steps to Replace the Serpentine Belt on a Jeep 3.8 Engine
Locate the serpentine belt tensioner and use a socket wrench to relieve tension by rotating it counterclockwise. Once the tension is released, remove the belt from the pulleys carefully.
Inspect the serpentine belt for wear before installing the new one. Make sure the new belt matches the old one in size and routing pattern, which can be found in the vehicle’s service manual or on a belt diagram sticker.
Route the new belt through the same pulleys, ensuring it sits properly in each groove. Pay attention to the correct routing order to prevent misalignment or damage to the pulleys.
Once the belt is in place, use the wrench again to rotate the tensioner clockwise, applying proper tension to the new belt. Double-check that the belt is properly seated in all pulleys.
Start the engine and observe the belt to ensure it runs smoothly and without noise. If everything looks good, your serpentine belt replacement is complete.
Troubleshooting Common Belt Issues in Jeep 3.8 Engines
Check the belt for visible signs of wear, such as cracks, fraying, or glazing. These are clear indicators that the belt is nearing the end of its life and needs replacement. A worn belt can affect engine performance and lead to overheating or other mechanical issues.
If the belt is squealing or making unusual noises, it may be slipping. This could be due to incorrect tension or alignment. Verify the tension using a belt tension gauge and adjust it according to the manufacturer’s specifications.
Inspect the pulleys for damage or misalignment. Misaligned pulleys can cause excessive wear on the belt and create friction that leads to premature failure. Ensure that all pulleys rotate smoothly and are free from obstructions.
Another common issue is belt slippage caused by a failing tensioner or idler pulley. Test the tensioner by applying light pressure to the belt while the engine is running. If the tensioner doesn’t maintain the correct pressure, replace it promptly to avoid further damage.
Check the belt routing against the diagram provided by the manufacturer. Incorrect routing can cause undue stress on the belt and pulleys, leading to accelerated wear or belt breakage.
