2019 Jeep Cherokee 2.4 Serpentine Belt Routing Diagram and Installation Guide
If you’re working on a 2019 Jeep Cherokee 2.4 and need to replace or inspect the belt system, refer to the specific diagram for the most accurate configuration. The serpentine belt plays a vital role in driving various engine accessories, such as the alternator, power steering pump, and air conditioning compressor. Getting the routing right is critical to avoid damaging components or causing premature wear.
The serpentine belt diagram for the 2.4L engine can be found near the front of the engine bay, typically on a sticker or embossed on the engine itself. It shows the exact path the belt should follow, including which pulleys it needs to pass around. If the diagram isn’t visible or damaged, online resources or repair manuals can provide a clear, step-by-step illustration.
Ensure you have the right tools and belt tensioner before proceeding with replacement or inspection. Using a tensioner tool to release the tension on the belt can make the job easier. Always double-check the belt routing before starting the engine to avoid any mistakes.

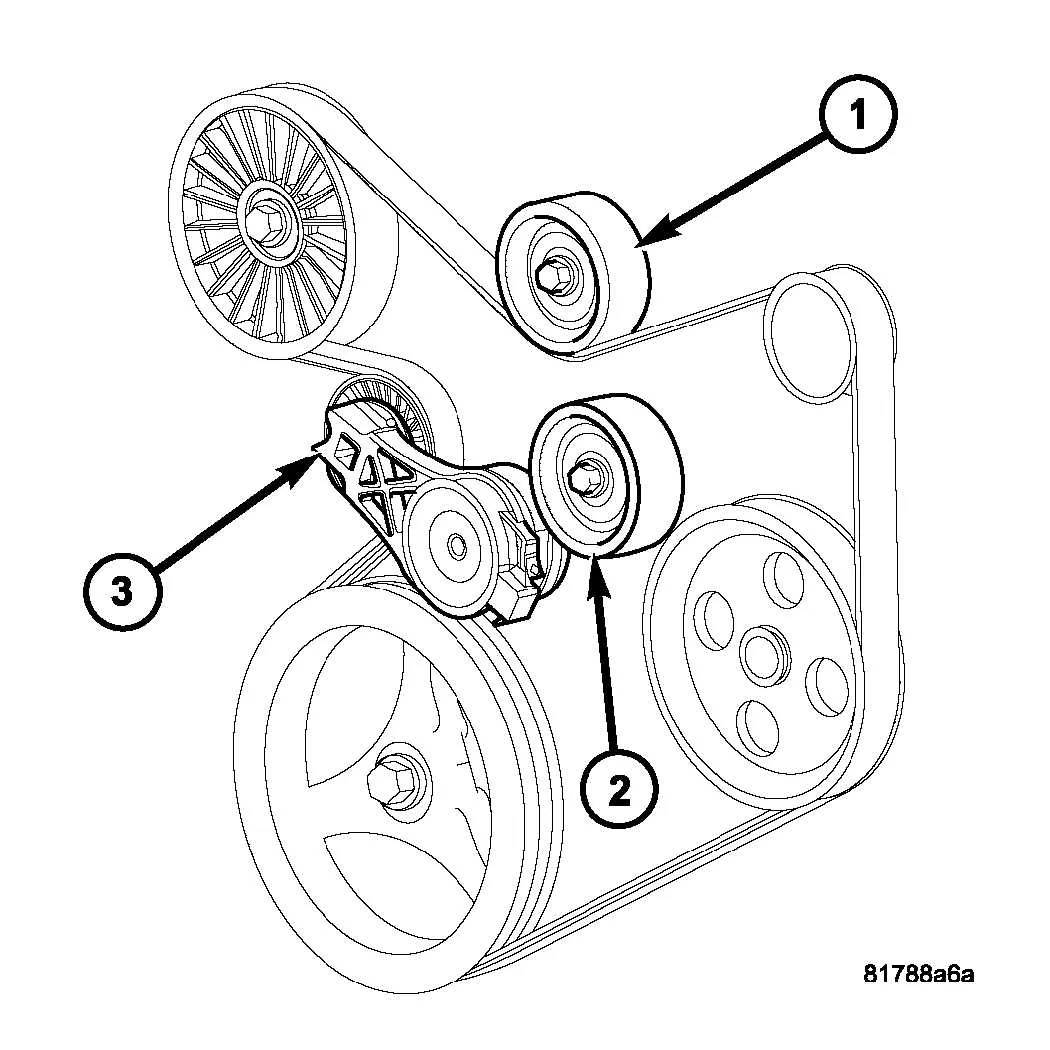

2019 Jeep Cherokee 2.4 Belt Diagram

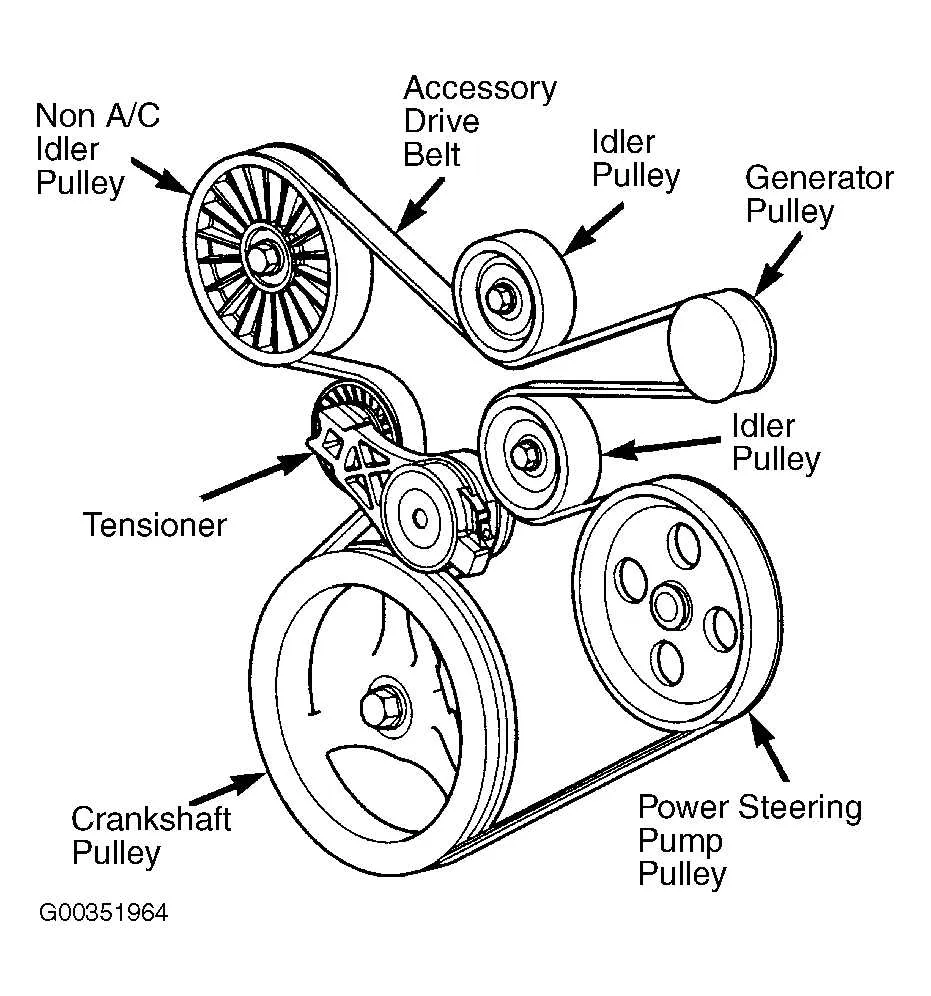

The belt diagram for the 2019 Jeep Cherokee 2.4 engine is key for proper maintenance. It illustrates how the serpentine belt interacts with components like the alternator, power steering pump, and air conditioning compressor. Make sure the belt is routed correctly to prevent slippage or premature wear.
To identify the components, start with the alternator at the top of the diagram. The serpentine belt loops around this first, followed by the power steering pump. The air conditioning compressor is located further down. The tensioner pulley is crucial for maintaining belt tension, and it must be adjusted as needed. Check the diagram regularly to ensure all components are properly aligned.
If you are replacing the serpentine belt, always use a high-quality replacement to avoid future issues. Ensure that the routing matches the diagram exactly, as improper alignment can cause excessive wear or failure of the belt.
For any additional issues, consult the vehicle’s manual for torque specifications and other related procedures. A well-maintained belt system ensures smooth operation of engine components and prevents costly repairs down the road.
How to Locate and Identify the Belt Components in the 2019 Jeep Cherokee 2.4
Begin by opening the hood and locating the front of the engine. The serpentine belt runs across the various components such as the alternator, power steering pump, air conditioning compressor, and the water pump. Look for the belt that loops around these parts, usually located along the right side of the engine block. The belt will be secured to the pulleys that keep everything in motion.
Next, identify the tensioner pulley, which keeps the belt tight. The tensioner pulley is spring-loaded and can be found near the top or side of the engine. It’s typically slightly smaller than the other pulleys. If the belt is loose or showing signs of wear, this is the component that may need adjusting or replacing.
Check for the idler pulley, another non-driven component, which helps maintain the belt’s path and tension. This pulley is often located between the main pulleys. It’s usually stationary, unlike the tensioner pulley, and has no direct connection to any accessories. Look for a smooth, round part that doesn’t rotate with the engine’s power.
If you’re having trouble seeing the belt layout, refer to the belt diagram, usually found on the engine compartment’s underside. This diagram will show the precise path the belt takes, making it easier to identify the correct orientation and pulleys it interacts with.
For easy identification, always check the condition of the belt. If it shows cracks, fraying, or any signs of wear, it may be time to replace it. The belt should sit snugly on each pulley without slipping or wobbling.
Step-by-Step Guide to Replacing the Serpentine Belt on 2019 Jeep Cherokee 2.4
Before you begin, gather the necessary tools: a socket wrench, a serpentine belt tool, a new serpentine belt, and a ratchet. It’s also recommended to have a helper to make the process smoother.
1. Locate the Serpentine Belt and Tensioner
Open the hood and find the serpentine belt at the front of the engine. The tensioner pulley, which is responsible for keeping the belt tight, will be nearby. Familiarize yourself with the belt’s routing pattern by checking the diagram usually found on the radiator support or the engine bay. Take note of how the belt wraps around pulleys and accessories like the alternator and power steering pump.
2. Loosen the Tensioner Pulley
Using the serpentine belt tool or a ratchet, rotate the tensioner pulley counterclockwise to release the tension on the belt. Once it’s loose, slide the belt off the pulleys. It’s best to work slowly to avoid damaging other components.
3. Remove the Old Belt
After removing the belt from the pulleys, carefully pull it off the tensioner and the rest of the pulleys. Check the belt’s condition for signs of wear like cracks, fraying, or glazing, as these indicate it’s time for a replacement.
4. Install the New Serpentine Belt
Before installing the new belt, compare it with the old one to ensure the size and teeth match. Begin routing the new belt according to the diagram you noted earlier. Carefully fit the belt over each pulley, making sure it sits properly in the grooves.
5. Tighten the Tensioner Pulley
Once the belt is in place, use the serpentine belt tool or ratchet to rotate the tensioner pulley clockwise. This will tighten the belt. Check that the belt is securely in place and there’s no slack. You can gently wiggle the belt to verify that it’s properly positioned on all pulleys.
6. Double-Check the Belt Routing
Make sure the belt is aligned with the pulleys and there are no twists. A correctly installed serpentine belt should sit smoothly and without gaps between it and the pulleys.
7. Test the Engine
Start the engine and observe the new belt’s operation. Listen for any unusual noises and visually inspect the belt to ensure it’s running smoothly. If everything looks good, close the hood, and you’re all set.
Replacing the serpentine belt is a simple but vital task for maintaining your 2019 Jeep Cherokee 2.4. By following these steps, you can ensure your vehicle’s accessories continue to run efficiently.
Common Issues and Troubleshooting Tips for the 2019 Jeep Cherokee 2.4 Belt System
If the serpentine belt on your 2019 Jeep Cherokee 2.4 starts to wear out, it can lead to various performance problems. Identifying these issues early can save you time and money on repairs.
- Squeaking or Squealing Noise: This is one of the most common signs of a worn-out serpentine belt. It usually occurs when the belt is slipping or losing tension. Inspect the belt for cracks, glazing, or signs of wear. If the belt is worn, replacing it should solve the noise.
- Belt Tensioner Problems: The tensioner keeps the belt tight. If it fails, the belt can slip, leading to a loss of power in the engine components. If the tensioner feels loose or makes a grinding noise, it might need replacement.
- Cracked or Damaged Belt: Visual inspection is key. Look for cracks, fraying, or any visible damage on the belt. A damaged belt may cause the engine’s components to stop working, such as the alternator or power steering pump.
- Overheating Engine: If the serpentine belt is broken or slips off the pulleys, the water pump may stop functioning, leading to an overheating engine. A broken belt also prevents the alternator from charging the battery.
- Battery Warning Light: If the alternator is no longer turning because of a worn-out or broken belt, the battery will not charge. This can trigger the battery warning light on your dashboard.
To troubleshoot these issues, always start by inspecting the belt for damage. If any of the issues above appear, replacing the belt or the tensioner is usually the best solution. Also, checking the pulley alignment and ensuring they rotate smoothly can help prevent future belt-related issues.
Regular belt maintenance and early detection can prevent serious damage and avoid costly repairs. Always use high-quality parts when replacing the serpentine belt or related components to ensure long-lasting performance.
