2016 Jeep Wrangler Belt Diagram and Troubleshooting Guide

If you’re replacing or inspecting the serpentine belt on your 2016 Jeep Wrangler, it’s important to follow the correct routing for the belt to avoid engine damage. The serpentine belt in the 2016 Wrangler drives multiple accessories like the alternator, power steering pump, and air conditioning compressor. Make sure to check the belt for wear, cracks, or fraying before installation.

The belt should be routed through the pulleys in a specific order, as outlined in the diagram. Double-check the orientation, especially around the tensioner pulley, as incorrect installation can cause the belt to slip or break. If you’re replacing the belt, a new tensioner should also be inspected or replaced if it’s showing signs of wear.

When working on the 2016 Jeep Wrangler, take note of the belt size and part number to ensure compatibility. A standard 2016 Jeep Wrangler will use a 6-rib, 96.8-inch belt. However, some variations may exist based on the model trim and engine type. Always refer to the vehicle’s manual for the most accurate information.

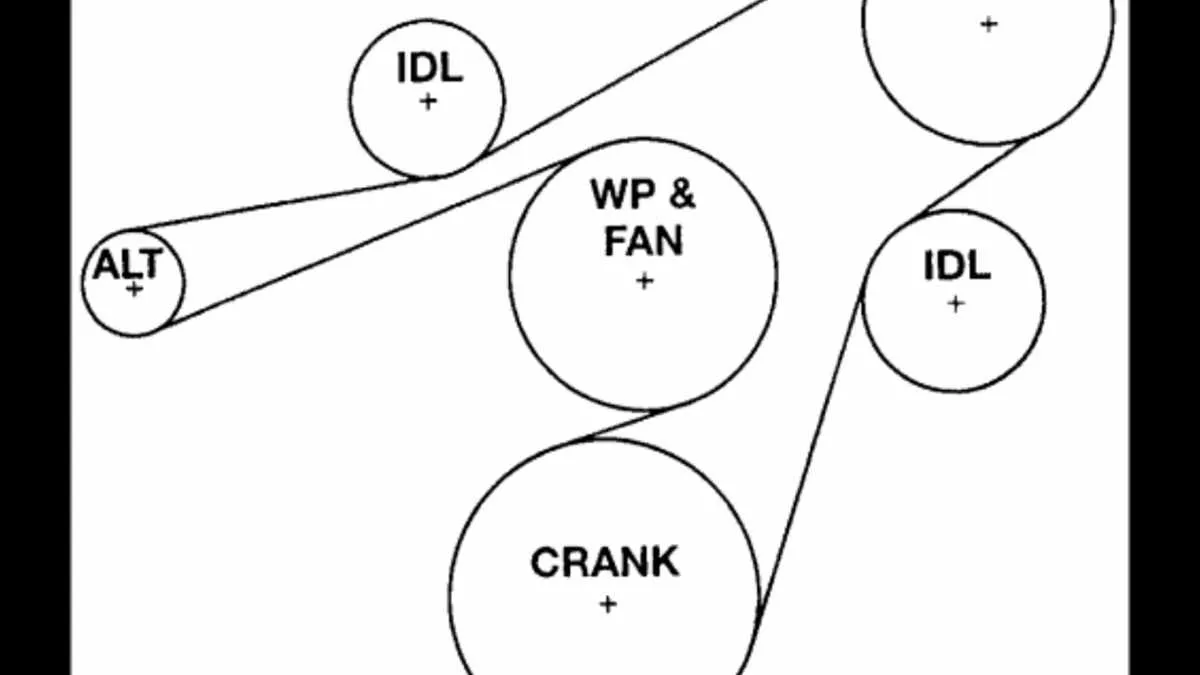

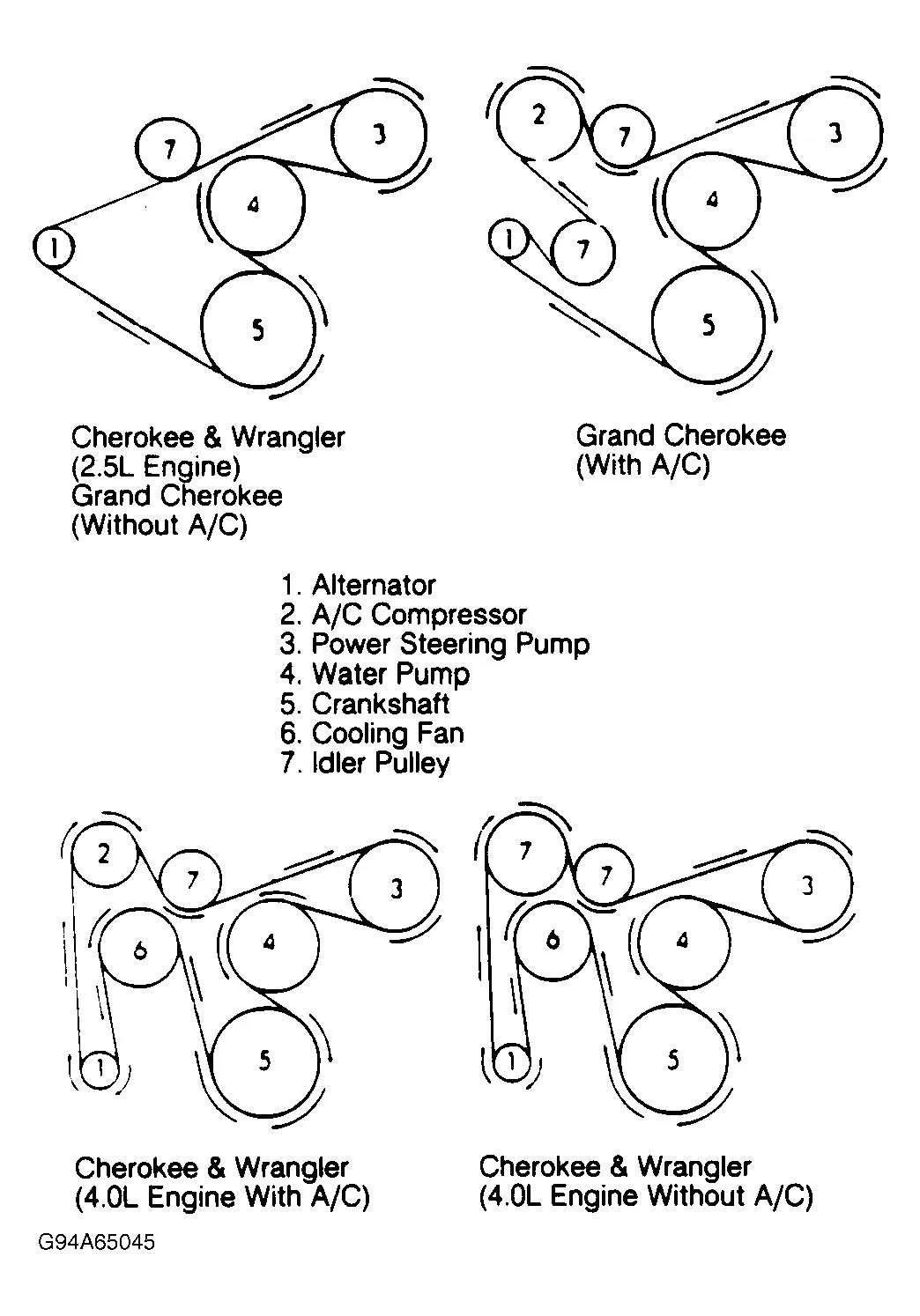

2016 Jeep Wrangler Belt Diagram

For accurate belt routing in the 2016 Jeep Wrangler, follow the specific configuration shown in the factory diagram. It is important to ensure that all components are properly aligned to avoid unnecessary wear and damage to the serpentine belt system.

Start by identifying the location of each component powered by the belt, such as the alternator, power steering pump, and air conditioning compressor. The diagram clearly shows the order of the pulleys and the path the belt must follow around these components.

• Alternator: Located near the top, it is driven by the serpentine belt and should be placed at the designated position in the routing sequence.
• Power Steering Pump: Check the alignment of the pump with the belt, ensuring the belt is tight enough to prevent slippage but not too tight to avoid damage to the pump.
• Air Conditioning Compressor: Position it according to the diagram, ensuring proper tension for smooth operation.

Verify that the belt is installed with the correct tension. If the belt is too loose, it may slip off or cause wear on the pulleys. If too tight, it can lead to unnecessary stress on the components.

Refer to the service manual for any adjustments in the belt tensioner. In some cases, a spring-loaded tensioner automatically adjusts the tension as needed.

Inspect the belt regularly for wear, cracks, or fraying. A damaged belt should be replaced immediately to prevent further damage to the engine components.

How to Identify the Serpentine Belt Configuration on a 2016 Jeep Wrangler

Inspect the front of the engine to locate the serpentine belt. It’s a long, continuous belt that loops around multiple pulleys, including the alternator, power steering pump, and air conditioning compressor. To identify the configuration, start by locating the tensioner pulley, which helps keep the belt tight. This pulley will typically be spring-loaded and adjustable.

Next, check the routing diagram, which can usually be found on the engine bay, often near the radiator or on the underside of the hood. This diagram will show the precise path the belt takes around the pulleys. Make sure the belt aligns with the diagram’s instructions.

If the diagram is missing or hard to read, visually track the belt’s route. Start from the crankshaft pulley, following the belt to each component it drives. The configuration will form a continuous loop, without slack, ensuring the belt runs smoothly through each part. Keep an eye out for any misalignment or wear that could suggest the belt is improperly routed.

Finally, take note of any automatic tensioning systems or idler pulleys that adjust to maintain proper belt tension. This ensures the belt stays in place and performs optimally. If you’re unsure about the setup, use a diagnostic tool to confirm the tension and routing accuracy.

Steps for Replacing the Serpentine Belt on a 2016 Jeep Wrangler

To replace the serpentine belt on a 2016 Jeep Wrangler, first ensure the engine is off and has cooled down. This prevents any accidental injuries.

1. Locate the Serpentine Belt: Open the hood and find the serpentine belt on the front of the engine. Use the belt diagram, usually found on a sticker inside the hood, to understand the belt’s routing.

2. Release Tension from the Belt: Use a socket wrench to turn the tensioner pulley clockwise. This will relieve the tension on the belt, allowing you to remove it easily. Keep the wrench steady and make sure the tensioner is fully relaxed before removing the belt.

3. Remove the Old Belt: Once the tension is released, slide the belt off the pulleys, starting with the one closest to the tensioner. Take note of the belt’s routing for when you install the new one.

4. Inspect the Pulleys: Before installing the new belt, check the pulleys for wear, damage, or any debris. Rotate them by hand to ensure they spin freely and without noise. Replace any damaged pulleys before continuing.

5. Install the New Serpentine Belt: Position the new serpentine belt according to the routing diagram. Start by threading it over the pulleys, working from one end to the other. Make sure the belt is seated properly in the grooves of the pulleys.

6. Reapply Tension: Use the socket wrench to rotate the tensioner pulley once again, allowing the new belt to slip into place. Ensure the belt has the correct tension and is properly aligned with the pulleys.

7. Double-Check: Before closing the hood, double-check the belt’s position and tension. Start the engine and observe the belt while the engine is running. Ensure there are no unusual sounds or movements.

8. Test Drive: Take the vehicle for a short test drive to ensure the new serpentine belt is functioning correctly. Pay attention to any changes in engine performance or noise from the belt area.

Troubleshooting Common Belt Issues in the 2016 Jeep Wrangler

If the serpentine belt on your 2016 Jeep Wrangler is showing signs of wear, follow these steps to identify and resolve common issues.

1. Squeaking or Squealing Noises: This is often caused by a worn-out belt or inadequate tension. Inspect the belt for cracks, glazing, or fraying. If any of these signs are present, replace the belt. Ensure proper tension using the tensioner pulley. If the noise persists, check the pulleys for damage or misalignment.

2. Belt Slipping: Slipping usually happens when the belt is too loose. Verify that the tensioner is functioning properly. If the belt appears to be stretched or damaged, replacing it should solve the problem. Also, check for oil or coolant leaks that could degrade the belt’s material.

3. Visual Damage: A cracked, frayed, or broken belt needs immediate replacement. Carefully inspect the belt’s entire length for any visible damage. In some cases, debris from the engine bay can get lodged in the belt, causing additional wear. Clear out any debris and replace the belt if necessary.

4. Pulleys and Tensioner Issues: Misalignment or a malfunctioning tensioner can cause uneven wear on the serpentine belt. Rotate each pulley manually to ensure they spin smoothly without wobbling. If any pulley is noisy or feels rough, it may need to be replaced. A faulty tensioner will not maintain the proper tension, leading to belt issues.

5. Dashboard Warning Lights: If the belt fails to drive key components like the alternator or power steering, the vehicle may display warning lights. In such cases, inspect the belt’s condition and replace it if it is compromised. Pay attention to any abnormal engine performance as it may indicate further belt-related problems.

Regular inspection and timely replacement of the serpentine belt will keep your 2016 Jeep Wrangler running smoothly and prevent more serious engine problems down the line.
