2015 Jeep Wrangler Serpentine Belt Diagram and Routing Guide

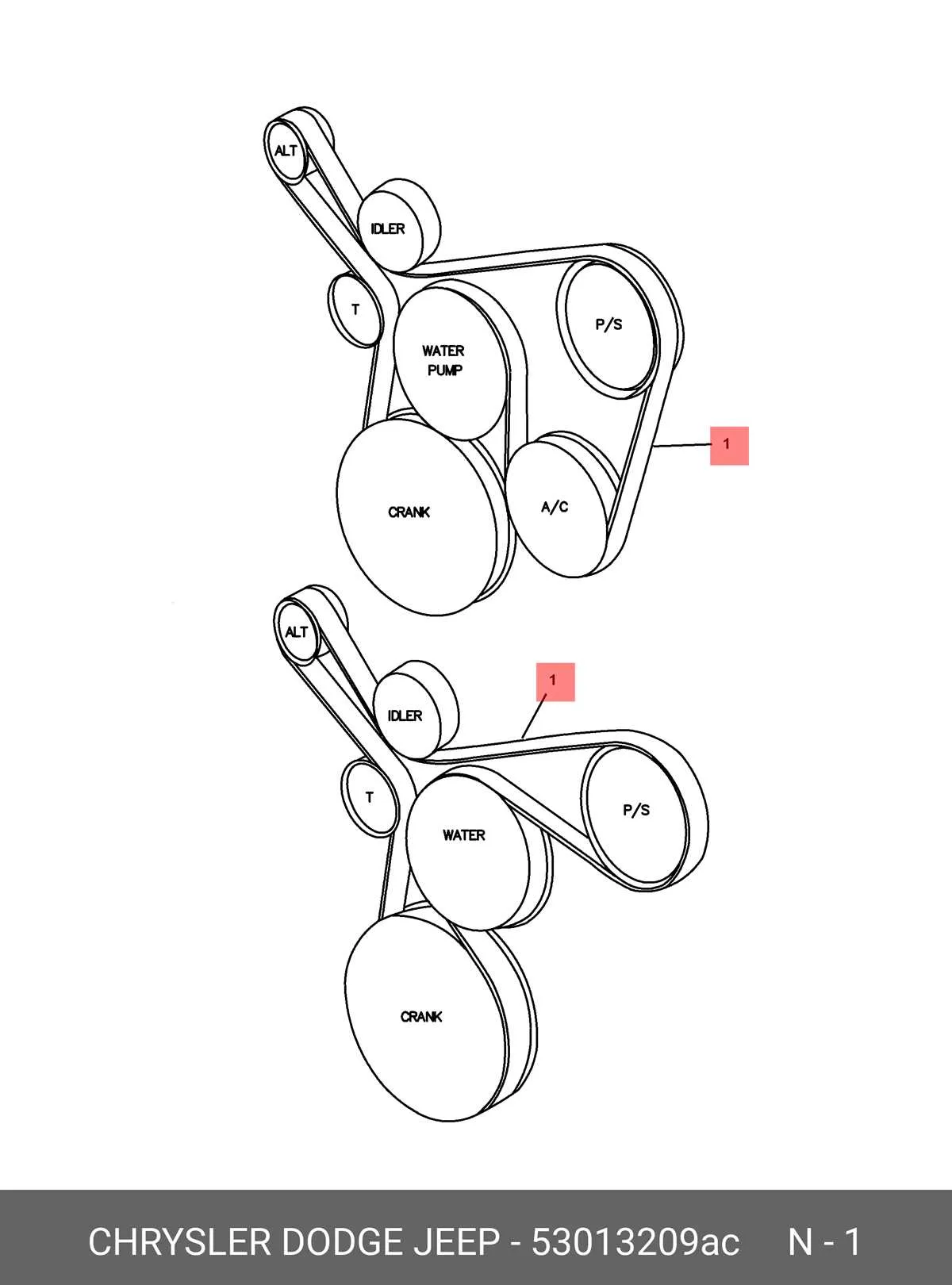

Locate the serpentine belt routing diagram under the hood near the radiator or on the engine cover to ensure correct alignment of all pulleys. Using the factory-provided diagram prevents misrouting that can lead to accessory malfunction or premature belt wear.
Identify each component clearly: alternator, power steering pump, air conditioning compressor, and crankshaft pulley. Marking each with tape or a photo reference before removing the old belt simplifies reinstallation and avoids errors.
Check belt tensioner condition before installing the new belt. A worn or loose tensioner can cause slipping, squealing noises, or damage to engine accessories. Rotate the tensioner and inspect for smooth movement and proper spring tension.
Match the replacement belt size and type exactly to the 2015 Jeep Wrangler specifications. Avoid generic belts, as even small differences in length or rib alignment affect performance and longevity. Confirm part numbers in the owner’s manual or dealer resources.
Maintain consistent inspection intervals for cracks, glazing, or fraying along the belt surface. Replace the belt every 60,000 miles or sooner if signs of wear appear, ensuring uninterrupted operation of all engine accessories.
2015 Jeep Wrangler Belt Diagram Practical Guide
Refer to the factory belt diagram before attempting any work on your 2015 Jeep Wrangler. The serpentine belt runs multiple accessories, including the alternator, power steering pump, water pump, and air conditioning compressor. Identifying each pulley correctly ensures proper routing and prevents engine damage.
Locate the belt routing diagram under the hood, usually on the radiator support or near the engine compartment. Match each component in the diagram with its corresponding pulley on the engine. Note the tensioner location, as it requires a wrench or breaker bar to release belt tension safely.
Check the belt for cracks, fraying, or glazing before reinstalling. Align the belt within pulley grooves accurately and rotate the tensioner to slip the belt into place. Confirm that the belt seats evenly across all pulleys and spins freely without rubbing edges.
After installation, start the engine and observe belt operation for a few minutes. Listen for squealing noises and inspect for proper alignment on each pulley. Adjust if necessary to maintain correct tension and prevent premature wear.
Keep a record of belt size and replacement intervals. A typical serpentine belt for the 2015 Jeep Wrangler requires inspection every 30,000 miles and replacement around 60,000 miles, depending on driving conditions. Using the correct belt ensures optimal performance and longevity of all connected accessories.
Locate and Identify All Serpentine Belt Pulleys
Start at the front of the engine and locate the crankshaft pulley, the largest pulley at the bottom center. This drives the serpentine belt and sets the routing for all other pulleys.
Move clockwise to find the alternator pulley near the top passenger side. It is slightly smaller than the crankshaft pulley and connects directly to the alternator housing.
Next, identify the power steering pump pulley on the driver’s side, mid-height. It has a distinct smooth surface and is positioned close to the belt tensioner.
Locate the water pump pulley just above the crankshaft, often aligned centrally. It may have multiple bolt heads visible, ensuring secure attachment.
Find the AC compressor pulley on the lower passenger side. This pulley is linked to the air conditioning system and often has a clutch mechanism that engages only when the AC is on.
Identify the belt tensioner pulley, usually a small, smooth pulley mounted on a spring-loaded arm. Check for proper tension by gently pressing on the belt to ensure the tensioner moves and maintains pressure.
Locate any idler pulleys, which are smooth and free-spinning. These guide the belt around tight angles and help maintain consistent routing without driving a component directly.
Trace the belt path fully, confirming that each pulley matches the diagram. Double-check that the belt sits fully in each pulley groove and rotates freely without rubbing against any engine components.
Step-by-Step Serpentine Belt Replacement Process
Begin by disconnecting the negative battery terminal to prevent electrical hazards. Use a wrench to release tension on the serpentine belt tensioner by rotating it clockwise. Carefully slide the old belt off the pulleys, noting its routing or referencing the diagram under the hood.
Inspect all pulleys and the tensioner for wear or damage. Check for cracks, glazing, or wobbling. Replace any faulty components before installing the new belt.
Position the new serpentine belt around the pulleys following the exact routing diagram. Start with the crankshaft pulley and work around the alternator, water pump, power steering, and A/C pulleys, leaving the tensioner pulley for last.
Apply pressure to the tensioner again and slip the belt over the tensioner pulley. Slowly release the tensioner to engage the belt. Rotate the crankshaft pulley by hand to ensure proper alignment and smooth movement across all pulleys.
Reconnect the negative battery terminal. Start the engine and observe the belt in motion, checking for misalignment, slipping, or unusual noises. Adjust if necessary to guarantee consistent tension and correct routing.
Troubleshoot Common Belt Routing and Alignment Issues
Check the belt path immediately if you notice unusual noises or poor accessory performance. Misrouted belts can slip or damage pulleys.
- Inspect all pulleys for wear, cracks, or debris that could interfere with belt movement.
- Verify the belt follows the correct routing as per the 2015 Jeep Wrangler diagram. Pay attention to tensioner and idler positions.
- Ensure the belt sits fully in each pulley groove. Misalignment often causes squealing or rapid wear.
Evaluate belt tension using a tension gauge or by pressing the belt at the midpoint between pulleys. A properly routed belt should flex approximately 1/2 inch under moderate pressure.
- Start from the crankshaft pulley and route the belt around each accessory following the diagram.
- Rotate the tensioner clockwise or counterclockwise as needed to slide the belt over the final pulley.
- Release the tensioner slowly and confirm the belt seats evenly in all grooves.
Listen for squeaks or watch for wobbling while the engine runs briefly. If noises persist, check pulley alignment with a straight edge and inspect for bent brackets or worn bearings.
Replace any damaged pulleys or tensioners immediately to prevent repeated misalignment and premature belt failure.
