2014 Jeep Patriot Serpentine Belt Diagram Guide for Accurate Installation and Maintenance
Check the serpentine belt for cracks, fraying, or glazing before any engine work. A worn belt can cause alternator failure, overheating, or power steering loss. Refer to the correct routing diagram to ensure proper alignment with all pulleys.
Locate the tensioner pulley and relieve tension carefully using a wrench or serpentine belt tool. Position the belt according to the diagram, making sure it sits fully in the grooves of the crankshaft, alternator, power steering, and A/C pulleys.
Verify belt orientation by rotating the crankshaft pulley manually. Confirm that the belt tracks smoothly without slipping. Recheck tension after initial engine start to prevent premature wear and maintain stable operation of all driven components.
Replace the belt every 60,000 miles or at the first sign of damage. Keep the routing diagram accessible for future maintenance to avoid confusion and ensure accurate installation during replacement or service.
2014 Jeep Patriot Serpentine Belt Diagram Detailed Maintenance and Replacement Guide

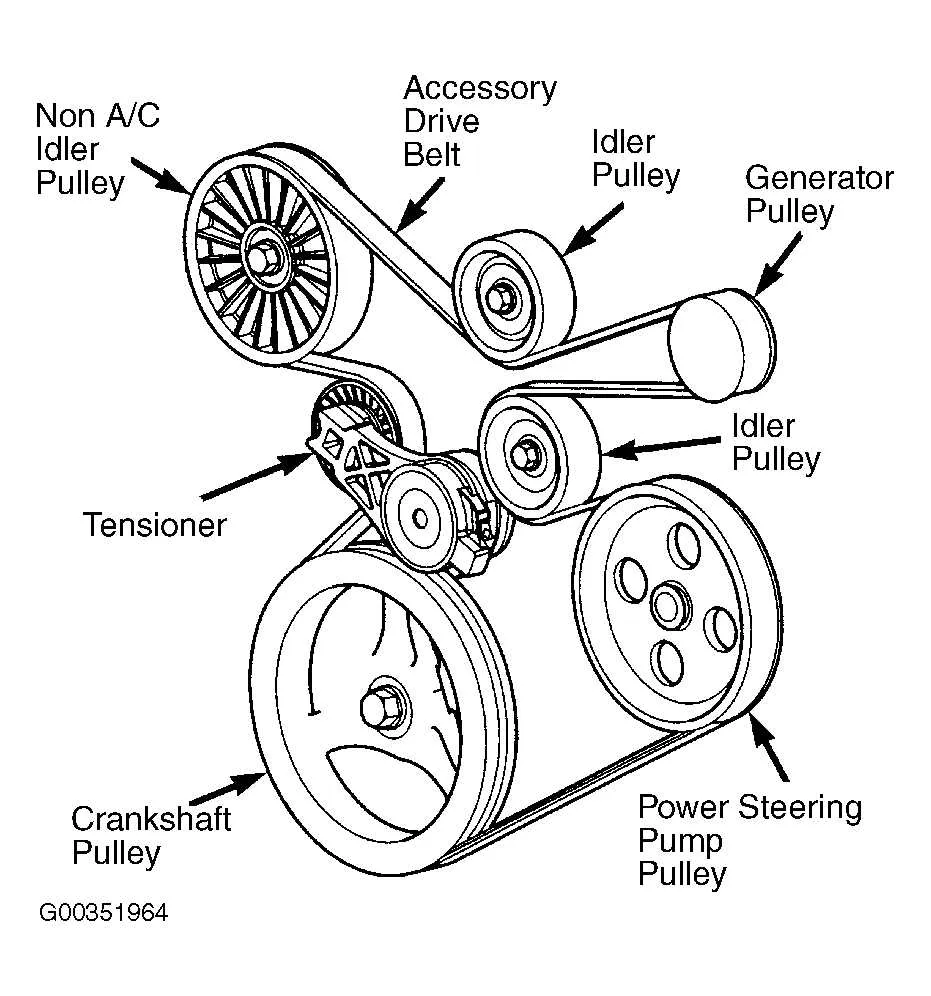

Locate the serpentine belt routing diagram on the front engine cover or inside the hood panel. Confirm that the diagram matches your engine type and accessories configuration before beginning any work.
Inspect the belt for cracks, fraying, glazing, or missing ribs. Any visible damage requires immediate replacement to prevent accessory failure and engine overheating.
Release tension using the automatic tensioner tool or a suitable wrench. Rotate the tensioner clockwise to relieve pressure and carefully remove the belt from all pulleys, keeping note of the routing sequence.
Compare the new belt against the old one to ensure proper length and rib alignment. Position the belt around the crankshaft pulley first, then route it over the alternator, power steering, A/C compressor, and idler pulleys according to the diagram.
Apply pressure to the tensioner to slip the belt over the final pulley. Check that the belt seats evenly in all pulley grooves and aligns with the diagram. Rotate the engine manually using a wrench on the crankshaft pulley to verify smooth operation without slippage.
Recheck belt tension and alignment after initial engine start. Listen for squealing or unusual noises and adjust routing if necessary. Regular inspection every 20,000 miles is recommended to maintain proper function and prevent unexpected breakdowns.
Identify All Pulleys and Belt Routing on 2014 Jeep Patriot
Locate the serpentine belt at the front of the engine, ensuring the engine is off and cool. Identify each pulley before removing or inspecting the belt to prevent misrouting.
- Crankshaft Pulley: Positioned at the bottom center, this drives the main belt loop. Ensure alignment marks are visible for correct routing.
- Alternator Pulley: Located on the upper left, the alternator pulley keeps electrical components powered. Check for smooth rotation and no wobble.
- Power Steering Pump Pulley: Found on the upper right, it maintains hydraulic pressure for steering. Verify the pulley spins freely and the belt sits in the grooves.
- Water Pump Pulley: Central to cooling, often near the engine block. Ensure the belt wraps around it without slack.
- Idler Pulley: Multiple idler pulleys may guide the belt. Confirm each is secure, spins without noise, and maintains proper belt tension.
- Tensioner Pulley: Spring-loaded pulley that keeps the belt tight. Use a wrench to relieve tension before removing the belt and slowly release to avoid damage.

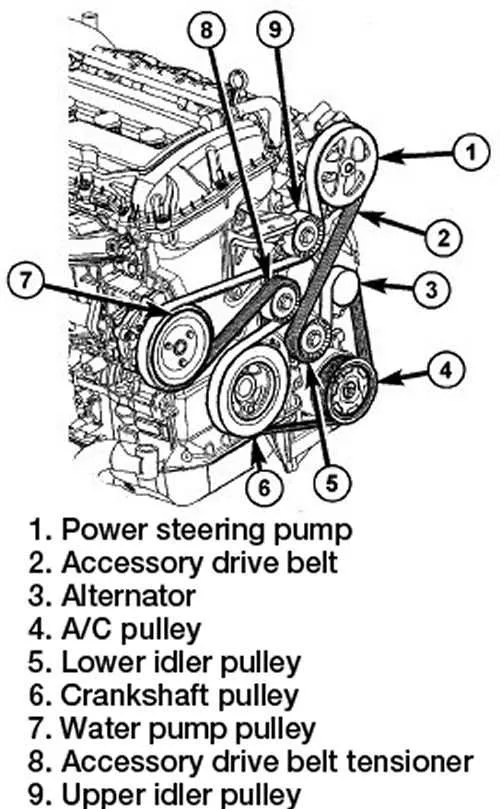

Follow the routing diagram stamped on the engine cover or located in the service manual. The belt should trace a continuous path around all pulleys without crossing incorrectly.
- Start at the crankshaft pulley, wrapping around the water pump.
- Continue to the alternator, then the power steering pump.
- Pass the belt over any idler pulleys, following the diagram exactly.
- Engage the tensioner pulley last to maintain proper tension.
Double-check the belt alignment in each pulley groove before starting the engine. Misalignment can cause noise, premature wear, or belt failure.
Inspect and Replace Worn Serpentine Belt Components
Check the serpentine belt for cracks, fraying, or missing ribs along its length. Pay close attention to the sides of the belt where wear often appears first. If any damage is visible, replace the belt immediately.
Examine all pulleys, including the tensioner, alternator, power steering, and idler pulleys. Spin each pulley by hand to detect roughness, noise, or wobble. Replace any pulley that does not rotate smoothly or shows excessive play.
Inspect the tensioner spring for proper tension. A weak or stuck tensioner can cause belt slippage or premature wear. Replace the tensioner if it cannot maintain consistent pressure on the belt.
Check alignment of all pulleys. Misaligned pulleys can lead to uneven belt wear and reduce component lifespan. Adjust or replace components to restore proper alignment.
Clean pulley grooves and surrounding areas to remove debris that could accelerate belt wear. Avoid using harsh solvents that may damage the belt material.
After replacement, route the new belt according to the vehicle diagram, ensuring it sits correctly in each pulley groove. Run the engine briefly and observe the belt for smooth operation without vibration or noise.
Step-by-Step Serpentine Belt Installation and Tension Adjustment
Begin by locating the serpentine belt routing diagram under the hood or in the owner’s manual. This ensures proper alignment across all pulleys.
Release tension from the old belt using a wrench or serpentine belt tool on the tensioner pulley. Slowly rotate the tensioner and slide the belt off the pulleys.
Inspect all pulleys, tensioner, and idlers for wear or damage. Replace any components showing cracks, glazing, or wobbling.
Position the new belt according to the routing diagram. Make sure the belt sits properly in each pulley groove without twisting or overlapping.
Apply tension by rotating the tensioner again and sliding the belt into place. Release the tensioner slowly, allowing it to maintain the correct belt tension.
Check belt alignment visually across all pulleys. Misalignment can cause premature wear and noise.
Manually rotate the engine using a ratchet on the crankshaft pulley for two full rotations. This ensures the belt tracks correctly and maintains consistent tension.
Listen for squeaks or inspect for slipping. If necessary, adjust the tensioner position or verify pulley alignment.
Secure all tools, double-check routing, and start the engine briefly. Observe belt operation under running conditions to confirm smooth movement and proper tension.
