2014 Jeep Patriot 2.4 Engine Belt Diagram and Routing Guide

For the 2014 Jeep Patriot 2.4L engine, the belt diagram is straightforward and easy to follow when replacing or inspecting the serpentine belt. The serpentine belt connects various components, such as the alternator, power steering pump, water pump, and air conditioning compressor, and its alignment is key to proper engine function.

The main serpentine belt routing for the 2.4L engine includes a smooth path around the crankshaft pulley, idler pulleys, and tensioner, ultimately providing power to critical systems. Make sure the belt’s direction matches the arrows on the diagram to avoid installation errors. The tensioner is spring-loaded and should be rotated clockwise to release tension on the belt when you remove or install it.

If you’re replacing the serpentine belt, check for signs of wear such as cracking or fraying. It’s also a good idea to inspect the pulleys and tensioner for damage or excessive wear. Using the correct belt size is essential for optimal performance, as an incorrectly sized belt can cause slipping, squealing, or even engine damage.

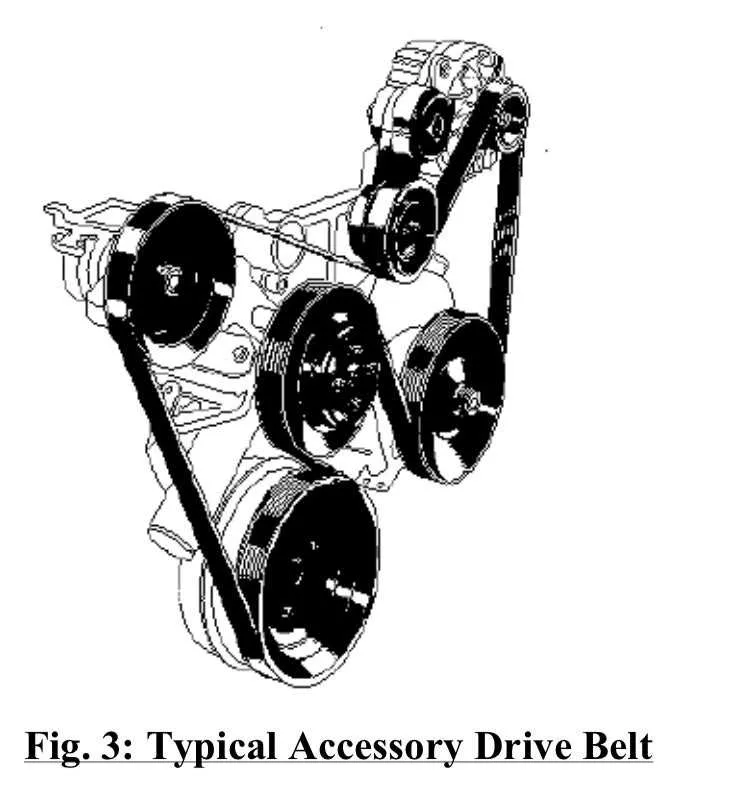

2014 Jeep Patriot 2.4 Belt Diagram

The 2014 Jeep Patriot 2.4 comes equipped with a serpentine belt system that drives multiple components such as the alternator, power steering pump, and air conditioning compressor. Understanding the correct belt routing is key for maintaining the vehicle’s performance and avoiding issues like overheating or electrical failure.

The belt routing follows a specific pattern to ensure the correct tension and smooth operation of all connected parts. The tensioner pulley is located on the passenger side, near the alternator. It plays a critical role in keeping the belt tight. Ensure the belt loops around the crankshaft pulley, followed by the water pump, power steering pump, and the alternator. The air conditioning compressor is typically at the bottom of the diagram.

For any replacement or adjustment, always use the correct belt length and tension settings as specified in the owner’s manual. Incorrectly sized belts can lead to premature wear or potential damage to the system. When installing, make sure the belt is routed exactly as shown in the official diagram to prevent misalignment, which could lead to slippage or failure.

If you’re unsure about the belt condition, inspect it regularly for signs of wear such as cracks, fraying, or squealing. If any issues are noticed, it’s better to replace the belt early to avoid further complications down the line.

Understanding the Main Components of the Belt System

The belt system in the 2014 Jeep Patriot 2.4 plays a key role in ensuring various engine components operate smoothly. Below are the main parts involved and their functions:

• Serpentine Belt: This single belt powers multiple accessories such as the alternator, air conditioning, power steering, and water pump. It’s critical that the belt remains in good condition to prevent system failures.
• Tensioner Pulley: This component keeps the serpentine belt tight, ensuring it doesn’t slip or lose contact with the pulleys. If the tensioner is worn or malfunctioning, the belt can lose its effectiveness and may break.
• Idler Pulley: Located along the belt’s path, the idler pulley helps maintain the belt’s direction and tension. It reduces friction and ensures smooth operation by guiding the belt around different engine components.
• Alternator Pulley: This pulley connects to the alternator and ensures it generates electrical power for the vehicle’s systems. A damaged alternator pulley can lead to charging issues.
• Power Steering Pump Pulley: Attached to the power steering pump, this pulley helps pump hydraulic fluid to assist with steering. A faulty pulley can result in heavy or unresponsive steering.
• Water Pump Pulley: This pulley drives the water pump, circulating coolant throughout the engine. It helps regulate engine temperature and prevents overheating.

Keeping these components in check will ensure your vehicle’s belt system operates without issues, contributing to the smooth running of your Jeep’s engine. Regular inspection of the belt and associated components can prevent costly repairs down the road.

Step-by-Step Guide to Replacing the Serpentine Belt

Before starting, gather the necessary tools: a wrench set, serpentine belt tool (or a standard socket wrench with appropriate size), and a replacement serpentine belt compatible with the 2014 Jeep Patriot 2.4L engine.

1. Disconnect the battery: Always begin by disconnecting the negative terminal of the battery to prevent electrical issues during the process.

2. Locate the serpentine belt: The belt runs over several pulleys, including the alternator, power steering pump, water pump, and air conditioning compressor. Refer to the diagram on the engine cover or service manual to get a clear view of the belt’s path.

3. Release tension on the belt: Use a serpentine belt tool or a wrench to rotate the tensioner pulley. This will relieve the pressure on the belt, allowing you to remove it. Carefully release the tensioner back into place after removal.

4. Remove the old belt: Once the tension is released, remove the belt from the pulleys. Pay attention to how the belt is routed around each component to ensure proper installation of the new one.

5. Check pulley condition: Inspect each pulley for wear, debris, or damage. Spin the pulleys by hand to ensure they move smoothly. If you notice any irregularities, replace the affected pulley before installing the new belt.

6. Install the new belt: Start by placing the new belt on the largest pulley (often the crankshaft pulley) and work your way around the pulleys following the same routing as the old belt. Refer to the diagram for accurate placement.

7. Check tensioner: Re-engage the tensioner pulley to ensure the new belt is tight. The tensioner should automatically adjust the belt’s tightness as you release it.

8. Double-check the installation: Ensure the belt is aligned correctly on all pulleys and that it sits evenly. A misaligned belt could cause issues down the line.

9. Reconnect the battery: Reattach the negative terminal of the battery, and start the engine. Listen for any unusual sounds and check the belt’s performance under operating conditions. Make sure the belt is functioning properly and the pulleys are moving smoothly.

Replacing the serpentine belt on your 2014 Jeep Patriot is a manageable task with the right tools and attention to detail. Always follow manufacturer guidelines for parts and installation to maintain optimal vehicle performance.

Troubleshooting Common Issues with the Belt and Tensioner

If you notice unusual squealing sounds, poor engine performance, or difficulty starting your Jeep Patriot, it’s time to inspect the belt and tensioner. The most common issue is a worn-out serpentine belt, often caused by excessive friction or misalignment. If the belt is cracked or frayed, replace it immediately to avoid further engine damage.

The tensioner should also be checked. A failing tensioner can cause the belt to slip or lose tension, which can lead to overheating or power loss. To test the tensioner, press it lightly with your finger; if it moves more than a small amount or feels loose, it may need replacing.

Another issue is the pulley misalignment. If the pulleys aren’t aligned properly, the belt may wear unevenly or even jump off. Check the alignment of all the pulleys, and if any appear bent or damaged, replace them before installing a new belt.

If you’re experiencing engine vibration or poor performance after replacing the belt, the tensioner might be improperly installed. Ensure the tensioner is seated correctly and is maintaining consistent pressure on the belt.

Lastly, always inspect the condition of the belt when replacing the tensioner. A new tensioner on an old, worn-out belt will still result in poor performance. Ensure both components are in good condition to prevent unnecessary repairs in the future.
