2012 Jeep Patriot Serpentine Belt Diagram and Routing Guide

If you’re looking to replace or inspect the serpentine belt on your 2012 Jeep Patriot, it’s crucial to understand the correct routing and positioning of the belt. The serpentine belt powers multiple components, including the alternator, power steering pump, and air conditioning compressor. Without a proper diagram, it’s easy to make mistakes when reinstalling the belt, which can lead to mechanical failure or unnecessary wear on engine components.

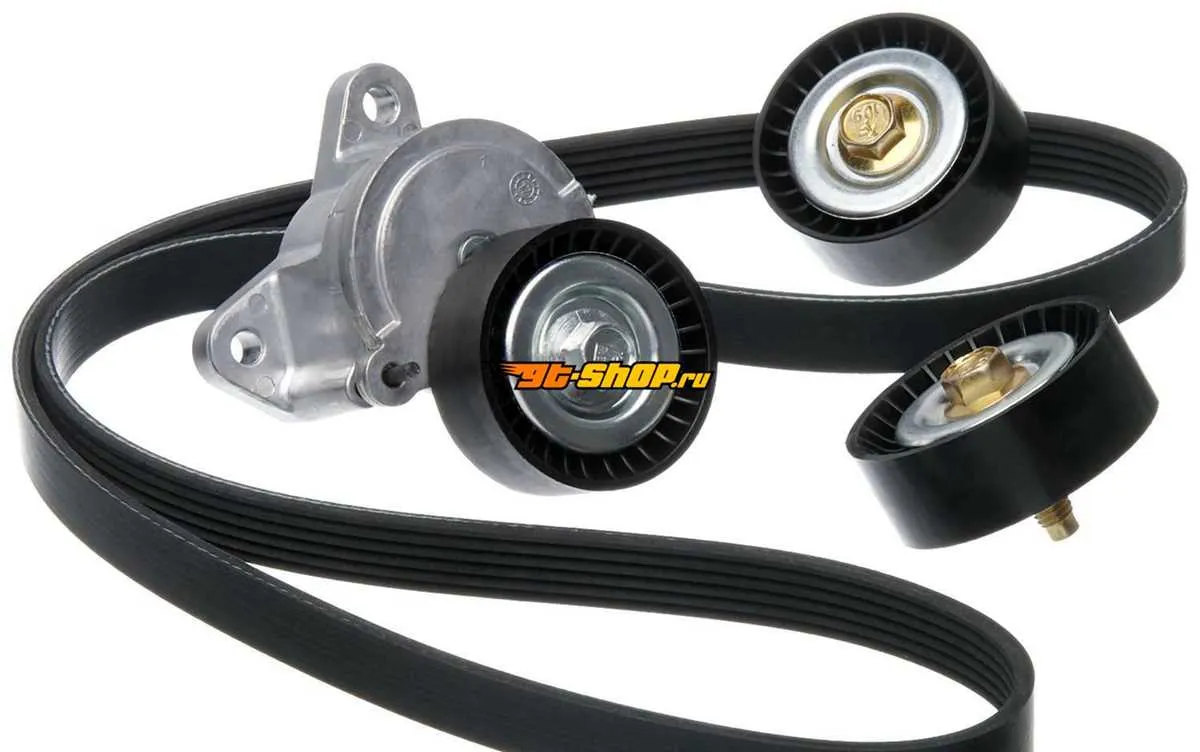

The serpentine belt on a 2012 Jeep Patriot follows a specific path that must be adhered to. Start by identifying the various pulleys in the engine bay, including the tensioner pulley. This pulley plays a key role in maintaining the correct belt tension, so it’s important to understand its position. The diagram will help you visualize how the belt loops around the pulleys, providing power to each engine accessory in the proper order.

Referencing the diagram can save you time and effort during replacement or maintenance. It shows the correct route the serpentine belt should take, ensuring proper function and alignment. Don’t forget to check the condition of the belt and pulleys for wear before reassembly. A faulty belt or misaligned pulley could cause further issues, like slipping or even engine damage.

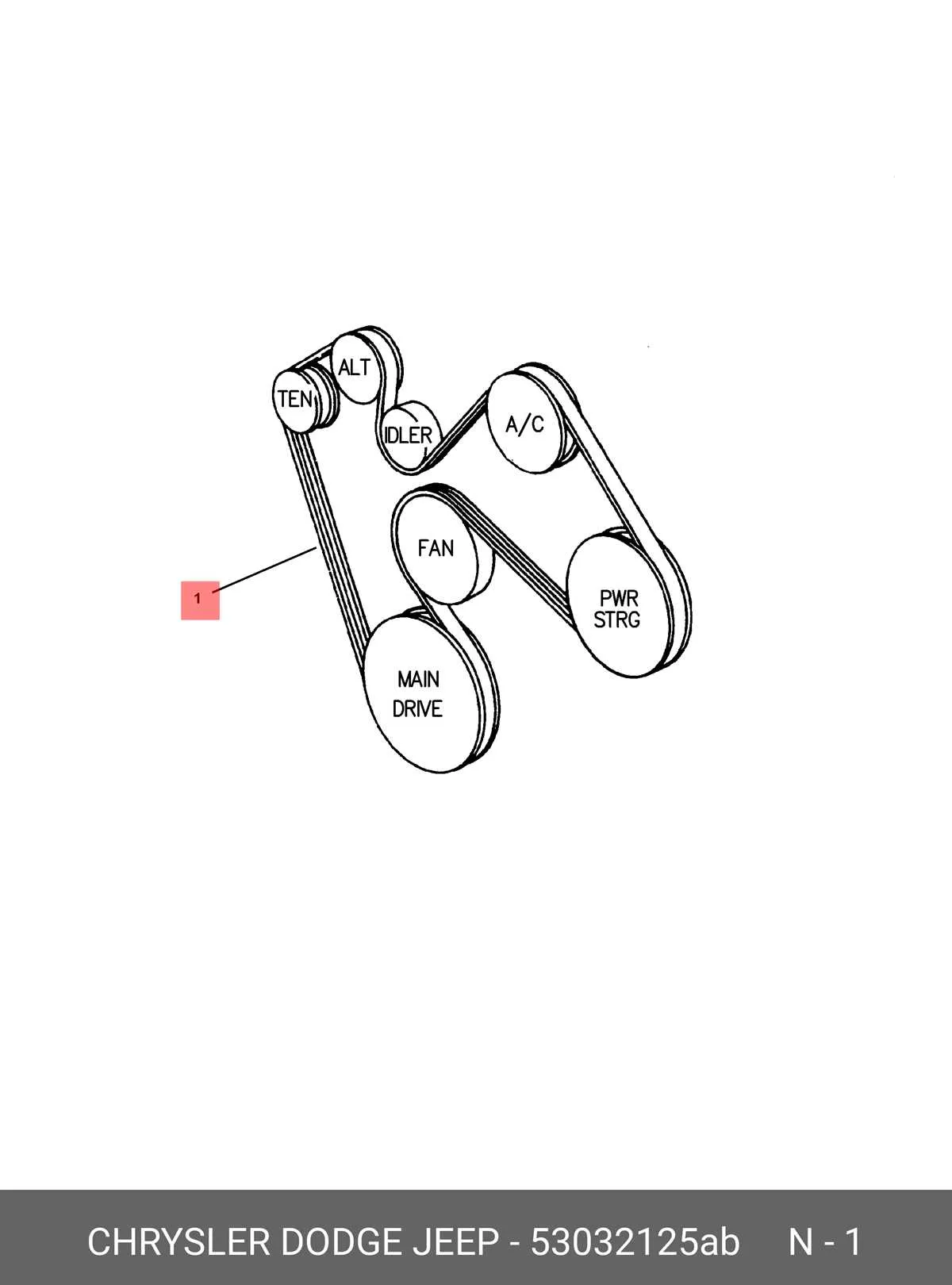

2012 Jeep Patriot Serpentine Belt Diagram

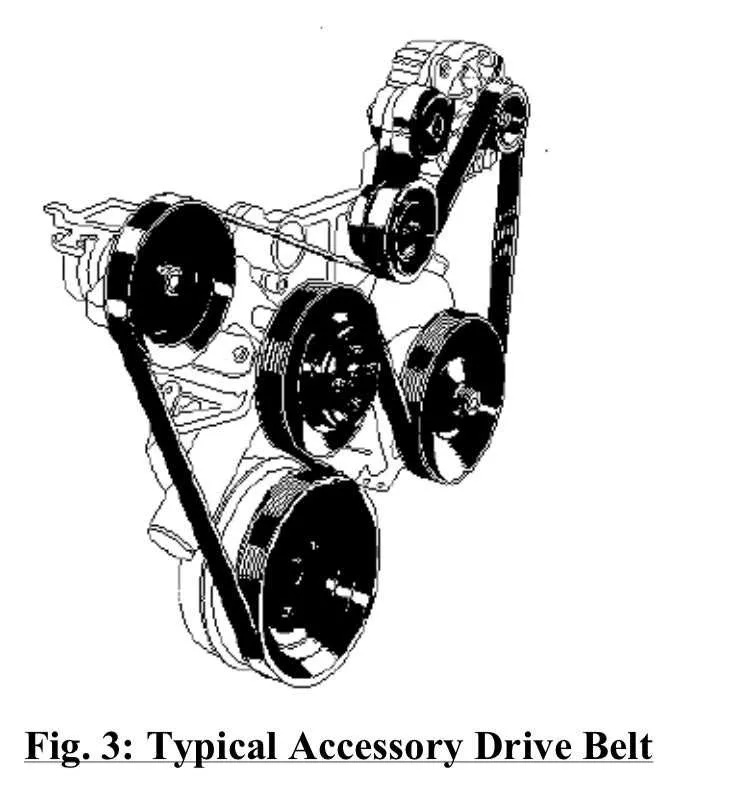

The serpentine belt for the 2012 Jeep Patriot routes through several components, powering key accessories such as the alternator, power steering pump, and air conditioning compressor. The diagram below shows the correct path for the belt to ensure smooth operation of these systems.

Start by securing the belt around the crankshaft pulley, then loop it around the tensioner, which keeps the belt tight. From there, the belt should pass through the alternator, power steering pump, air conditioning compressor, and any other accessory pulleys as indicated in the diagram. Make sure the belt follows the correct sequence without skipping any steps. The correct routing minimizes the chances of slippage and ensures all components receive the proper amount of power.

Check for any visible wear or damage on the serpentine belt before installation. If the belt shows signs of cracking or fraying, replace it immediately to avoid further complications. The routing diagram will help ensure proper alignment and belt tension, which is crucial for vehicle performance.

Understanding the Serpentine Belt Routing for 2012 Jeep Patriot

To ensure proper functionality, the serpentine belt on the 2012 Jeep Patriot must be routed correctly around the pulleys. Misrouting can lead to poor engine performance, overheating, or even damage to the belt or engine components.

Start by positioning the belt around the crankshaft pulley, then pass it over the A/C compressor, and the alternator pulley. It should loop around the power steering pump pulley before being guided to the tensioner. The belt should pass around the idler pulley and finally end back at the crankshaft pulley, completing the cycle.

The tensioner pulley maintains the necessary tightness to prevent the belt from slipping. It is important to ensure that the belt is tight but not overstretched, as this can cause premature wear. The tensioner should be able to move freely when releasing tension during installation.

If replacing the serpentine belt, always check for wear on the pulleys and ensure that they rotate smoothly. Any seized pulleys could cause the new belt to wear out quickly or fail prematurely. Always use a belt that matches the manufacturer’s recommended size to prevent unnecessary strain on the components.

Lastly, check the routing diagram located on the engine compartment for reference. This serves as a helpful guide to verify that the belt has been installed correctly.

Common Issues with the Serpentine Belt in 2012 Jeep Patriot and How to Identify Them

If you notice unusual noises coming from your engine, poor air conditioning performance, or difficulty starting your Jeep, the serpentine belt could be the culprit. Here are some common issues to watch out for:

• Squealing or Chirping Noises: A high-pitched squeal often indicates that the serpentine belt is loose, worn, or slipping. Inspect the belt for cracks or fraying. Tightening or replacing the belt should resolve the issue.
• Loss of Power Steering: If you find it difficult to steer your Jeep, especially at low speeds, the serpentine belt may be worn or broken. The belt drives the power steering pump, and failure here will impact your ability to control the vehicle.
• Overheating Engine: The serpentine belt also drives the water pump. If it fails, the engine cooling system will stop working, causing the engine to overheat. Check for visible damage or wear on the belt, and inspect the water pump for leaks.
• Battery Warning Light: A damaged serpentine belt can cause the alternator to stop charging the battery. If the battery warning light appears on the dashboard, it’s time to inspect the belt and its components.

To identify these issues early, visually inspect the serpentine belt for cracks, wear, or missing pieces. It’s also a good idea to listen for unusual noises and pay attention to any changes in vehicle performance. Replacing a worn belt before it breaks can save you from more costly repairs down the line.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2012 Jeep Patriot

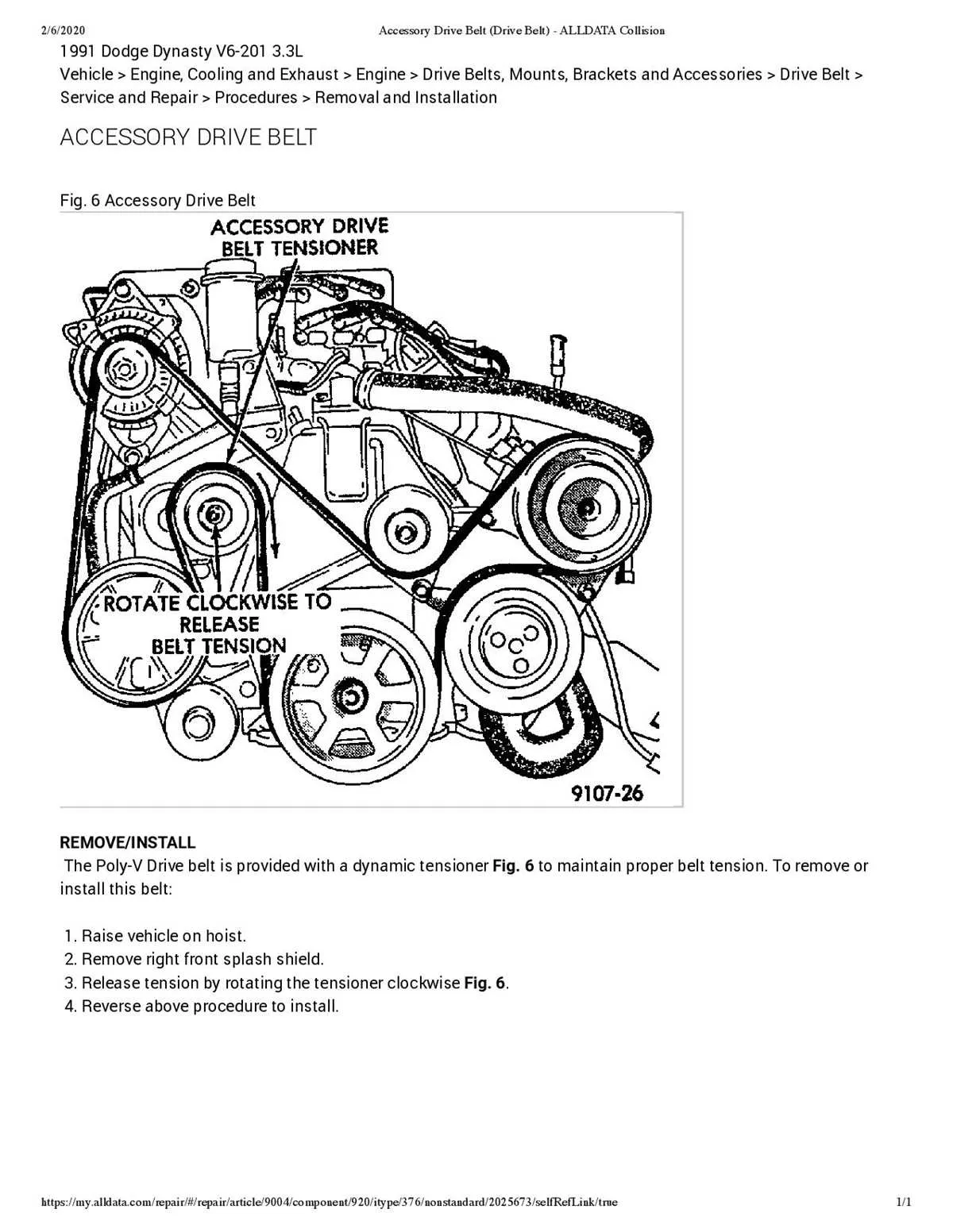

Lift the front of your Jeep Patriot with a jack and secure it with jack stands. Remove the passenger-side front wheel for better access to the engine bay.

Locate the serpentine belt routing diagram, usually found on the radiator support or under the hood. This will show you the exact path of the belt and the location of the tensioner pulley.

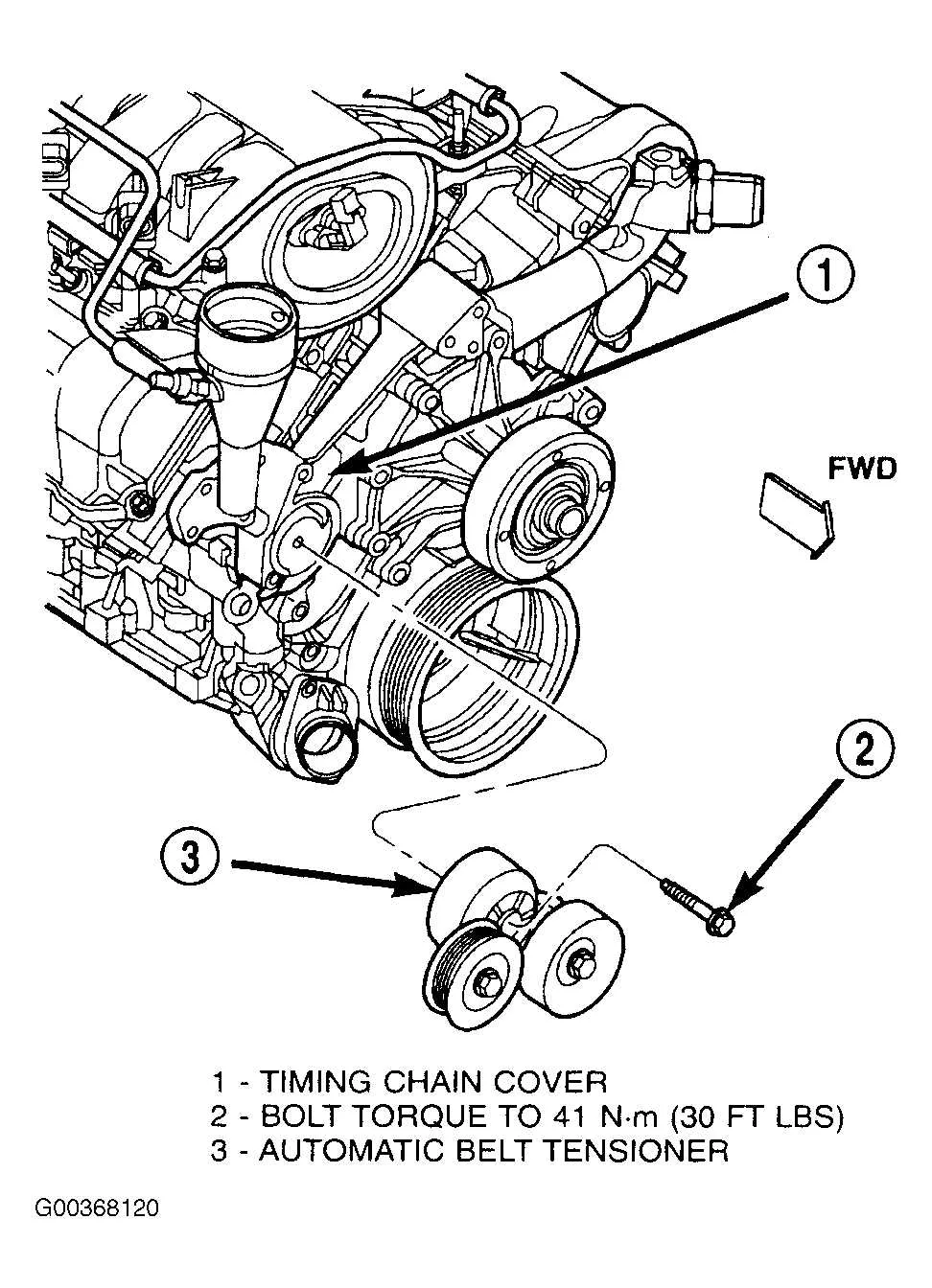

Use a socket wrench to relieve tension from the tensioner pulley. Turn the pulley clockwise to release the pressure on the belt, allowing you to remove it from the pulleys.

Carefully remove the serpentine belt. Make sure to note the belt’s direction and routing, as you’ll need to install the new one in the same pattern.

Inspect the pulleys and tensioner for any damage or wear. If the pulleys seem rough or the tensioner isn’t holding tension properly, replace them before installing the new belt.

Place the new serpentine belt on the pulleys, following the routing diagram. Ensure the belt is properly seated in each groove.

Reapply tension to the tensioner pulley, which will tighten the belt into place. Double-check the routing and tension to ensure the belt is aligned correctly.

Reinstall the wheel, lower the Jeep, and test the belt by starting the engine. Listen for any abnormal noises and check that the belt runs smoothly.
