2012 Jeep Grand Cherokee Serpentine Belt Diagram

For a proper and efficient operation of your 2012 Jeep Grand Cherokee, it’s crucial to follow the correct serpentine belt layout. Ensuring the belt is properly routed can prevent premature wear and engine malfunctions. Here’s a quick guide to help you understand the configuration.

First, ensure that the engine is off and cool before starting any work on the serpentine belt. This prevents injury and ensures accurate belt placement. The serpentine belt on the 2012 Jeep Grand Cherokee drives multiple components, including the alternator, power steering pump, and air conditioning compressor.

Consult the belt diagram for clear visual guidance. It’s typically located on the radiator support or under the hood, giving you the exact routing pattern. This ensures you don’t miss any key component connections, avoiding operational issues after installation.

Regular inspection and replacement of the serpentine belt will help maintain engine efficiency and avoid costly repairs. If you notice any signs of wear, such as fraying or cracks, it’s important to replace the belt immediately.

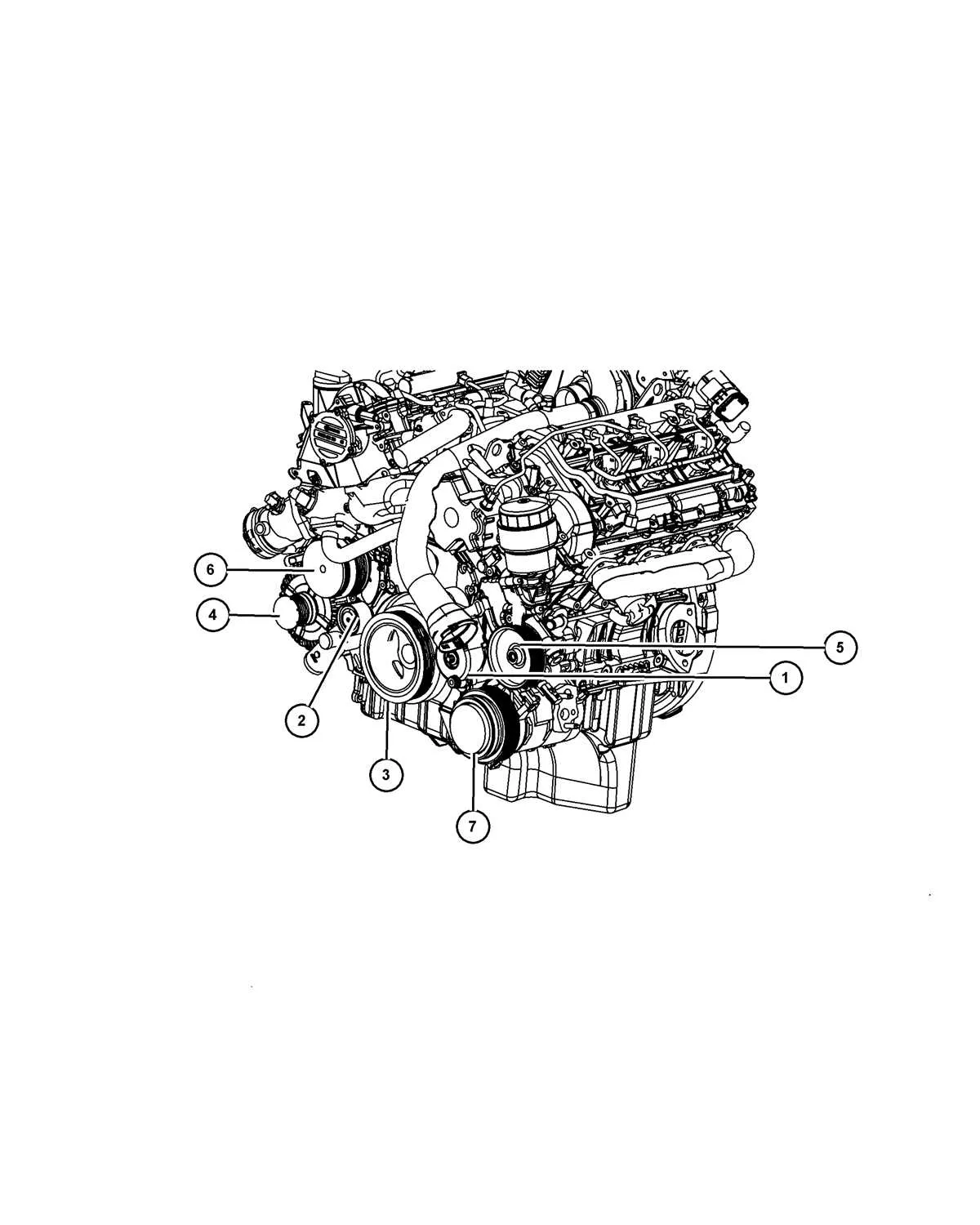

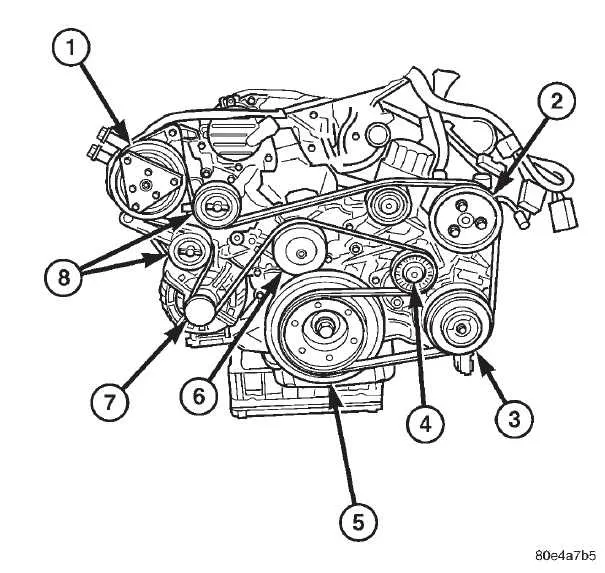

2012 Jeep Grand Cherokee Belt Diagram

The serpentine belt layout in the 2012 Jeep Grand Cherokee plays a crucial role in driving multiple engine components, such as the alternator, power steering pump, and air conditioning compressor. Ensure the belt is correctly routed to maintain optimal vehicle performance and prevent damage to the system.

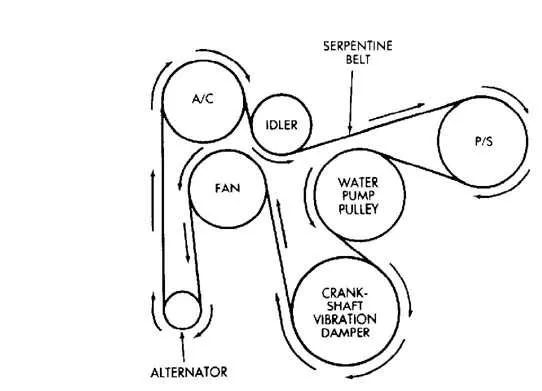

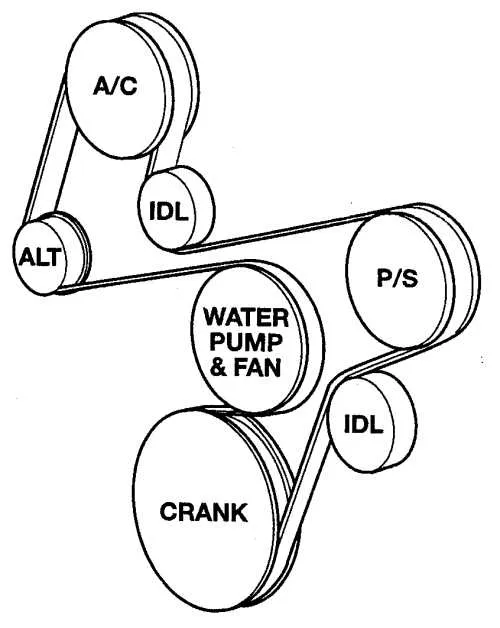

To understand the correct configuration, here’s the general order of components on the belt path:

• Start with the crankshaft pulley at the bottom of the engine block.
• The belt runs up to the power steering pump, located on the driver’s side of the engine.
• Next, it loops around the alternator pulley, positioned above the power steering pump.
• After that, it moves towards the air conditioning compressor, which is placed on the front of the engine.
• The belt then continues towards the tensioner and idler pulley system, which helps maintain correct belt tension.

For easier reference, you can find a diagram of the serpentine belt layout in the 2012 Jeep Grand Cherokee’s manual. If the belt slips or exhibits signs of wear, it should be replaced immediately to avoid damaging other components.

Always ensure the belt is properly installed, with correct tension. A loose or misaligned belt can lead to poor performance and eventual failure of the engine’s auxiliary systems.

Identifying the Components of the Serpentine Belt System

The serpentine belt system in the 2012 Jeep Grand Cherokee is composed of several key components. First, the serpentine belt itself, which drives multiple accessories such as the alternator, power steering pump, and air conditioning compressor. This belt is essential for transferring mechanical power from the engine to various components, ensuring smooth operation of the vehicle’s systems.

The tensioner pulley is another critical component. It maintains the proper tension on the serpentine belt to prevent slippage. Without a properly functioning tensioner, the belt could become loose, leading to poor performance or failure of the accessories. Inspect the tensioner for wear and ensure it operates smoothly.

The idler pulley, while not directly involved in driving any accessories, helps guide the serpentine belt and maintain its proper alignment. If this pulley becomes worn or misaligned, it could cause the belt to run off track, leading to potential damage or system failure.

The pulleys attached to the accessories, such as the alternator and power steering pump, also play a significant role. These pulleys allow the belt to connect to each component and transfer the necessary power. Any damage or wear on these pulleys could affect the performance of the entire system.

Regular inspection of these components for wear, misalignment, or damage is important for maintaining the longevity of the serpentine belt system. Replace any faulty components promptly to avoid further damage or complications in the engine system.

Step-by-Step Guide to Replacing the Serpentine Belt

Begin by ensuring the engine is turned off and cool. Disconnect the negative battery terminal to prevent any electrical accidents.

Locate the serpentine belt tensioner. Using a ratchet or a wrench, rotate the tensioner clockwise to relieve tension from the belt. Remove the belt carefully, making a note of its routing or taking a photo for reference.

Inspect the new belt to ensure it matches the old one in size and design. Check for any signs of wear on the pulleys or tensioner that could cause premature damage to the new belt.

Install the new belt, following the same routing path as the old belt. Make sure the belt is seated correctly on each pulley. Rotate the tensioner again to allow the belt to fit snugly into place.

Once the belt is installed, double-check the routing and tension. Reconnect the battery, start the engine, and listen for any unusual sounds. Verify that the belt is running smoothly on all pulleys.

If the belt appears to be misaligned or makes noise, turn off the engine and inspect the installation. Tighten any loose components or check if the tensioner is functioning correctly.

Troubleshooting Common Belt Issues in the 2012 Jeep Grand Cherokee

If your 2012 Jeep Grand Cherokee experiences squeaking or squealing noises from the belt area, the issue may stem from a worn serpentine belt. Inspect the belt for visible cracks, frays, or signs of stretching. If any damage is present, replace the belt immediately.

A misaligned belt could also cause poor performance, such as reduced power steering or inefficient cooling. Ensure the belt runs smoothly across all pulleys. If you notice uneven wear, check the tensioner and pulleys for proper alignment and condition. Replace any faulty components.

Another common issue is a slipping belt, which occurs if the belt is too loose or the tensioner is faulty. You can test this by applying pressure to the belt–if it moves excessively, tighten it or replace the tensioner. Excessive wear on the tensioner can cause the belt to slip, leading to further damage to both the belt and the engine.

If the alternator light or battery warning appears on the dashboard, this could indicate the serpentine belt is not properly driving the alternator. Inspect the belt to ensure it is not slipping or misaligned, and verify that the alternator pulley is functioning correctly.

Finally, if the vehicle experiences poor air conditioning performance, the serpentine belt may be struggling to power the AC compressor. Check for wear or looseness in the belt and replace it if necessary to restore cooling efficiency.
