Detailed 2011 Jeep Wrangler Serpentine Belt Routing and Component Layout Diagram Guide

Locate the serpentine belt routing on your 2011 Jeep Wrangler by referring directly to the manufacturer’s belt diagram. This diagram clearly shows the path the belt takes around the pulleys, including the crankshaft, alternator, power steering pump, and air conditioning compressor. Using the correct diagram ensures proper installation and prevents premature belt wear or mechanical failure.

Access the belt diagram under the hood, usually found on a decal attached to the radiator support or the underside of the hood itself. If the decal is missing or damaged, download a high-resolution version from Jeep’s official resources or trusted automotive websites to guarantee accuracy.

Follow the belt diagram carefully during installation. Pay close attention to tensioner placement and pulley direction. Incorrect routing can lead to squealing noises, overheating, or loss of accessory function. Always verify belt condition and tensioner operation while replacing the belt to maintain optimal vehicle performance.

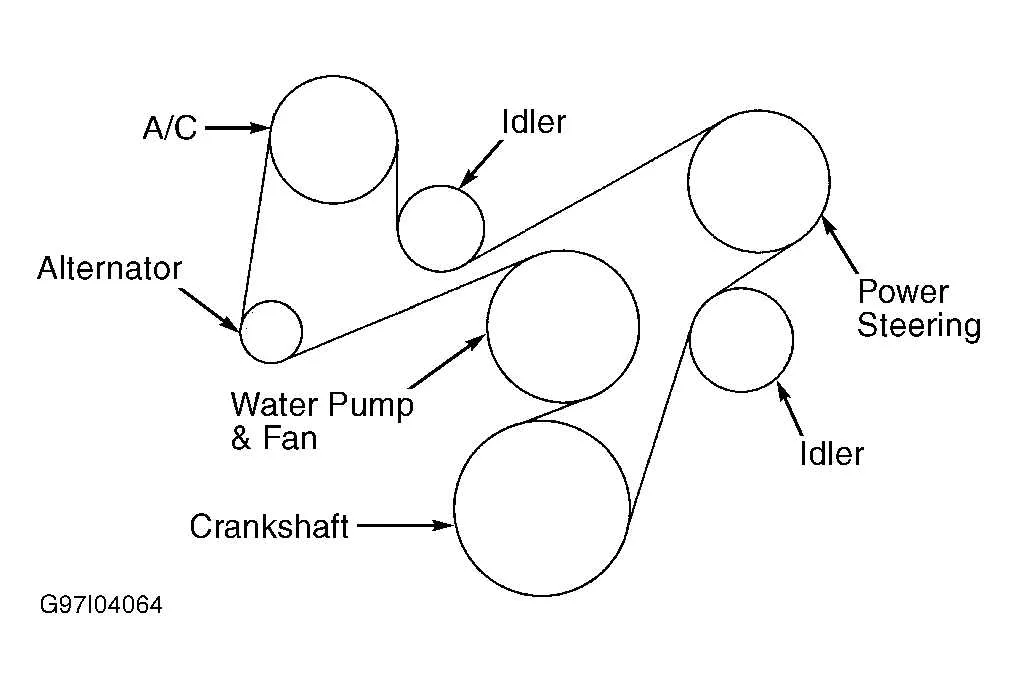

2011 Jeep Wrangler Belt Diagram

Locate the serpentine belt routing by examining the diagram positioned on the underside of the hood or near the radiator support. The belt wraps around the crankshaft pulley, alternator, power steering pump, water pump, and the air conditioning compressor in a specific pattern. This layout ensures proper tension and alignment to maintain accessory operation.

For the 3.6L V6 engine, the belt runs clockwise from the crankshaft pulley to the water pump, then moves to the alternator, power steering pump, tensioner, and finally the air conditioning compressor. The tensioner pulley keeps the belt tight, preventing slippage and reducing wear.

When replacing the belt, release the tensioner by rotating it with a wrench or serpentine belt tool, then carefully remove the old belt. Follow the diagram exactly to install the new belt, making sure it sits firmly in each pulley groove. Inspect all pulleys for damage or misalignment before securing the belt.

Use a belt with OEM specifications for the 2011 Jeep Wrangler to ensure correct length and durability. Verify the belt number stamped on the old belt or consult the vehicle’s manual. Proper belt routing and tension increase engine efficiency and extend accessory lifespan.

Identifying and Locating Each Belt Component on 2011 Jeep Wrangler

Begin by inspecting the serpentine belt from the passenger side of the engine bay. The belt runs across multiple pulleys and drives key components. Use a flashlight for better visibility, especially near the lower pulleys.

• Crankshaft Pulley: Located at the bottom center of the engine. It’s the largest pulley and drives the entire belt system.
• Alternator: Found at the upper left (driver side). It has a ribbed pulley and is typically the most accessible component in the system.
• Power Steering Pump: Positioned to the upper right (passenger side). Trace the belt as it wraps around this pulley, which has a slightly larger diameter than the idler pulleys nearby.
• AC Compressor: Located near the bottom right. The pulley is smooth and often partially obstructed by the frame or skid plate.
• Water Pump: Mounted at the front center of the engine. The pulley is usually ribbed and spins freely by hand when the engine is off.
• Idler Pulley: This fixed pulley is placed between the alternator and power steering pump. It helps guide the belt and maintain alignment.
• Belt Tensioner: Found just below the alternator. Look for a pulley on a spring-loaded arm. Apply a 3/8” or 1/2” ratchet to the square hole on the arm to relieve tension during removal or installation.

Check each pulley for signs of wear, such as glazing or wobbling. Misalignment or damage often leads to squealing or premature belt failure. Use a belt routing diagram, usually located on the radiator support, to verify the correct path before installation.

Step-by-Step Guide to Reading the 2011 Jeep Wrangler Belt Routing Diagram

Locate the belt routing diagram sticker on the radiator support or underside of the hood. This diagram shows the exact path the serpentine belt follows around each pulley.

Identify all pulleys: crankshaft, alternator, power steering pump, A/C compressor, water pump, and belt tensioner. Each will be marked on the diagram, typically with abbreviated labels like “ALT” for alternator or “PS” for power steering.

Follow the arrows that indicate belt direction. Solid arrows show the grooved side of the belt contacting the pulley, while dotted or dashed lines indicate the flat side riding over an idler or tensioner.

Note the tensioner location. It’s usually spring-loaded and marked as “TENS” or “IDLER.” This is the pulley you’ll rotate when installing or removing the belt.

Trace the diagram with your finger to memorize the sequence. Begin at the crankshaft pulley and move through each component, ensuring the routing forms a continuous loop as shown.

Pay attention to pulley sizes and belt orientation. Grooved pulleys must align with the belt’s ribbed side; smooth pulleys contact the flat side.

If the sticker is missing or unreadable, refer to the owner’s manual or a service manual specific to the 3.8L V6 engine in the 2011 Jeep Wrangler.

Troubleshooting Common Issues Using the 2011 Jeep Wrangler Belt Diagram

Check the belt routing first if you hear a squealing noise or notice poor accessory performance. The 2011 Jeep Wrangler uses a serpentine belt that drives the alternator, power steering pump, water pump, and air conditioning compressor. If the diagram shows any deviation in routing or if the belt rides off-center on a pulley, inspect the tensioner and idler pulleys for wear or misalignment.

Compare the actual belt path with the factory diagram under the hood or in the service manual. A misrouted belt may still run but can underperform or cause rapid wear. A common mistake is reversing the belt around the power steering pump and alternator–leading to charging issues and heavy steering.

If the belt keeps slipping, use the diagram to verify correct tensioner position. A weak or misaligned automatic tensioner can allow slack, especially under load. Replace any tensioner that does not maintain steady pressure throughout its full range of motion. Use a straightedge to confirm pulley alignment across the crankshaft, alternator, and A/C compressor.

Inspect each pulley shown in the diagram for rough bearings or wobble. Spin each one by hand with the belt removed. Any grinding or side-to-side movement suggests failure. The diagram helps identify each pulley’s function, making replacement and routing easier after repair.

Use the belt diagram again after installing a new belt to double-check each groove and routing path. One misrouted loop can cause rapid failure or accessory damage. Verify correct contact on the ribbed sides of driven pulleys and smooth contact over tensioner and idler pulleys.
