2008 Jeep Wrangler Serpentine Belt Diagram and Routing Guide

To ensure smooth operation of your 2008 Jeep Wrangler, understanding the serpentine belt system is a must. The serpentine belt plays a crucial role in driving several vital engine components, including the alternator, air conditioning compressor, and power steering pump. Correct belt alignment is essential for preventing mechanical failures and improving overall engine efficiency.

Referencing the correct diagram for your Wrangler’s serpentine belt will guide you through installation and maintenance. The diagram provides specific details on how the belt should be routed around pulleys, idlers, and tensioners, ensuring the correct fit and tension. Regular inspection of the serpentine belt is advised to avoid premature wear and to catch any signs of damage early, such as fraying or cracking, which can lead to costly repairs.

For replacement, it is important to follow the exact routing depicted in the diagram. This minimizes the risk of improper installation, which can lead to belt slippage or failure. Always double-check the tensioner to confirm that it is functioning properly before reassembling the components. Doing so will enhance the lifespan of your serpentine belt and other associated parts.

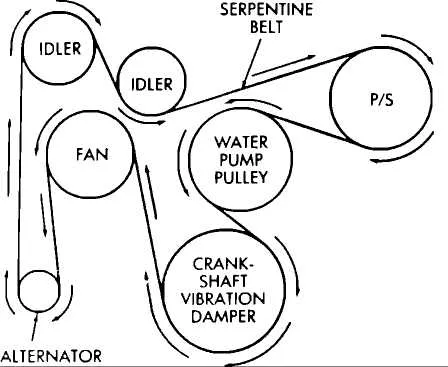

2008 Jeep Wrangler Serpentine Belt Diagram

The 2008 Jeep Wrangler uses a serpentine belt system to power multiple engine accessories, including the alternator, power steering pump, air conditioning compressor, and more. Ensuring the proper routing of the serpentine belt is crucial for smooth operation. A misrouted or worn belt can lead to engine performance issues or failure of the connected accessories.

For the 2008 Wrangler, the belt should be routed over the pulleys in a specific sequence. The diagram typically shows a continuous loop, with the belt passing over the alternator, water pump, power steering pump, air conditioner compressor, and idler pulleys. The tensioner pulley ensures proper tension, allowing the belt to operate efficiently. It’s important to check that the belt tensioner is working correctly, as a faulty tensioner can cause the belt to slip or wear out prematurely.

When replacing the serpentine belt, always follow the diagram closely. Start by releasing the tension from the tensioner pulley using a wrench or socket to rotate the tensioner. Remove the old belt, inspect all pulleys for wear or damage, and then install the new belt according to the diagram. Ensure that the belt is properly aligned with each pulley to avoid unnecessary strain on the engine components.

How to Identify the Correct Serpentine Belt for Your 2008 Jeep Wrangler

Check the model and engine size of your 2008 Jeep Wrangler to ensure you select the right serpentine belt. The engine options include the 3.8L V6 and 2.8L Diesel engines, each requiring different belt lengths and configurations. Verify your engine type by locating the vehicle identification number (VIN) on the dashboard or door frame, then cross-check with the manufacturer’s specifications.

Consult the owner’s manual or a trusted parts retailer for the precise belt part number. This number correlates directly with the specific belt dimensions, ensuring compatibility with your vehicle’s pulleys and components. If in doubt, opt for OEM (Original Equipment Manufacturer) belts for a perfect fit and durability.

Inspect the belt routing diagram under the hood to compare the routing layout with the diagram provided in your manual or online resources. This ensures the serpentine belt will properly align with all pulleys, preventing issues with tension or misalignment.

Ensure the belt’s length, width, and rib count match the specifications for your Jeep. A mismatch can cause slippage, noise, or premature wear on engine components. Use an online belt guide or speak with a professional mechanic if you are unsure about your vehicle’s exact requirements.

Step-by-Step Instructions for Replacing the Serpentine Belt on a 2008 Jeep Wrangler

Before starting, gather the following tools: a socket wrench, serpentine belt tool, a new serpentine belt, and safety gloves.

1. Disconnect the vehicle’s battery to avoid any electrical mishaps.

2. Locate the serpentine belt tensioner. Use a serpentine belt tool or a socket wrench to release the tension on the belt by rotating the tensioner clockwise.

3. Once the tension is released, carefully remove the old serpentine belt from the pulleys. Make a note of the belt routing or take a picture for reference.

4. Check the pulleys for any signs of wear or damage. Clean the pulleys if necessary to ensure proper belt operation.

5. Place the new serpentine belt over the pulleys following the routing diagram. Ensure the belt is properly aligned on all pulleys, including the tensioner.

6. Use the serpentine belt tool to rotate the tensioner and place the belt onto it. Release the tool to allow the tensioner to tighten the belt.

7. Double-check the belt for proper alignment and ensure it’s securely in place.

8. Reconnect the battery and start the engine to verify the belt is running smoothly.

If the belt appears to be loose or misaligned, repeat the steps, ensuring the correct routing and tension are applied.

Troubleshooting Common Serpentine Belt Issues in the 2008 Jeep Wrangler

If you notice squealing noises or a loss of power steering, your serpentine belt might be worn, loose, or misaligned. Start by inspecting the belt for cracks, fraying, or missing sections. A damaged belt should be replaced immediately to prevent further engine damage.

Check the tension of the belt. If it is too loose or too tight, it can affect engine performance. You can use a tension gauge to measure the correct tension. If you don’t have a gauge, press on the belt with your fingers; a properly tensioned belt should have about half an inch of give at its longest point. If the belt has too much slack or is too tight, it needs adjusting.

Inspect the pulleys and tensioner for wear. A faulty tensioner or misaligned pulleys can cause premature wear on the serpentine belt. If any pulleys feel loose or have play when you move them, replace them. This will help the belt run smoothly and extend its lifespan.

If the belt keeps slipping or squealing even after adjustments, check for oil or coolant leaks around the engine components. Fluids can degrade the belt material, making it more prone to wear and failure. Clean the affected areas and replace the belt if necessary.

Lastly, check the alignment of the belt on the pulleys. A misaligned belt can cause excessive wear and lead to further problems. Ensure that the belt sits correctly in all grooves and that each pulley is properly aligned with the others. Misalignment often results from damaged or worn-out components, so inspect the entire system carefully.
