2004 Jeep Grand Cherokee 4.0 Serpentine Belt Diagram and Replacement Guide

The serpentine belt in your 2004 Jeep Grand Cherokee 4.0 plays a key role in powering various engine accessories. Understanding the belt diagram ensures that you can properly maintain and replace the belt, preventing potential issues.

Locate the serpentine belt diagram on the engine compartment’s fan shroud or under the hood. This diagram outlines the correct routing of the belt around the engine’s pulleys. Make sure to follow the diagram precisely to avoid damaging the belt or other components.

If you’re replacing the serpentine belt, always inspect the condition of the pulleys, tensioner, and idler pulleys. Ensure that each pulley moves smoothly without any unusual resistance or noise. If any components show wear, replace them along with the belt to avoid further complications.

Check the belt for cracks, fraying, or glazing. These are signs that the belt may need replacement. It’s also important to verify the proper tension, as a loose or overly tight belt can cause engine performance issues. Consult the vehicle’s manual for the specific tensioning procedure.

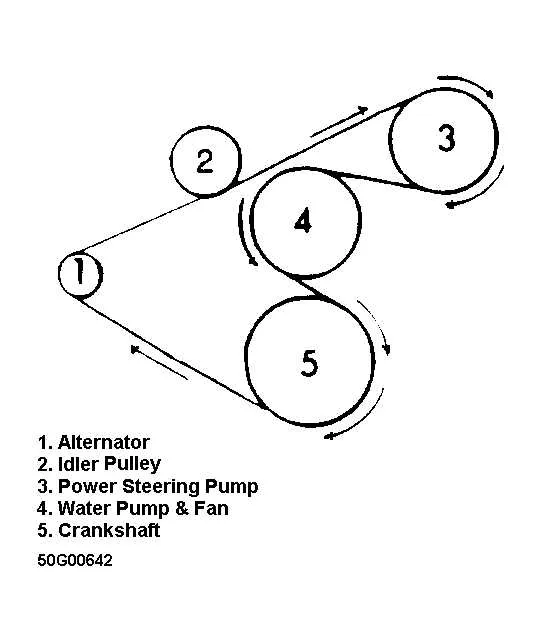

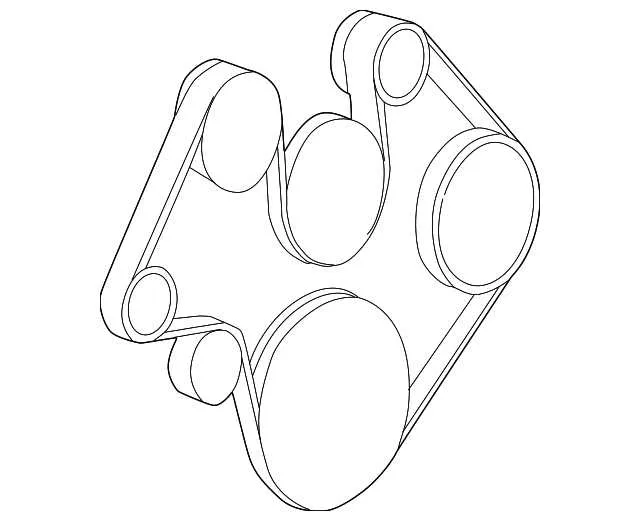

2004 Jeep Grand Cherokee 4.0 Serpentine Belt Diagram

The serpentine belt in a 2004 Jeep Grand Cherokee 4.0 is a vital component that drives multiple accessories such as the alternator, power steering pump, and air conditioning compressor. Proper understanding of its routing is critical to ensure all systems function efficiently.

To replace or inspect the serpentine belt, locate the diagram on the engine bay. It typically features a simple, clear path for the belt, showing its routing around various pulleys. Ensure the belt follows the exact path depicted in the diagram to avoid over-tension or misalignment, which could lead to premature wear or failure of components.

For easy identification, the diagram should indicate the locations of the belt tensioner and idler pulley. The tensioner is responsible for maintaining the correct tension, while the idler pulley ensures the belt runs smoothly. If replacing the serpentine belt, ensure it is installed in the same configuration as shown in the diagram to avoid unnecessary damage to engine components.

Before installing a new serpentine belt, visually inspect the old belt for signs of wear, such as cracking, fraying, or glazing. If any of these signs are present, replacing the belt at the earliest opportunity is advised. A properly installed belt should sit snugly in the grooves of the pulleys without slipping or making excessive noise.

Step-by-Step Guide to Installing the Serpentine Belt on a 2004 Jeep Grand Cherokee 4.0

Start by disconnecting the vehicle’s battery to prevent any electrical issues. Locate the serpentine belt tensioner and use a ratchet wrench to release tension on the belt. This will allow you to remove the old serpentine belt easily.

Carefully inspect the new serpentine belt for any damage before installation. Make sure it matches the old belt in size and grooves. Begin by positioning the new belt around the pulleys according to the manufacturer’s diagram, ensuring that it follows the proper routing pattern.

Once the belt is in place, use the ratchet wrench to release the tensioner and allow it to tighten the belt. Double-check the belt’s alignment on each pulley to ensure it sits securely in place.

Reconnect the battery and start the engine. Listen for any unusual noises and verify that the belt is running smoothly across all pulleys. If necessary, recheck the belt alignment and tension to ensure proper installation.

Common Issues with the Serpentine Belt on the 2004 Jeep Grand Cherokee 4.0

One of the most common issues with the serpentine belt on the 2004 Jeep Grand Cherokee 4.0 is cracking. Over time, the belt can dry out, leading to visible cracks on its surface. If you notice these cracks, it is a sign that the belt is aging and should be replaced soon to avoid unexpected breakdowns.

Another issue is belt slippage, which happens when the serpentine belt doesn’t maintain proper tension. This can occur due to worn-out tensioners or pulleys. If the belt is slipping, you may notice squealing or squeaking sounds coming from the engine bay, especially during acceleration or when the vehicle is cold.

Friction and heat buildup can also cause the serpentine belt to wear unevenly. Overheating can lead to the belt becoming brittle and weak, making it prone to snapping. Regular inspection of the belt’s condition, especially during hot weather, is recommended to prevent this issue.

Misalignment of the serpentine belt is another issue that can occur if the pulleys are not properly aligned. This can cause the belt to move off track or wear out unevenly. Check for any damaged or misaligned pulleys that might be causing this problem.

In rare cases, the serpentine belt may stretch, which can result in a loose fit. A loose belt can lead to poor performance of various engine components that depend on the serpentine belt for power. If you notice a loss of power or failure in systems such as the alternator or power steering, check the belt’s tension.

Regular maintenance and inspection of the serpentine belt can help prevent these issues and ensure the smooth operation of your 2004 Jeep Grand Cherokee 4.0’s engine systems.

How to Read and Interpret the Serpentine Belt Diagram for the 2004 Jeep Grand Cherokee 4.0

Start by locating the diagram under the hood. The serpentine belt diagram provides a clear visual of how the belt wraps around the various pulleys and components. This diagram is your guide to understanding the correct routing of the serpentine belt, ensuring proper tension and alignment.

To read the diagram, follow these key steps:

• Identify the pulleys: Each pulley, such as the alternator, power steering pump, and air conditioning compressor, is represented by a symbol. These symbols are often accompanied by the name of the component.
• Note the belt routing: The diagram shows the exact path the serpentine belt takes, highlighting the direction of the belt around each pulley. Pay attention to whether the belt loops over or under specific pulleys.
• Understand the tensioner position: The tensioner pulley is crucial for keeping the belt tight. The diagram usually shows how the belt interacts with the tensioner, which may require manual adjustment during installation or maintenance.
• Check for any special notes: Some diagrams include additional instructions or warnings, such as the need for specific tools to release tension on the belt or advice about belt installation direction.

Once you are familiar with the diagram, it becomes easier to diagnose issues or replace the serpentine belt. Always ensure that the belt routing follows the diagram precisely to avoid damage or improper functioning of the engine components.
