1997 Jeep Wrangler Serpentine Belt Diagram and Routing Guide

To correctly install or replace the serpentine belt on your 1997 Jeep Wrangler, understanding the diagram is key. This diagram shows the precise routing of the serpentine belt around the pulleys, ensuring that all engine components work seamlessly. Pay close attention to the orientation of each pulley and the direction of rotation to prevent misalignment, which can cause belt wear or damage.

The serpentine belt system powers essential accessories like the alternator, power steering pump, and air conditioning compressor. It’s important to check the belt for wear signs such as cracking or fraying. Replacing the belt at the recommended intervals helps avoid sudden breakdowns and keeps your engine running smoothly. Consult the diagram to verify the proper tension and routing of the new belt.

Referencing the 1997 Jeep Wrangler serpentine belt diagram is essential for troubleshooting common belt issues or when performing a belt replacement. Ensure that you have the right tools and follow the steps for belt installation carefully. Proper maintenance of the serpentine belt extends the lifespan of your engine components and maintains vehicle performance.

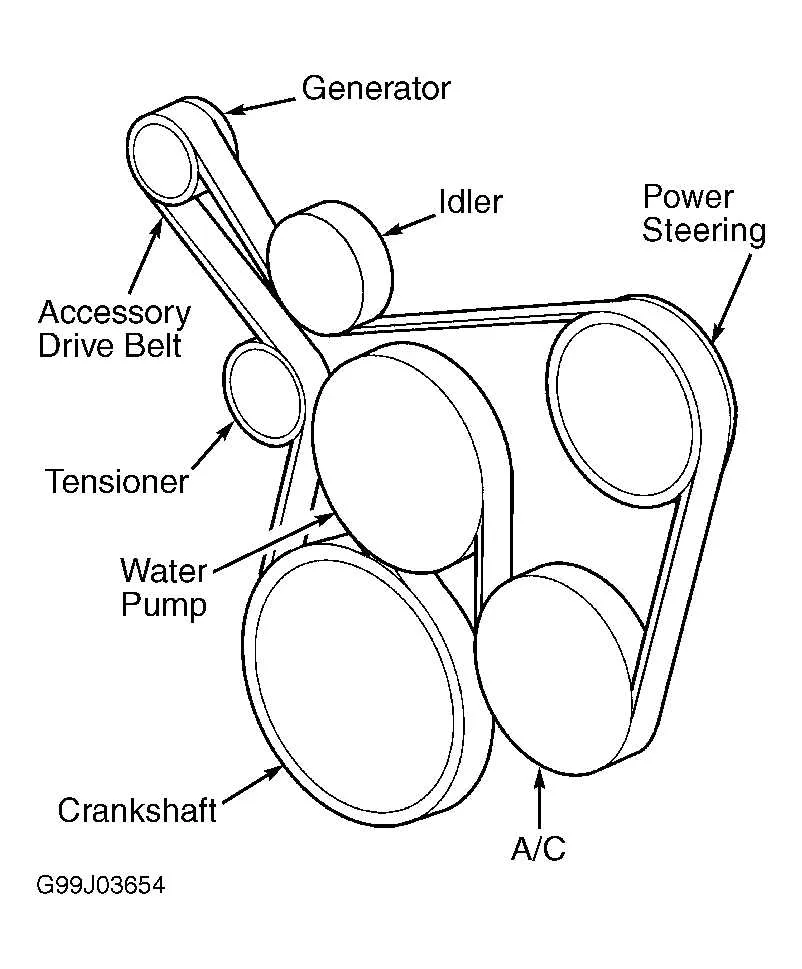

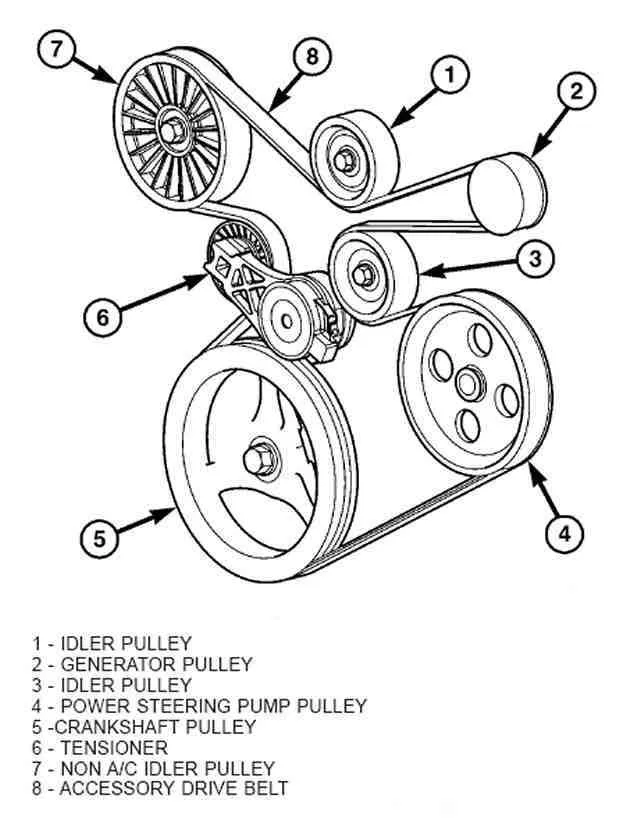

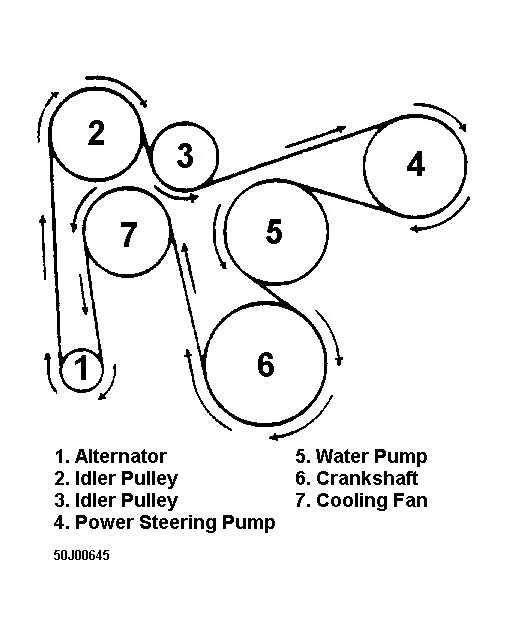

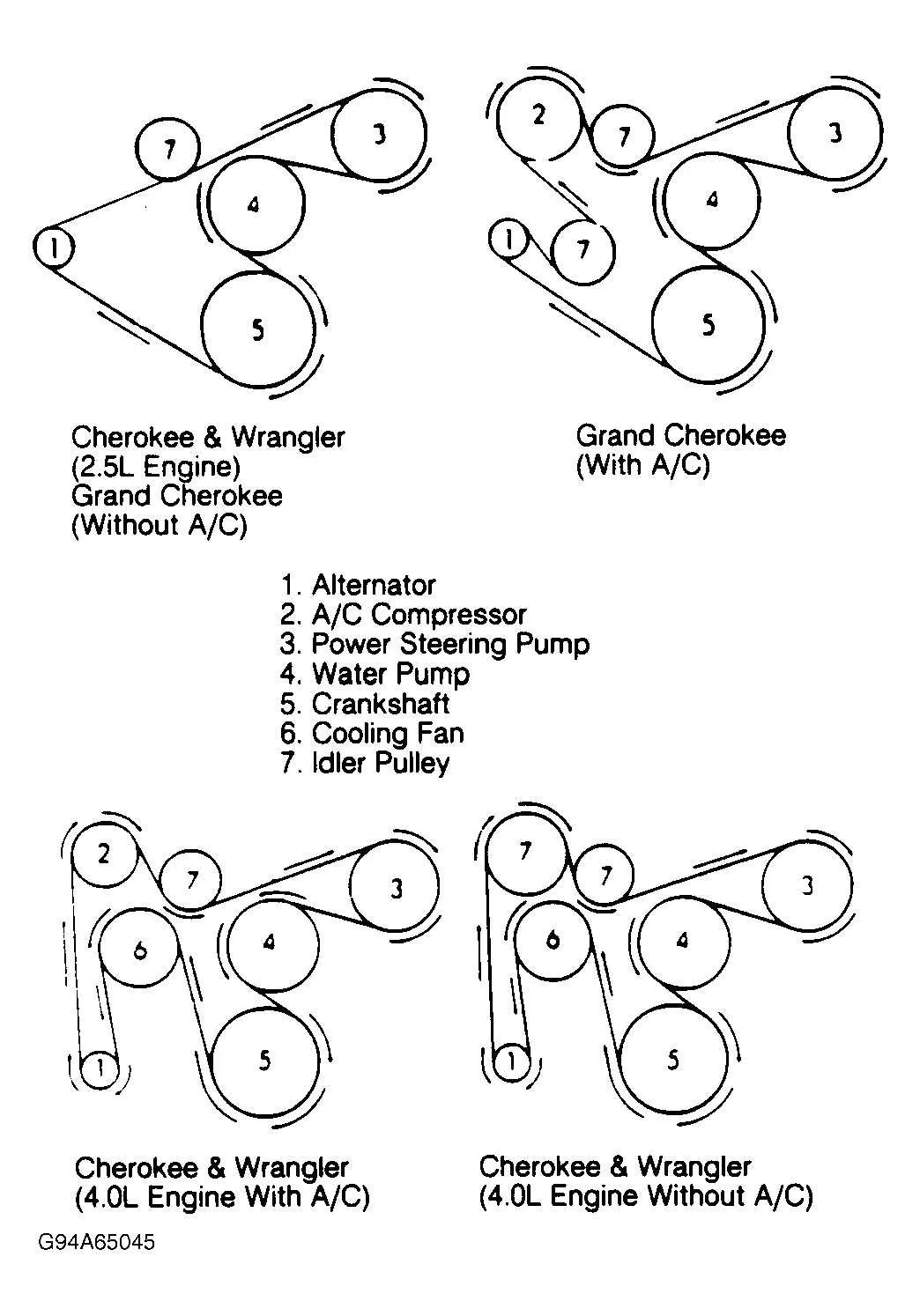

1997 Jeep Wrangler Serpentine Belt Diagram

For the 1997 Jeep Wrangler, understanding the serpentine belt routing is key to maintaining engine performance. The serpentine belt is responsible for driving various engine components such as the alternator, power steering pump, and air conditioning compressor. It is vital to follow the correct routing to avoid system malfunctions.

The serpentine belt routing on a 1997 Jeep Wrangler is a single, continuous belt that loops around multiple pulleys. Refer to the vehicle’s service manual or engine compartment diagram to ensure proper belt alignment. Start by confirming that the belt is routed correctly over the crankshaft pulley, the power steering pump, the alternator, and any other components involved in your specific engine configuration.

Ensure the tensioner pulley is correctly positioned. If the belt is too loose or too tight, it may cause wear or even break. Inspect the belt regularly for signs of damage such as cracking or fraying, and replace it promptly to avoid further complications.

Common Issues with the Serpentine Belt in the 1997 Jeep Wrangler

One common issue with the serpentine belt in the 1997 Jeep Wrangler is wear and tear. Over time, the belt can begin to crack, fray, or even break. This often results from prolonged exposure to heat, friction, and the elements. Inspect the belt regularly for visible signs of damage. If any cracks or fraying appear, replacing the belt immediately can prevent a sudden failure that could leave you stranded.

Another issue is improper tension. If the belt is too loose, it may slip off or fail to drive components effectively. Conversely, if it’s too tight, it can cause excessive wear on the bearings of pulleys and other parts. Use a tension gauge or check the belt’s tension manually according to the specifications in the owner’s manual.

Also, misalignment of the pulleys can lead to uneven wear on the serpentine belt. If the pulleys are not aligned properly, the belt may be forced into an unnatural angle, causing premature damage. Check the alignment by using a straightedge along the pulleys. If you notice any misalignment, it’s essential to adjust or replace the faulty pulleys.

Another potential issue is the condition of the pulleys themselves. Worn or damaged pulleys can cause friction and wear on the belt. Check the pulleys for smooth rotation and inspect for any signs of damage. If a pulley is damaged or rough, replace it promptly to avoid further issues with the serpentine belt.

Lastly, contamination from oil, coolant, or other fluids can degrade the serpentine belt. If any fluids leak onto the belt, clean the affected area and replace the belt if necessary. Keeping the engine bay clean and inspecting for leaks regularly will help prolong the life of the serpentine belt.

Step-by-Step Guide for Replacing the Serpentine Belt on a 1997 Jeep Wrangler

1. Park the Jeep on a flat surface and engage the parking brake. Open the hood and locate the serpentine belt, which runs across multiple pulleys in the engine bay.

2. Identify the belt tensioner. On the 1997 Jeep Wrangler, it is usually located near the top of the engine, to the right of the alternator. This component helps to maintain proper tension on the belt.

3. Use a wrench or socket to relieve tension from the belt. Insert the tool into the tensioner’s pulley bolt and rotate it counterclockwise. This will loosen the belt enough to remove it from the pulleys.

4. Remove the serpentine belt. Carefully slip the belt off the pulleys, noting its path for correct reinstallation later. Take a picture or draw a diagram of the belt routing if needed.

5. Inspect the new serpentine belt for any signs of damage. Make sure the belt matches the specifications for your 1997 Jeep Wrangler, especially the length and width.

6. Install the new serpentine belt. Start by placing the belt on the pulleys that are easiest to access. Gradually work your way around the engine, ensuring the belt follows the correct path according to the diagram.

7. Apply tension to the belt by turning the tensioner clockwise. Ensure the belt fits tightly around all pulleys without slack.

8. Double-check the routing of the belt. Ensure it sits properly on each pulley and there are no twists or misalignments.

9. Start the engine and let it run for a few minutes. Observe the belt for any irregularities or sounds, which may indicate an issue with the installation.

10. If everything runs smoothly, close the hood, and your Jeep is ready to go with the new serpentine belt installed.
