2008 Jeep Liberty Serpentine Belt Diagram and Maintenance Guide
To replace the serpentine belt on the 2008 Jeep Liberty, start by identifying the routing diagram for the belt. This diagram is usually located under the hood, either on a label or a sticker near the engine compartment. It is essential to match the correct routing to avoid any damage to the engine components. Make sure to check for any wear or tear on the old belt before proceeding.
Next, use a socket wrench to release the tension on the serpentine belt. This will allow you to remove the old belt. Compare the old belt with the new one to confirm they match in length and width before installation. The new belt should be routed precisely as indicated in the diagram to prevent slipping or improper operation.
Once the new belt is in place, rotate the engine by hand to ensure it moves smoothly through the pulleys. Check for proper alignment to avoid excessive wear. If everything is aligned correctly, the belt will run quietly and effectively without any further adjustments.

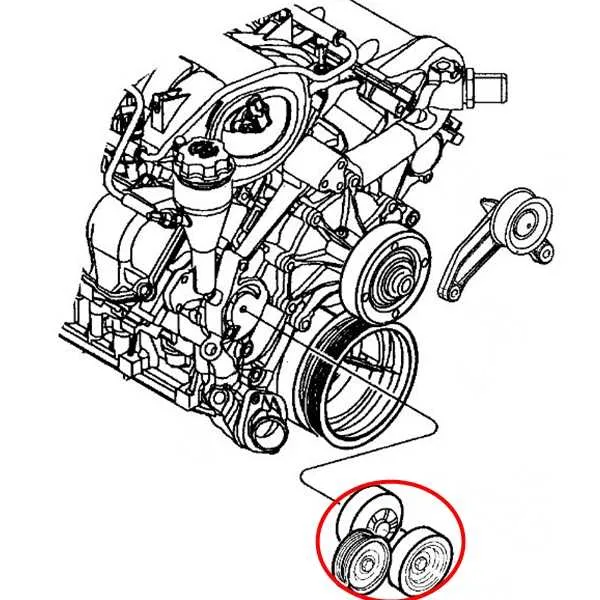

08 Jeep Liberty Belt Diagram
The 2008 Jeep Liberty belt diagram is a crucial reference for understanding the vehicle’s serpentine belt routing. This diagram shows how the various components, such as the alternator, power steering pump, and air conditioning compressor, are powered by the engine’s serpentine belt. Accurate identification and understanding of the belt configuration will help you efficiently replace or maintain these parts.
To replace the serpentine belt on the 2008 Jeep Liberty, start by locating the tensioner pulley, which is used to loosen the belt. Use a wrench or socket to turn the tensioner and relieve tension from the belt. Carefully remove the old belt, ensuring it follows the correct routing path as indicated in the diagram. When installing the new belt, make sure it runs smoothly over all pulleys and is properly aligned with each groove.
If you notice any squeaking or irregular noises coming from the belt, check the diagram to ensure the belt is positioned correctly. Also, inspect for any signs of wear, such as fraying or cracking, that could indicate the need for a replacement.

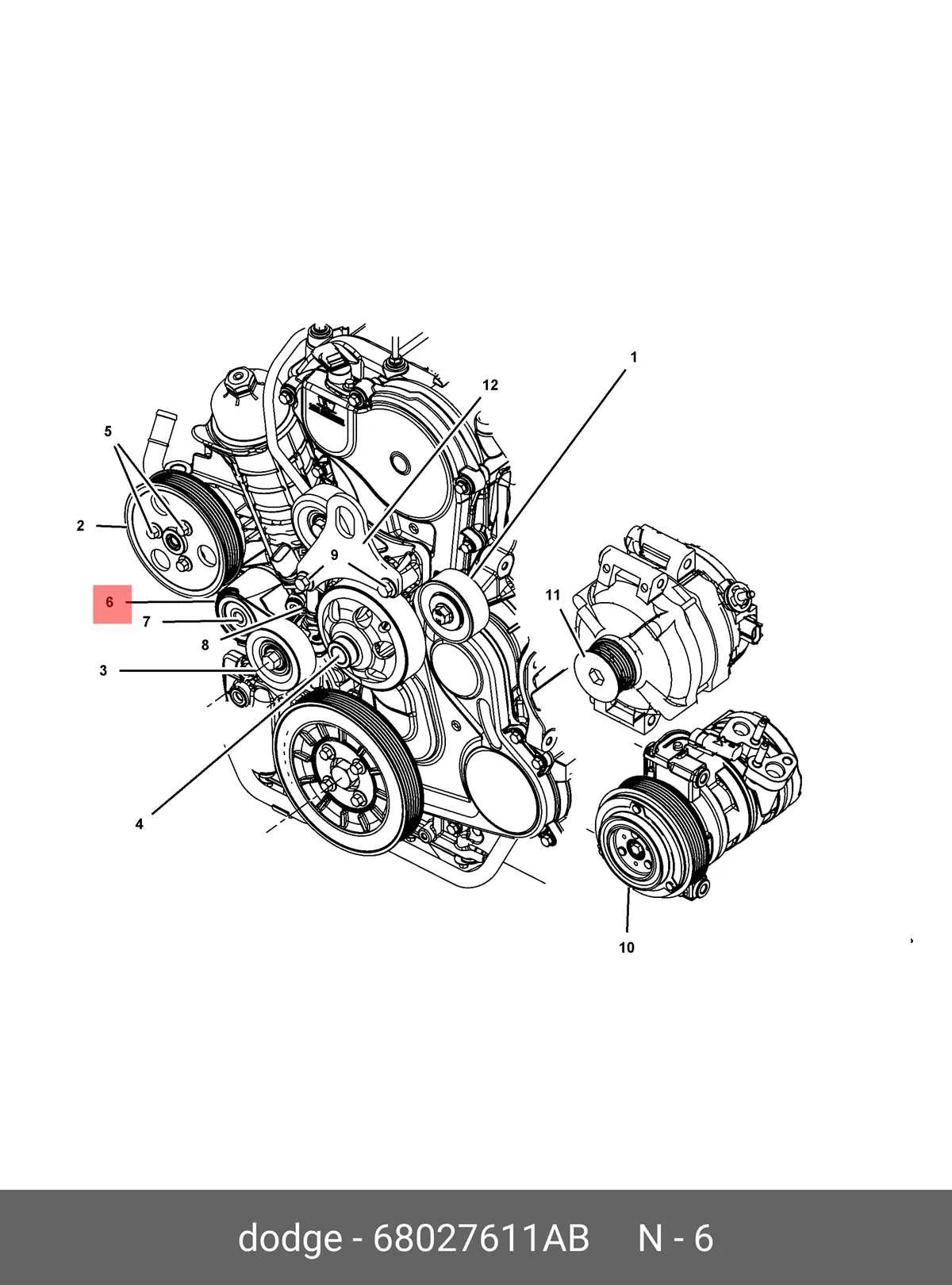

How to Read the 08 Jeep Liberty Belt Diagram
First, locate the main components of the engine in the diagram: alternator, power steering pump, water pump, and air conditioning compressor. These components are represented by symbols, often in the shape of a circle or square. Each component has a label indicating its function.
Pay attention to the routing of the belt. The diagram shows how the serpentine belt loops around the various pulleys and components. Start at the top left of the diagram and trace the path of the belt around each part. The diagram should show arrows that indicate the direction of the belt’s movement, which is important for correct installation.
Identify the tensioner pulley. This pulley is adjustable and keeps the correct tension on the belt. The diagram will typically show this pulley with an arrow indicating which way it moves when adjusting the belt tension.
If the belt is routed incorrectly, the engine’s systems may not function properly. Therefore, compare the actual belt routing on your Jeep to the diagram to ensure it matches exactly.
Look for any additional notations in the diagram that might indicate specific instructions, such as how to remove or replace the belt. This might include special steps, such as loosening specific bolts or using specific tools for tension adjustment.
Finally, verify that the belt’s length and size correspond to the specifications listed in the diagram. An incorrect size can lead to slipping or damage to engine components.
Identifying Common Issues with the Belt System on 08 Jeep Liberty
Inspect the serpentine belt for visible signs of wear, such as cracks, fraying, or glazing. These issues can lead to poor performance or complete belt failure. If the belt appears worn, replace it immediately to prevent further damage.
Check the tensioner pulley for proper alignment and functionality. A malfunctioning tensioner can result in a loose or overly tight belt, causing slipping, squealing noises, or inconsistent power delivery to engine components. Replace the pulley if necessary.
Look for any misalignment between the pulleys. Misaligned pulleys can cause uneven belt wear and lead to the belt coming off or breaking. Use a straightedge to verify alignment, and replace any damaged or worn pulleys.
Inspect the idler pulley for any play or unusual noise. A worn or damaged idler pulley can cause the belt to lose tension, leading to slipping or premature wear. If the idler pulley shows signs of damage, replace it promptly.
Ensure the belt is routed correctly according to the belt diagram. Incorrect routing can cause the belt to rub against other engine components, leading to premature wear or even belt failure. Double-check the routing before starting the engine after a belt replacement.
If you hear squealing or grinding noises, it might indicate an issue with the belt or associated components like pulleys or tensioners. Inspect all parts closely and replace any worn or damaged parts to prevent further issues.
Step-by-Step Guide to Replacing the Serpentine Belt on 08 Jeep Liberty
To replace the serpentine belt on your 08 Jeep Liberty, start by gathering the necessary tools: a wrench set, a serpentine belt tool or a socket wrench with the appropriate extension, and a replacement belt. Make sure the engine is off and cool before you begin.
1. Locate the serpentine belt. It runs across various components like the alternator, power steering pump, and AC compressor. Check your vehicle’s belt diagram, usually found on a label near the radiator or under the hood.
2. Find the tensioner pulley. This is where you’ll release the tension on the belt. Using the appropriate tool, rotate the tensioner clockwise to loosen the belt.
3. Once the tension is released, remove the belt from the pulleys. Take note of the belt’s path, as this will help you install the new one correctly.
4. Before installing the new belt, compare it with the old one to ensure they match in size and shape. Check for any signs of wear or damage in the pulleys that may have caused the belt failure.
5. Begin threading the new belt through the pulleys, following the exact path as the original. Make sure the belt is seated properly in each groove of the pulleys.
6. Use the serpentine belt tool to move the tensioner pulley again, allowing enough slack to slip the belt onto the tensioner pulley. Release the tensioner slowly to tighten the belt. The belt should be snug, but not overly tight.
7. Inspect the belt to ensure it is properly aligned on all pulleys. Rotate the engine by hand (using a wrench on the crankshaft pulley) to ensure the belt moves smoothly and does not slip off.
8. Start the engine and check for any unusual noises, such as squeaking or slipping. If everything sounds normal and the belt is properly aligned, the replacement is complete.
