Hyundai Genesis Coupe 3.8 Serpentine Belt Routing Diagram and Maintenance Guide

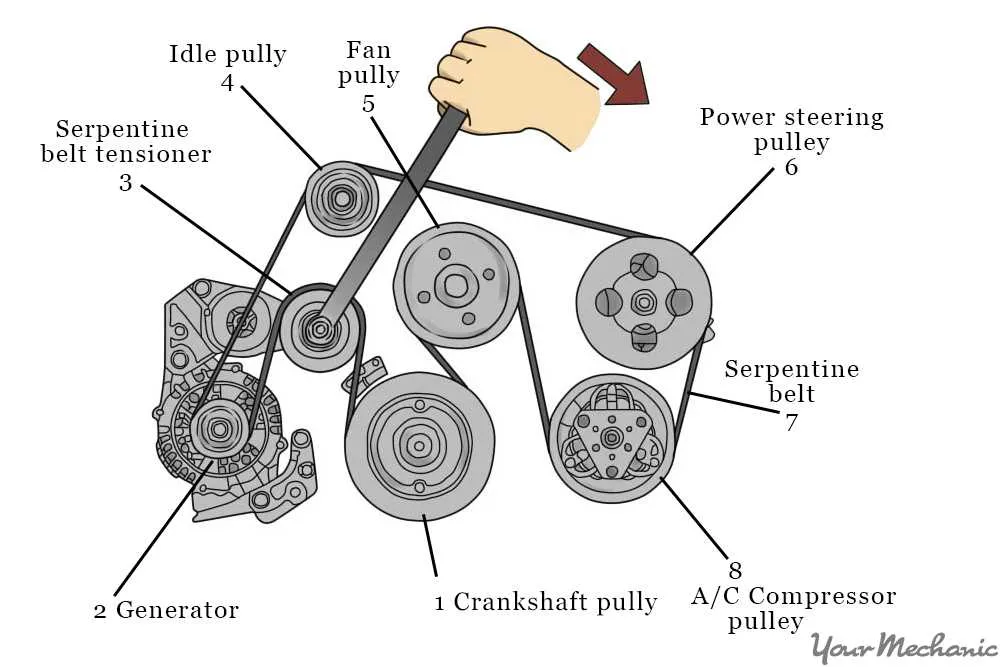

Understanding the serpentine belt diagram for your Hyundai Genesis Coupe 3.8 can save you time and prevent costly repairs. The diagram provides a clear layout of how the belt should be routed around the various engine components, ensuring everything runs smoothly.
First, locate the diagram: You can typically find the serpentine belt diagram on the underside of the hood or in the owner’s manual. This diagram is crucial for correct installation, as it shows the precise path the belt should follow. Double-check the diagram before reinstalling or replacing the belt to avoid misalignment.
Next, check the components: The serpentine belt connects several key parts of your engine, such as the alternator, power steering pump, water pump, and air conditioning compressor. A clear diagram helps you identify the routing order and ensure each component is properly engaged. The belt must remain tensioned correctly to avoid slipping or excessive wear.
When replacing the belt: If you’re replacing the serpentine belt, it’s important to inspect the pulley system for any signs of damage or wear. The diagram also aids in understanding which parts need to be removed or loosened for easy access to the belt.
Having the right diagram at hand simplifies the replacement process and ensures your Hyundai Genesis Coupe 3.8 stays in top working condition for years to come.

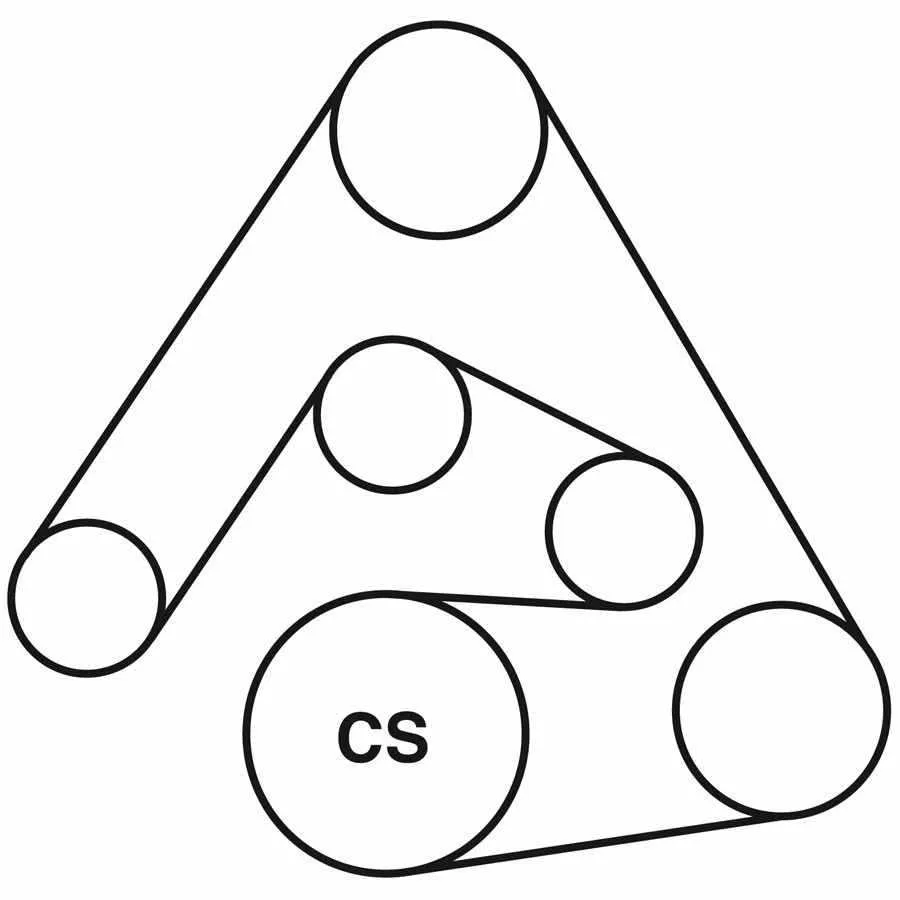

Hyundai Genesis Coupe 3.8 Serpentine Belt Diagram
The serpentine belt of the Hyundai Genesis Coupe 3.8 plays a crucial role in driving several vital components of the engine, such as the alternator, power steering pump, and air conditioning compressor. To ensure smooth operation, it’s important to follow the correct routing when replacing or inspecting the serpentine belt.
Refer to the diagram for accurate belt routing. The belt must pass through various pulleys, with the tensioner pulley providing the necessary tension to prevent slippage. If the belt is misrouted or becomes loose, it could lead to engine performance issues or complete failure of key components.
When replacing the serpentine belt, make sure to check the condition of all pulleys and the tensioner. If any components show signs of wear, consider replacing them before installing the new belt to avoid future problems. After the replacement, verify the tension, as an incorrectly tensioned belt can lead to premature wear.
Always use the manufacturer’s specifications for the belt’s size and type, as an incorrect belt can cause improper tension or even damage the pulleys. If you’re unsure about the process, consulting a mechanic or referring to the service manual is a safe choice.
Step-by-Step Guide to Locating the Serpentine Belt on Hyundai Genesis Coupe 3.8
Start by opening the hood of your Hyundai Genesis Coupe 3.8 and securing it with the hood prop. The serpentine belt is located on the front of the engine, running across various pulleys. Here’s how to find it:
- Locate the engine bay components: The serpentine belt is usually visible from the front of the engine. Look for the alternator, power steering pump, air conditioning compressor, and water pump, as the belt connects these components.
- Identify the tensioner pulley: The tensioner is a spring-loaded pulley that keeps the serpentine belt tight. It is usually located near the center of the belt routing path. You may need a flashlight to get a clear view.
- Check the belt routing diagram: Look for the diagram on the engine bay. It is typically found on the radiator support or near the engine cover. This diagram will show you the exact path the belt takes and help you visualize its placement across pulleys.
- Confirm the belt condition: As you locate the belt, check for signs of wear, cracks, or fraying. A worn-out belt may need to be replaced soon.
If you are unsure about any of these steps or if parts are obstructing your view, consider removing any covers or components blocking access. The serpentine belt is critical for proper engine function, so ensure it is properly routed and in good condition.
Common Issues and Troubleshooting for Serpentine Belt in Hyundai Genesis Coupe 3.8
If your Hyundai Genesis Coupe 3.8 is showing signs of a worn or damaged serpentine belt, inspect the belt for cracks, fraying, or signs of glazing. A squealing sound when starting the engine often indicates belt slippage or wear. If the belt is loose, check the tensioner and pulleys for any malfunction. A faulty tensioner can cause the belt to become misaligned or too slack, leading to poor engine performance.
If the engine’s accessories such as the alternator, power steering, or air conditioning stop working, the serpentine belt may have snapped or slipped off. In this case, inspect the condition of the belt, as well as the pulleys for debris or rust that could cause excessive wear. Replace the belt immediately if there’s noticeable damage. Failing to do so can lead to further damage to the accessories powered by the belt.
Another common issue is the premature wear of the serpentine belt caused by incorrect alignment. If the belt is not aligned properly with the pulleys, it can quickly degrade. This could be due to a misaligned or faulty component, such as the crankshaft pulley. Ensure that all components the belt interacts with are in good condition and correctly positioned.
If your belt is frequently slipping, inspect the tensioner. The tensioner spring could be weak, causing insufficient pressure on the belt. A replacement tensioner can resolve this problem and restore the belt’s grip. Additionally, high engine temperatures may also contribute to belt deterioration. Overheating issues should be addressed as soon as possible to avoid repeated damage to the serpentine belt.
How to Replace the Serpentine Belt on Hyundai Genesis Coupe 3.8
To replace the serpentine belt on your Hyundai Genesis Coupe 3.8, first ensure the engine is off and the car is on a flat surface. Start by disconnecting the negative battery terminal to avoid any electrical issues.
Next, locate the serpentine belt routing diagram. It’s often on a sticker under the hood, usually near the radiator or on the fan shroud. If the diagram is missing, note the belt’s path before removing it, as you will need to reinstall it the same way.
Use a socket wrench with the appropriate size to rotate the tensioner pulley. This will relieve the tension on the belt, making it easier to remove. Carefully slip the belt off the pulleys, starting from the components that are the most accessible.
Inspect the new serpentine belt for any damage or defects before installation. Align it according to the routing diagram, making sure it fits snugly over all the pulleys. If the belt has grooves, ensure the grooves face the correct direction according to the pulleys’ design.
After the new belt is in place, use the socket wrench to move the tensioner pulley again and slip the belt into its final position. Double-check that the belt is seated properly on all pulleys. Once it’s secure, rotate the engine by hand to ensure the belt runs smoothly and is properly aligned.
Reconnect the battery terminal, start the engine, and listen for any unusual noises. If everything sounds normal, the replacement is complete.
