2018 Hyundai Elantra Serpentine Belt Routing Diagram and Guide
When replacing or inspecting the serpentine belt on a 2018 Hyundai Elantra, it’s important to follow the exact routing shown in the diagram. The serpentine belt powers critical engine components, including the alternator, power steering pump, and air conditioning compressor. Any incorrect installation can lead to serious damage or failure of these systems.
Here’s a clear diagram to guide you: The serpentine belt in the 2018 Hyundai Elantra is routed in a specific pattern to ensure that each accessory receives the correct amount of power. Start by locating the tensioner, which holds the belt in place and maintains the proper tension. The belt should follow a direct path around the crankshaft pulley, and then move across the power steering pump, alternator, and other components in order, ensuring they rotate efficiently.
Key tips for installation: Before replacing the belt, make sure you have the correct size and type of belt for your Elantra model. The tensioner should be rotated to release tension on the old belt, allowing for its removal. Check for wear signs on the new belt before installation, such as cracks or fraying, and make sure the pulleys are in good condition.

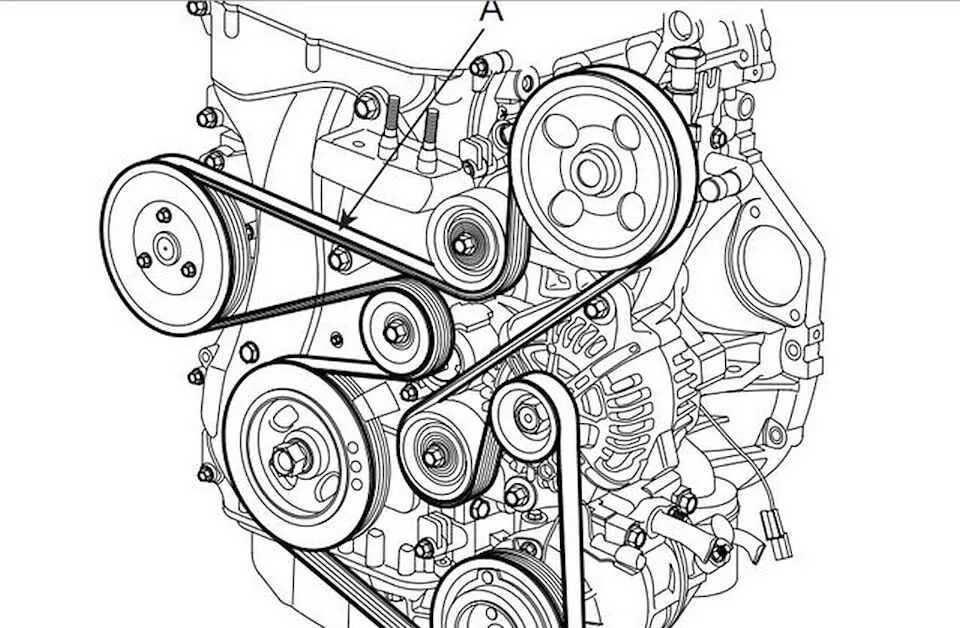

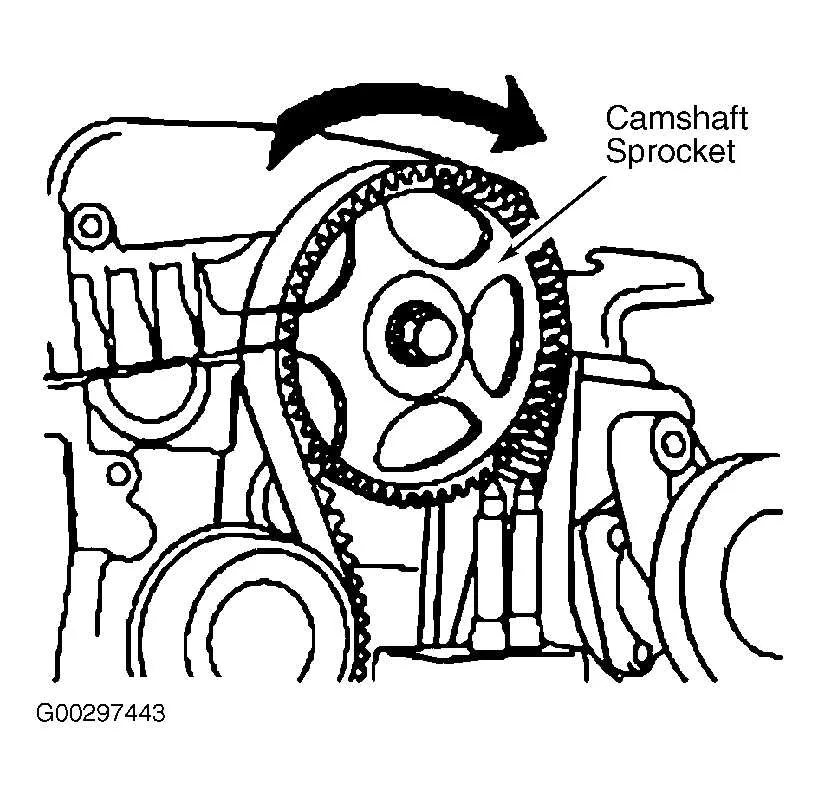

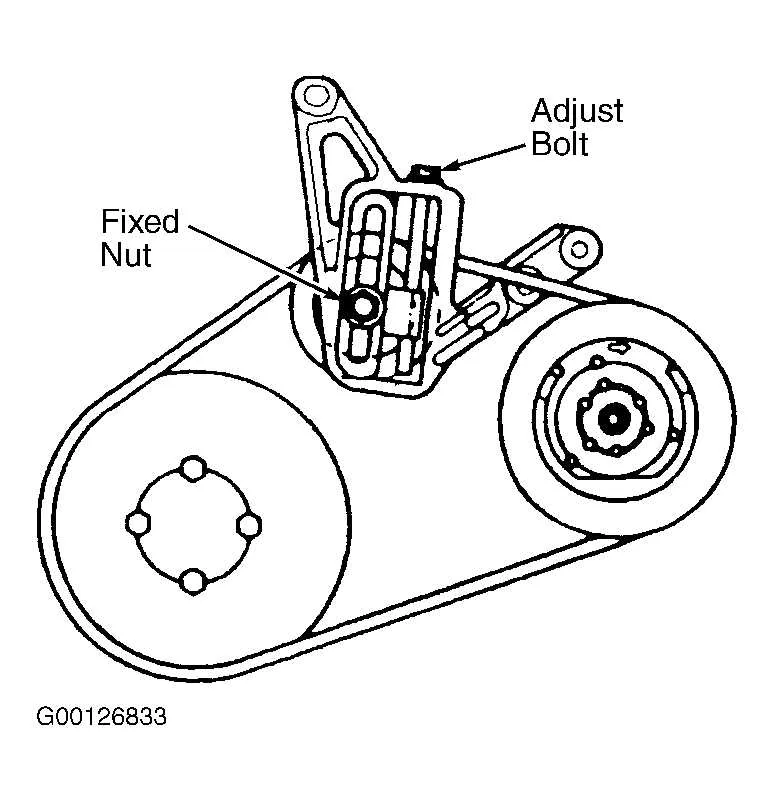

2018 Hyundai Elantra Serpentine Belt Diagram
The serpentine belt in the 2018 Hyundai Elantra plays a key role in powering various engine components, including the alternator, power steering pump, and air conditioning compressor. To ensure smooth engine performance, the belt must be routed correctly. Here’s a breakdown of how to identify the correct routing for the serpentine belt.
Start by locating the serpentine belt tensioner, which is typically on the passenger side of the engine. This tensioner keeps the belt taut. The belt runs from the crankshaft pulley, moves around the alternator, and wraps around the power steering pump. It then continues over the air conditioning compressor and around the water pump pulley. The last section of the belt loops back to the crankshaft pulley, completing the circuit.
Ensure the belt follows the correct path through the pulleys to avoid slippage and premature wear. Incorrect routing may lead to engine damage or failure of connected components. If you’re replacing the belt, it’s a good idea to check all pulleys for wear and the tensioner for proper operation. Make sure the belt is aligned with each pulley groove and properly tensioned.
If you need a visual guide, the diagram is typically located on the underside of the engine cover or in the service manual for the Elantra. Following the diagram ensures you get the belt in the right position, avoiding complications down the line.
Understanding the Layout of the Serpentine Belt in the 2018 Hyundai Elantra
The serpentine belt in the 2018 Hyundai Elantra plays a vital role in driving several important components, including the alternator, power steering pump, air conditioning compressor, and water pump. It is crucial to ensure the correct routing to avoid wear or malfunction.
Start by checking the belt routing diagram, which is typically located near the engine bay, either on the radiator support or the engine cover. The diagram illustrates how the serpentine belt should loop around the various pulleys and components. It’s key to follow this diagram precisely for optimal performance.
In the 2018 Elantra, the serpentine belt runs over several pulleys: the crankshaft pulley, alternator pulley, idler pulleys, and tensioner pulley. The tensioner pulley keeps the belt under proper tension, preventing slipping or damage. The diagram indicates the direction of rotation for each pulley, which is necessary when replacing the belt.
Before replacing the belt, ensure the tensioner is released properly. Use the right tools to relieve tension from the tensioner pulley, allowing the belt to be removed and replaced without strain. Pay close attention to the condition of each pulley to avoid further issues.
After replacing the belt, make sure to inspect it for correct installation. The belt should align properly with all pulleys and the tensioner should maintain proper tension. Any misalignment or slack could lead to belt wear or failure.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2018 Hyundai Elantra
1. Disconnect the Battery
Start by disconnecting the negative terminal of the battery. This ensures safety while working on the engine components. Use a wrench to loosen the bolt and remove the cable.
2. Locate the Serpentine Belt
Open the hood and locate the serpentine belt. It runs through multiple pulleys and connects the alternator, power steering pump, and other components. Refer to the diagram on the engine bay or the vehicle’s manual to understand the belt’s path.
3. Identify the Tensioner Pulley
Find the tensioner pulley, which applies pressure to keep the belt tight. This pulley typically has a bolt in the center. You will need to relieve tension from this pulley to remove the belt.
4. Release the Tension
Use a ratchet wrench and socket to rotate the tensioner pulley counterclockwise. This will loosen the belt enough to remove it from the pulleys. Be cautious, as the tensioner may snap back after releasing the pressure.
5. Remove the Serpentine Belt
Once the tension is released, slide the serpentine belt off the pulleys. Pay attention to how the belt is routed so you can install the new one in the correct position.
6. Inspect the New Belt
Before installing the new belt, compare it with the old one. Make sure they are the same length and have the same number of grooves. If there are any differences, the new belt might not fit properly.
7. Install the New Serpentine Belt
Carefully route the new serpentine belt around the pulleys, following the same path as the old one. Ensure it sits securely in each groove and aligns correctly with all the pulleys.
8. Reapply Tension
Use the ratchet wrench to rotate the tensioner pulley again in the clockwise direction. This will apply tension to the new belt, keeping it tight. Make sure the belt is properly aligned as the tensioner locks into place.
9. Double-Check the Belt Alignment
Before closing the hood, inspect the belt’s alignment and make sure it runs smoothly over all pulleys. The belt should sit flat against each pulley without slipping off.
10. Reconnect the Battery
Reconnect the negative terminal of the battery and tighten the bolt. This will restore power to the car.
11. Test the Engine
Start the engine and observe the belt in operation. Check for any unusual noise or vibrations. If everything sounds smooth, you’ve successfully replaced the serpentine belt.
Common Issues with the Serpentine Belt in 2018 Hyundai Elantra and How to Troubleshoot Them
If you notice squealing sounds, engine performance issues, or loss of power steering, the serpentine belt could be the cause. Here’s how to identify and troubleshoot common problems with the serpentine belt in the 2018 Hyundai Elantra.
- 1. Squealing Noise: A worn or loose serpentine belt can cause a high-pitched squealing noise, especially during acceleration. Inspect the belt for signs of wear, such as cracks or glazing. Tightening or replacing the belt can resolve the issue.
- 2. Belt Slipping: If the belt slips off the pulleys, the engine may struggle to perform basic functions like charging the battery or powering the air conditioning. Check the belt tensioner for wear and replace it if necessary.
- 3. Engine Stalling: A damaged or failed serpentine belt can cause the engine to stall by disrupting the alternator, power steering, and cooling systems. If your vehicle stalls intermittently, inspect the belt and its pulleys for any damage or misalignment.
- 4. Overheating: If the serpentine belt is not functioning properly, it can impact the water pump’s ability to circulate coolant. Check the belt’s condition and replace it if there are signs of fraying or breaking.
- 5. Poor Power Steering Response: A failing serpentine belt can cause difficulty in steering, especially at low speeds. If the belt is loose or damaged, replacing it will restore the power steering functionality.
To troubleshoot these issues, start by inspecting the belt for visible signs of wear. If the belt looks fine, check the tension and alignment of the pulleys. If you are unable to identify the issue, consider consulting a mechanic for further diagnostics.
