Hyundai Elantra 2017 Belt Diagram and Serpentine Belt Routing Guide

If you’re working on the 2017 Hyundai Elantra and need to locate the belt routing, you’re in the right place. This diagram will help you quickly identify the correct path for your serpentine or timing belts, ensuring a smooth engine performance and avoiding costly mistakes during repair or maintenance.

The serpentine belt is responsible for powering multiple engine components, including the alternator, power steering pump, and air conditioning compressor. For the 2017 Hyundai Elantra, make sure the belt is routed properly around the pulleys to avoid slippage or damage. Check the diagram below to confirm the belt installation and ensure your car runs efficiently.

Note: It’s important to inspect the belt for signs of wear or cracking. If the belt shows any damage, replace it immediately to avoid engine performance issues. Also, ensure the tensioner is in good condition to maintain the correct belt tension, preventing premature wear.

Refer to the diagram when replacing or adjusting the belt. If you’re unsure about the process, it’s always a good idea to consult a professional or refer to the vehicle’s manual for additional specifications on torque and tensioning procedures.

2017 Hyundai Elantra Belt Diagram

The 2017 Hyundai Elantra uses a serpentine belt to drive several engine components such as the alternator, power steering pump, water pump, and air conditioning compressor. The belt runs in a specific path, so it’s essential to follow the correct routing to ensure proper operation of the engine’s accessories. A misrouted or worn-out belt can cause a range of issues, including loss of power steering or overheating due to a malfunctioning water pump.

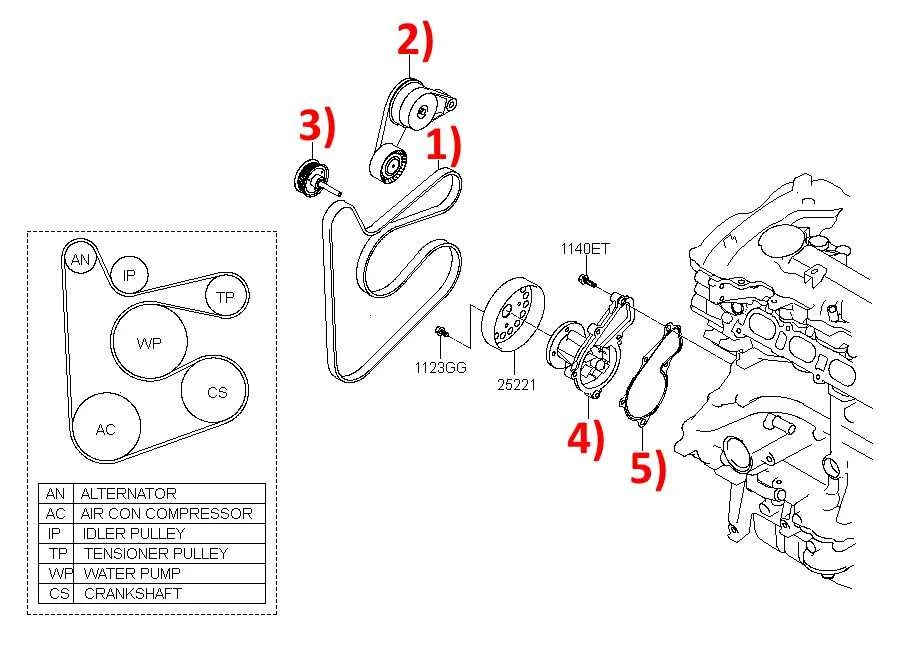

Refer to the diagram below to see the exact routing for the serpentine belt in the 2017 Hyundai Elantra. Make sure the belt is installed properly to avoid unnecessary strain on the engine components. A tensioner pulley is used to maintain the right amount of tension on the belt, so check for any wear or damage on the tensioner as well.

Key components in the belt routing:

• Alternator
• Power Steering Pump
• Water Pump
• Air Conditioning Compressor
• Idler and Tensioner Pulleys

If the belt shows signs of cracking, fraying, or glazing, it is time to replace it. Always use a replacement belt that matches the manufacturer’s specifications for length and width. Installing a belt that is too tight or too loose can cause premature wear on both the belt and the pulleys. Regular inspection and maintenance can help extend the lifespan of your vehicle’s engine components.

How to Identify the Correct Belt Routing for 2017 Hyundai Elantra

Locate the vehicle’s belt routing diagram. This can be found on a sticker in the engine bay, typically near the radiator or on the engine cover. It will display the precise layout of the serpentine belt and its path around various pulleys.

Inspect the pulleys closely. The routing follows a specific sequence, with the belt looping around the crankshaft, alternator, power steering pump, and air conditioning compressor. Make sure the belt passes over the correct pulleys and tensioners. The diagram should highlight any specific routing details, like how the belt should loop around the idler pulley or the automatic tensioner.

Ensure that the tensioner is set correctly. The tensioner’s position plays a key role in maintaining belt tension. Verify that it is positioned properly to keep the belt tight but not overly stretched. A loose or tight belt can cause noise or premature wear.

Consult the vehicle manual for any unique adjustments. Some Elantras may have minor variations depending on the model year or engine type. Cross-check the information on the diagram with the manual to ensure accuracy.

If the belt has already been removed, manually turn each pulley to confirm that they move smoothly. This helps confirm that all components are functioning properly before you install the new belt.

After routing the belt, double-check the alignment before starting the engine. The belt should sit securely in each groove without slipping off any pulleys. Run the engine for a few seconds to ensure everything is operating smoothly.

Steps to Replace Serpentine Belt on 2017 Hyundai Elantra

First, ensure the engine is off and cool. Disconnect the negative terminal of the battery to prevent accidental electrical issues.

Next, locate the serpentine belt. For the 2017 Hyundai Elantra, it runs around the engine components such as the alternator, power steering pump, and air conditioning compressor. Use a belt diagram for reference.

Using a socket wrench, rotate the tensioner pulley clockwise to relieve tension from the serpentine belt. This will allow you to remove the belt from the pulleys.

Carefully remove the old belt. Pay attention to its routing and orientation, as you’ll need to install the new belt the same way. Compare the new belt to the old one to ensure proper size and fit.

Install the new serpentine belt, following the same route as the old belt. Double-check the alignment of the belt on all pulleys to avoid any misalignment that could cause damage.

Rotate the tensioner pulley again, this time counterclockwise, to tighten the new belt into place. Ensure it is secure and has proper tension. The belt should sit snugly on the pulleys without being too tight.

Reconnect the battery and start the engine. Listen for any unusual noises, indicating the belt may not be installed correctly.

Finally, inspect the belt after a short drive to ensure everything is functioning properly and the belt remains in position.

Common Issues with the Belt System in 2017 Hyundai Elantra

If you’re noticing unusual noises, poor engine performance, or accessory failures, the belt system in your 2017 Hyundai Elantra might be the culprit. Here are the most common issues you may encounter:

• Worn Serpentine Belt: Over time, the serpentine belt can stretch, crack, or become frayed, leading to a loss of power for accessories like the alternator, air conditioning, and power steering. If you hear squealing sounds or notice a drop in power, inspect the belt for wear and replace it if necessary.
• Damaged Tensioner Pulley: A faulty tensioner pulley can cause the serpentine belt to slip, resulting in inconsistent operation of engine accessories. If the pulley is not keeping the belt properly tensioned, it can lead to premature wear on the belt and other components.
• Misalignment of Pulleys: Misaligned pulleys can cause the belt to wear unevenly, leading to noise and reduced performance. This issue may arise due to damaged bearings or faulty installation, and it should be corrected to avoid further damage.
• Loose or Broken Belt: A loose or broken belt can immediately disrupt the operation of critical systems like the alternator, water pump, or air conditioning. If this happens, the engine may overheat or stop working altogether.
• Damaged Crankshaft or Idler Pulley: Damage to the crankshaft or idler pulley can prevent the belt from rotating smoothly. This issue typically requires replacement of the affected components to ensure proper functioning.

To avoid these issues, regularly inspect the belt system for signs of wear, and replace components as needed. Maintaining the belt system will keep your Hyundai Elantra running smoothly and prevent costly repairs down the line.
