2016 Hyundai Accent Serpentine Belt Diagram and Installation Guide

The serpentine belt in your 2016 Hyundai Accent plays a vital role in driving multiple engine components, such as the alternator, air conditioning, and power steering. To maintain smooth vehicle performance, understanding the exact routing of this belt is crucial. Incorrect installation can lead to damage or malfunction of these systems.

To replace or inspect the serpentine belt, start by ensuring the engine is turned off and cooled down. Locate the tensioner pulley and relieve the tension on the belt to safely remove it. Refer to the diagram to guide the installation of the new belt, making sure it runs through all the pulleys correctly without slipping or becoming loose.

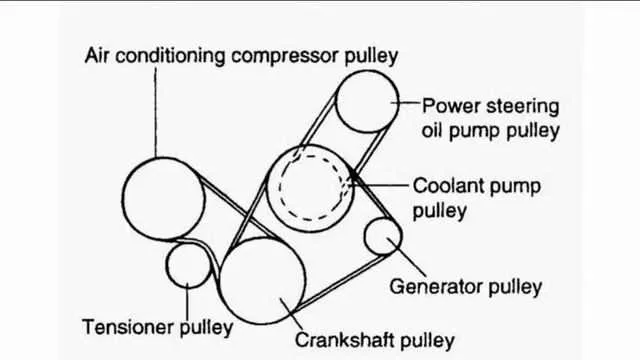

In the diagram, each pulley and component is numbered for clarity. Follow the path exactly, noting the direction of the belt’s grooves and the alignment of each pulley. A well-installed serpentine belt can improve engine efficiency and prevent unnecessary wear on critical parts.

2016 Hyundai Accent Serpentine Belt Diagram

The serpentine belt in the 2016 Hyundai Accent plays a critical role in powering various engine components. It drives the alternator, air conditioning compressor, power steering pump, and water pump. Understanding the correct routing and proper tensioning is essential for maintaining vehicle performance and avoiding breakdowns.

To identify the right routing for your serpentine belt, refer to the engine compartment diagram. The diagram shows the exact path the belt follows, including the pulleys it wraps around. If you don’t have the diagram on hand, a replacement belt typically comes with a reference guide that indicates the correct path.

Here are the steps to inspect and replace the serpentine belt:

• Locate the tensioner pulley and release the tension on the belt using a wrench.
• Remove the old belt carefully, noting the routing path for reinstallation.
• Compare the new belt with the old one to ensure it matches in size and length.
• Install the new belt by following the exact path indicated in the diagram.
• Ensure the belt sits properly on all pulleys and the tensioner is set correctly.

In case the belt is worn out, cracked, or loose, replacing it promptly is necessary to prevent any further damage to the engine components it drives. Regular inspections can help detect signs of wear before they lead to significant issues.

How to Locate the Serpentine Belt on 2016 Hyundai Accent

To locate the serpentine belt on your 2016 Hyundai Accent, first open the hood and secure it. Stand in front of the car and look for the engine’s front end. The serpentine belt runs across several components, including the alternator, power steering pump, and air conditioning compressor.

You’ll find the belt on the right side of the engine, near the front. It wraps around a series of pulleys that are visible once you remove any plastic covers, if applicable. The belt itself is typically located just below the engine cover and is accessible from the top of the engine compartment.

If you’re unable to see the belt immediately, check for the tensioner pulley, which is often the key component that keeps the belt tight. The tensioner pulley will have a small spring-loaded mechanism that holds the belt in place. This pulley is often the easiest way to confirm the belt’s position.

Step-by-Step Instructions for Replacing the Serpentine Belt

Begin by ensuring the engine is off and cooled down. Use a jack to lift the front of the vehicle and secure it with jack stands for safety.

Locate the serpentine belt tensioner, which is usually near the front of the engine. Use a wrench or socket to rotate the tensioner and relieve pressure on the belt. Slide the belt off the pulleys carefully.

Take note of the belt routing pattern. It’s crucial to remember how the belt is positioned on the pulleys before removing it. A diagram for reference, often found in the engine bay, can be very helpful.

Remove the old belt and inspect the pulleys for wear. If any pulleys feel rough or have visible damage, replace them before installing the new belt.

Position the new serpentine belt over the pulleys, following the exact routing as the old one. Start by placing the belt over the largest pulleys, then work your way to the smaller ones.

Once the belt is in place, use the wrench to rotate the tensioner again and fit the belt onto the tensioner pulley. Ensure the belt sits properly on all pulleys, without slipping off any grooves.

Double-check the belt alignment and tension. It should be taut but not overly tight. Start the engine to verify that the belt is operating correctly and that there’s no squealing noise or abnormal vibrations.

Lower the vehicle and test drive to confirm everything is functioning smoothly. If the belt shows any signs of slippage or wear, stop and inspect again.

Common Issues with the Serpentine Belt and How to Troubleshoot

If the serpentine belt on your 2016 Hyundai Accent begins to squeal or shows visible signs of wear, it’s time to troubleshoot and address the issue. The most common problems include belt slippage, cracks, and misalignment. Here’s how to tackle each of these issues:

First, check for signs of belt slippage. If the belt appears loose or is slipping over the pulleys, it may not be properly tensioned. Use a tension gauge to verify the correct tension. If it’s off, adjust the tensioner or replace it if damaged.

Next, inspect the belt for visible cracks or fraying. A belt in poor condition should be replaced immediately, as it can break and cause significant damage to the engine. Ensure the belt is tight and secure, with no signs of fraying along its edges. Replacing the belt when these signs appear can prevent further complications.

Misalignment is another common issue. If the belt runs off-center or is misaligned on the pulleys, it may indicate that one of the pulleys is out of alignment. Inspect the pulleys for wear and realign or replace any that are not rotating properly.

Lastly, inspect the belt for wear caused by oil or coolant leaks. These fluids can degrade the belt material, causing it to lose its grip. Clean any spills on the engine and replace the serpentine belt if it has been exposed to these substances for an extended period.
