2015 Hyundai Santa Fe Serpentine Belt Diagram and Installation Guide

If you’re working on the 2015 Hyundai Santa Fe, understanding the belt diagram is crucial for proper maintenance and repair. The belt system plays a key role in keeping the engine’s components running smoothly, including the alternator, power steering pump, and air conditioning compressor. Refer to the belt diagram to ensure everything is aligned correctly for optimal function.

The 2015 Santa Fe typically uses a serpentine belt system, which is designed to drive multiple accessories from a single belt. The diagram will show the path the belt takes around various pulleys and tensioners, making it easier to diagnose issues like belt wear or misalignment. Pay attention to the tensioners–they ensure the belt maintains proper tension, preventing slippage or damage.

If you’re replacing the belt or making repairs, check for any signs of wear such as cracks, fraying, or glazing. These issues can cause slipping or even complete failure, leading to costly repairs or a breakdown. Using the diagram as a guide during the installation will ensure that the belt is routed correctly, reducing the risk of damage.

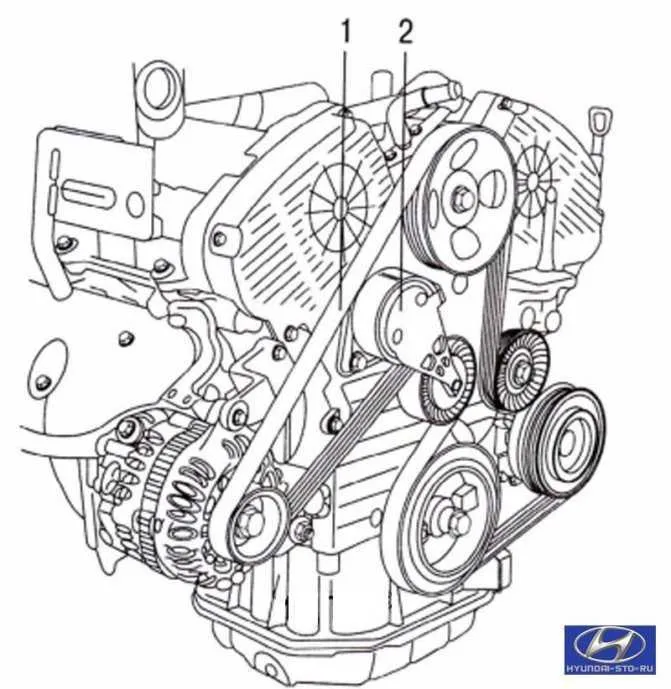

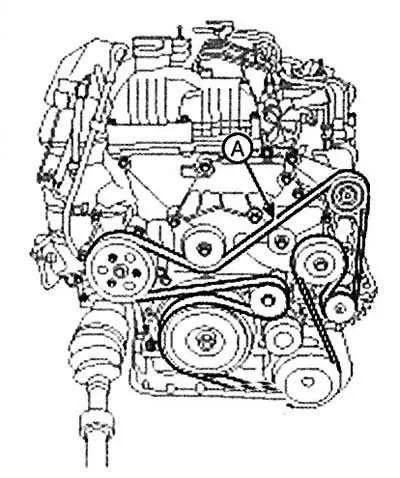

2015 Hyundai Santa Fe Belt Diagram

For optimal performance, ensure your 2015 Hyundai Santa Fe’s serpentine belt is installed correctly. The belt diagram shows how the serpentine belt connects the engine components, such as the alternator, power steering pump, and air conditioning compressor. Follow this diagram to avoid issues like belt slippage or excessive wear.

Here’s how the belt routing looks for this model:

• Start from the crankshaft pulley.
• Route the belt around the tensioner pulley.
• Move the belt towards the alternator.
• Continue routing over the power steering pump.
• Finally, pass the belt over the air conditioning compressor pulley.

Make sure the belt is aligned properly with all pulleys. Misalignment can lead to premature belt damage or engine component failure. Double-check that the belt tension is correct after installation, as too much tension can stress the pulleys, while too little can cause slippage.

If you’re replacing the belt, it’s advised to also inspect the pulleys for wear or damage. A worn pulley can cause the new belt to wear out quickly.

Understanding the Serpentine Belt Layout for 2015 Hyundai Santa Fe

The serpentine belt layout on the 2015 Hyundai Santa Fe follows a specific path to drive key components like the alternator, power steering pump, and air conditioning compressor. The belt starts at the crankshaft pulley, loops around the tensioner and idler pulley, and moves through each accessory pulley.

The belt is routed through a tensioner that maintains proper tightness. This automatic tension system compensates for belt wear, keeping it snug without manual adjustments. The idler pulley directs the belt in the correct path, ensuring smooth operation of the connected accessories.

If you’re replacing the serpentine belt, it’s critical to refer to the belt diagram specific to your model. Any misplacement of the belt on the pulleys can lead to malfunctioning components. Be sure the belt runs smoothly across all pulleys and is properly tensioned, as an improperly routed or loose belt can cause engine performance issues.

Inspect the belt regularly for wear signs such as cracks, fraying, or glazing. A worn belt should be replaced immediately to avoid failure of crucial systems. If you notice any squealing or power loss in accessories like the air conditioning or steering, check the belt for proper tension and alignment.

Steps for Replacing the Drive Belts on Your 2015 Hyundai Santa Fe

First, disconnect the negative terminal of the battery to avoid any electrical issues. This step ensures your safety while working on the engine.

Locate the drive belts, which are typically found near the front of the engine. Use a flashlight if necessary to identify the correct belts. There should be a diagram under the hood that shows the routing of each belt, which can help guide you during the replacement process.

Using a wrench or socket set, loosen the tensioner pulley. This will relieve pressure from the belt, making it easier to remove. Carefully slide the old belt off the pulleys, noting the routing for reinstallation.

Inspect the new belt for any signs of damage or wear. Make sure it matches the specifications for your Santa Fe. Compare it with the old belt to confirm the correct size and type.

Install the new belt, following the same path as the old one. Ensure that the belt is properly seated in all the grooves of the pulleys. Tighten the tensioner pulley to apply proper tension to the new belt. Double-check that the belt is aligned correctly.

Recheck the tensioner once the new belt is in place. The belt should not be too tight or too loose. It should have a slight give when you press down on it with moderate force.

Finally, reconnect the battery, start the engine, and observe the new belt in motion. Listen for any unusual noises, which could indicate improper installation. If everything sounds and looks good, you’re finished!

Troubleshooting Common Belt-Related Issues in the 2015 Hyundai Santa Fe

If your 2015 Hyundai Santa Fe is showing signs of belt-related problems, check for these common issues before heading to a mechanic.

First, listen for any unusual squealing or chirping noises coming from the engine. This is often caused by a worn or loose serpentine belt. Inspect the belt for cracks, fraying, or signs of wear. If the belt appears damaged, replace it immediately to prevent further engine complications.

Next, check the belt tension. A loose or slack belt can lead to poor performance or cause your air conditioning and power steering to malfunction. Use a belt tension gauge to ensure it’s properly tightened. If the belt is not tensioned correctly, it might need adjustment or replacement.

Overheating is another issue tied to the serpentine belt. A worn belt may cause the engine cooling fan to stop working, resulting in engine heat buildup. Inspect the belt for any signs of damage and test the cooling fan for proper function.

If the alternator warning light appears on your dashboard, it could mean the serpentine belt is no longer delivering power to the alternator. Check the belt for visible damage and ensure it’s properly connected. A slipping belt can also cause your battery to drain, so it’s important to address this immediately.

In cases where the belt is constantly slipping off its pulleys, check for misalignment. This can be due to a damaged pulley, tensioner, or improper belt routing. Inspect all pulleys for wear and replace any that show signs of damage or misalignment.

Lastly, keep in mind that belts can stretch over time. Regularly check the belt’s condition and replace it according to the manufacturer’s recommended schedule to prevent unexpected failures.
