2013 Hyundai Accent Belt Diagram and Routing Guide

The 2013 Hyundai Accent uses a specific belt routing system that is crucial for the proper functioning of various engine components. Ensure the belt is installed correctly to avoid misalignments that could lead to engine performance issues.

Start by identifying the primary drive belts. The serpentine belt powers the alternator, air conditioning, and power steering pump. It should run smoothly without excessive slack or wear. If the belt appears worn, replacing it immediately will prevent more significant issues.

Pay close attention to the tensioner pulley. A malfunctioning pulley can lead to improper tension, causing the belt to slip or wear prematurely. Inspect it regularly for signs of wear and replace it if necessary.

To confirm the belt routing, refer to the engine diagram for clear indications of how the belt should loop around each pulley. A correct belt installation minimizes friction and maintains efficient power transfer between the engine components.

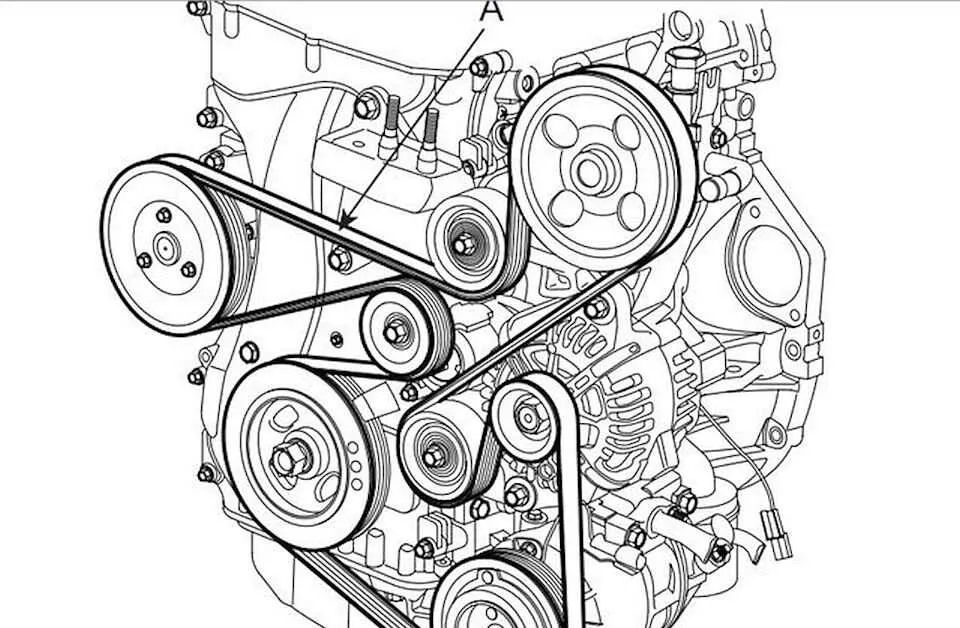

2013 Hyundai Accent Belt Diagram

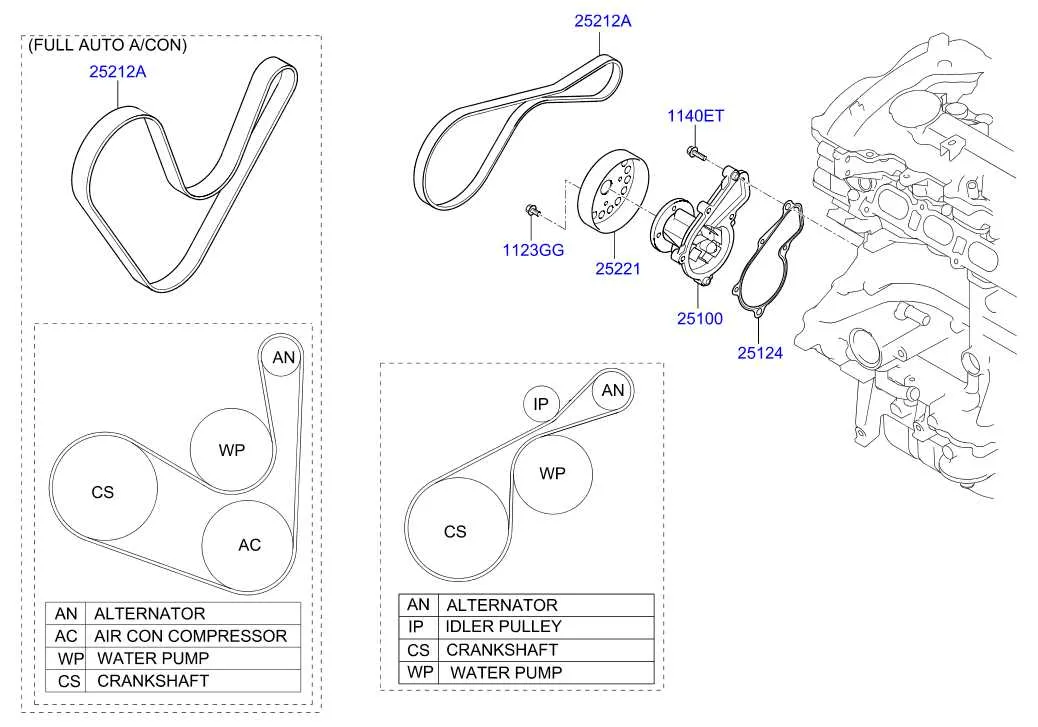

To correctly identify the belt routing for your 2013 Hyundai Accent, it’s crucial to follow the factory belt diagram precisely. This ensures proper operation of the engine components and prevents damage to the engine parts.

The serpentine belt is responsible for driving multiple accessories such as the alternator, power steering pump, and air conditioning compressor. In the 2013 Hyundai Accent, the configuration is relatively simple but requires attention to detail.

• The main drive belt follows a counterclockwise route, starting from the crankshaft pulley.
• It loops around the air conditioning compressor pulley, continuing to the alternator.
• The belt then moves towards the power steering pump before returning to the crankshaft pulley.

Double-check that the belt is properly tensioned before starting the engine. A loose or misaligned belt can cause performance issues and even lead to the belt slipping off entirely. Always inspect for signs of wear such as cracks or fraying before reinstalling the belt.

If the belt is damaged or worn, replace it with the correct part number to avoid further complications. The replacement belt should have the same length, width, and tooth profile as the original to ensure smooth operation.

Step-by-Step Belt Routing for 2013 Hyundai Accent

Begin by ensuring the engine is off and the vehicle is on a stable surface. Lift the hood and locate the drive belt assembly. For clarity, start by identifying the serpentine belt, which runs through multiple pulleys.

Remove any covers or shields obstructing access to the belt. Using a wrench, release tension from the belt tensioner to loosen the belt. Once tension is relieved, carefully remove the belt from the pulleys. Take note of its routing, as it will be crucial when installing the new belt.

Next, compare the old belt with the new one. Ensure that the new belt matches the length and size of the original. Begin routing the new belt, starting from the crankshaft pulley. Carefully guide the belt around each pulley, following the correct path as shown in the diagram for the 2013 Hyundai Accent.

Ensure the belt runs smoothly over the idler pulley and alternator. Once the belt is in position, release the tensioner slowly to apply tension to the belt. Double-check the belt’s alignment on each pulley to confirm it is seated properly.

Lastly, rotate the engine by hand to verify that the belt moves freely without any signs of misalignment or friction. If everything is in place, lower the hood and start the engine to ensure proper belt operation. If the belt squeaks or slips, double-check the installation.

Common Belt Issues and How to Resolve Them in 2013 Hyundai Accent

Squealing or Chirping Sounds can indicate a worn or misaligned belt. This noise is often heard when the engine is idling or during acceleration. Check the belt tension and inspect for any signs of wear or cracks. Replace the belt if it’s damaged or slipping.

Belt Slippage occurs when the belt loses grip, often due to improper tension. A slipping belt can cause the alternator, power steering pump, and air conditioning compressor to malfunction. Use a belt tension gauge to ensure proper tension. If the tension is correct but the issue persists, inspect the pulleys for wear or misalignment. Replace the belt if necessary.

Cracks or Fraying on the belt are common signs of age and wear. Inspect the belt closely for any visible damage. A belt with cracks or fraying should be replaced immediately to avoid further damage to engine components. Regularly check the belt for signs of excessive wear, especially around the pulleys.

Belt Breakage is the most severe issue, often leading to complete engine failure. It can happen due to extreme wear, high mileage, or incorrect belt installation. If the belt breaks, replace it promptly and ensure that the pulleys are properly aligned. A broken belt may also damage other components, so it’s important to perform a thorough inspection after replacement.

Vibration or Shaking while driving can result from an imbalanced or misaligned belt. This issue can cause wear on engine components and create an uncomfortable driving experience. Inspect the belt and pulleys for alignment. Replace any worn-out components to eliminate the vibration.

Uneven Belt Wear often points to misaligned pulleys or improper tension. If the wear is concentrated on one side of the belt, it’s important to check the alignment of the pulleys and replace the belt if needed. Regular inspections can help catch this issue early before it leads to more significant problems.

Replacing the Serpentine Belt on a 2013 Hyundai Accent

To replace the serpentine belt on your 2013 Hyundai Accent, begin by disconnecting the negative terminal of the battery to prevent electrical accidents.

Next, locate the serpentine belt tensioner. Use a wrench or ratchet to rotate the tensioner counterclockwise, relieving tension on the belt. This will allow you to remove the belt from the pulleys. Make note of the belt’s routing to ensure proper installation of the new one.

Carefully remove the old belt from all pulleys, taking extra caution not to damage any components along the way.

Before installing the new belt, compare it to the old one to ensure the correct size. Start routing the new belt around the pulleys, following the diagram specific to your model. Once the belt is in place, rotate the tensioner again and slip the belt onto it to restore tension.

Double-check the belt’s alignment on all pulleys. Ensure it is properly seated and not twisted or misaligned.

Reconnect the negative terminal of the battery and start the engine to test the new belt. Listen for any unusual sounds and check that the belt is operating smoothly.
